Voltmeter PCE-PI 10

Order no.: PCE-PI 10
GTIN (EAN): 4250348719065
US$ 39.00
ex. VAT, ex. delivery costs
:
4250348719065
PCE-PI 10
Available in: 1-2 days
Your PCE Instruments Benefits
Bilingual Technical Support

Bilingual Technical Support (EN / ES)

Special Promotions

Special Promotions

Public Service, Military and First Responder Discount

Public Service, Military and First Responder Discount

30 Day Return Policy

30 Day Return Policy

2 Year Warranty

2 Year Warranty

Free Standard Shipping (US)

Free Standard Shipping (US)

Description

Voltmeter PCE-PI 10
Rotary field indicator with voltage tester / Two LCD displays / Voltage measurement up to 600V / Test leads with crocodile clips

The voltmeter is used to determine the direction of rotation of 3-phase voltage networks. Furthermore, the voltmeter is able to measure voltages up to 600V AC / DC. The rotating field direction is important for machines and plants. If the phases are not connected correctly, damage to connected motors and pumps can occur, for example.

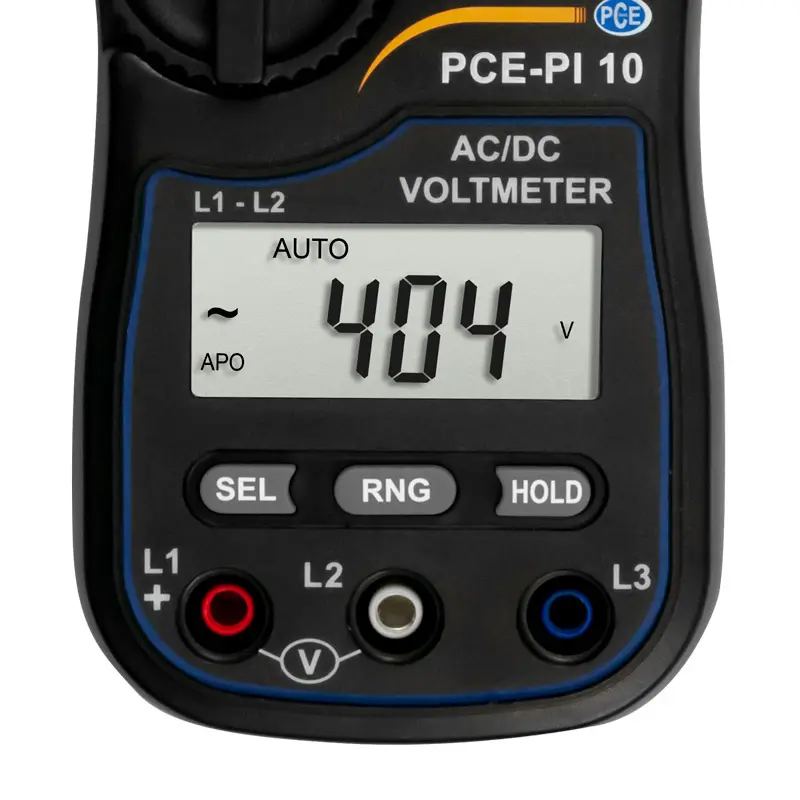

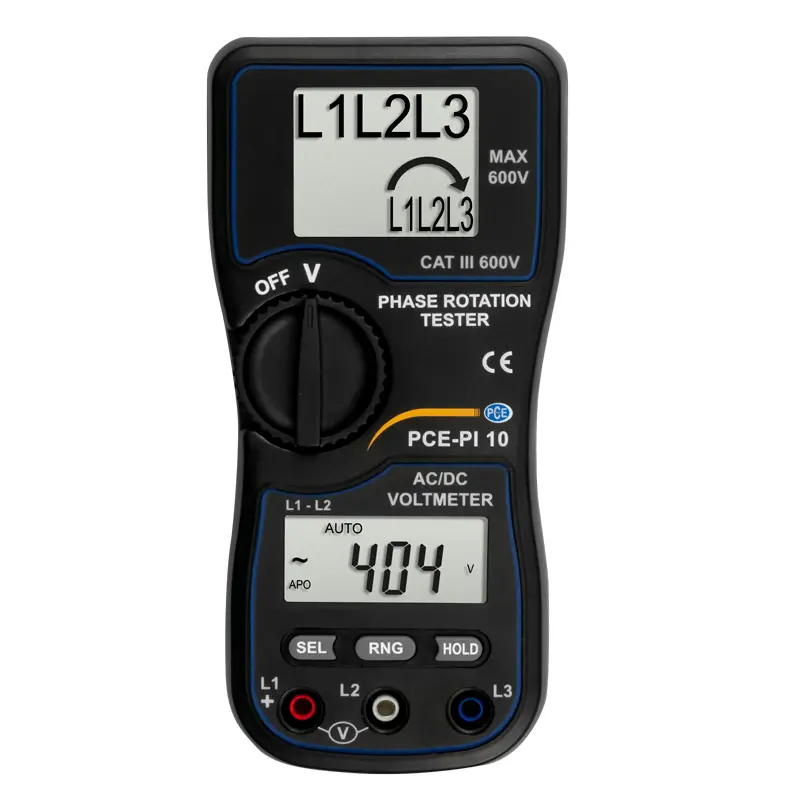

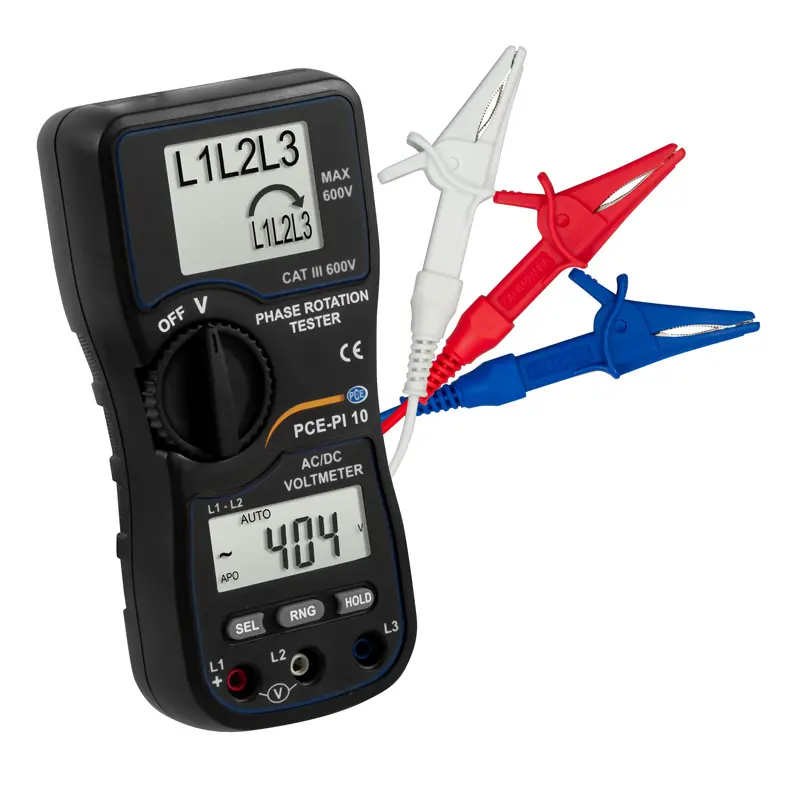

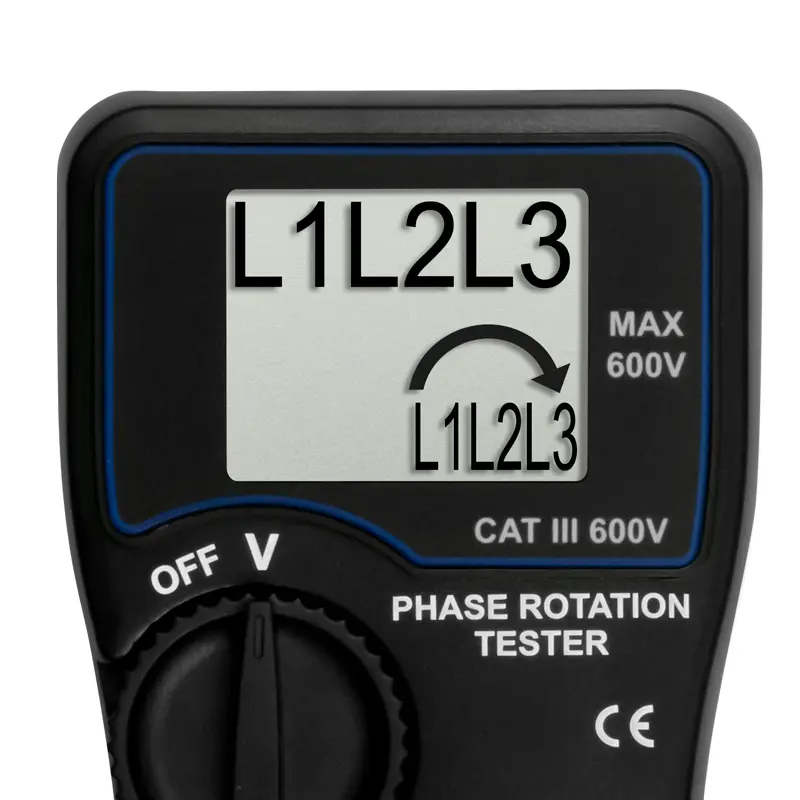

The voltmeter shows the direction of rotation on an LCD display. Furthermore, the display of the voltmeter shows whether a phase has been connected to the measuring lines or not. The measuring cables of the voltmeter are equipped with crocodile clips so that the measuring device can be connected directly to cables or screw contacts.

Highlights

- 3-phase rotating field detection
- AC / DC voltage measurement
- Measuring range 75 ... 600V AC
- Test leads with crocodile clips
- CAT III 600V
- Easy handling

Specification

Measuring range of rotating field detection 75 ... 600V AC
Frequency range of rotary field recognition   40 ... 400 Hz

AC voltage AC Measuring range    Resolution    Accuracy
  600 mV 0.1 mV ± (2.3% of rdg. + 5 Dgt)
  6V 1 mV ± (2.3% of rdg. + 5 Dgt)
  60V 10 mV ± (2.3% of rdg. + 5 Dgt)
  600V 0.1V ± (2.3% of rdg. + 5 Dgt)

DC voltage DC 600 mV 0.1 mV ± (0.8% of rdg. + 8 Dgt)
  6V 1 mV ± (0.8% of rdg. + 8 Dgt)
  60V
 10 mV ± (0.8% of rdg. + 8 Dgt)
  600V 0.1V ± (0.8% of rdg. + 8 Dgt)

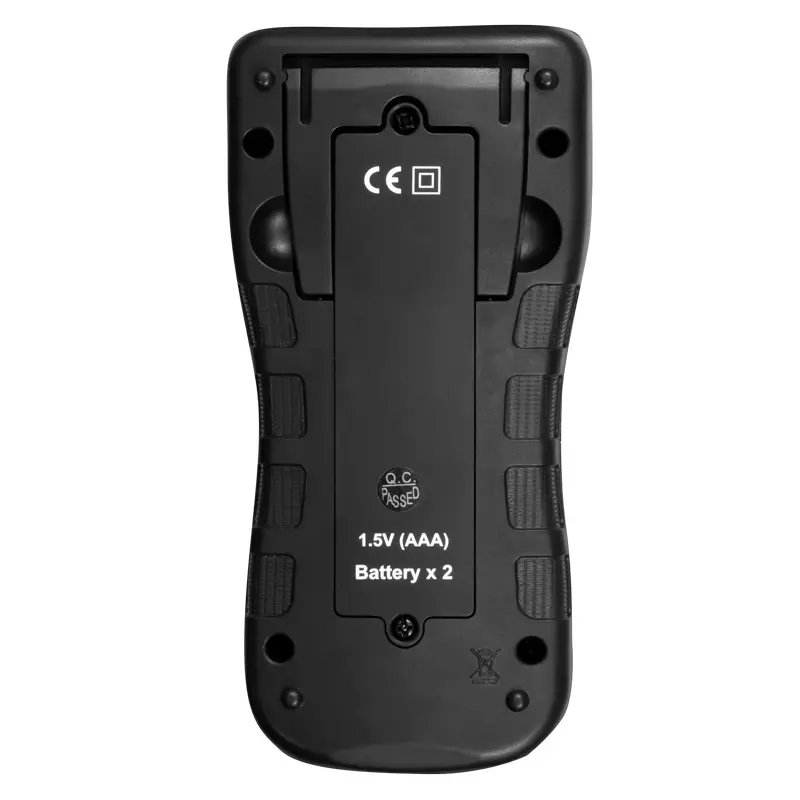

Power supply 2 x 1.5V AAA battery
Display 2 x LCD displays
Standards CAT III 600V
  EN61010-1
  EN61010-2-003
  EN61326-1

Dimensions 165 x 82 x 45 mm / 6.5 x 8.2 x 1.8 in
Weight About 245 g / < 1 lb

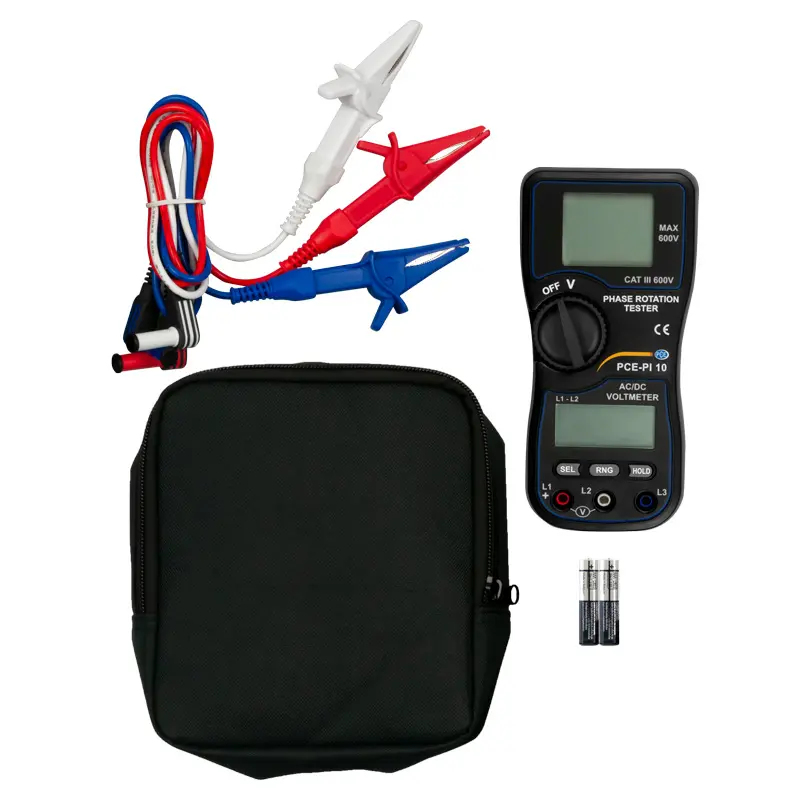

Delivery Scope

1 x Voltmeter PCE-PI 10
1 x Test lead set
2 x 1.5V AAA battery
1 x Carrying bag
1 x User manual
