Panel Indicator PCE-N24H

Order no.: PCE-N24H
GTIN (EAN):
£ 87.00
£ 104.40
price ex. (VAT / delivery)
PCE-N24H
Delivery time: 1-2 working days

Accessory

Programming adaptor PCE-PD 14
Programming adaptor PCE-PD14
£ 62.00

Description

Digital Panel Indicator with 4-digit LED, 20 mm digit height /
IP65 front / for 100 V, 250 V, 400 V, 5 A DC

The digital panel indicator is designed to measure and display direct current and DC voltages. The option of arbitrary scaling of the input signal allows multiple applications of the digital panel indicator. Due to a large 4-digit LED the measured values are always clearly readable at the digital panel indicator. By means of the programming adapter PCE-PD14 you can also configure the settings of the digital panel indicator on a computer, or read out the measured data. The solid synthetic enclosure of the digital panel indicator provides a good protection even at locations with rough environmental conditions.

Highlights

- Connection via screw clamp
- Configuration via software
- 4-digit LED
- IP65 front
- 100 V, 250 V, 400 V, 5 A DC (arbitrary)
- Display red on black

Specification

General Technical Specifications of the Digital Panel Indicator PCE-N24H
Input (arbitrary)

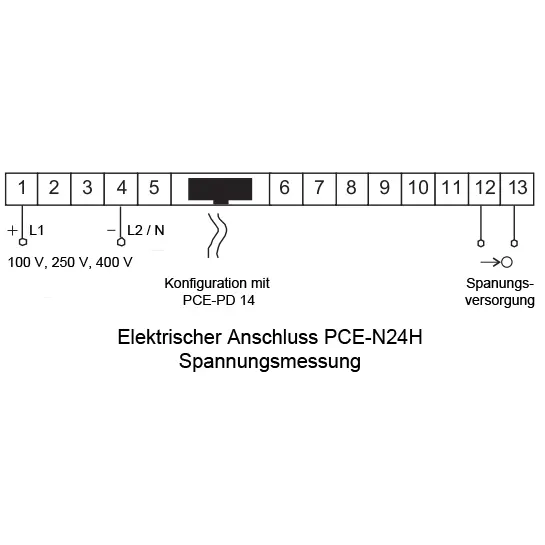

± 100 V DC
± 250 V DC
± 400 V DC

0 ... 100 V DC
0 ... 250 V DC

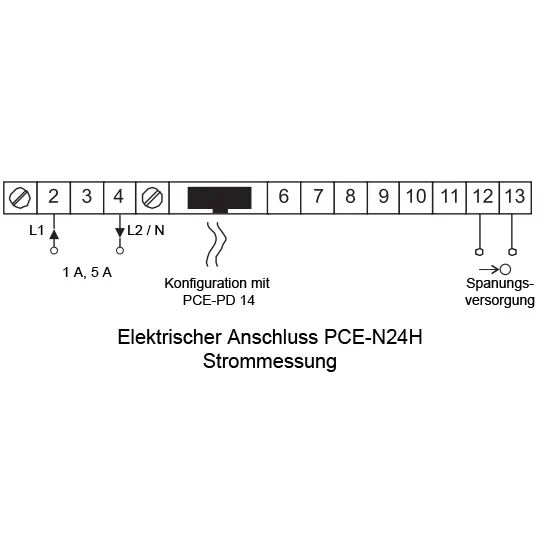

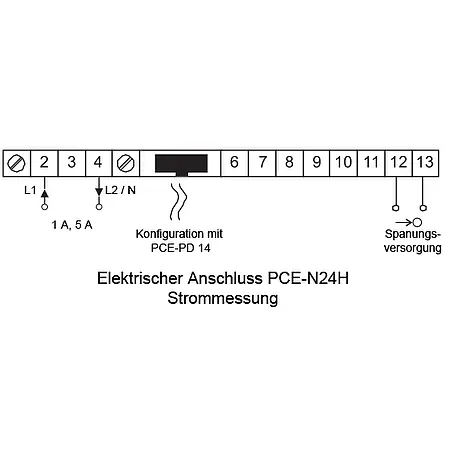

±1 A DC
± 5 A DC

Accuracy ± (0.2 % FS + 1 dgt.)
Internal resistance10 Ω ± 1 %
Scaling2-point-scaling
Display4-digit, 7-segments, LED, digit height: 20 mm
Display range-1999 ... 9999
Power Source for Sensor (arbitrary)24 V DC, max. 30 mA
Surrounding temperatureDuring Operation: -10 °C ... +55 °C
Storage: : -25 °C ... +85 °C
Diameters96 mm x 48 mm x 64 mm
Size of switch board92 mm x 45 mm (according to DIN)
Power Source (arbitrary)24 V AC
110 V AC
230 V AC
85 ... 253 V AC/DC
20 ... 40 V AC/DC
Power Consumption of sensor (arbitrary)24 V / 30 mA
Protection ClassFront: IP 65
Weight< 200 g
AssemblyMounting clips with clamp screws,
Connection via plug board
EnclosureSolid synthetic enclosure

Delivery Scope


1 x Panel Indicator PCE-N24H, mounting material, seal, instruction manual
