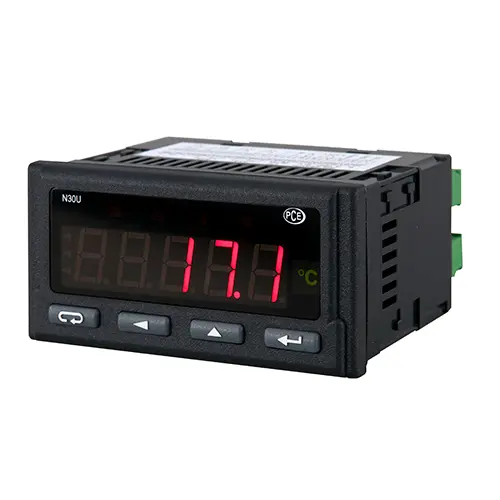

The voltage indicator can process several different input signals, such as 0...410/4010 Ohm, -10...+63 mV DC, -13...+13 V DC, -24...+24 mA DC or signals from thermocouples and resistance thermometers. This makes the voltage  indicator applicable in a wide range of applications. The measured values are shown on the large LED display of the voltage indicator.

The display is three-coloured and can change its colour depending on the actual indicated value. This makes it easier to evaluate the values. It is also possible to program threshold values, which trigger a signal through the two alarm outputs. The input signal of the voltage indicator is freely scalable. The voltage indicator is available with different measuring units, outputs and power supplies. You can select the particular parameters further below.
