Panel Meter PCE-G1

Order no.: PCE-G1
GTIN (EAN): 4250348702746
£ 979.00
£ 1,174.80
price ex. (VAT / delivery)
:
4250348702746
PCE-G1
Delivery time: 1-2 working days
Humidity
* Includes a longer sensor cable + a measurement amplifier
±2%
No
Built-in device
Internal
No
No

Accessory

ISO Calibration Certificate for PCE-G1
ISO Calibration Certificate for PCE-G1
£ 154.00

Description

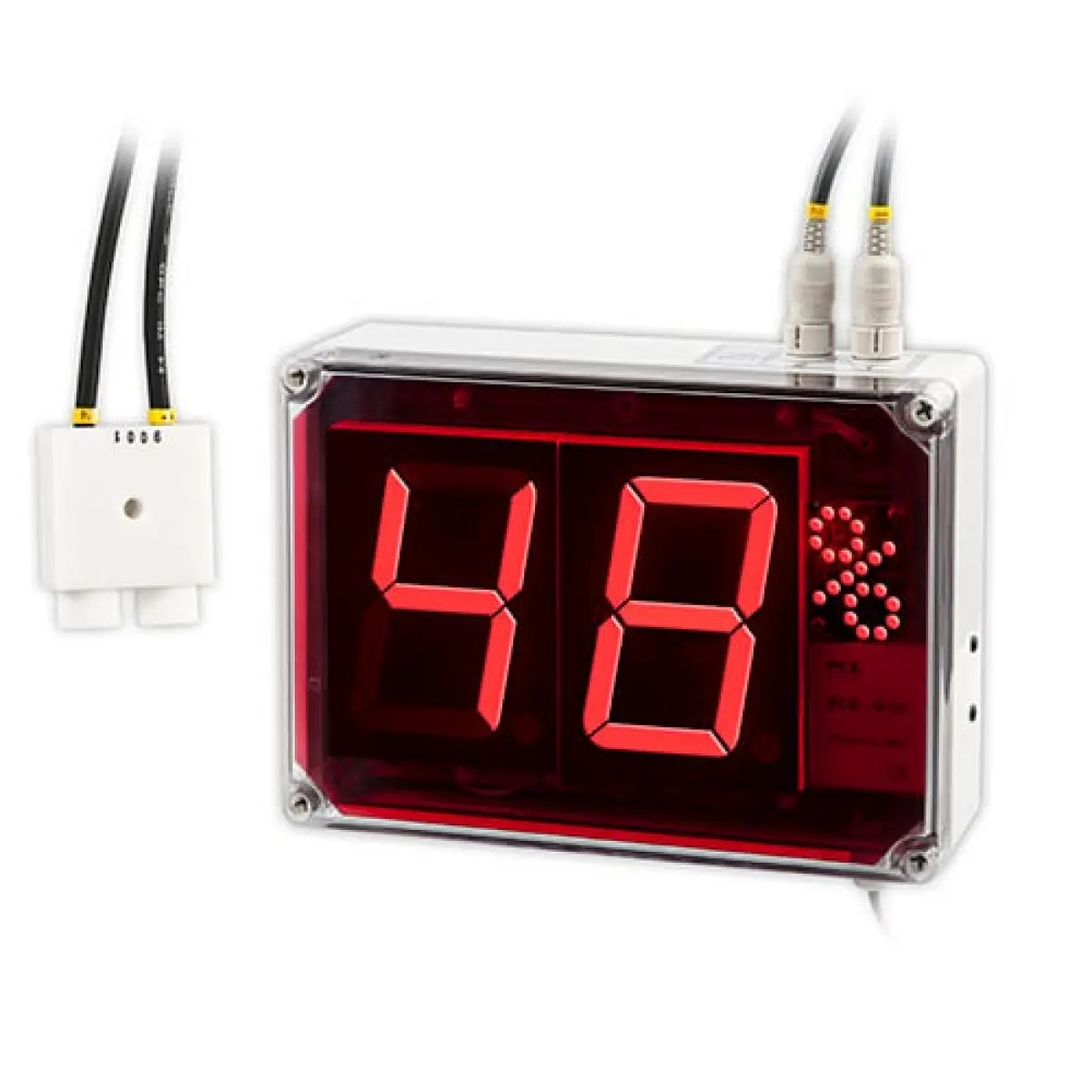

Panel Meter PCE-G1 for relative humidity and temperature with
a large display (values can be read up to 50 m)

The panel meter is intended for stationary measurement of relative humidity and temperature and direct display on a large display. This panel meter consists of a large monochrome display and is protected according to IP 54.

The measured variables are displayed alternately: relative humidity (2 s) and temperature (2 s). The sensors of the panel meter are calibrated at the factory. However, an ISO calibration certificate can also be ordered as an option. Simple, accurate and robust.

Highlights

- Ingress protection type: IP 54 rating
- Large, easy-to-read 100 mm / 3.9 in tall LED digits
- Temperature and relative humidity values are displayed every 2 seconds (in 2-second intervals)
- Displays temperature in degrees Celsius (°C) only
- Ready for wall mounting
- Long life
- Excellent readability
- High accuracy

Specification

Technical specifications
Measurement ranges
relative humidity / temperature		 10 to 95% r.h. / 0 to 60°C
Resolution
relative humidity / temperature		 1% r.h. / 1°C
Accuracy
relative humidity / temperature		  ±2% r.h. / 1°C
Visible distancecan be read from 50m away
Sensor type
relative humidity / temperature		 capacitive / PT1000
Response time T90approx. 4 seconds
Cable length (between sensor and display)1 meter
Display 100mm high LED (alternates values)
PortRS-232
Power110V to 230V / 50 to 60Hz
DimensionsSensor: 50 x 70 x 20mm
Display: 175 x 250 x 75mm
ProtectionIP 54
Weight 1.3kg (with sensor and cable)

Delivery Scope

1 x Panel Meter PCE-G1
1 x Sensor for temperature and humidity with connection cable (in selected configuration)
1 x Mains power cable
1 x Instruction manual
