Panel Meter PCE-N50B

Order no.: PCE-N50B
GTIN (EAN): 4250348722034
£ 88.00
£ 105.60
price ex. (VAT / delivery)
:
4250348722034
PCE-N50B
Delivery time: 1-2 working days

Description

Panel Meter PCE-N50B
Digital built-in display for 10 slave devices / 3.5" graphic LCD / 90.5 x 90.5 mm (3.6 x 3.6 in) Panel Cutout / Single or Multiple Display / IP65

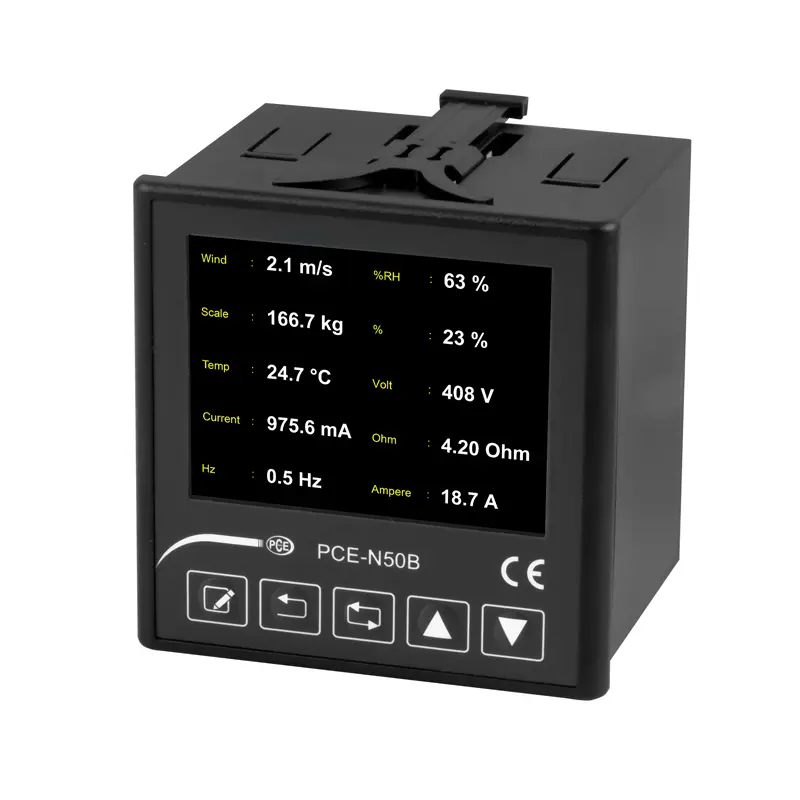

The panel meter has a RS485 Modbus interface. This panel meter can display the measured data of up to 10 slave devices or registers. As a built-in display, the panel meter has a 3.5" LCD display.

Here individual measured values ​​and also several measured values ​​can be displayed simultaneously. The digital panel is mounted in a 90.5 x 90.5 mm / 3.6 x 3.6 in panel cut-out. The text before the measured value can be set individually for each query register in the digital Modbus installation display. The front of the panel meter is protected to IP 65.

Highlights

- Modbus RTU Master
- 3.5" LCD display
- 10 registers / slave devices can be queried
- Baud rate individually adjustable
- Further power supply area
- Setting via buttons

Specification



Interface RS 485 Modbus RTU Master
Number of slave devices / registers          10
Operating conditions 0 ... 50°C / 32 ... 122°F, max 80% RH
Storage conditions -25 ... 70°C / -13 ... 158°F, max. 80% rh
Degree of protection Front: IP65
  Rear: IP20

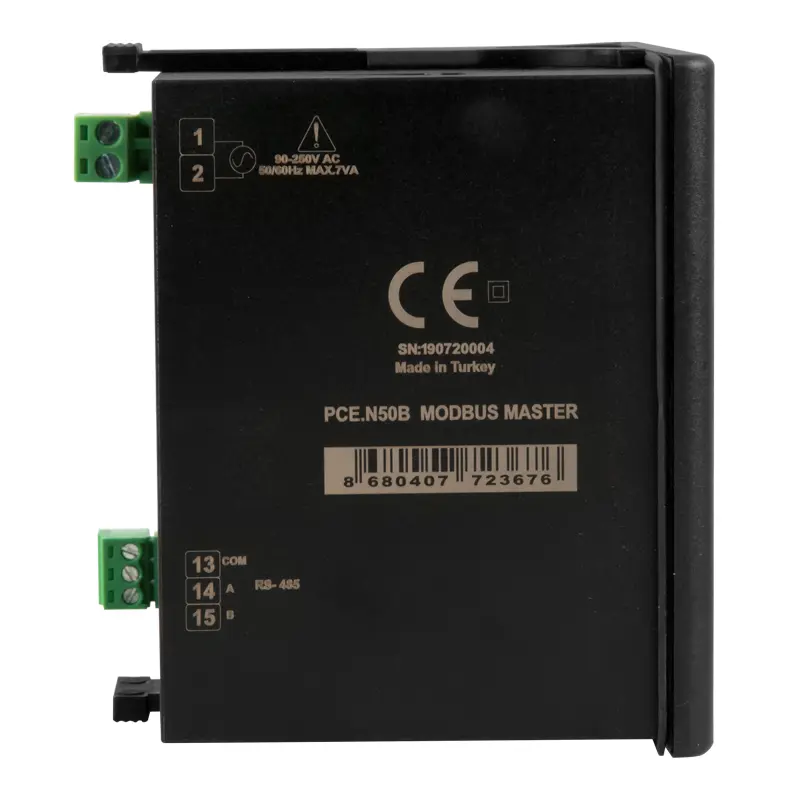

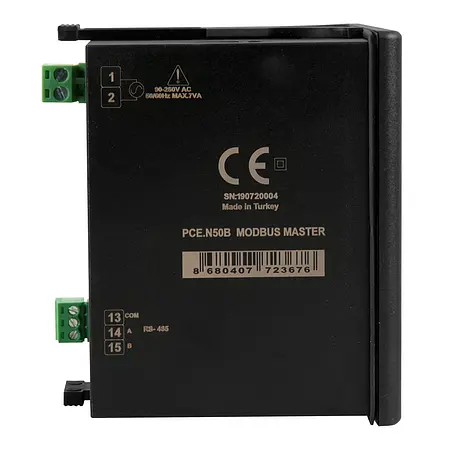

Power supply 90 ... 250V AC
Input Max. 7 VA

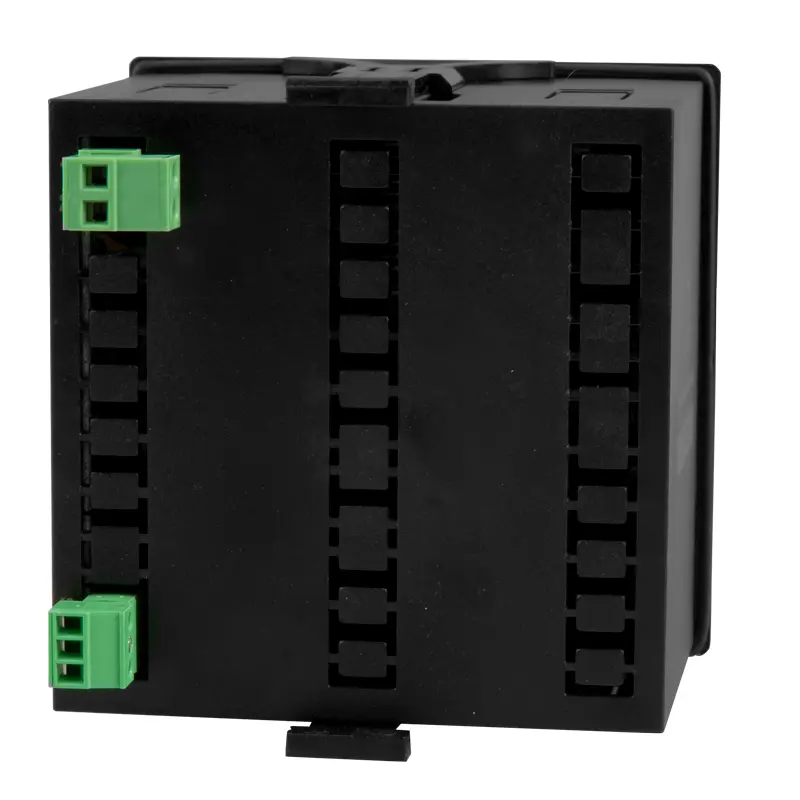

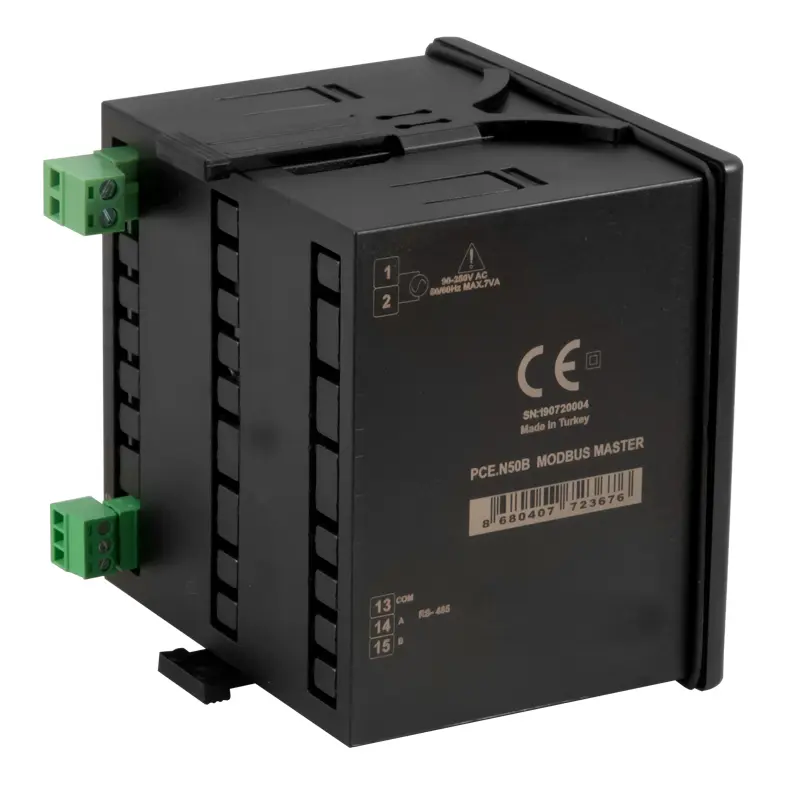

Connections Screw
  Voltage supply: max. 2.5 mm²
  Signal input: max. 1.5 mm²
Panel cut 90.5 x 90.5 mm / 3.6 x 3.6 in
Dimensions 96 x 96 x 81 mm / 3.8 x 3.8 x 3.2 in
Weight About 400 g / < 1 lb



Delivery Scope

1 x Panel Meter PCE-N50B
2 x Mounting clamps
1 x User manual
