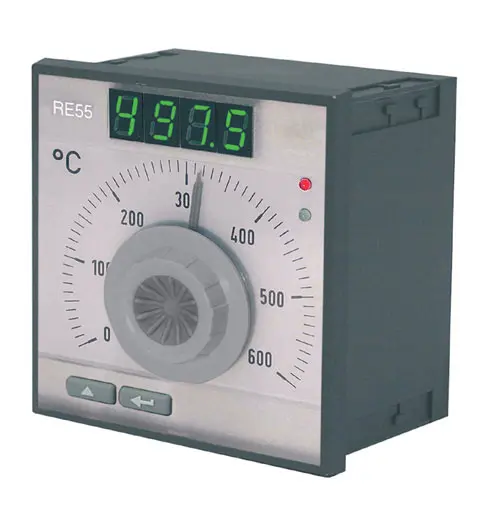

Temperature Controller PCE-RE55-S

Order no.: PCE-RE55-S

GTIN (EAN):

Description

Simple process controller for thermocouples type S /

Output as a changeover relay or SSR
On / Off temperature control or PID control / optional alarm function

The process controller is a simple temperature controller for use in simple task areas. The input signal is processed by this thermostat with thermocouples type S.The temperature controller features a simple on-off temperature controlin the basic version. Optionally, the temperature controller can be equipped with a PID control. The display of the current measured value is displayed directly on the temperature controller via a 4-digit LED display. The setpoint is set using the dial on the thermostat.

Highlights

- On / Off control
- Cabinet is protected according to IP 40
- for thermocouples type S
- 4-digit LED display

Specification

	PCE-RE55-S
Sensor input	Thermoelement Type S
Measurement and control areas	0 ... 1600 °
Control behaviour	On / off control PID (optional)
Measured value display	4-digit LED display Height: 10 mm
Control outputs (type selectable)	Relay, change-over contact: 230V / 2A SSR output: 0/5 V
Alarm output (optional)	Relay, normally open relay: 230V / 1A
Ambient temperature	Operation: 0 ... 50 ° C (optimum 23 ° C) Storage: -20 ... 70 ° C
Humidity	< 85 % r.H. (non-condensing)
Dimensions	96 x 96 x 65 mm
Panel cut-out	92 x 92 mm
Supply voltage	85 .... 253 V AC / DC
Input	< 4 VA
Protection	Front: IP 40 Back: IP 20
Weight	< 300 g
Assembly	mech. mounting clips with clamping screws electr.connection via terminal block

Delivery Scope

1 x Temperature Controller PCE-RE55-S
1 x mounting kit
1 x manual
