Flow Cup Meter

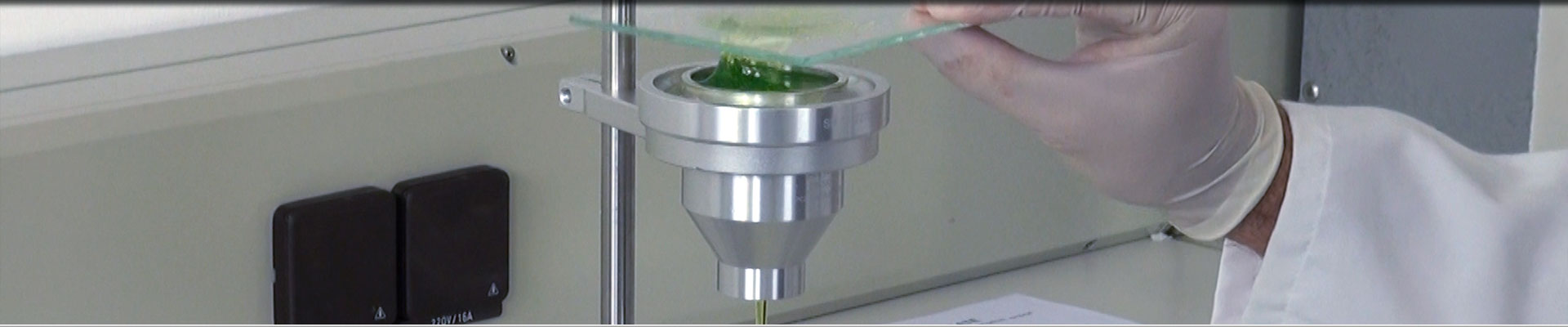

Flow cups are still the most important test instruments for the rapid determination of viscosity of liquids in the lab and in production processes. However, the flow cups are suitable only for low-viscosity liquids, but not for highly viscous substances such as pastes, etc. The most accurate results are obtained for liquids with Newtonian behavior. In that case, the flow cups take a certain volume of liquid that can flow out through a small opening. The result is expressed as time in seconds which is takes for liquid, till the first irregular flow occurs.

For many applications it is not necessary to know the absolute viscosity of paints and varnishes. Mostly the flow time, measured in seconds, is enough for the relative classification. It is determined with a flow cup in various designs. In case of viscosity cup it goes about a hollow cylinder, which ends in a permanently installed nozzle. A spillway serves for collecting the excessive liquid. In general, the flow cups themselves are made of anodized aluminum, while the nozzles generally consist of stainless steel. Various designs and types of flow cups are available, depending on the liquid to be tested and depending on the required standard. Many models can be ordered in our shop (Ford, ISO, Anfor).

If you have any questions, please contact us at or +44 ( 0 ) 161 464902 0.

Ford Flow Cup Meter PCE-125/2

Ford Flow Cup Meter PCE-125/2

£ 193.00

Price excl. VAT &. delivery
2 year Warranty

Ford flow cup meter is used to measure liquids quickly and easily in order to determine their viscosity. However, it must be taken into account that this is only possible with less viscous liquids.

Measuring range: 25 … 120 mm²/s
Ø nozzle: 2 mm
Material: anodized aluminum and stainless steel
Standard: International Standard ASTM D1200, D333 and D365

Ford Flow Cup Meter PCE-125/3

Ford Flow Cup Meter PCE-125/3

£ 193.00

Price excl. VAT &. delivery
2 year Warranty

Ford flow cup meters are used to measure liquids quickly and easily in order to determine their viscosity. However, it must be taken into account that this is only possible with less viscous liquids.

Measuring range: 49 … 220 mm²/s
Ø nozzle: 3 mm
Material: anodized aluminum and stainless steel
Standard: International Standard ASTM D1200, D333 and D365

Ford Flow Cup Meter PCE-125/4

Ford Flow Cup Meter PCE-125/4

£ 193.00

Price excl. VAT &. delivery
2 year Warranty

Ford flow cup meters are used to measure liquids quickly and easily in order to determine their viscosity. However, it must be taken into account that this is only possible with less viscous liquids.

Measuring range: 70 … 370 mm²/s
Ø nozzle: 4 mm
Material: anodized aluminum and stainless steel
Standard: International Standard ASTM D1200, D333 and D365

Ford Flow Cup Meter PCE-125/5

Ford Flow Cup Meter PCE-125/5

£ 193.00

Price excl. VAT &. delivery
2 year Warranty

Ford flow cup meters are used to measure liquids quickly and easily in order to determine their viscosity. However, it must be taken into account that this is only possible with less viscous liquids.

Measuring range: 214 … 1413 mm²/s
Ø nozzle: 5 mm
Material: anodized aluminum and stainless steel
Standard: International Standard ASTM D1200, D333 and D365

DIN Flow Cup Meter PCE-127/4

DIN Flow Cup Meter PCE-127/4

£ 193.00

Price excl. VAT &. delivery
2 year Warranty

DIN flow cup meters are viscosity meters to determine the viscosity of liquids. The flow cup meters are often used in industry and research laboratories.

Capacity: 100 ml
Ø nozzle: 4 mm (± 0.02 mm)
Material: anodized aluminum
Standard: DIN 53211

DIN Immersion Flow Cup Meter PCE-127/4P

DIN Immersion Flow Cup Meter PCE-127/4P

£ 220.00

Price excl. VAT &. delivery
2 year Warranty

DIN immersion flow cup meters are viscosity meters to determine the viscosity of liquids. The immersion flow cup meters are often used in industry and research laboratories.

Capacity: 100 ml
Ø nozzle: 4 mm (± 0.02 mm)
Material: anodized aluminum
Standard: DIN 53211

ISO Flow Cup Meter PCE-128/3

ISO Flow Cup Meter PCE-128/3

£ 189.00

Price excl. VAT &. delivery
2 year Warranty

ISO flow cup meters are suitable for determining the flow time of Newtonian / near-Newtonian liquids and are often used in laboratories and industrial production.

Measuring range: 7 … 42 cSt
Ø nozzle: 3 mm
Material: anodized aluminum and stainless steel
Standard: ISO 2431, DIN 53224, EN 535, ASTM D5125

ISO Flow Cup Meter PCE-128/4

ISO Flow Cup Meter PCE-128/4

£ 193.00

Price excl. VAT &. delivery
2 year Warranty

ISO flow cup meters are suitable for determining the flow time of Newtonian / near-Newtonian liquids and are often used in laboratories and industrial production.

Measuring range: 34 … 135 cSt
Ø nozzle: 4 mm
Material: anodized aluminum and stainless steel
Standard: ISO 2431, DIN 53224, EN 535, ASTM D5125

ISO Flow Cup Meter PCE-128/5

ISO Flow Cup Meter PCE-128/5

£ 193.00

Price excl. VAT &. delivery
2 year Warranty

ISO flow cup meters are suitable for determining the flow time of Newtonian / near-Newtonian liquids and are often used in laboratories and industrial production.

Measuring range: 91 … 326 cSt
Ø nozzle: 5 mm
Material: anodized aluminum and stainless steel
Standard: ISO 2431, DIN 53224, EN 535, ASTM D5125

ISO Flow Cup Meter PCE-128/6

ISO Flow Cup Meter PCE-128/6

£ 193.00

Price excl. VAT &. delivery
2 year Warranty

ISO flow cup meters are suitable for determining the flow time of Newtonian / near-Newtonian liquids and are often used in laboratories and industrial production.

Measuring range: 188 … 684 cSt
Ø nozzle: 6 mm
Material: anodized aluminum and stainless steel
Standard: ISO 2431, DIN 53224, EN 535, ASTM D5125

ISO Flow Cup Meter PCE-128/8

ISO Flow Cup Meter PCE-128/8

£ 193.00

Price excl. VAT &. delivery
2 year Warranty

ISO flow cup meters are suitable for determining the flow time of Newtonian / near-Newtonian liquids and are often used in laboratories and industrial production.

Measuring range: 600 … 2000 cSt
Ø nozzle: 8 mm
Material: anodized aluminum and stainless steel
Standard: ISO 2431, DIN 53224, EN 535, ASTM D5125
