Paint Testing Equipment PCE-WSB 1

Order no.: PCE-WSB 1
GTIN (EAN):
£ 1,567.00
£ 1,880.40
price ex. (VAT / delivery)
PCE-WSB 1
Delivery time: 1-2 working days
Handheld / Desktop
Internal Sensor
No
No

Description

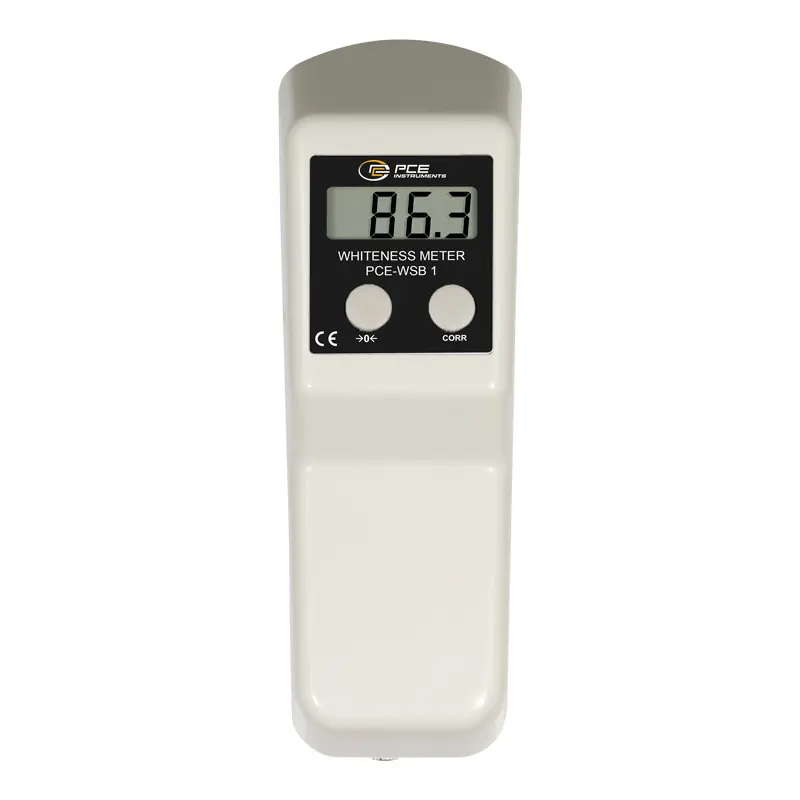

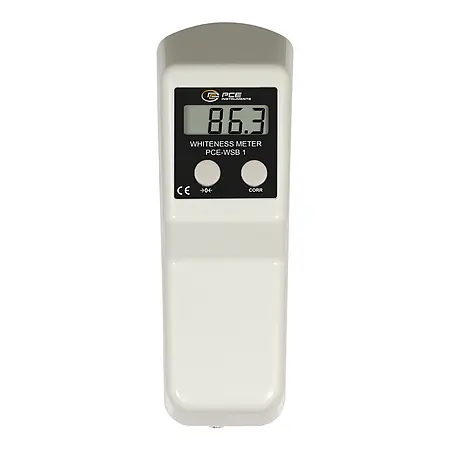

Paint Testing Equipment PCE-WSB 1
Measures the whiteness degree of blue light (Wb = R457) / Meets ISO 2470 and ISO 3688 standards / Compact, lightweight and user-friendly

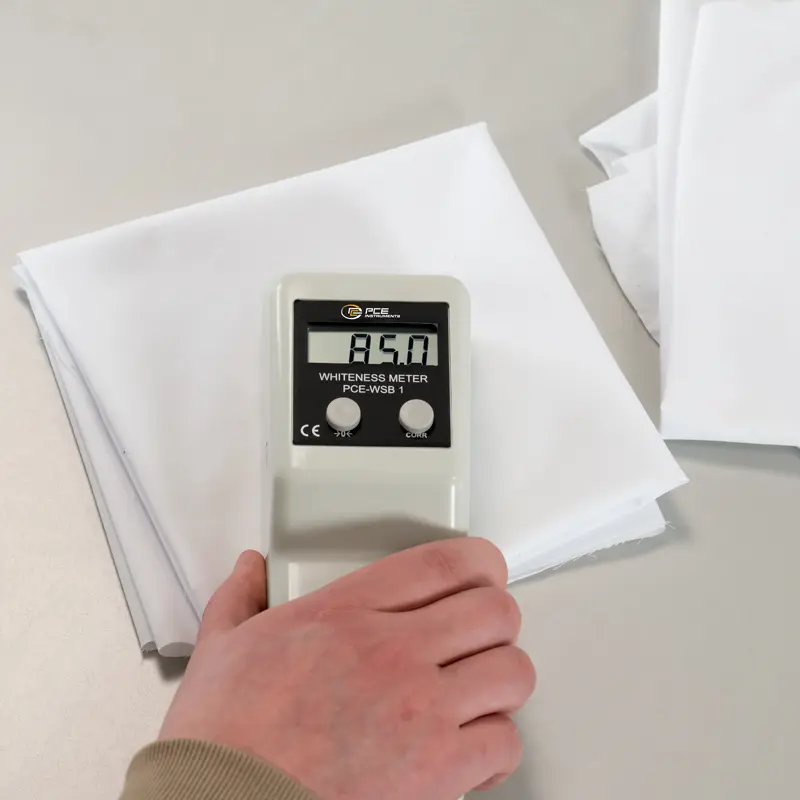

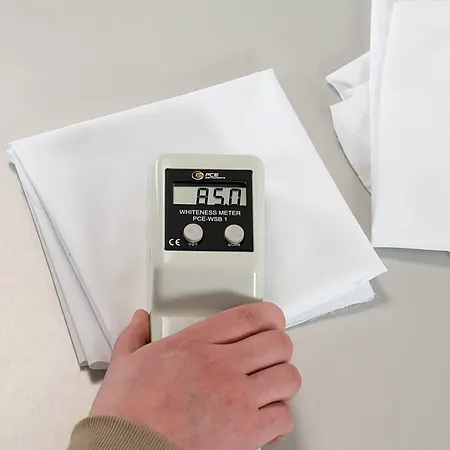

The paint testing equipment is used to measure the brightness level of paper, cardboard, cellulose, pulp, textiles, paint, enamel, plastic, porcelain, cement, concrete, building materials, chemicals, powders, talc, starch, flour, salt, detergents, cosmetics and other non-metal substances.

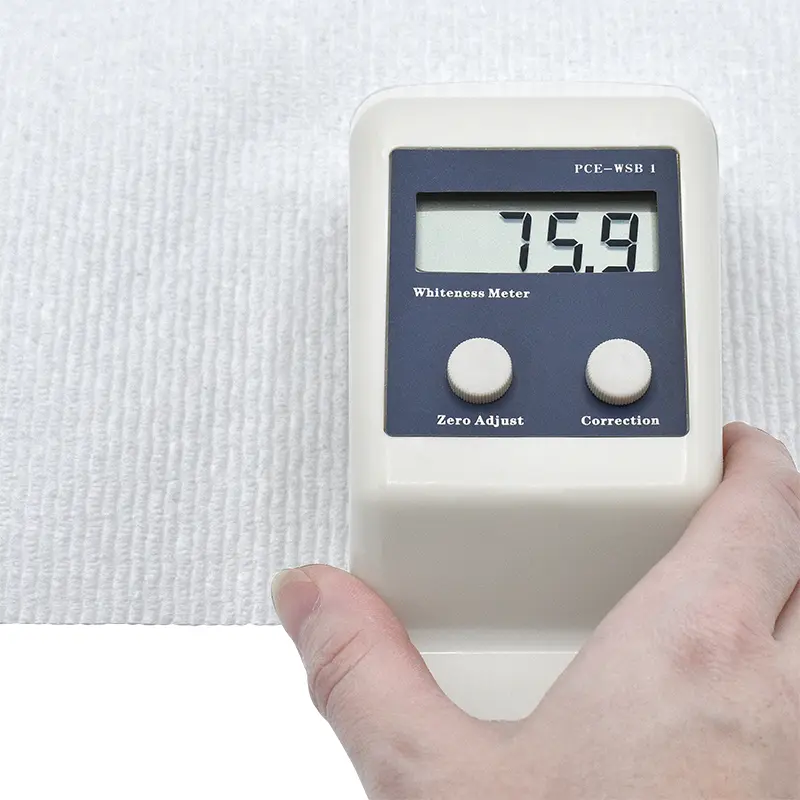

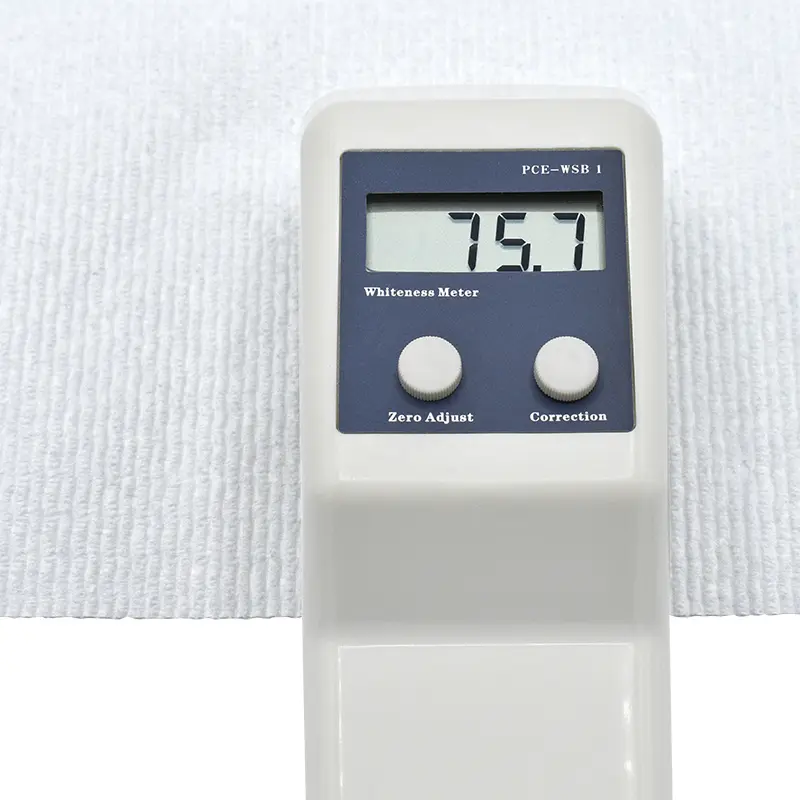

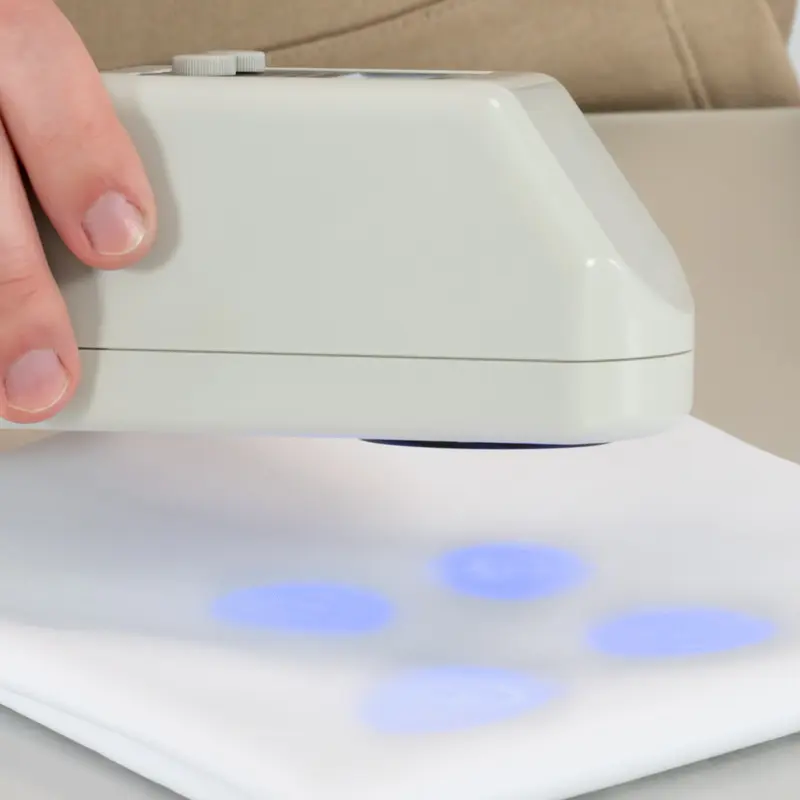

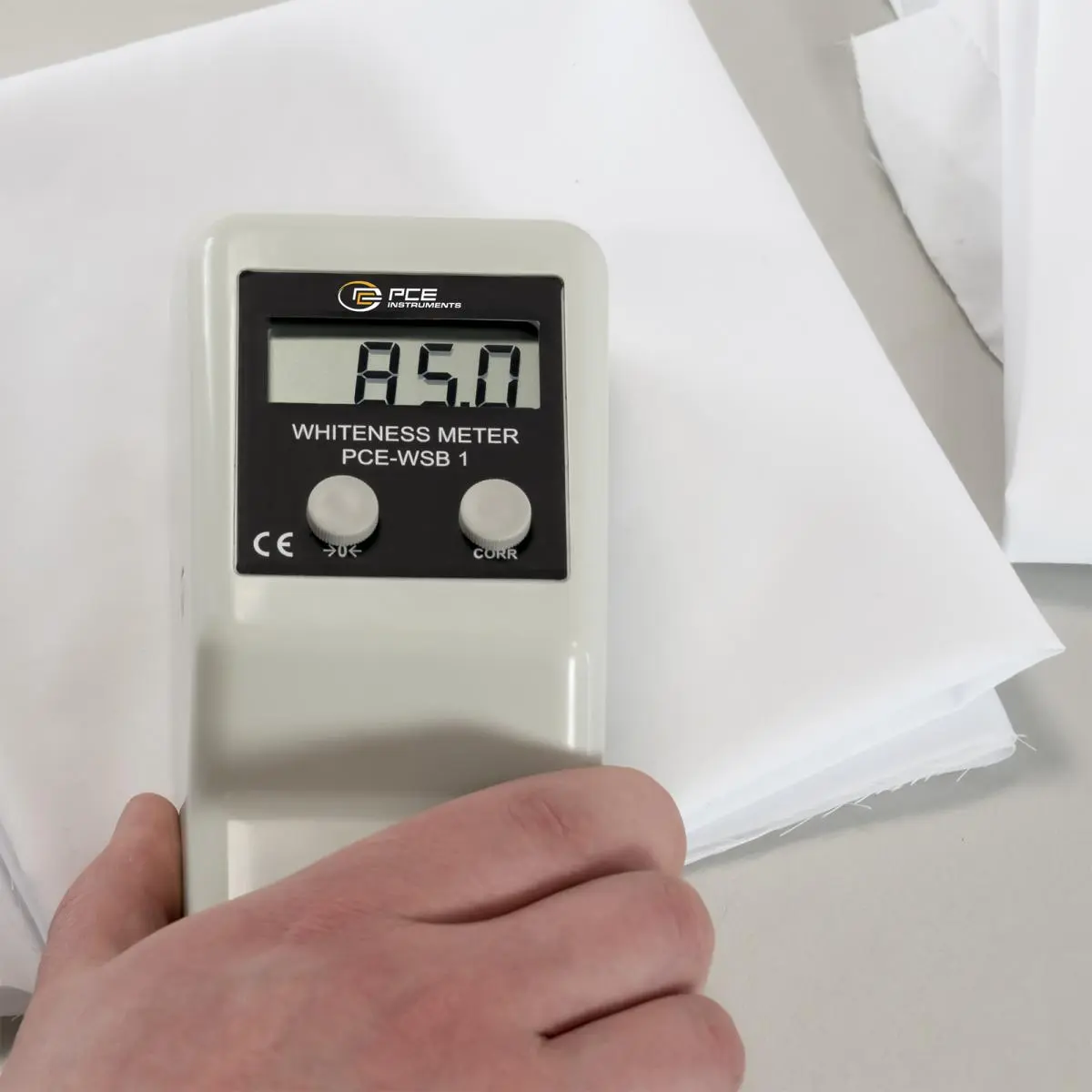

Ideally used on flat surfaces, the paint testing equipment features an easy-to-read liquid crystal display (LCD) screen. The device determines the brightness level by measuring the intensity of the light reflection diffused on a scale of 100. The level of brightness of an absolutely black surface is defined by the meter as 1. Included with the meter are black, white and brilliance standards for DIY calibration as needed to ensure accurate, repeatable measurements are consistently obtained.


Highlights

- Measures the whiteness degree of blue light (Wb = R457)
- Meets ISO 2470 and ISO 3688 standards
- Compact, lightweight and user-friendly
- Easy-to-read liquid crystal display (LCD) screen
- Includes black, white and brilliance standards for DIY calibration
- Resolution: 0.1
- Repeat accuracy : ±0.1

Specification

Measuring range0 … 100.0 (displays values up to 199.9)
Whiteness degree formulaWhiteness degree of blue light
Wb = R457
Light sourceApproximating A; simulating D65
Light measuring conditions 45/0
Display resolution0.1
Display accuracy± 0.1
StandardsISO 2470; ISO 3688
DisplayLiquid crystal display (LCD)

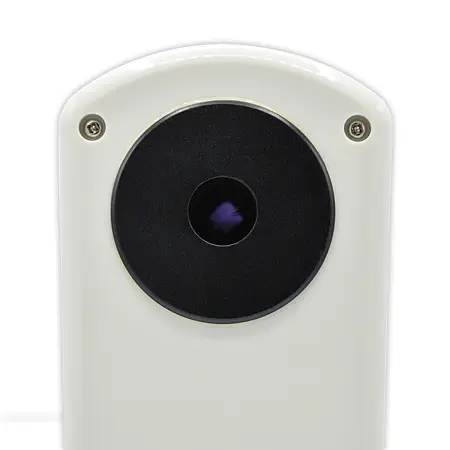

Measuring apertureDiameter Ø 15 mm / 0.6"

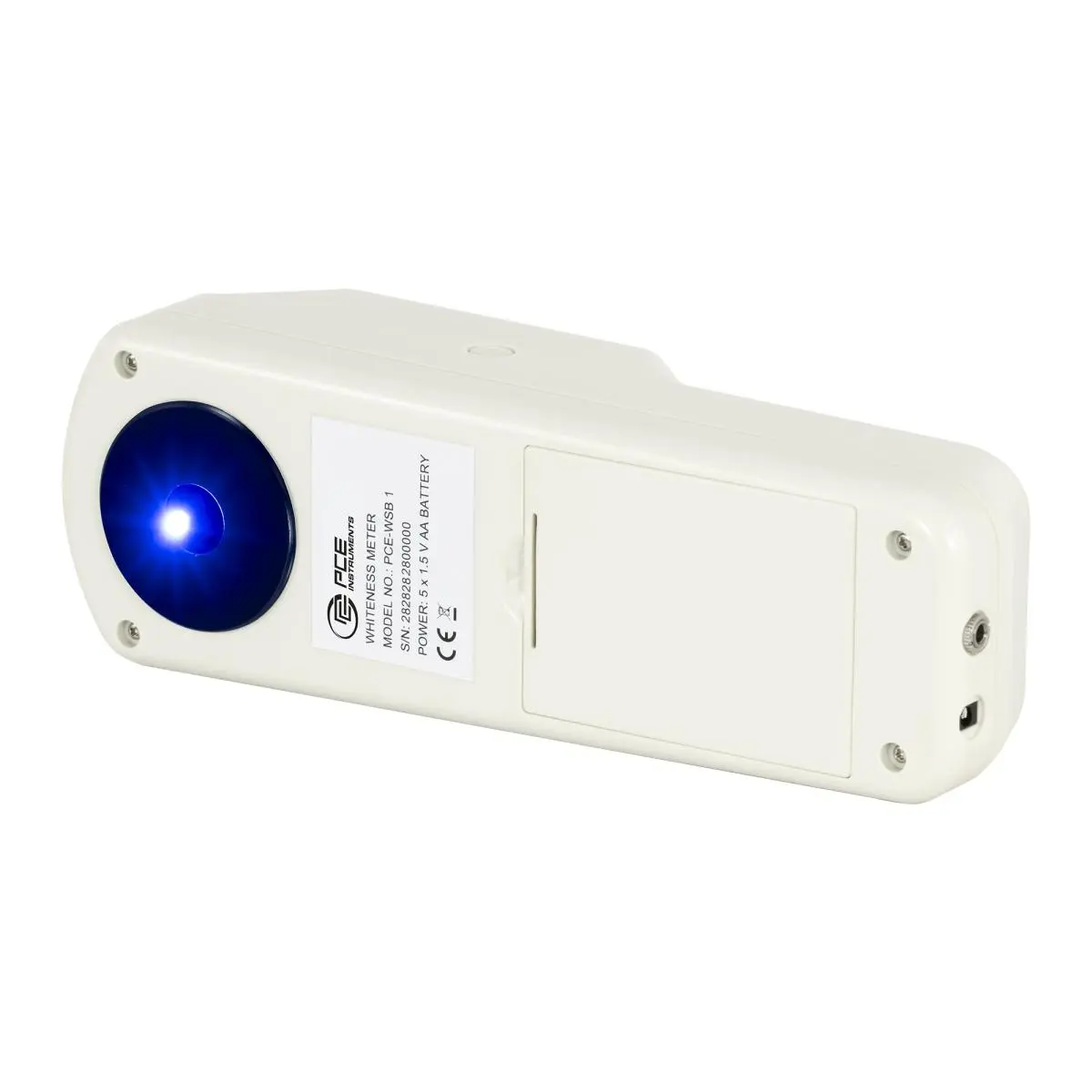

Power supply5 x 1.5 V AA batteries
Operating conditions+5 ... +35 °C / +41 ... +95 °F; < 85 % RH
DimensionsApprox. 235 x 75 x 65 mm / 9.25 x 2.9 x 2.5"
WeightApprox. 500 g / 1.2 lbs
See user manual for complete details.

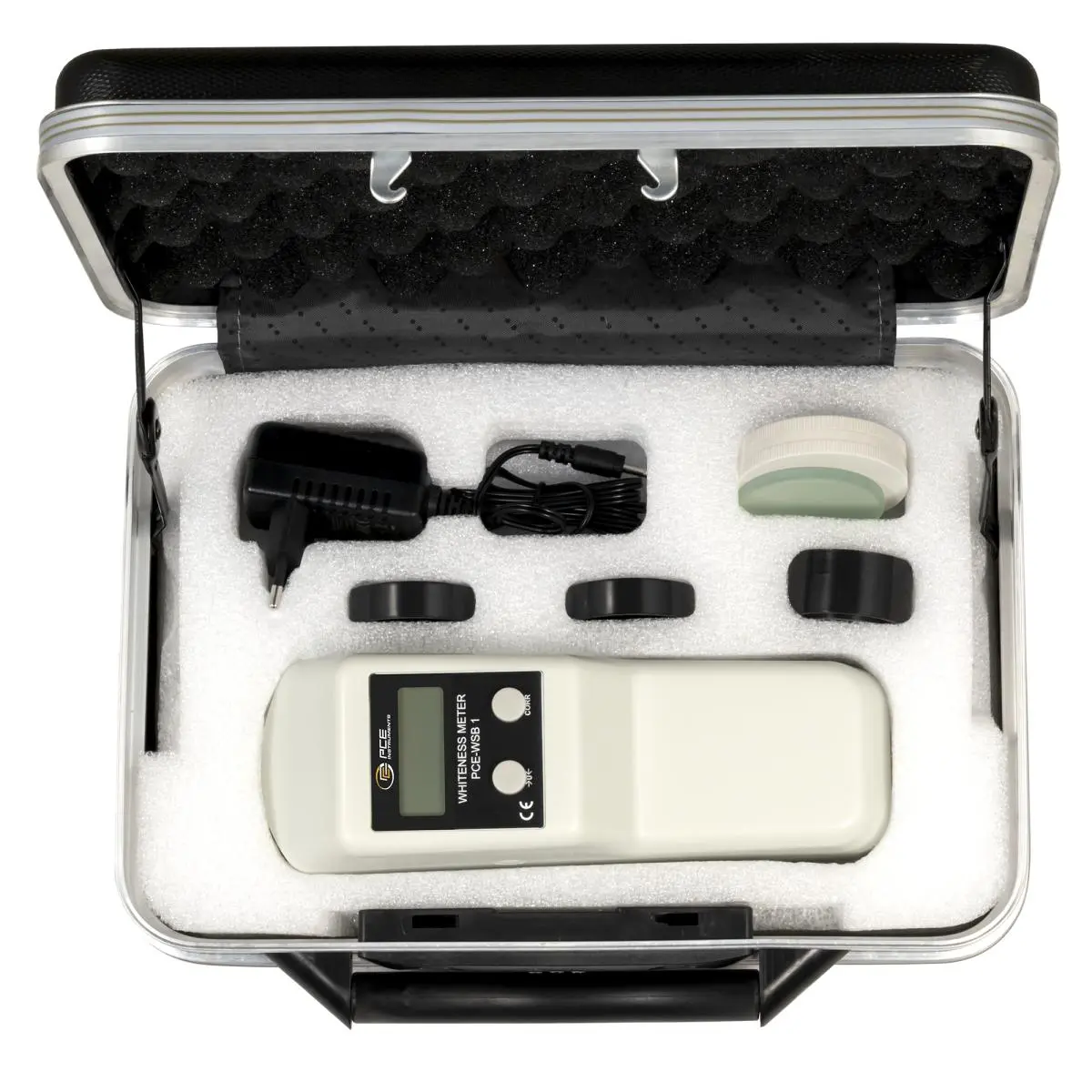

Delivery Scope

1 x Paint Testing Equipment PCE-WSB 1

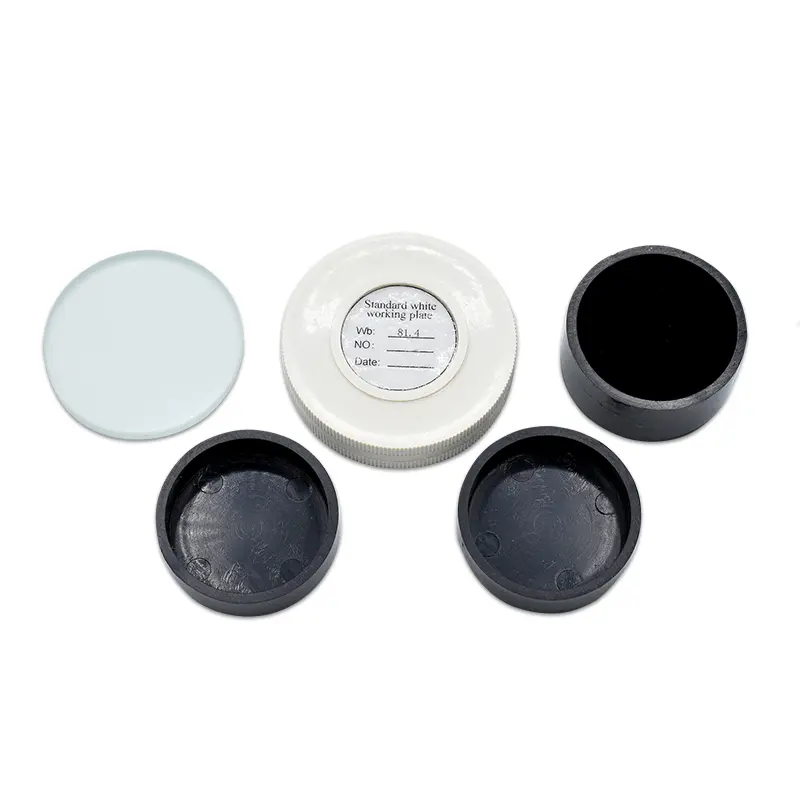

1 x brilliance calibration standard
1 x black calibration standard
1 x white calibration standard
2 x powder test boxes
1 x user manual
1 x carrying case
