Power Meter

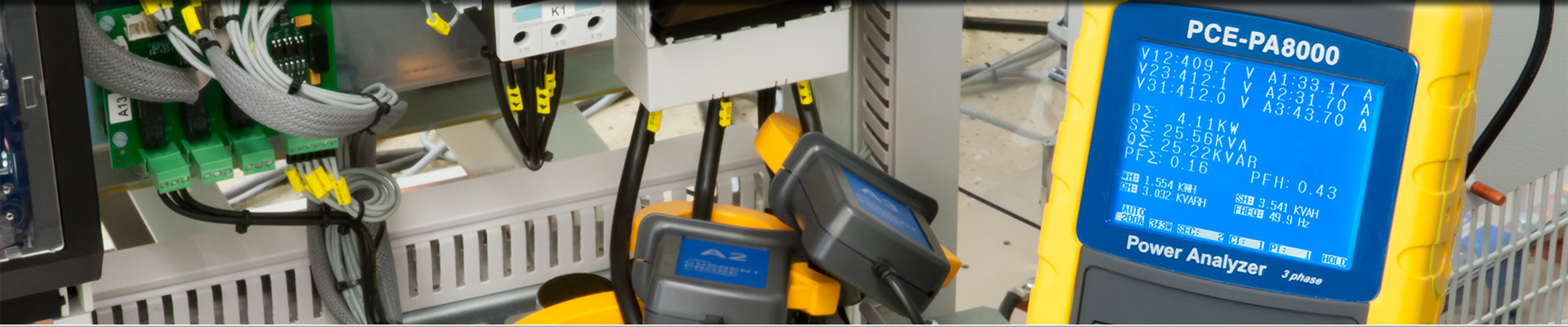

PCE-PA 8000 is a portable handheld Power Meter used for the testing and inspection of 3-phase / 4-wire, 3-phase / 3-wire, 1-phase / 2-wire and 1-phase / 3-wire electrical circuits. This handy power quality analyzer not only measures multiple electrical properties in real time, but also saves the measurement data in .xls format to the included SD card memory for quick and easy data transfer and analysis using Microsoft Excel.

• True RMS measurement for ACA, ACV
• True power: W, KW, MW
• VA, KVA, MVA, VAR, KVAR, MVAR
• PF (power factor), phase angle (Φ)
• KWH, KVAH, KVARH, PFH
• Voltage measurement range: 10 … 600 ACV
• Current measurement range: 0.2 … 1200 ACA
• Real-time current, voltage and power consumption measurement
• Built-in data recorder with adjustable sample rate: 2 … 7,200 sec.

The power meter PCE-PA6000 power analyzer can be used as a desktop or portable instrument for measuring active power, apparent power, power factor, energy consumption, AC voltage, AC current, DC voltage, DC current, resistance and frequency. The power / performance measurement can be performed with this power analyzer either directly with the supplied test leads, or indirectly by current clamps.

• Performance
• Power factor
• AC voltage and current- DC voltage and current, resistance and frequency
• Incl. Data Cable and Test Leads
• Software available in the accessories tab

The Power Meter PCE-GPA 62 (Graphic Power Quality Analyzer) with network analyzer / power and energy meter with data logger. The one-phase harmonic Analyzer (Graphic Power Quality Analyzer) is used for single-phase or three-phase measurements of active, reactive and apparent power, power factor, phase angle, energy, voltage, current as well as peaks and harmonics. This clamp meter is a perfect tool for all energetic measurements. It is delivered manufacturer calibrated and can be certified to ISO or standards.

• Real-time test, register and measurement of voltage and current (real and effective)
• Measures power factor and phase angle, frequency, energy, active, reactive and apparent power   (single-phase or three-phase in symmetrical networks).
• Max. conductor diameter: 55 mm / 2.2 in
• Records up to 50,000 records

The Power Meter PCE-PA6000 power analyzer can be used as a desktop or portable instrument for measuring active power, apparent power, power factor, energy consumption, AC voltage, AC current, DC voltage, DC current, resistance and frequency. The power / performance measurement can be performed with this power analyzer either directly with the supplied test leads, or indirectly by current clamps.

• Performance
• Power factor
• AC voltage and current
• DC voltage and current, resistance and frequency
• Incl. Data Cable and Test Leads
• Software available in the accessories tab
• Incl. ISO Calibration Certificate

This Power Meter is used for single-phase or three-phase measurements of the active, reactive and apparent power, power factor, phase angle, energy, voltage, current as well as peaks and harmonics up to 50º of the harmonic waveform. The power analyzer clamp is equipped with data logger. The test instrument is delivered manufacturer ISO calibrated.

• Real-time test, register and measurement of voltage and current (real and effective)
• Measures power factor and phase angle, frequency, energy, active, reactive and apparent power   (single-phase or three-phase in symmetrical networks).
• Max. conductor diameter: 55 mm / 2.2 in
• Records up to 50,000 records
• incl. ISO Calibration Certificate

The PCE-360 is a Single-Phase Power Meter with data logger functionality. This versatile power analyzer can take single-phase and three-phase power measurements both in real time and over an extended time period.

• Measuring range: 10 … 999.9 V
• AC voltage AC
• Alternating current AC
• Active power
• Power factor
• Phase angle
• Frequency
• Harmonic measurement
• Data memory: 512 kB   (non-volatile memory)
• incl. 4 current clamps / tapping terminals
• Standards: IP 30 / IEC 61 010, 600 V / CAT III
• incl. ISO Calibration Certificate

The PCE-360 is a HVAC Meter with data logger functionality. This versatile power analyzer can take single-phase and three-phase power measurements both in real time and over an extended time period.

• Measuring range: 10 … 999.9 V
• AC voltage AC
• Alternating current AC
• Active power
• Power factor
• Phase angle
• Frequency
• Harmonic measurement
• Data memory: 512 kB   (non-volatile memory)
• incl. 4 current clamps / tapping terminals
• Standards: IP 30 / IEC 61 010, 600 V / CAT III
• incl. ISO Calibration Certificate
• incl. ISO Calibration Certificate

The PCE-830 Power Meter is used for measuring one to three phases of electrical quantities for alternating current (AC). This Power Meter also measures parameters such as voltage, current, frequency, harmonics, and power as well as indicating, according to standard EN50160, harmonic values, interharmonics, and asymmetrics. Interference, such as interruptions, leaks, overloads, or transience (from 16 µs) are detected with their corresponding values. The power logging instrument is delivered manufacturer calibrated. An ISO calibration certificate may be ordered optionally.

• PCE-830 + PCE-6801 amp clamp (100 A)
• Electrical conductor pick-up: 30 mm / 1.1 in diameter
• Range selection: manual (1 A, 10 A, 100 A)
• Clamp dimensions: 210 mm x 62 mm x 36 mm / 8.2 in x 2.4 in x 1.4 in
• Sampling rate: 2 sec.
• Memory size: 512 kB (max. 52,000 values (single phase)

The PCE-830 Power Meter is used for measuring one to three phases of electrical quantities for alternating current (AC). This 3-Phase Power Meter also measures such parameters as voltage, current, frequency, harmonics and power as well as indicating, according to standard EN50160, harmonic values, interharmonics and asymmetrics. Interference, such as interruptions, leaks, overloads or transience (from 16µs) are detected with their corresponding values.

• PCE-830 + PCE-6801 amp clamp (100 A)
• Electrical conductor pick-up: 30 mm diameter
• Range selection: manual (1 A, 10 A, 100 A)
• Clamp dimensions: 210 x 62 x 36 mm
• Incl. ISO calibration certificate

The PCE-830-2 Power Meter is used for measuring one to three phases of electrical quantities for alternating current (AC). This Power Meter also measures parameters such as voltage, current, frequency, harmonics, and power as well as indicating, according to standard EN50160, harmonic values, interharmonics, and asymmetrics. Interference, such as interruptions, leaks, overloads, or transience (from 16 µs) are detected with their corresponding values. The power logging instrument is delivered manufacturer calibrated. An ISO calibration certificate may be ordered optionally.

• PCE-830 + PCE-6802 amp clamp (1000 A)
• Electrical conductor pick-up: 55 mm / 2.1 in diameter
• Range selection: manual (10 A, 100 A, 1000 A)
• Clamp dimensions: 244 mm x 97 mm x 46 mm / 9.6 in x 3.7 in x 1.8 in
• Sampling rate: 2 sec.
• Memory size: 512 kB (max. 52,000 values (single phase)

The PCE-830 Power Meter is used for measuring one to three phases of electrical quantities for alternating current (AC). This Power Meter also measures such parameters as voltage, current, frequency, harmonics and power as well as indicating, according to standard EN50160, harmonic values, interharmonics and asymmetrics. Interference, such as interruptions, leaks, overloads or transience (from 16µs) are detected with their corresponding values.

• PCE-830 + PCE-6802 amp clamp (1000 A)
• Electrical conductor pick-up: 55 mm / 2.2 in diameter
• Range selection: manual (10 A, 100 A, 1000 A)
• Clamp dimensions: 244 x 97 x 46 mm / 9.6 x 3.8 x 1.8 in
• Incl. ISO calibration certificate
