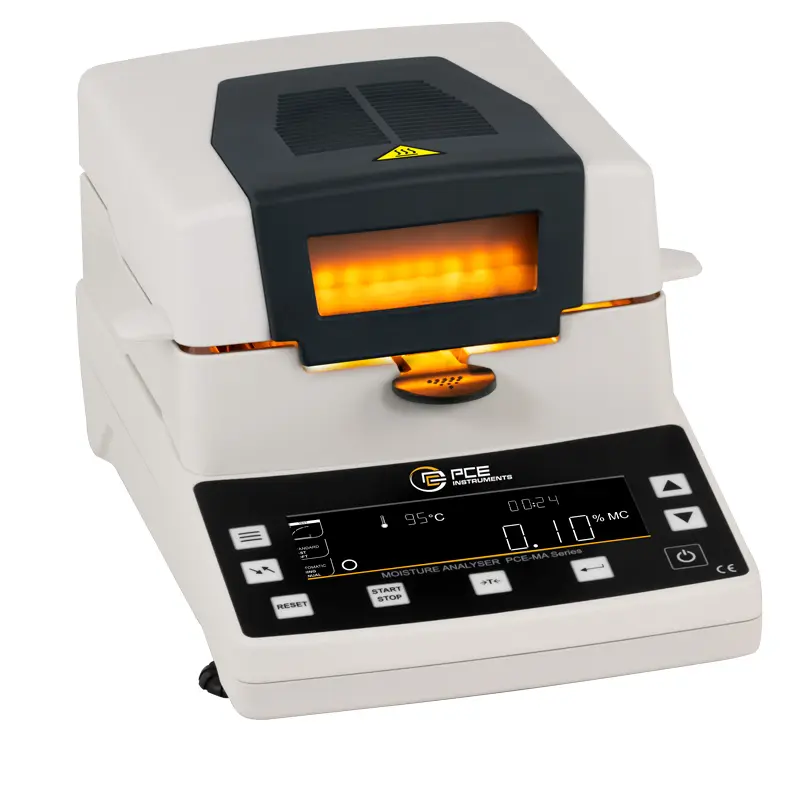

PCE-MA 100 Absolute Moisture Meter
Oven-drying moisture analyzing balance for weighing and halogen-heating samples to determine moisture content
The absolute moisture meter PCE-MA 100 allows different materials to be weighed and their moisture contents determined. The heating chamber is heated by halogen lamps up to 199 °C. In this chamber, the absolute moisture meter dries the material to be weighed, and then calculates the moisture content from the weight difference. The absolute moisture meter can determine the smallest weight differences thanks to a readability of 0.001 g. The results are displayed on the large LCD display. Up to 15 different drying programs can be stored in the memory of the absolute moisture meter. Accordingly, the absolute moisture meter is suitable for quality control of wood products, granules, pellets, feed, food, pastes and more. With the included 100 g weight, the absolute moisture meter can be calibrated at any time.
Technical specifications |
|
Weighing range | 110 g |
Readability | 1 mg / 0.001 g |
Heating element | halogen lamp |
Temperature range | +40 ... +199 °C |
Heating time | 1 ... 99 min. adjustable |
Humidity measurement range | 0 ... 100 % |
Readability | 0.01 % |
Memory | 15 drying programs |
Interface | RS-232 |
Display | LCD, 9 membrane keys |
Power supply | 220 V / 50 Hz or 110 v / 60 Hz |
Dimensions | 200 x 180 x 380 mm |
