Multifunction Absolute Moisture Meter PCE-MMK 1

Order no.: PCE-MMK 1

GTIN (EAN): 4250348710505

Accessory

MMK-E-150 150-mm needles

£ 14.00

MMK-E-10 30-mm needles

£ 14.00

MMK-E-10 10-mm needles

£ 14.00

Description

Multifunction Absolute Moisture Meter
Measures moisture content of wood, paper, textiles, concrete and other building materials - also measures ambient temperature and relative humidity

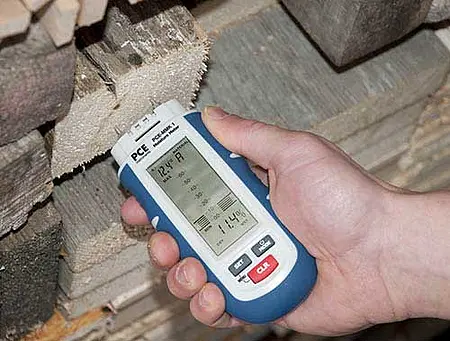

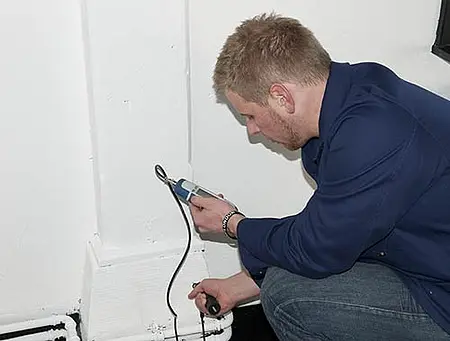

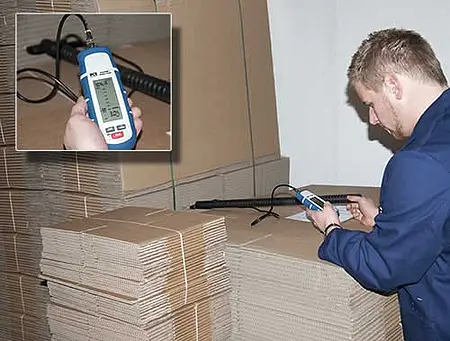

PCE-MMK 1 is a portable handheld digital moisture meter used to measure the moisture content of wood, paper, textiles, concrete and other building materials. This multifunction absolute moisture meter also measures ambient temperature and ambient relative humidity.

Ideal for quality control and incoming goods inspections, this multipurpose moisture analyzer comes with short and long insertion needles as well as 3 different external electrodes (ramming, penetrating, paper). Self-test or pre-set measuring modes based on material type are available from the user friendly navigation menu, as are temperature compensation, maximum / minimum value, LCD backlight and dry-moist-wet indicator settings. An easy-to-read display shows digital and bar graph values on screen. Moisture % displayed is material moisture with respect to dry mass (e.g., 100 % material moisture for 1 kg of wet wood = 500 g water).

Highlights

- Measures moisture content of wood, paper, textiles, concrete and other building materials
- Also measures ambient temperature and ambient relative humidity
- Measuring principle: Electrical resistance

Specification

Measuring ranges	Wood, paper, textiles: 1 ... 75% moisture Concrete, building materials: 0.1 ... 2.4% moisture Ambient temperature: -40 ... 70°C / -40 ... 158°F Ambient relative humidity (RH): 0 ... 100% RH
Resolution	0.1
Accuracy	Wood, paper, textiles: 1 ... 30% / ±1%, 31 ... 60% / ±2%, 61 ... 75% / ±4% Concrete, building materials: ±0.5% Ambient temperature: -40 ... -10°C and 40 ... 70 °C / ±2°C, -10 ... 40°C / ±1°C Ambient relative humidity (RH): 0 ... 20 % and 80 ... 100% / ±5%, 20 ... 80% / ±3.5 %
Automatic power off	After 3 minutes of inactivity, meter powers off to save battery After 10 seconds of inactivity, LCD backlight powers off to save battery
Enclosure	Impact-resistant plastic housing
Battery	3 x Cr 2032, replaceable
Operating conditions	0 ... 40°C / 32 ... 104°F, 0 ... 85% RH
Dimensions	139 x 47 x 25 mm / 5.5 x 1.9 x 1.0 in
Weight	100 g / < 1 lb (without electrodes)

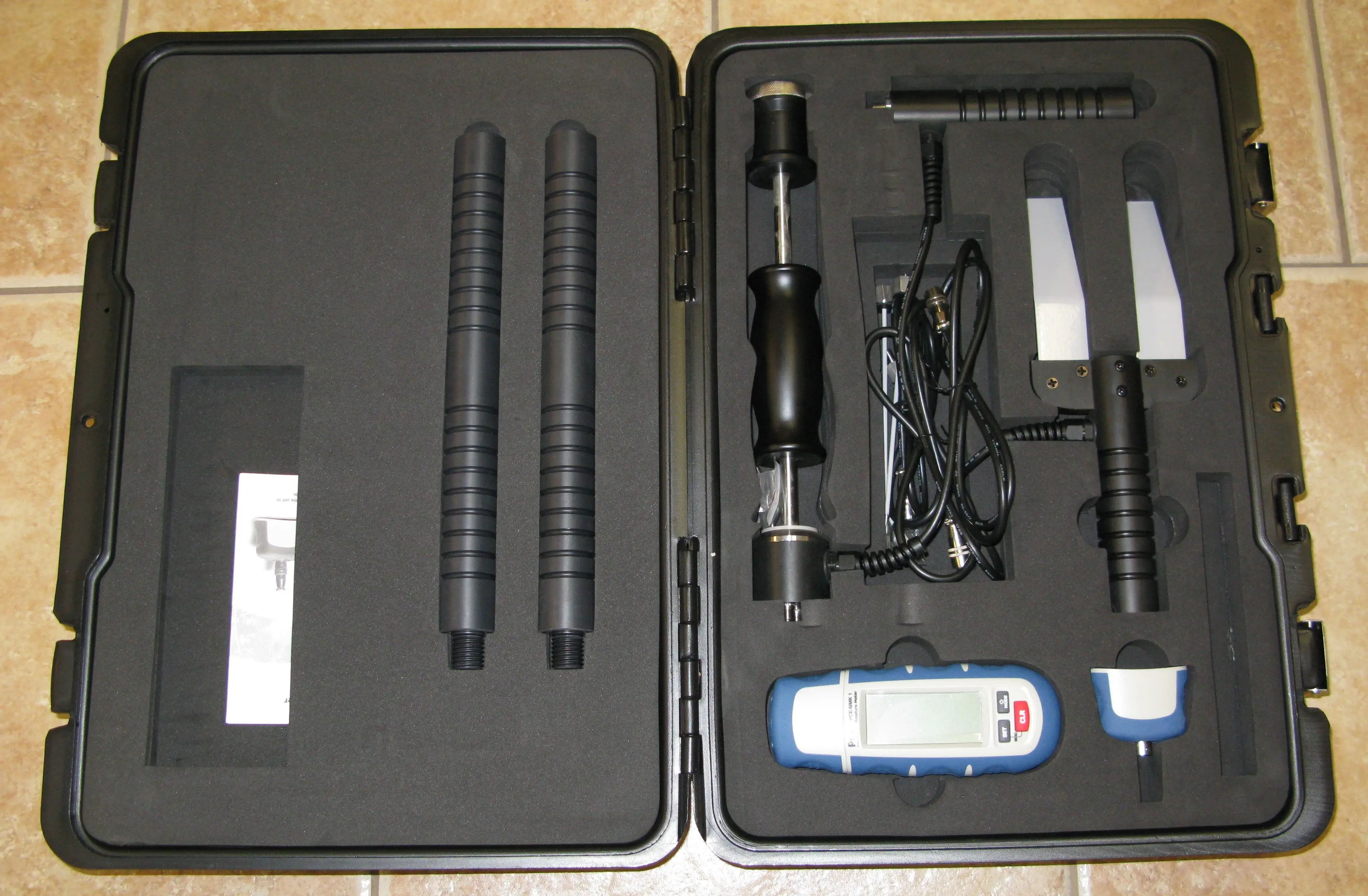

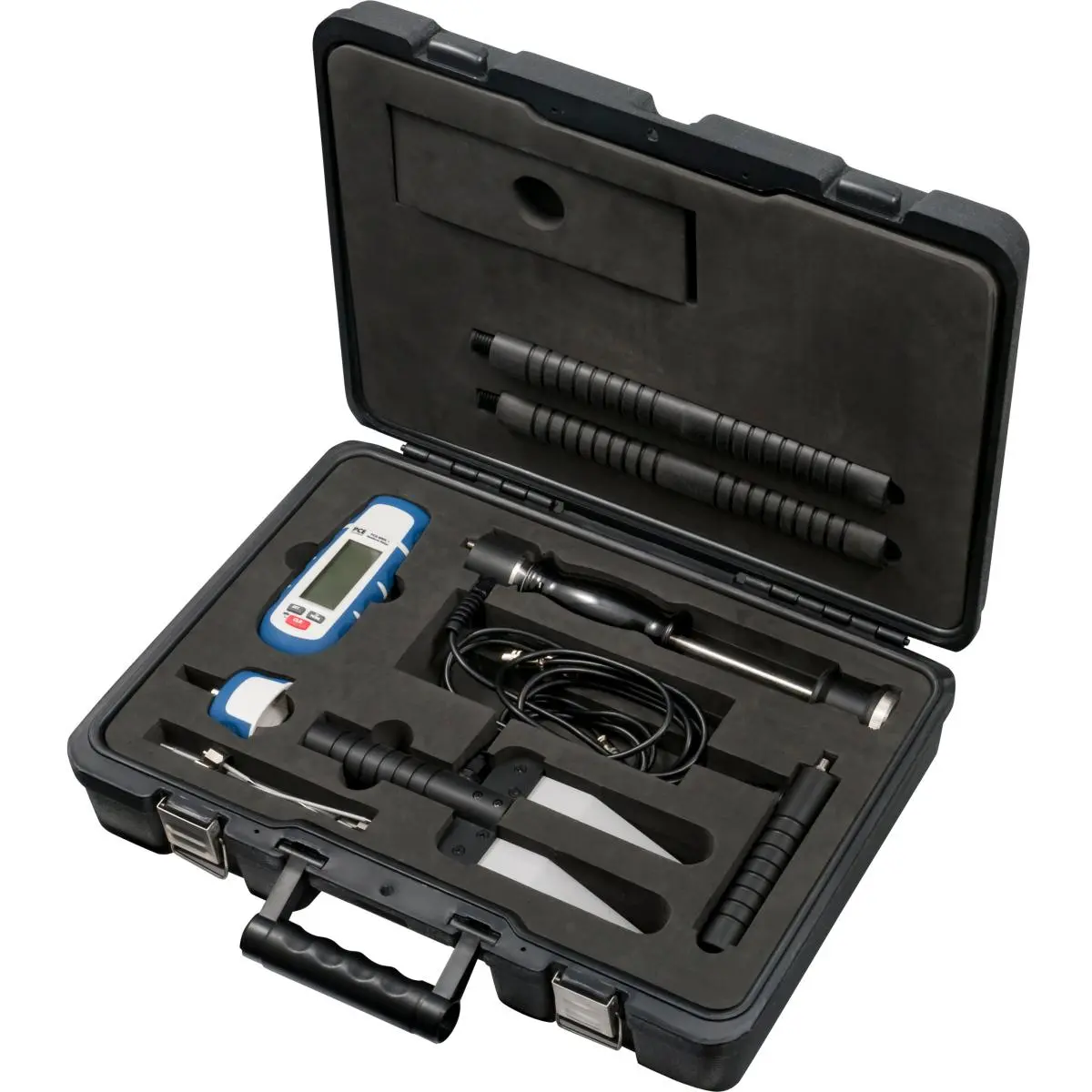

Delivery Scope

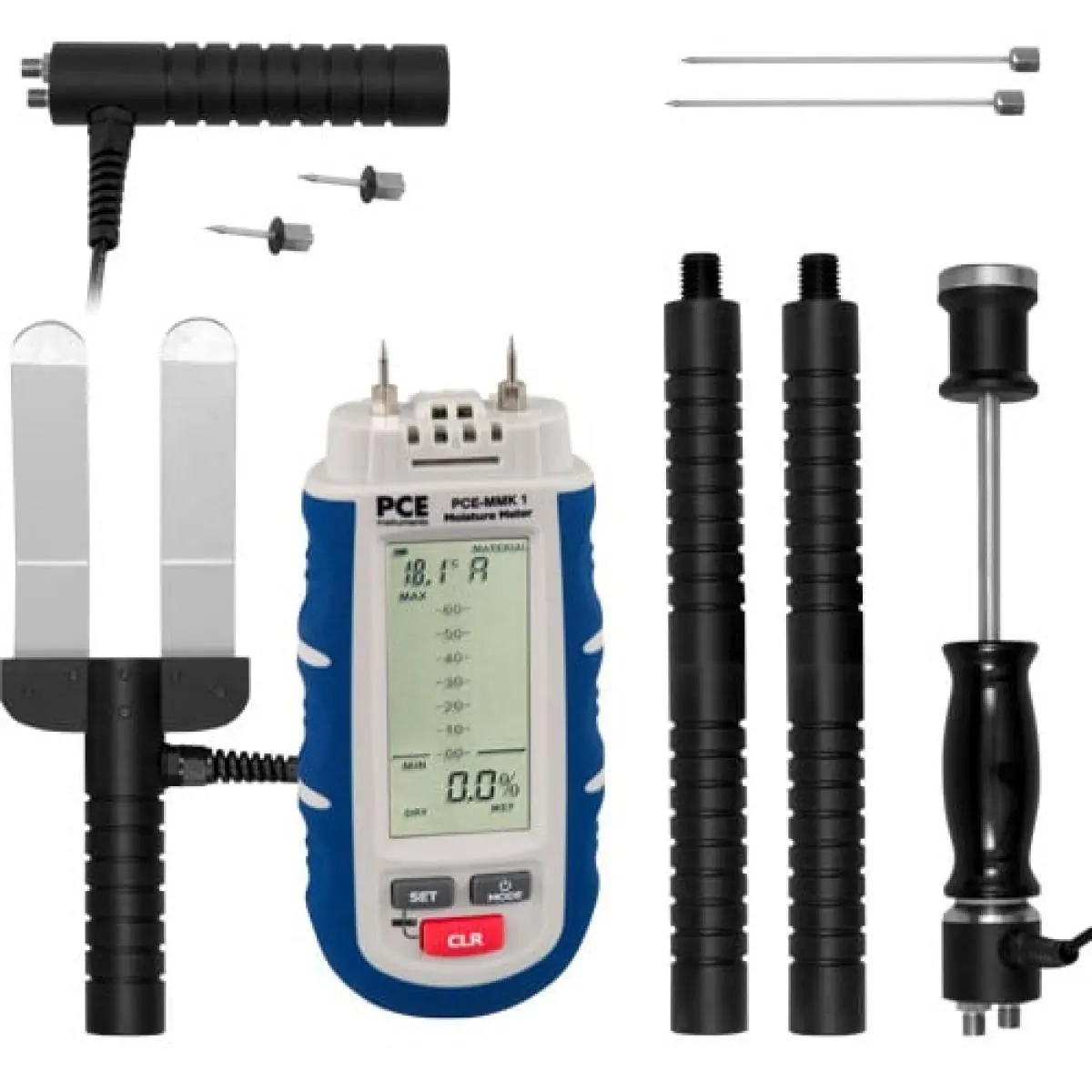

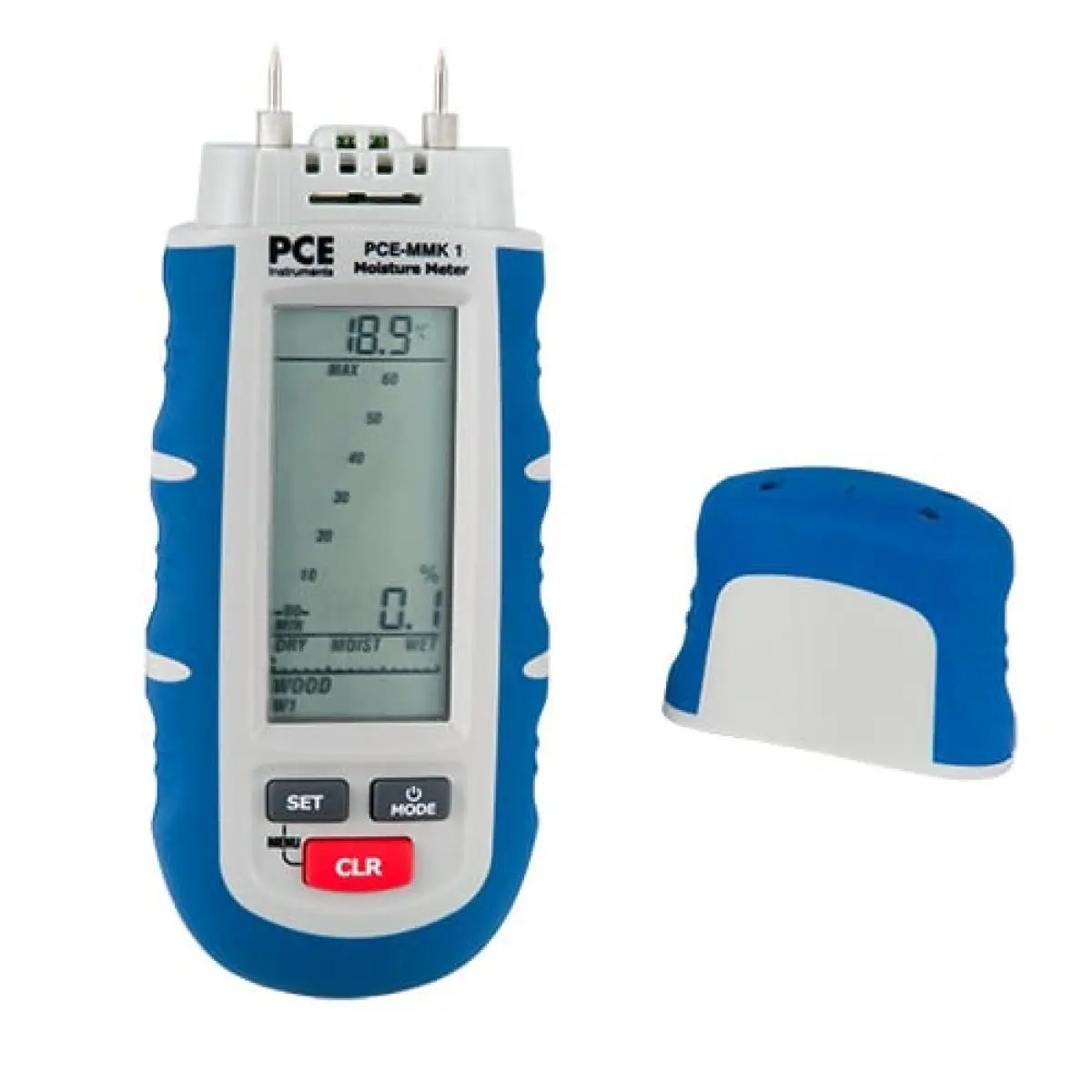

1 x PCE-MMK 1 multifunction absolute moisture meter
2 x 30 mm / 1.18 in insertion needles
2 x 150 mm / 5.91 in insertion needles
1 x Cap to connect external electrodes

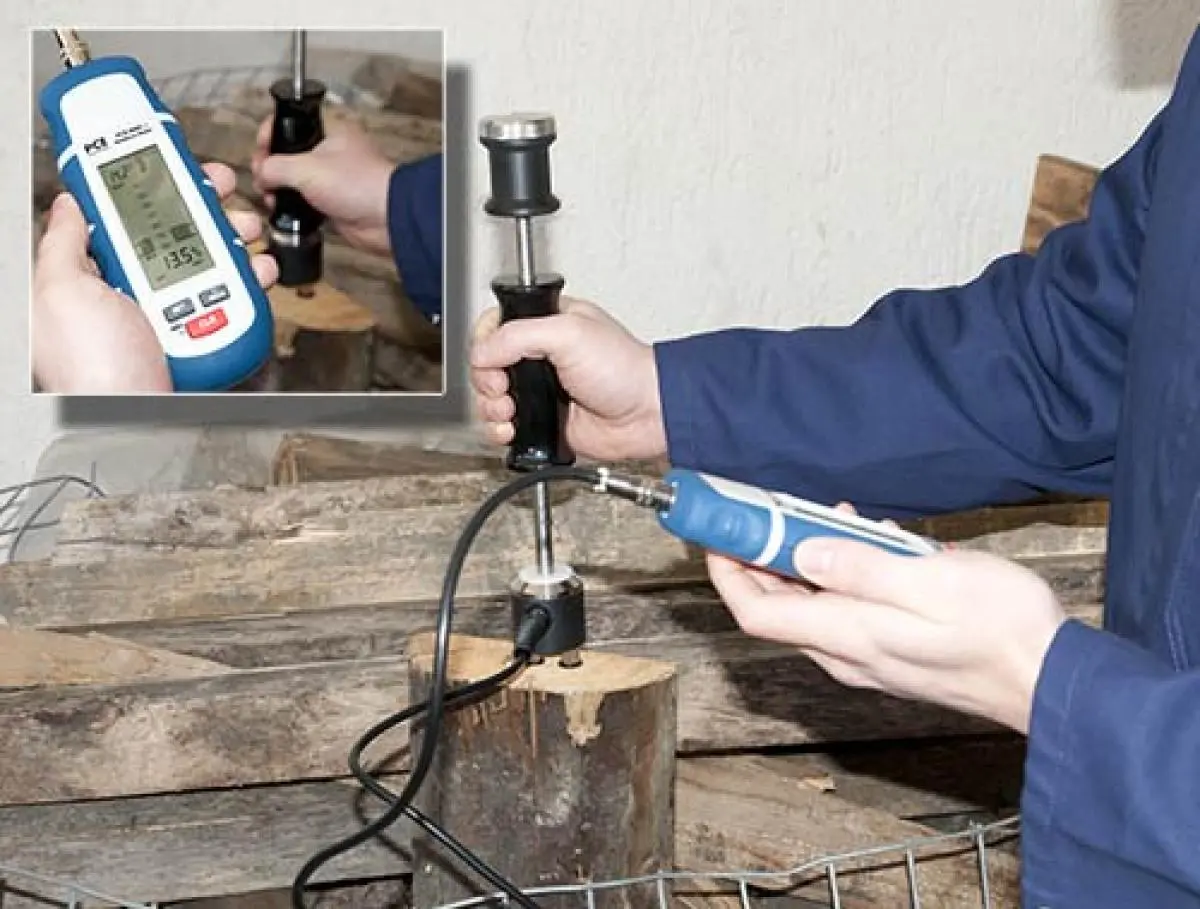

1 x Ramming electrode

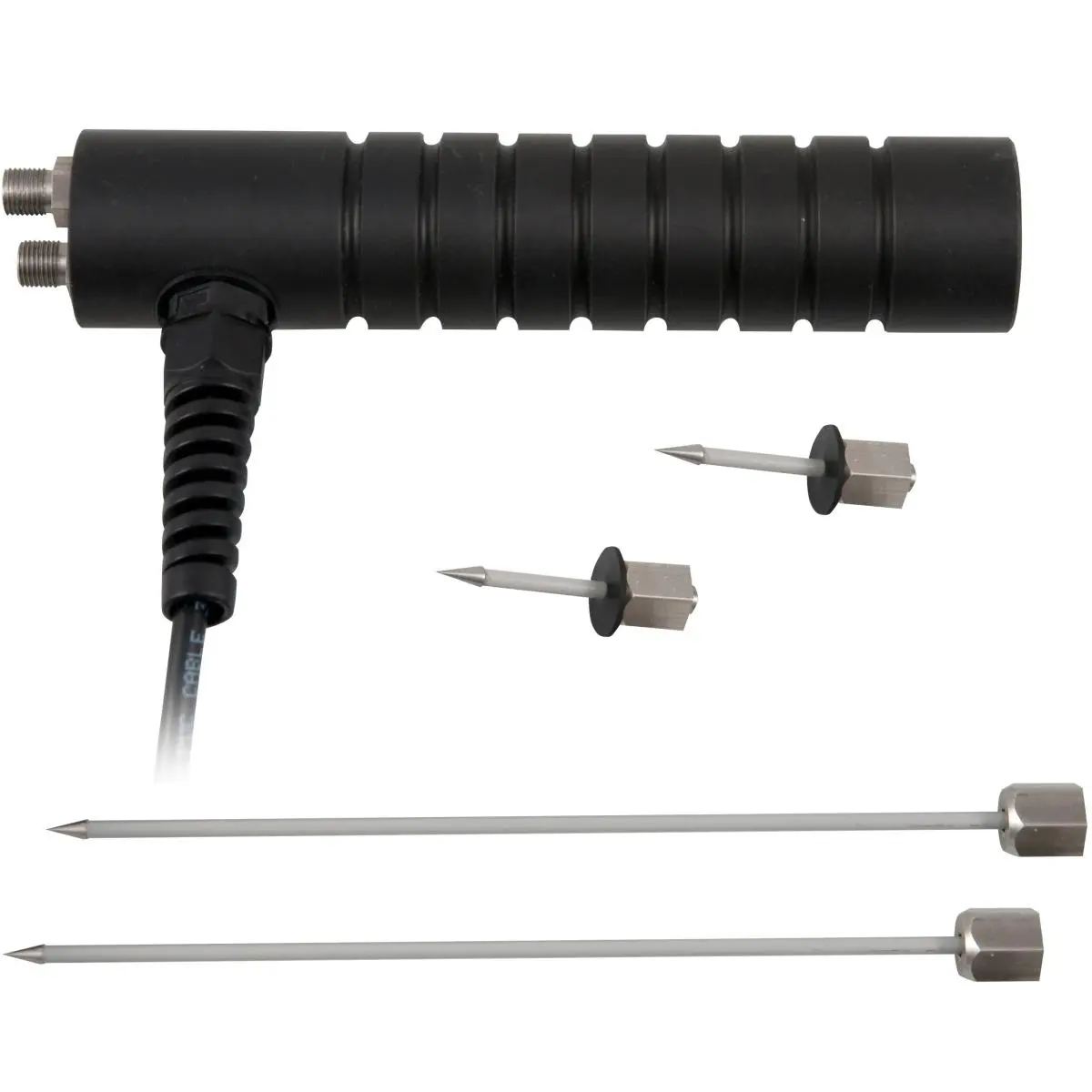

1 x Penetrating electrode
1 x Paper electrode
1 x Self-test probe
2 x 300 mm / 11.81 in extensions
1 x User manual
