Aerosol meter PCE-MPC 30

Order no.: PCE-MPC 30
GTIN (EAN): 4250348719287
£ 974.00
£ 1,168.80
price ex. (VAT / delivery)
:
4250348719287
PCE-MPC 30
Delivery time: 1-2 working days

Description

Aerosol meter with data logger / HCHO measurement / battery for mobile use /
2.8 "TFT display / measurement of mass concentration / data storage on SD card

This Aerosol meter has many functions. With the Aerosol meter it is possible to determine the number of particles in the size of 0.3, 2.5 and 10 µm. In addition to measuring the particles, the Aerosol meter can also measure the PM 2.5 and PM 10 mass concentration. The mass concentration of the Aerosol meter determines the weight of the particles on one cubic meter.

In addition to particle measurement, the Aerosol meter can also determine the formaldehyde content in ppm. During this HCHO measurement, the temperature, the ambient humidity and the dew point are determined and displayed by the Aerosol meter. As a further important property, the Aerosol meter can also store data. It is therefore possible with the Aerosol meter to evaluate all measured values after a measurement.

Highlights

- Particle counter, HCHO, temperature measurement
- Measured value recording for later analyzes

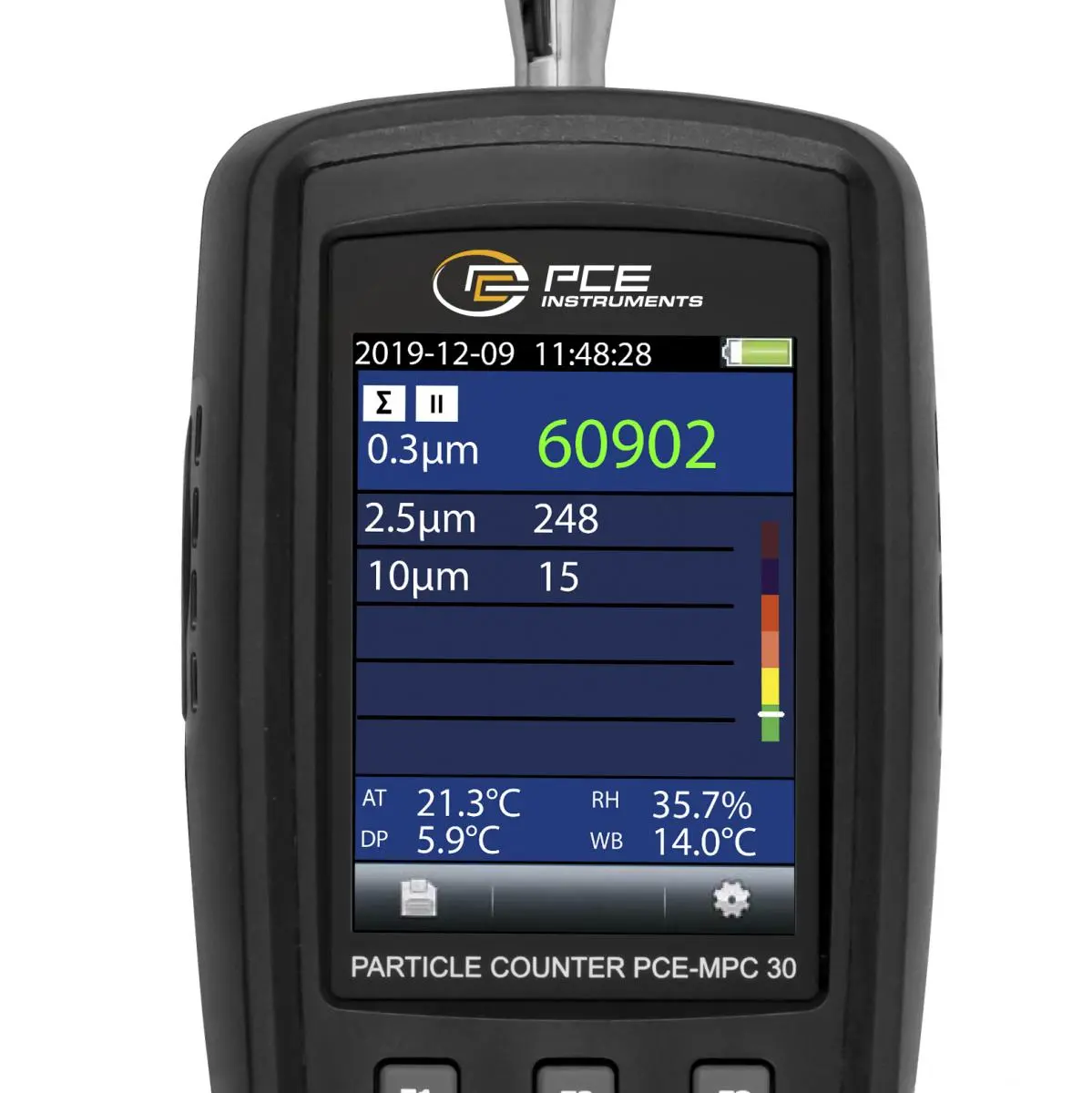

- Large 2.8 "LC display, 320 x 240 pixels
- Mass concentration PM 2.5 and PM 10
- Battery for mobile use
- Dew point and wet bulb temperature

Specification

Measurable particle sizes PM 2.5 and PM 10
Measuring range 0 ... 2000 µg / m³
Resolution 1 µg / m³

Particle counter
Measurable particle sizes 0.3, 2.5, 10 µm
Flow rate 2.83L / min (0.1 ft³)
Counting efficiency 50% at 0.3 µm;
  100% with particle size> 0.45 µm
Coincidence error <5% at 2,000,000 particles per ft³
Data storage 5000 data records (micro SD card)
Counting modes cumulative, differential, concentration

HCHO
Measuring range 0.01 ... 5.00 ppm
Accuracy ± 5%
Resolution 0.01 ppm

Air temperature and relative humidity
Measuring range air temperature 0 ... 50 ° C, 32 ... 122 ° F
Measuring range dew point 0 ... 50 ° C, 32 ... 122 ° F
Relative humidity measuring range 0 ... 100% RH
Air temperature measurement accuracy 10 ... 40 ° C: ± 1 ° C, ± 1.8 ° F
  Others: ± 2 ° C, ± 3.6 ° F
Measuring accuracy dew point temperature 10 ... 40 ° C: ± 1 ° C, ± 1.8 ° F
  Others: ± 2 ° C, ± 3.6 ° F
Relative humidity accuracy 0 ... 20% rel. Humidity: ± 5%
  20 ... 80% rel. Humidity: ± 3.5%
  80 ... 100% rel. Fencing: ± 5%

More specifications
Operating conditions 0 ... +50 ° C, 10 ... 90% rel. humidity,
  not condensing
Storage conditions -10 ... +60 ° C, 10 ... 90% rel. humidity,
  not condensing
Display 2.8 ", 320 x 240 pixels, backlit color LCD
Power supply mains adapter Primary: 100 ... 240 V AC, 50/60 Hz, 0.6 A.
  Secondary: 9 V DC, 1500 mA
Power supply battery 7.4 V, 1200 mAh, 8.88 Wh
Battery Life approx. 4 hours in continuous operation
Battery recharge time approx. 2 hours with AC adapter
Dimensions 240 x 75 x 57 mm
Weight 570 g

Delivery Scope

1 x Aerosol meter PCE-MPC 30
1 x zero filter
1 x battery
1 x charger
1 x mini USB cable

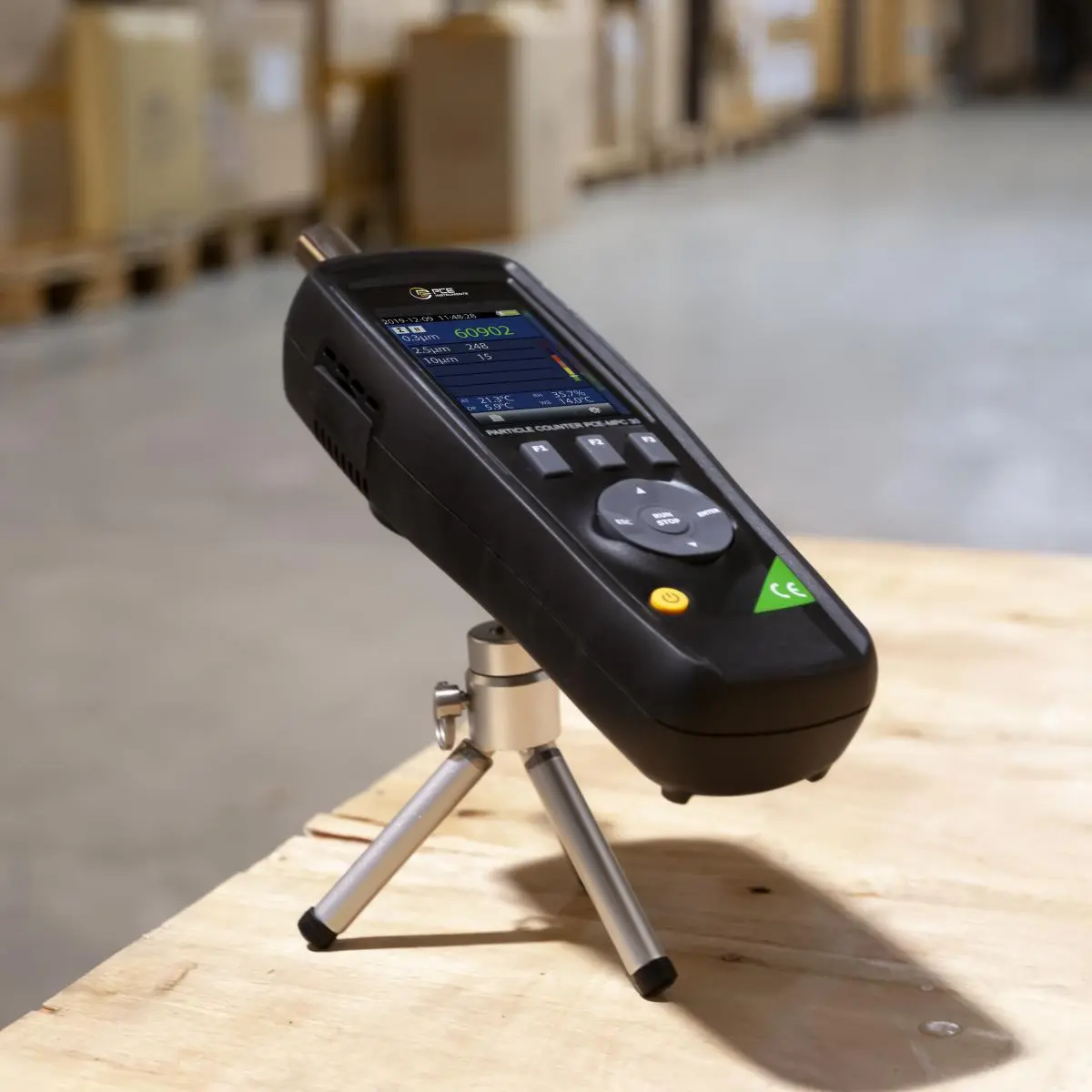

1 x mini tripod
1 x hard case
1 x instruction manual
