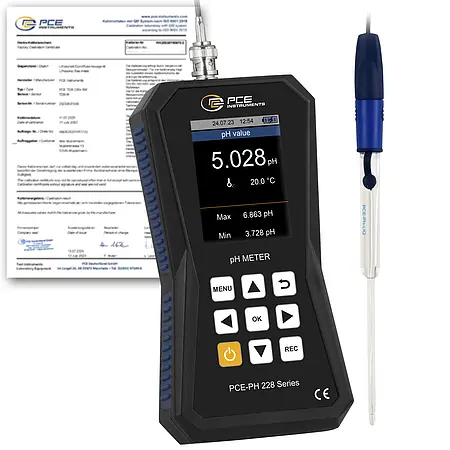

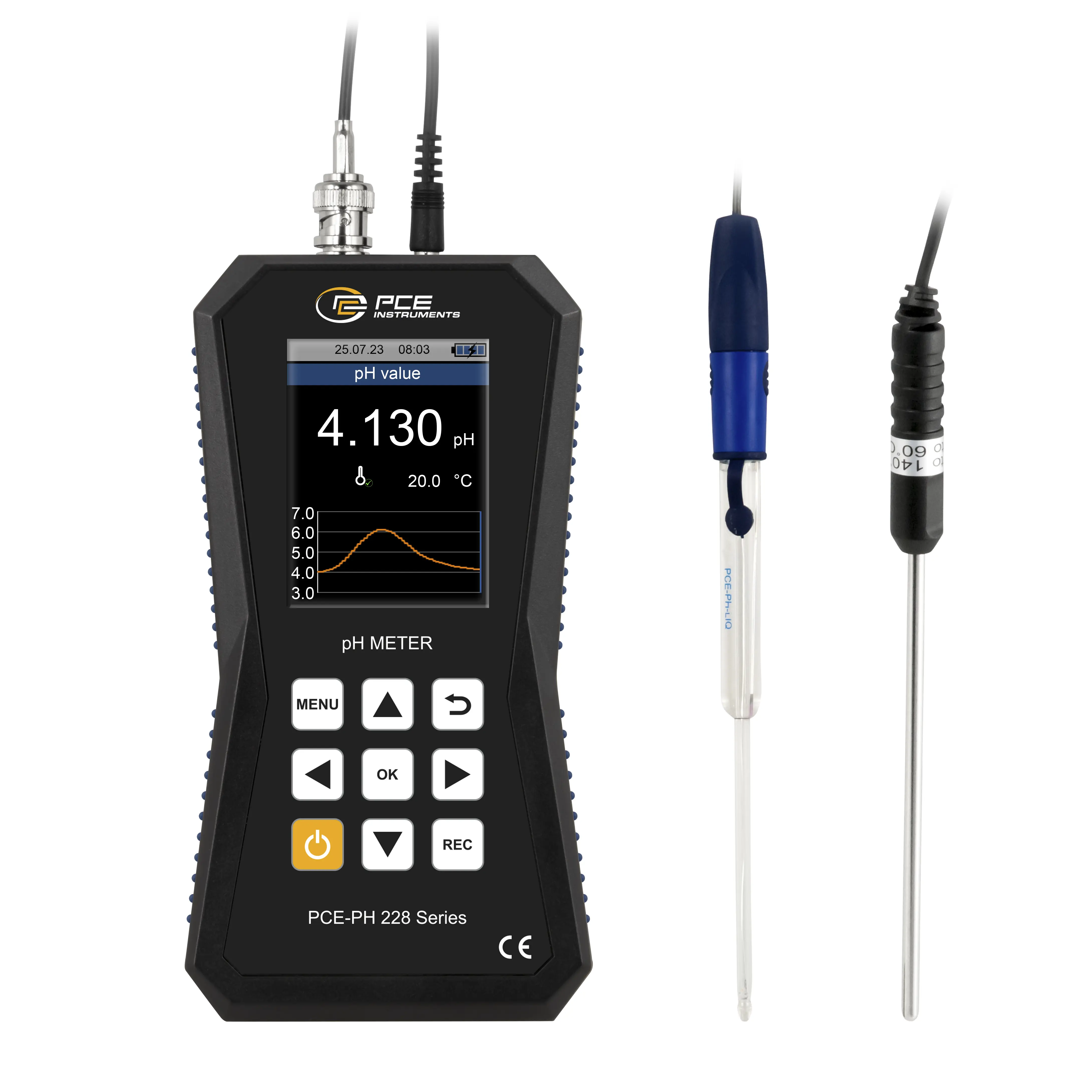

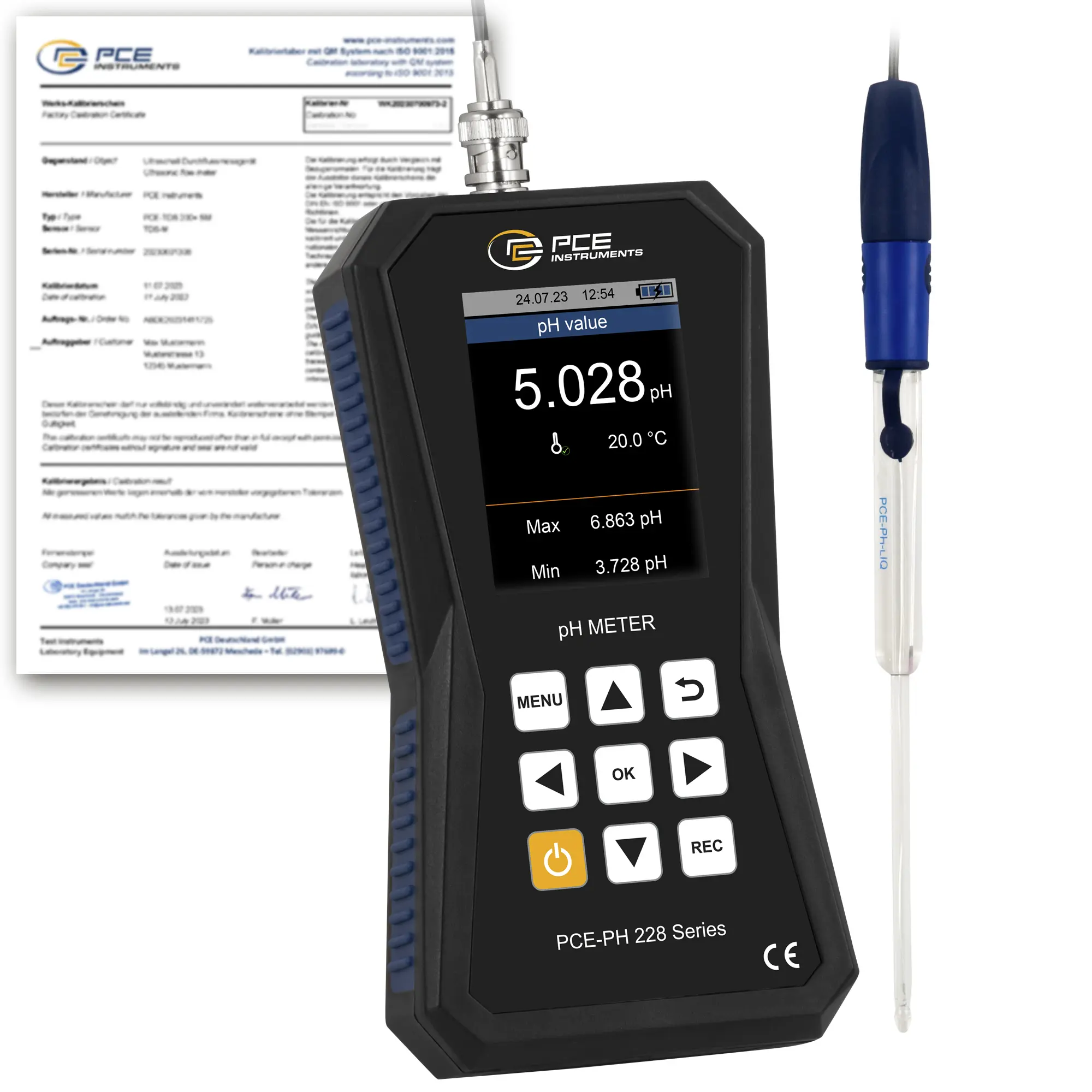

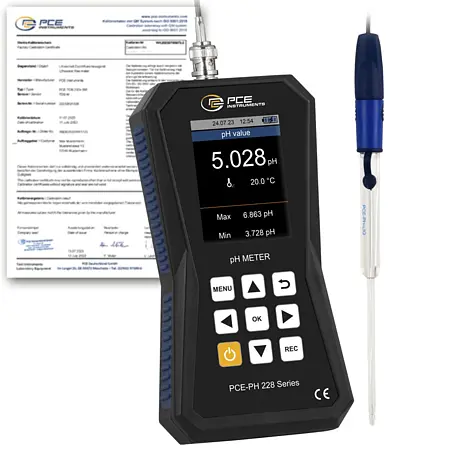

Agricultural measuring device PCE-PH 228LIQ-ICA incl. ISO-Calibration Certificate

Order no.: PCE-PH 228LIQ-ICA
GTIN (EAN): 4250348735386
£ 656.00
£ 787.20
ISO Calibration
price ex. (VAT / delivery)
:
4250348735386
PCE-PH 228LIQ-ICA
Delivery time: 5-7 working days

Description

Agricultural measuring device with GLP data management / high accuracy ±0.002 pH + 2 digits / data logger / user with password protection / incl. electrode / rechargeable battery operation

The Agricultural measuring device stands for precision, user-friendliness and GLP conformity (Good Laboratory Practice). With a high-resolution LCD screen, the Agricultural measuring device provides a clear and concise display of the measured values. GLP compliance is guaranteed by automatic data recording and traceable documentation. It is possible to measure pH or redox values and temperature with external sensors.

A permanent measurement verification (PMV) shows the user where the measured value is within the calibration range by means of a coloured bar in order to classify whether the measurement is within the correct range.

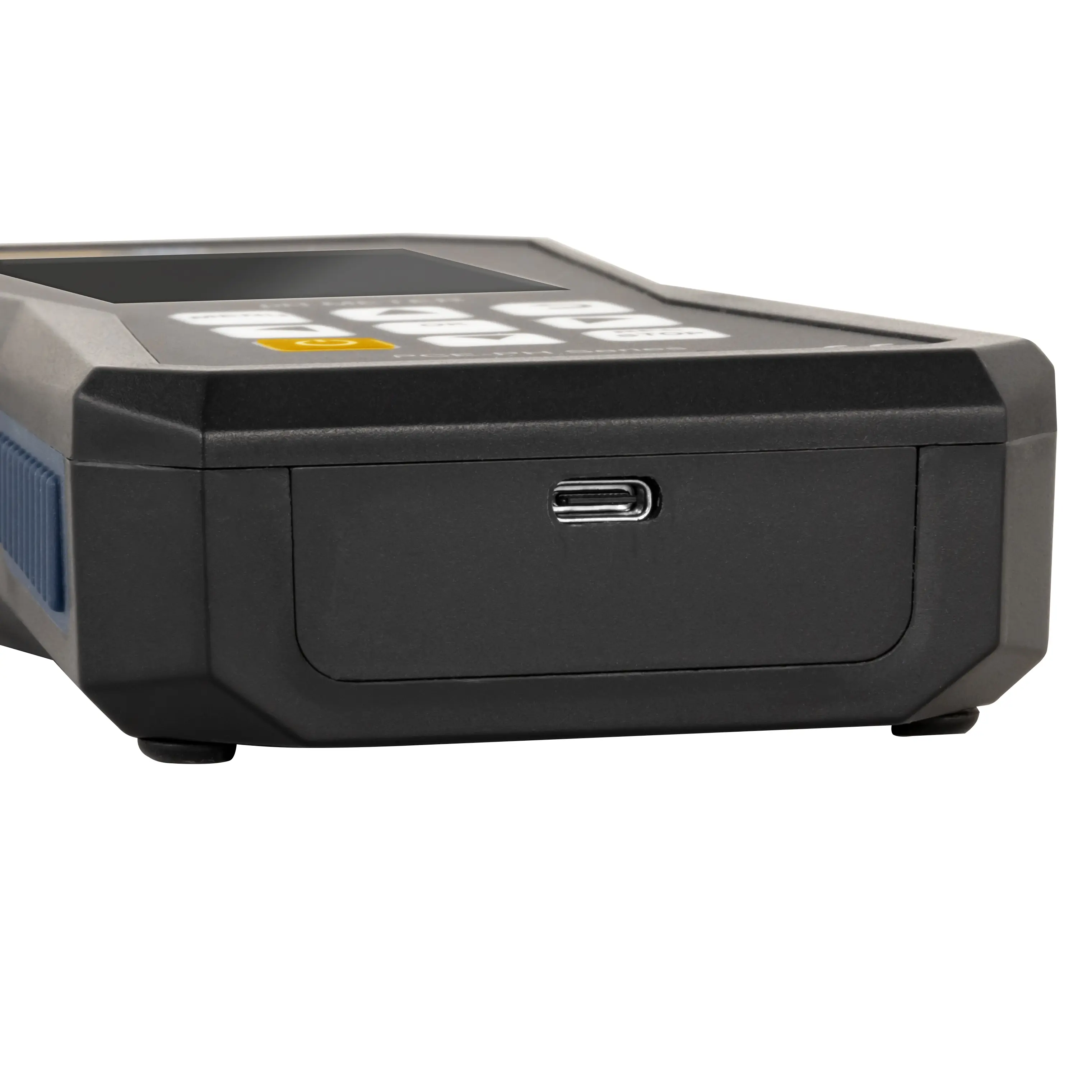

The graphically guided calibration makes the process simple and user-friendly. User and sample management allow easy navigation and setting of measurement parameters on the pH meter. Sample information can be saved to facilitate the management and identification of measurements. A large internal data memory saves extensive records without the need for external storage. Our Agricultural measuring device is equipped with a USB-C port for fast data transfer and charging. A powerful rechargeable LiPo battery enables hours of measurements before it needs to be recharged.

Overall, this Agricultural measuring device represents a significant step in the development of handheld and laboratory instruments. The high accuracy of ±0.002 pH + 2 digits, graphically guided calibration, GLP compliance, user and sample management and data storage make it an indispensable tool for scientists, researchers and laboratory technicians who rely on precise pH measurements. It does not only improve the accuracy and efficiency of experiments but also facilitates everyday work in industry, quality assurance and the laboratory.


Highlights

- fast, precise pH and temperature measurement
- redox measurement (with optional electrode)
- GLP data management
- simple 2, 3, 4 and 5-point calibration
- calibration reminder
- permanent measurement verification (PMV)
- graphical display of measurement progress
- data logger
- incl. ISO-Calibration Certificate

Specification

pH
Measurement range up to  -2 ... +20 pH
Resolution  0,001 pH
Accuracy  ±0.002 pH +2 digits

Electrode
Designation  PCE-PH-LIQ
Measurement range up to  0 ... 14 pH
Temperature range  0 ... 100 °C
Application  Blood
Reference electrolyte  Ag/AgCl
Shank material  Glass
Shank length  165 mm
Shaft length additional information  upper shaft length: 75 mm, diameter: 12 mm
lower shaft length: 90 mm, diameter: 4 mm
Shank diameter  4,3 mm
Cable length  1 m

Redox
Measurement range up to  -2000 ... +2000 mV
Resolution  1 mV
Accuracy  ±2 mV

Temperature sensor
Measurement range up to  -20 ... +100 °C
Resolution  0,1 °C
Accuracy  ±0.5 °C (@ 20 °C)

General technical data
Measuring functions  MIN, MAX
Display type  LCD with backlight
Display size  2,8 Inch
Storage medium  Internal memory
Storage capacity  32 GB
Memory capacity (additional information)  100 recordings with a maximum of 100,000 data points per recording
Storage interval from  1 s
Storage interval to  12 h
Interface  USB-C
Number of calibration points  5
Menu language  Turkish, English, Polish, Spanish, German, Chinese, Russian, Japanese, French, Danish, Italian, Dutch, Portuguese
Protection class (device)  IP52
Power supply  5 V DC, 500 mA
Capacity  2500 mAh
Operating conditions  -20 ... 65 °C , 10 ... 95 % RH
Storage conditions  -20 ... 65 °C , 10 ... 95 % RH
Dimensions ( L x W x H )  178 x 85 x 32 mm
Weight  252 g

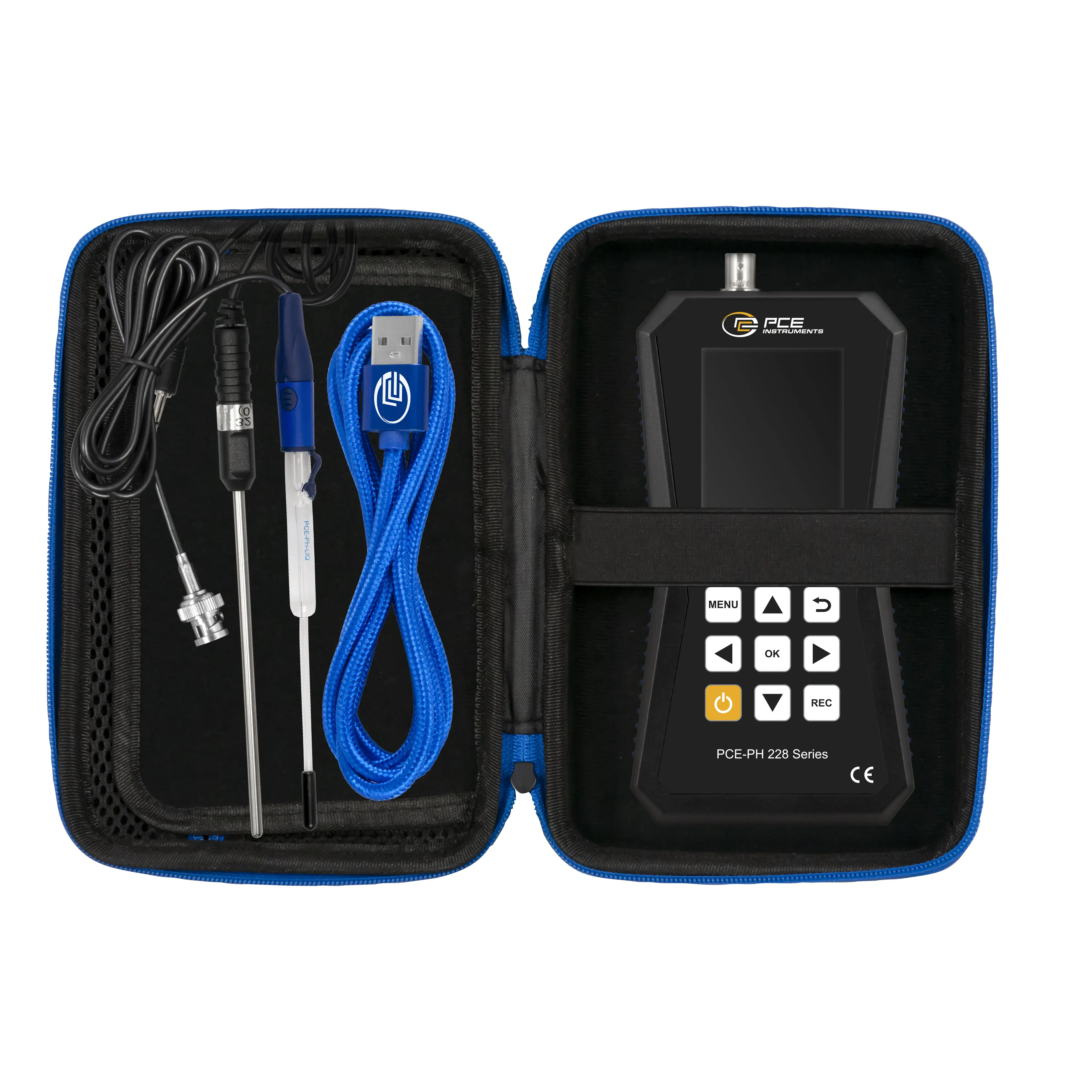

Delivery Scope

1 x Agricultural measuring device PCE-PH 228LIQ-ICA
1 x pH electrode PCE-PH-LIQ
1 x temperature sensor
1 x service bag
1 x USB-C cable
1 x quick start guide
1 x ISO-Calibration Certificate
