Multifunction Air Flow Meter PCE-AM 30

Order no.: PCE-AM 30
GTIN (EAN): 4250348733528
£ 44.00
£ 52.80
ISO Calibration
price ex. (VAT / delivery)
:
4250348733528
PCE-AM 30
Delivery time: 5-7 working days

Description

Multifunction Air Flow Meter with vane wheel sensor / Measuring range 0 ... 30 m/s / Temperature measurement / Units: m/s, km/h, kn, mph, ft/min / Humidity measurement / MAX, MIN, HOLD, AVG display

The multifunction air flow meter is the ideal solution for measuring wind speeds, whether in light breezes or strong wind currents, and can measure speeds of up to 55 km/h. Versatile in use, it enables measurement in various units such as m/s, km/h, kn, mph and ft/min and also integrates the Beaufort scale to enable a quick assessment of wind force.

In addition to wind speed measurement, the multifunction air flow meter also offers functions for temperature and humidity measurement. These three parameters are shown simultaneously on the display, providing the user with a clear and simple visualisation.

With additional functions such as MAX, MIN, HOLD and AVG, the multifunction air flow meter makes it easier to record important data. The automatic switch-off function helps to extend battery life, with the device being powered by a standard CR2032 battery, which ensures an operating time of around 88 hours. The multifunction air flow meter is supplied with a wrist strap and carrying case.


Highlights

- Wind speed measurement up to 55 km/h
- m/s, km/h, kn, mph, ft/min
- Beaufort scale
- Temperature measurement
- Humidity measurement
- MAX, MIN, HOLD, AVG display
- Vane wheel sensor

Specification

Moisture relative
Measurement range  20 % ... 90 %
Resolution  1 %
Accuracy  5 %

Speed
Measuring range  0.1 m/s ... 30 m/s
Resolution  0.1 m/s
Accuracy  ±5 %

Speed
Measuring range  39 ft/min ... 5860 ft/min
Resolution  19 ft/min
Accuracy  ±5 %

Speed
Measurement range  0.1 knots ... 55 knots
Resolution  0.2 knots
Accuracy  ±5 %

Speed
Measurement range  0.3 km/h ... 55 km/h
Resolution  0.2 km/h
Accuracy  ±5 %

Speed
Measurement range  0.2 mph ... 65 mph
Resolution  0.2 mph
Accuracy  ±5 %

Temperature
Measuring range  -10 °C ... +50 °C
Resolution  0.1 °C
Accuracy  ±1 °C

General technical data
Measurement functions  MIN, MAX, HOLD, average value
Units  m/s, km/h, kn, mph, ft/min
Display type  LCD with illumination
Sensor  Wheel
Automatic switch-off  10 min
Automatic switch-off can be deactivated  Yes
Menu language  English
Protection class (device)  IP20
Weight  48 g
Dimensions (L x W x H)  115 x 40 x 18 mm
Operating conditions  -10 ... 50 °C , 0 ... 90 % r.H
Storage conditions  -10 ... 50 °C , 0 ... 90 % r.H

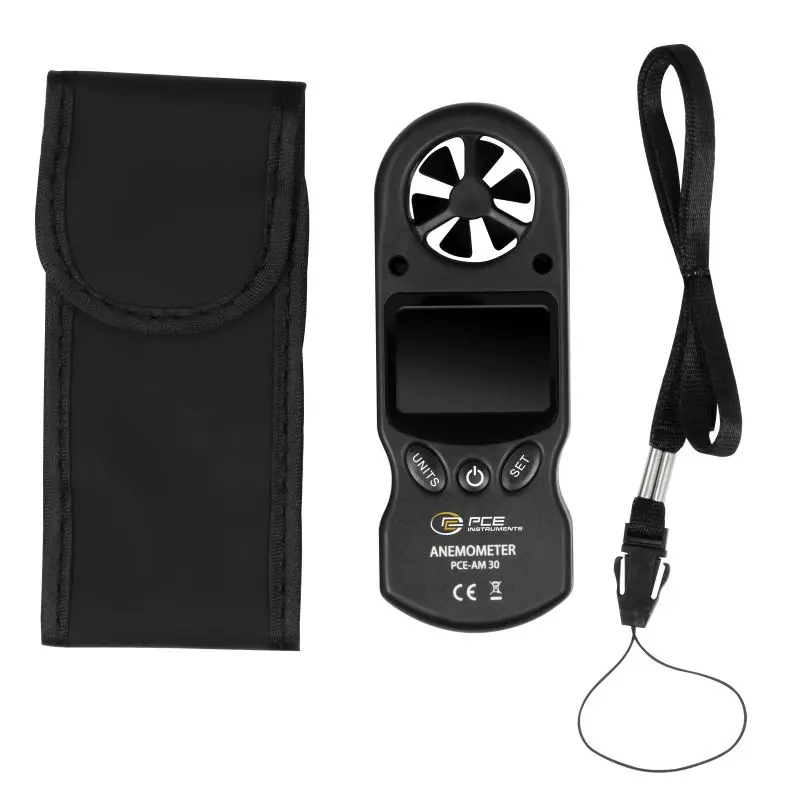

Delivery Scope

1 x PCE-AM 30 multifunction air flow meter
1 x 3 V CR2023 battery
1 x carrying case
1 x wrist strap
1 x operating instructions
