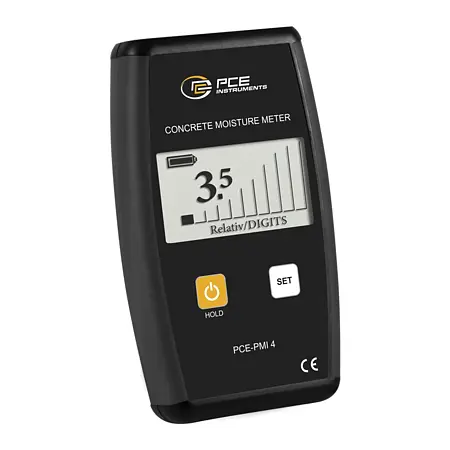

Building Moisture Meter PCE-PMI 4

Order no.: PCE-PMI 4
GTIN (EAN): 4250348722270
£ 432.00
£ 518.40
price ex. (VAT / delivery)
:
4250348722270
PCE-PMI 4
Delivery time: 1-2 working days

Accessory

Fork Probe PCE-PMI 4-ST100G
Penetration Probe PCE-PMI 4-ST100G
£ 99.00
Brush Electrode PCE-PMI 4-B120
Brush Electrode PCE-PMI 4-B120
£ 99.00
Penetration Probe PCE-PMI 4-ST230
Penetration Probe PCE-PMI 4-ST230
£ 99.00

Description

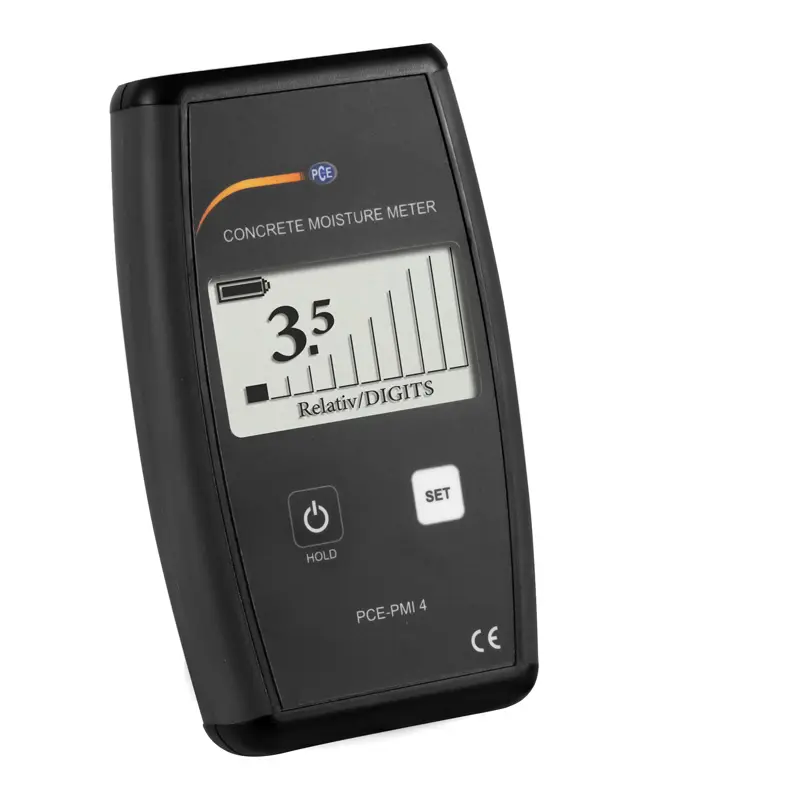

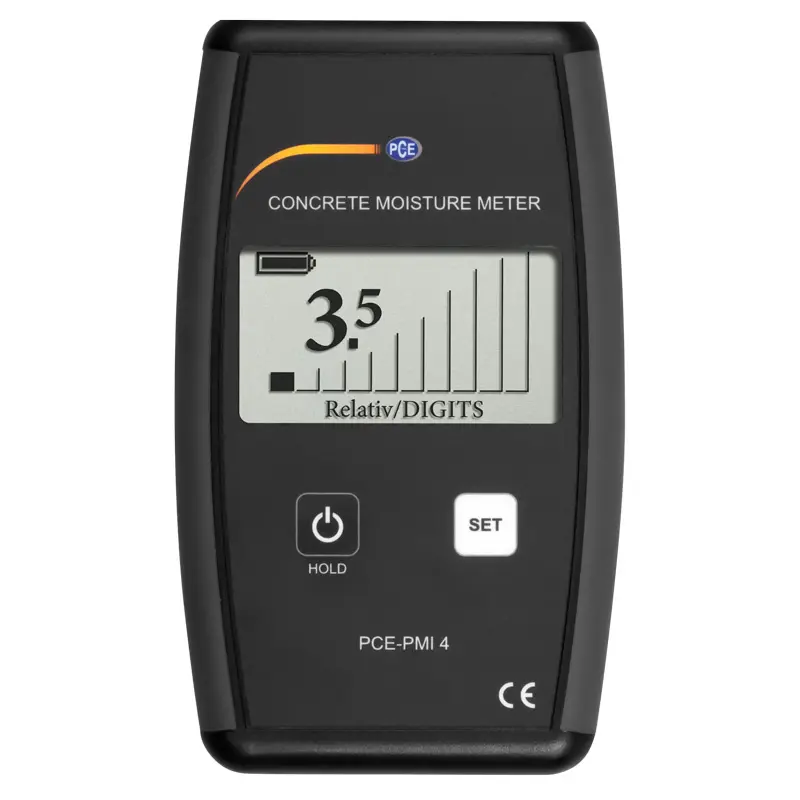

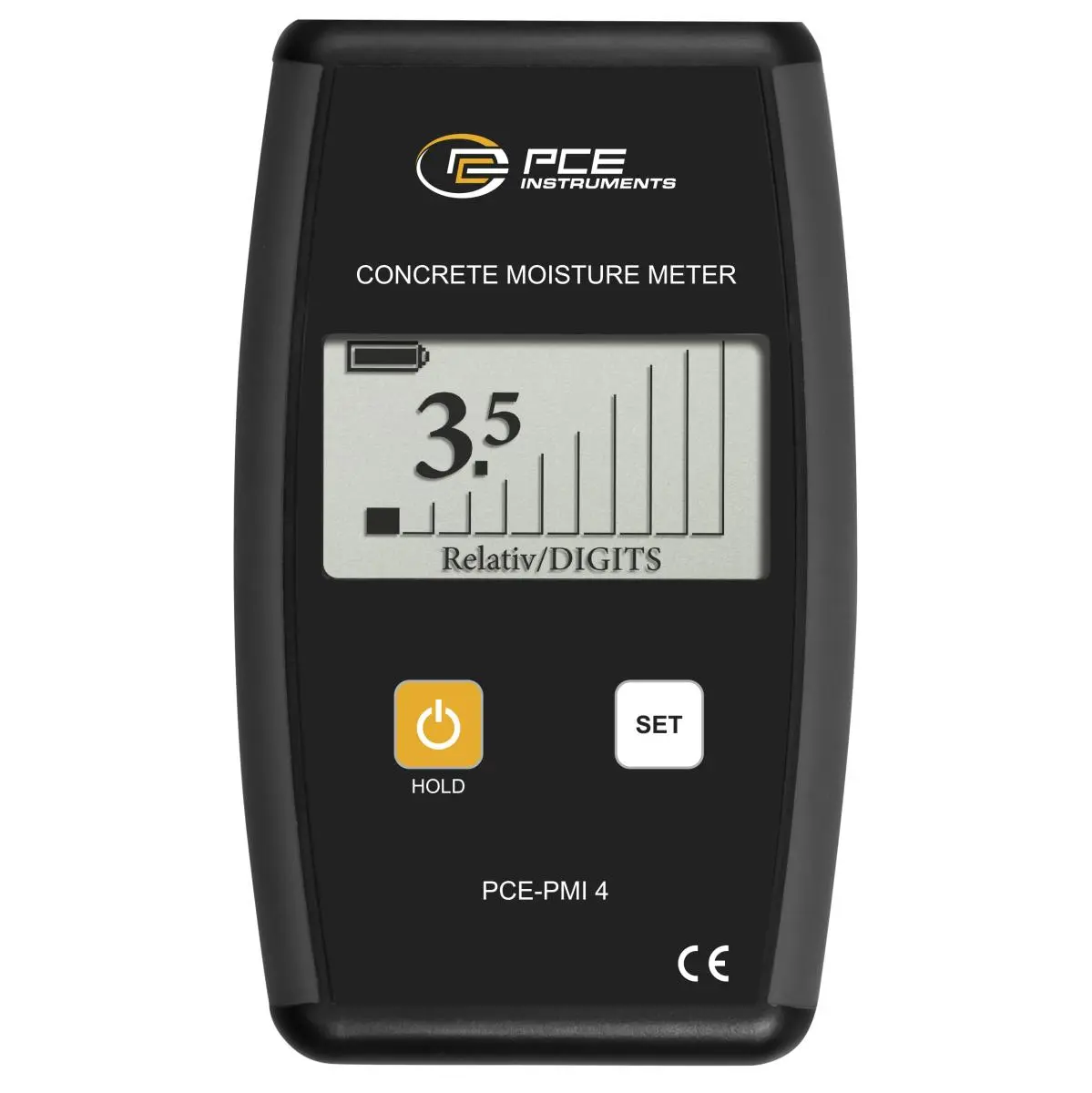

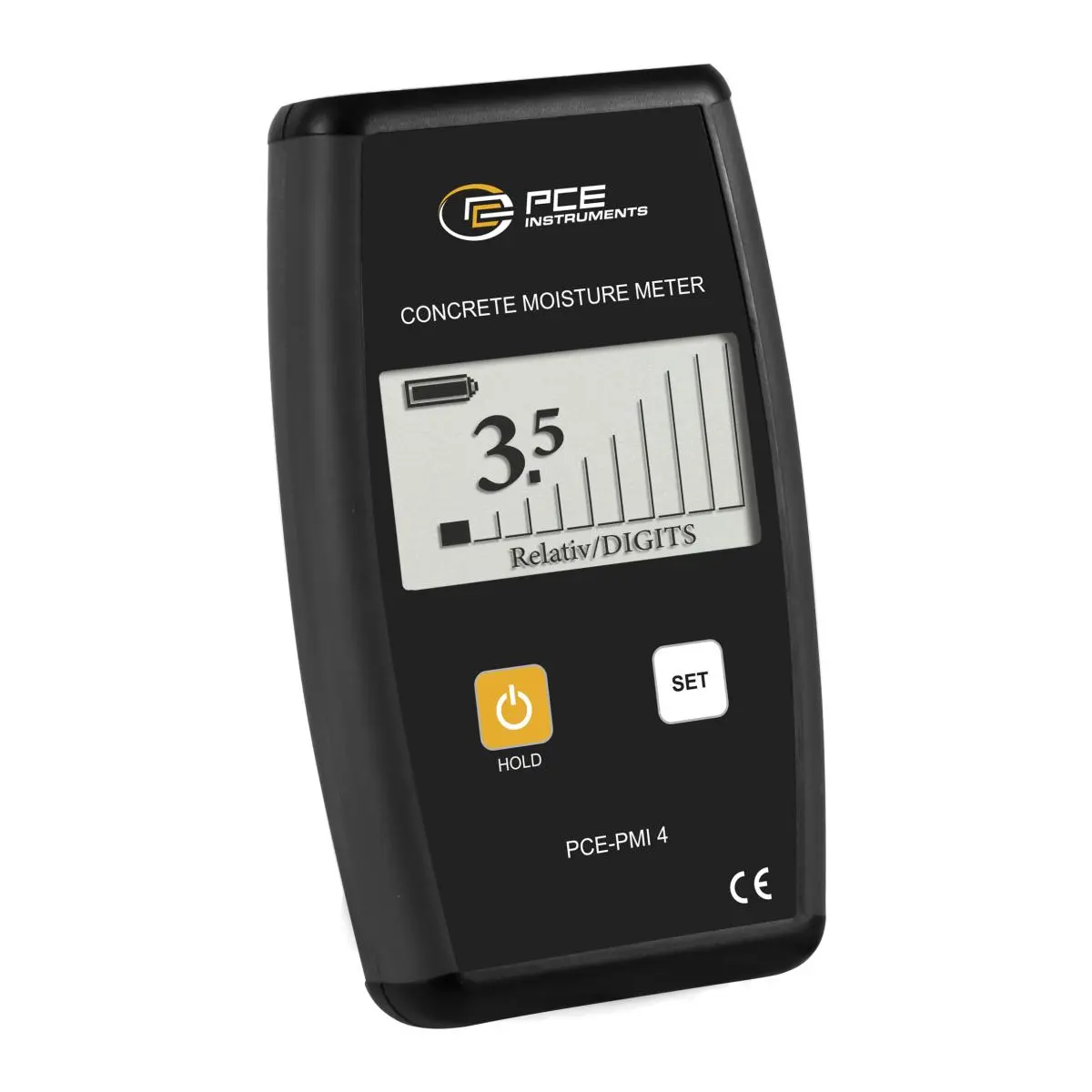

Building Moisture Meter
Moisture meter with eight spring electrodes / Many scales already deposited /
Non-destructive measurement on floors and walls / Large graphic display /
Measurement display both numerical and graphical / Max HOLD function

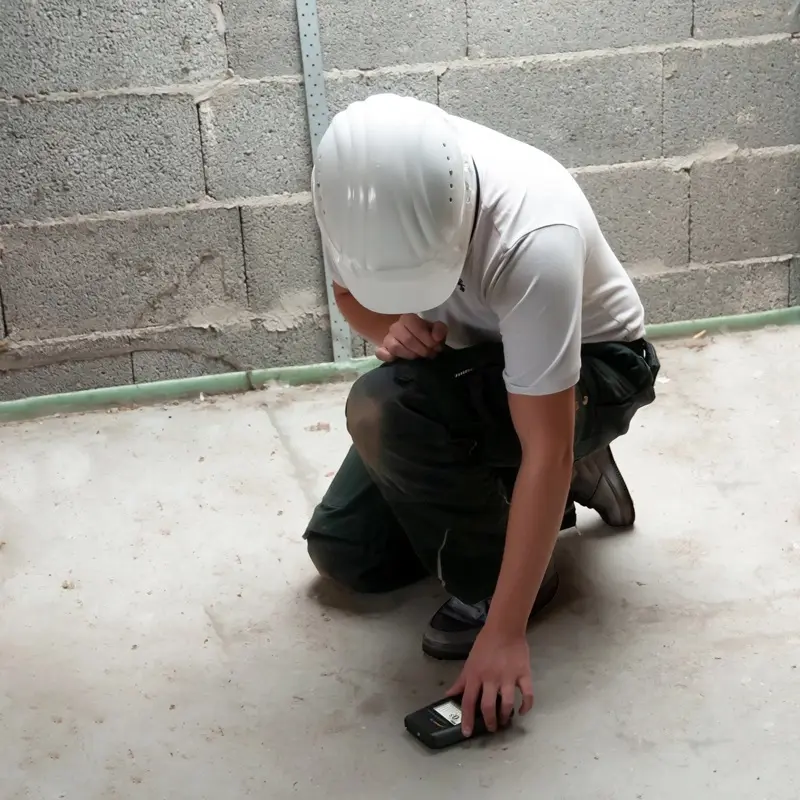

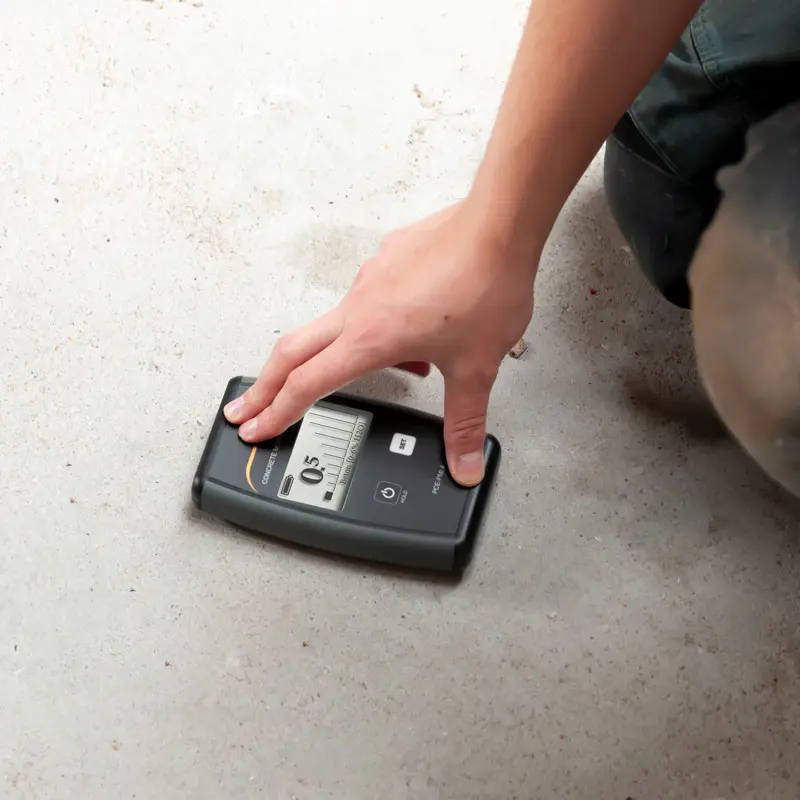

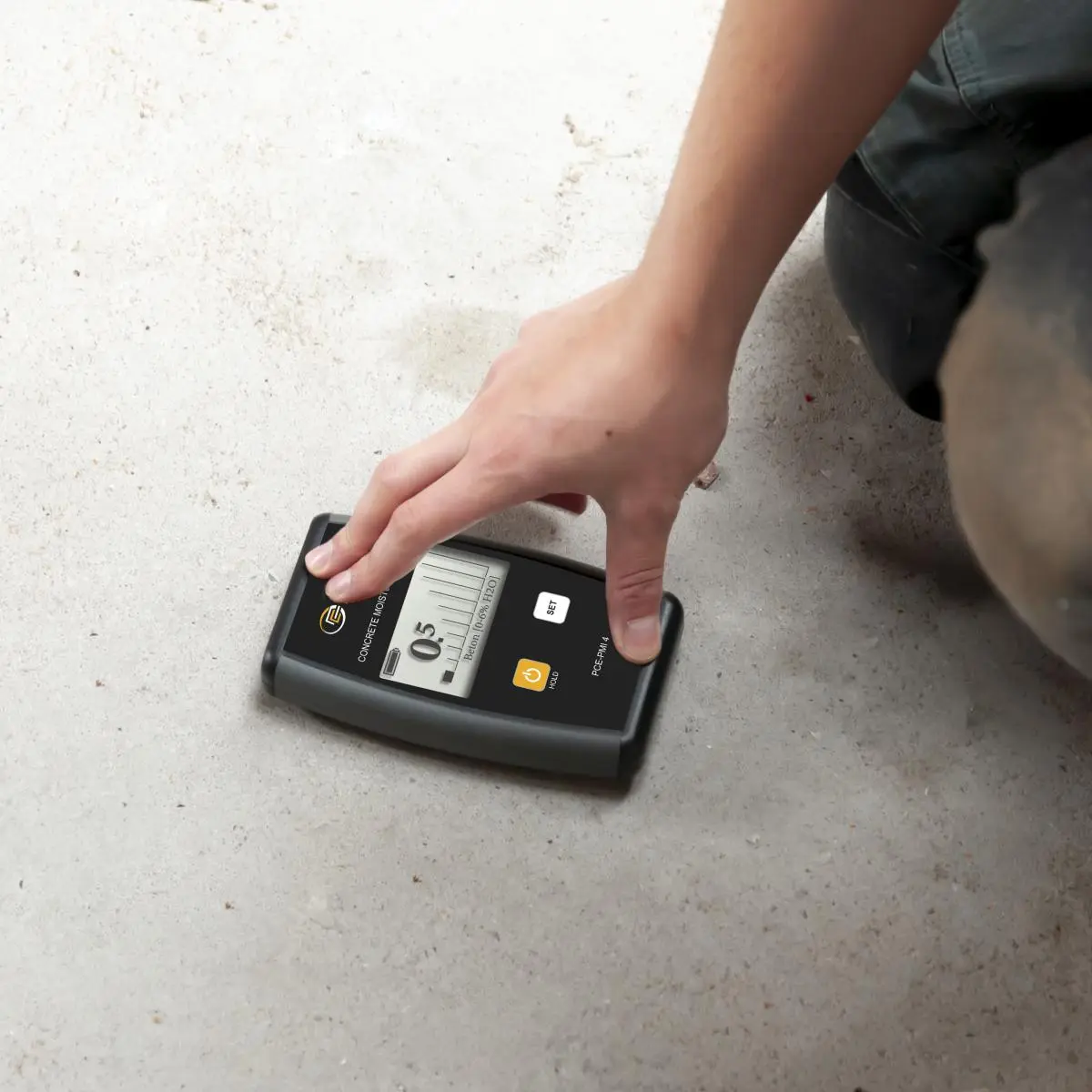

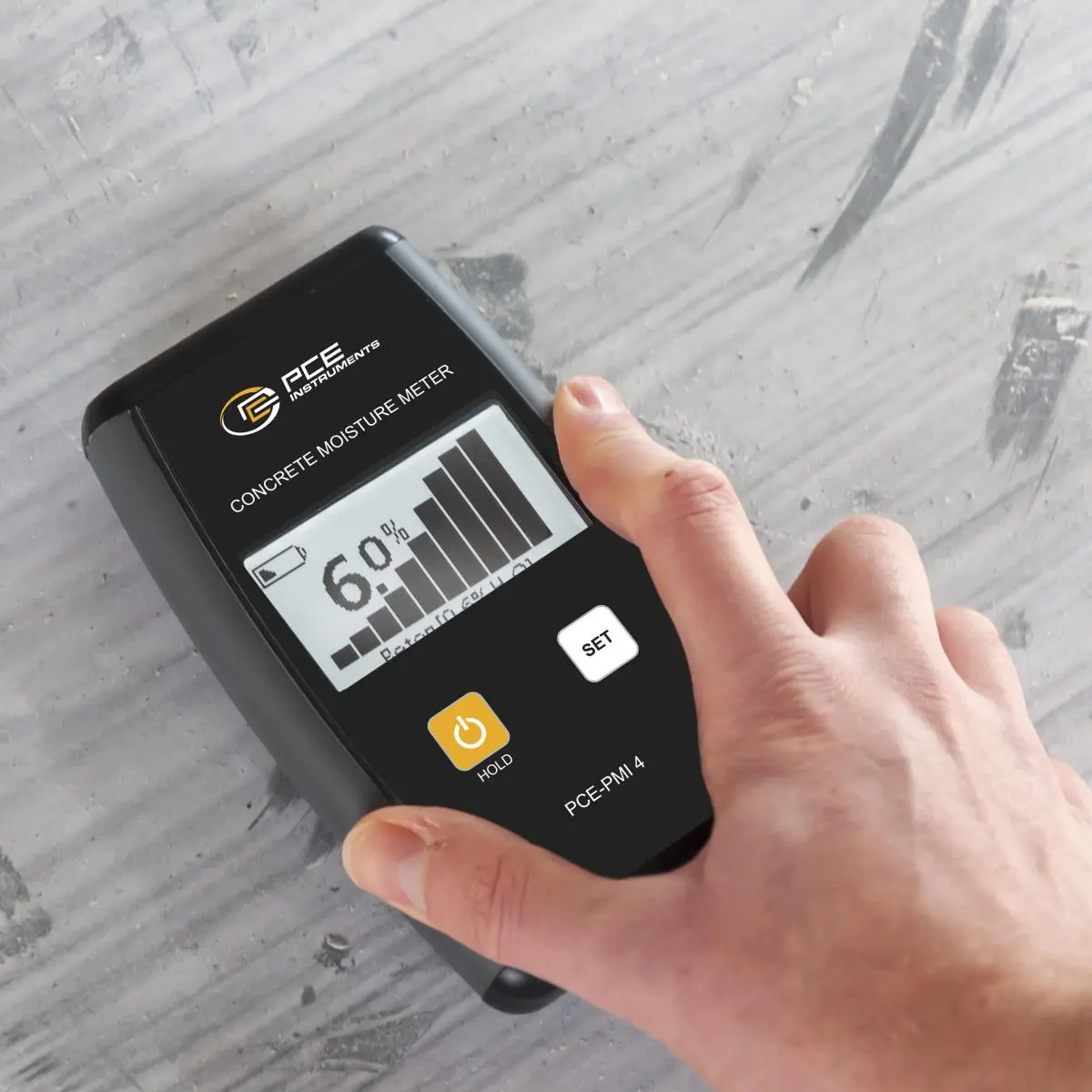

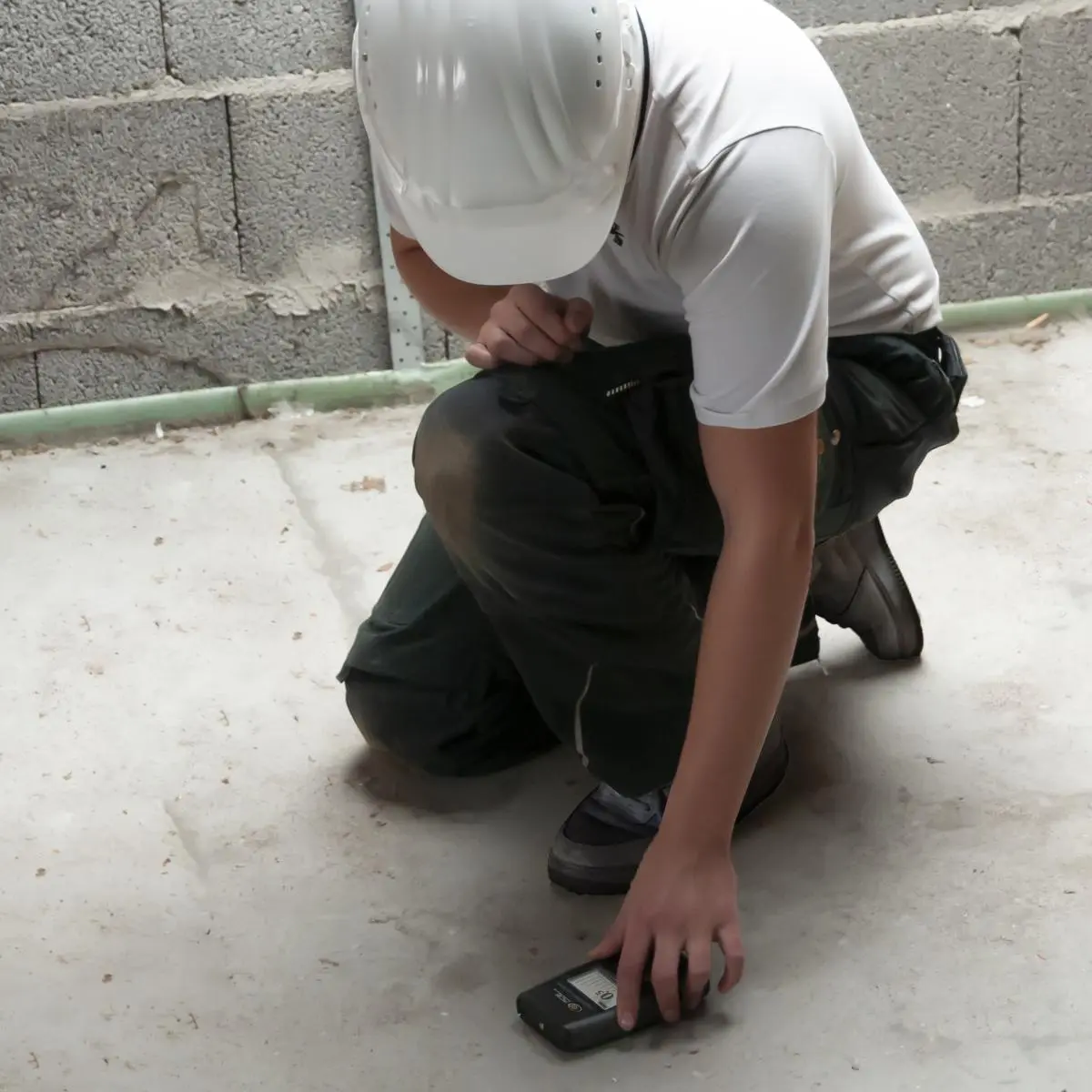

The building moisture meter is a measuring device for nondestructive moisture measurement on concrete and screed. Here, the spring electrodes of the building moisture meter are pressed onto the surface to be tested. Within seconds, the building moisture meter will show the moisture content to the operator. Different scales are already stored in the building moisture meter for a wide variety of surfaces. These are available to the operator directly from the building moisture meter.

As another special feature, the building moisture meter has an automatic shutdown. This feature automatically shuts off the meter if the building moisture meter is not used for 5 minutes. This prevents a sudden discharge of the battery in the building moisture meter. Another function of the building moisture meter is the Max HOLD function. This feature only displays the highest reading to the operator.

Highlights

- For measuring the moisture in concrete and screed
- Numeric and graphical view

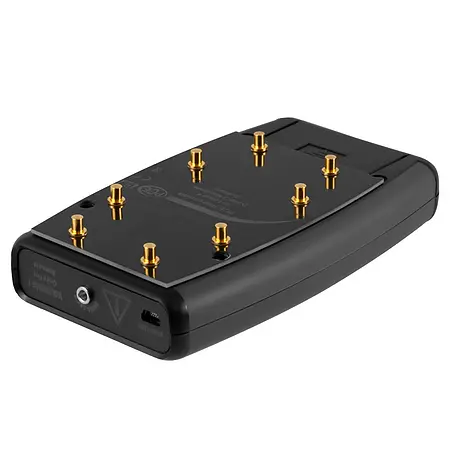

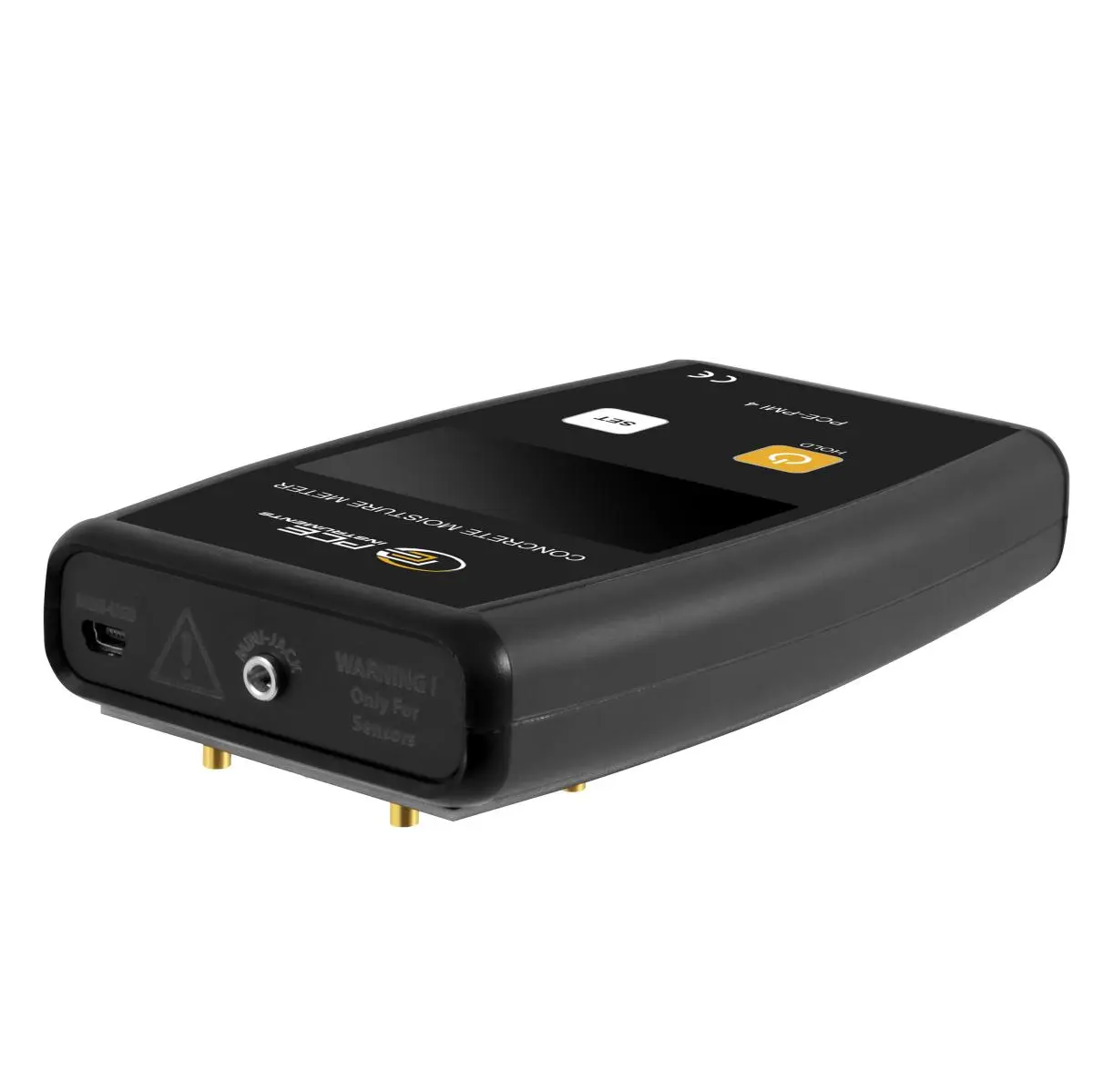

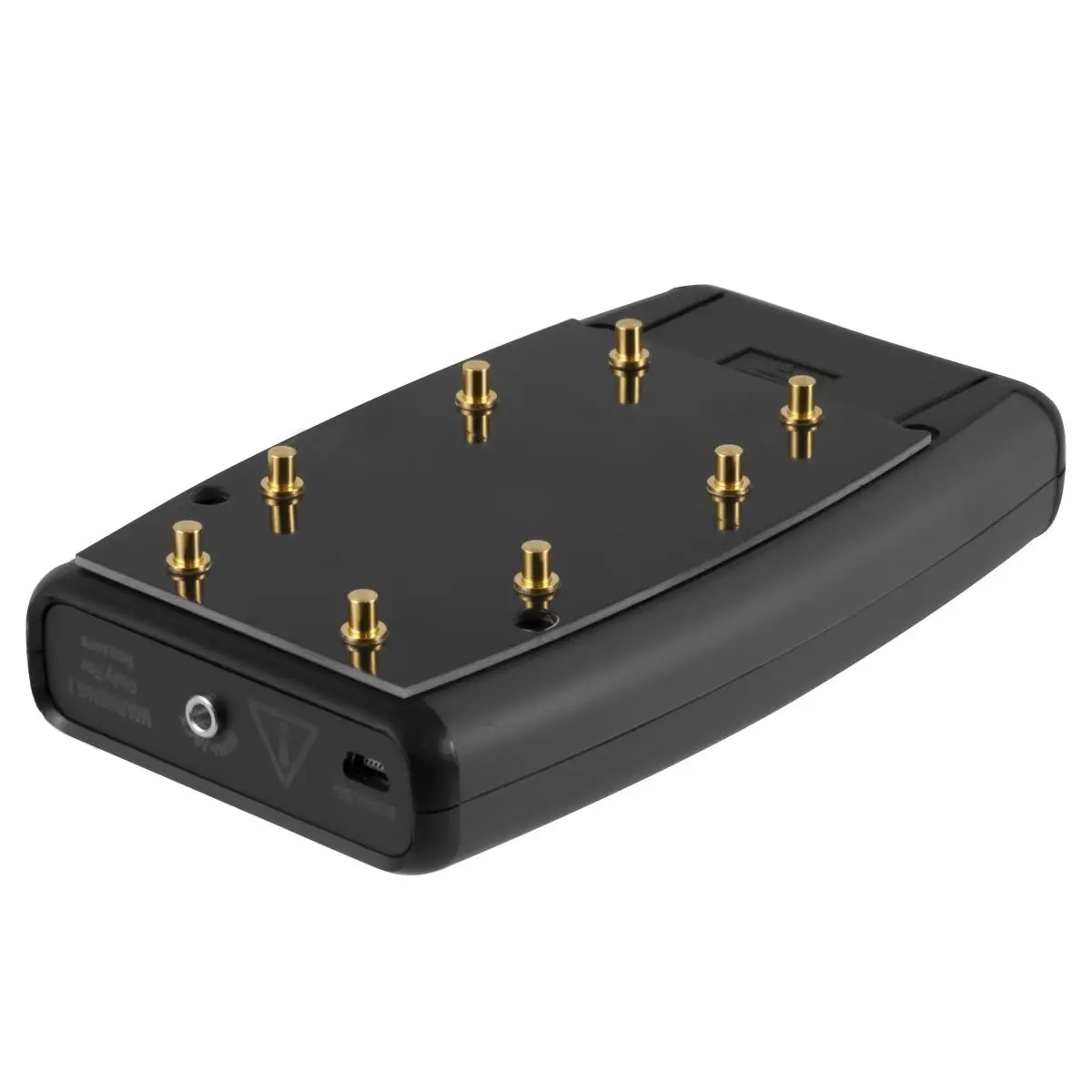

- Eight spring electrodes are used for the measurement
- Automatic shutdown
- Ergonomic shape with anti-slip rubber
- Normal measurement and max. HOLD display

Specification

Measuring function Measuring range
Concrete (H2O) 0 ... 6%
Cement screed (H2O) 0 ... 6%
cement screed 0 ... 4%
(Calcium carbide method)*
Anhydrite screed (H2O)   0 ... 3.5%
anhydrite  0 ... 1.9%
(Calcium carbide method)*
Caisson scale 0.3 ... 15.3 m
Relative scale 0 ... 100%
*The calcium carbide method is approximate.

Further specification
Accuracy ± 0.5%
Resolution
 0.1%

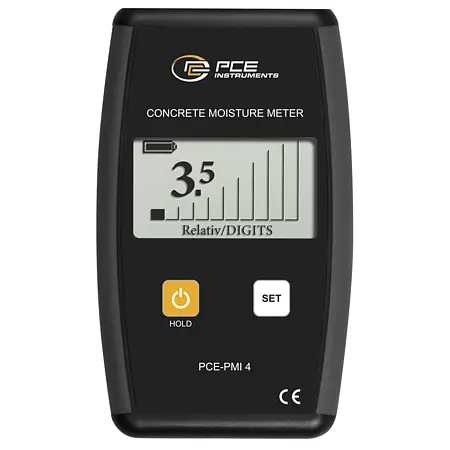

Display Graphically monochrome, 128 x 64 pixels,
  61 x 33 mm / 2.4 x 1.3 in, backlight
Operating conditions 5 ... 40°C / 41 ... 104°F
Automatic shutdown After 5 minutes of inactivity
Power supply 2 x 1.5V AA batteries
Uptime About 20 hours
Dimensions 147 x 89 x 33 mm / 5.8 x 3.5 x 1.3 in
Weight Approx. 250 g / < 1 lb (with batteries)

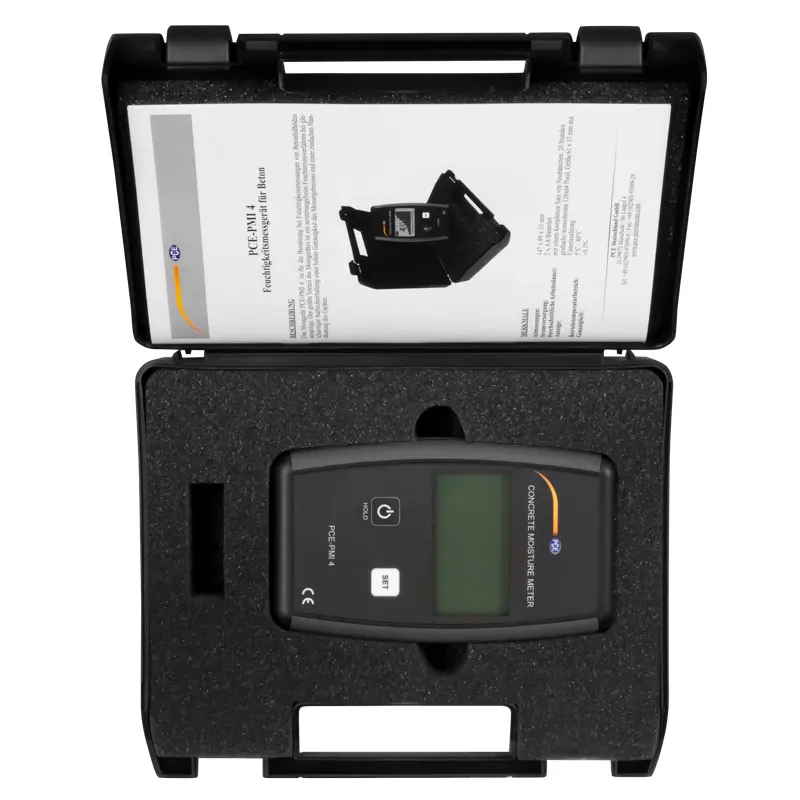

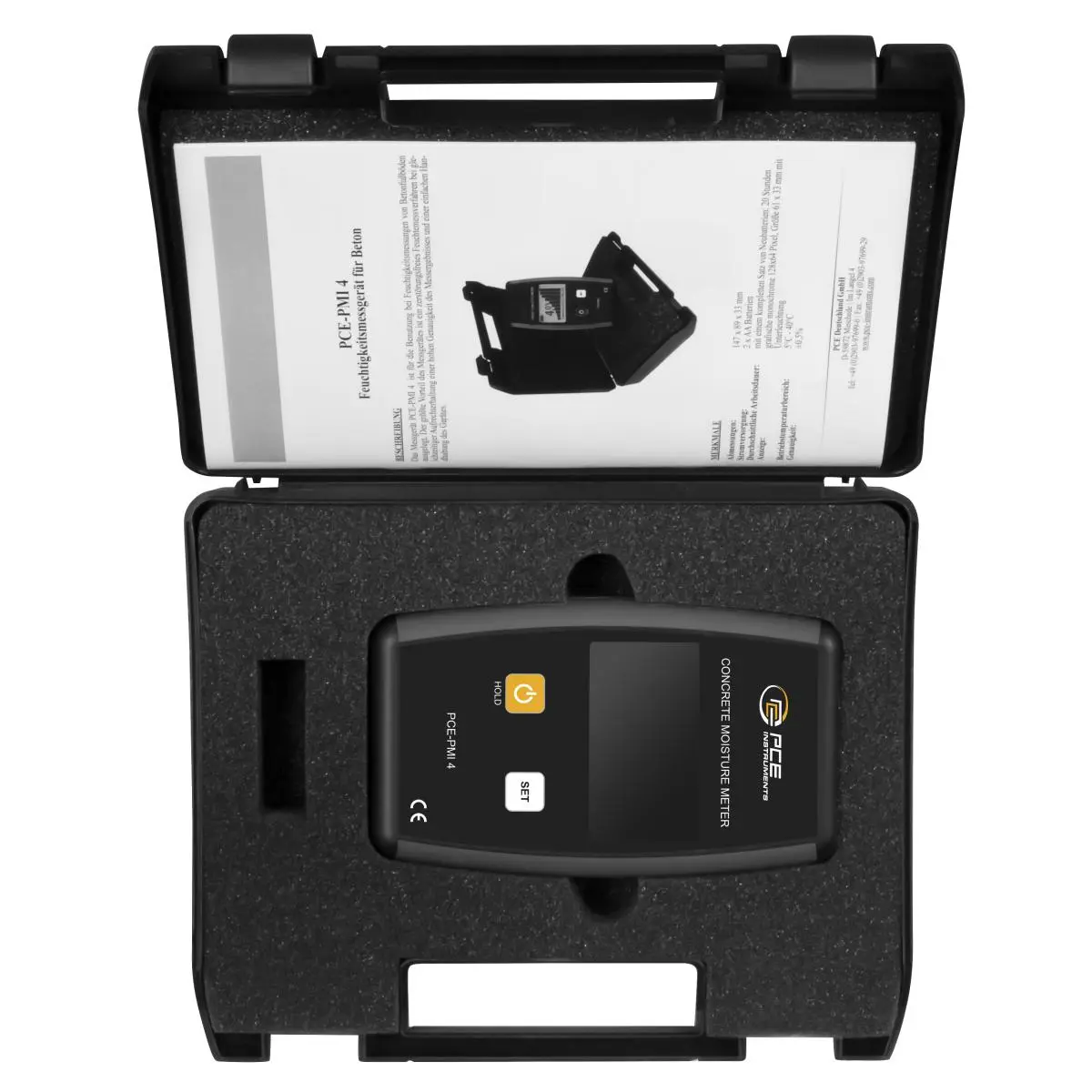

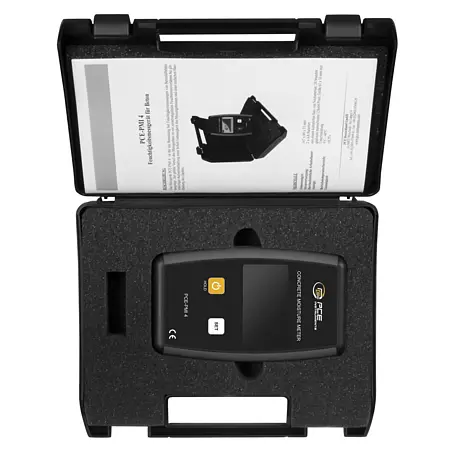

Delivery Scope

1 x Building Moisture Meter PCE-PMI 4
1 x Transport case
1 x 2 x 1.5V AA battery
1 x User manual
