Car Measuring Device PCE-DC 41

Order no.: PCE-DC 41

GTIN (EAN): 4250348714831

Accessory

Calibration certificate CAL-PCE-DC for clamp meters

£ 120.00

Description

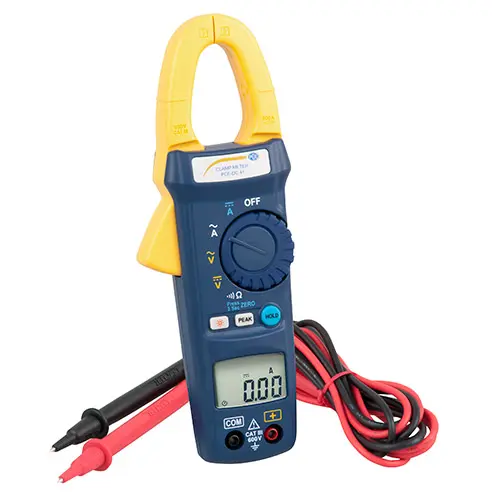

Car Measuring Device PCE-DC 41

Voltage metering up to 600 V / current metering up to 600 A / CAT III 600 V
Electrical resistance metering up to 1000 Ω / contact-free measuring of electrical conductors

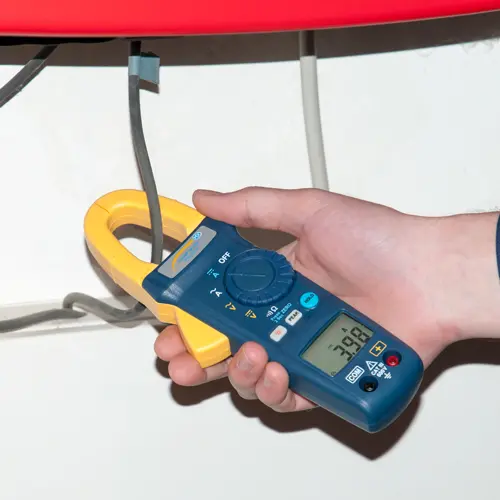

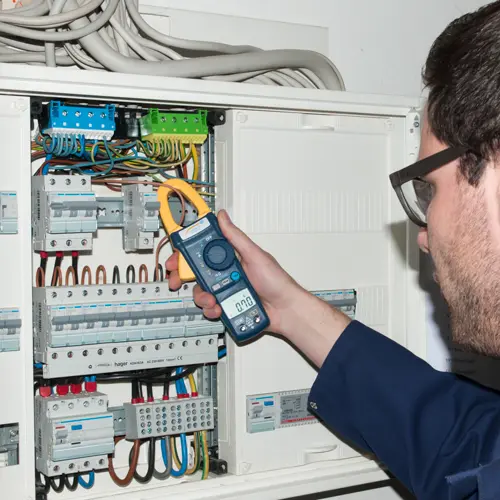

The car measuring device can measure voltages up to 600 V, currents up to 600 A and electrical resistance up to 1000 Ω. To perform a measurement, you can either use the measuring leads, which are included in the package of the car measuring device, or you can use the integrated clamp mechanism. By using the clamp of the car measuring device, you are able to measure the electrical parameters of an electrical conductor contact-free and without disconnecting it. You can also check the continuity with the car measuring device.

Due to its compact design and light weight, the device is well-suited for mobile use. When using the clamp mechanism, it is also possible to run the car measuring device with one hand only. The measured data is shown on the large backlit 4-digit display. By using the peak-hold or data-hold function, you can also freeze the readings on the display. The auto power-off function saves battery power, when the device is not in use.

Highlights

- Voltage: 600 V AC/DC
- Current: 600 A AC/DC
- Electrical Resistance: 1000 Ω
- Clamp mechanism
- Continuity check

- Peak- and data-hold function

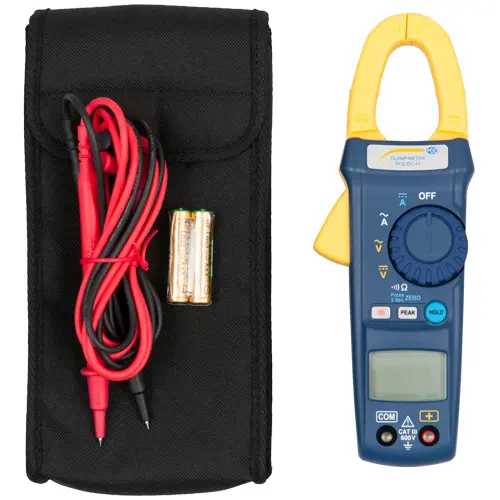

- Measuring leads included in the package
- 4-digit display
- Display backlight
- Auto power-off

Specification

Technical specifications

Direct voltage
	Range	Resolution	Accuracy
Input impedance: 1 MΩ	600 V	0.1 V	± 1 % + 2 digits
Direct voltage (peak model)
Input impedance: 1 MΩ	600 V 0.0 ... 0.01 in	0.1 V 0.0 ... 0.01 in	± 1.5 % + 8 digits 0.0 ... 0.01 in
Alternating voltage
Input Impedance: 1 MΩ	600 V	0.1 V	± 1.2 % ± 5 digits (50 ... 500 Hz)
Alternating voltage (peak model)
Input impedance: 1 MΩ	600 V	0.1 V	± 1.7 % + 10 digits
Direct current
	60 A 600 A	0.01 A 0.1 A	± 2 % + 5 digits
Direct current (peak model)
	600 A	0.1 A	± 2.5 % + 8 digits
Alternating current
	60 A 600 A	0.01 A 0.1 A	±2 % + 5 digits (50...60 Hz) ±3 % + 5 digits (60...500 Hz)
Alternating current (peak model)
	600 A	0.01 A	±2.5 % + 10 digits
Electrical resistance
	1000 Ω	0.1 Ω	± 1 % + 2 digits


Continuinty check
Buzzer function <40 Ω

General specifications

Display	4-digit LCD maximum reading: 6200
Sampling rate	3 times/s
Power supply	2 x 1.5 V AAA batteries
Batter life	50 hours (without buzzer backlight function)
Auto Power off	after 30 minutes of inactivity
Operating conditions	0.0 °C ... +40 °C / < 70 % RH 0.0 °F ... +104 °F
Storage conditions	-10 °C ... +60 °C / < 80 % RH +14 °F ... +140 °F
Maximum clamp opening	Ø 25 mm / Ø 0.1 in
Dimensions	210 mm x 62 mm x 36 mm 8.26 in x 2.44 in x 1.41 in
Weight	273 g / 0.6 lbs with batteries
