Car Measuring Device PCE-VE 200

Order no.: PCE-VE 200

GTIN (EAN): 4250348715104

Accessory

Camera cable with front and side camera 9 mm PCE-VE 200-SCSV1 Length: 1 m

£ 215.00

Camera cable with front and side camera 9 mm PCE-VE 200-SCSV3 Length: 3 m

£ 282.00

Camera cable 3.7 mm PCE-VE 200-SCS3 Length: 3 m

£ 426.00

Camera cable 3.7 mm PCE-VE 200-SCS1 Length: 1 m

£ 334.00

Spare Battery for PCE-VE 200 Series

£ 31.00

Semi-Flexible Camera Cable for PCE-VE 200 Series

£ 178.00

Description

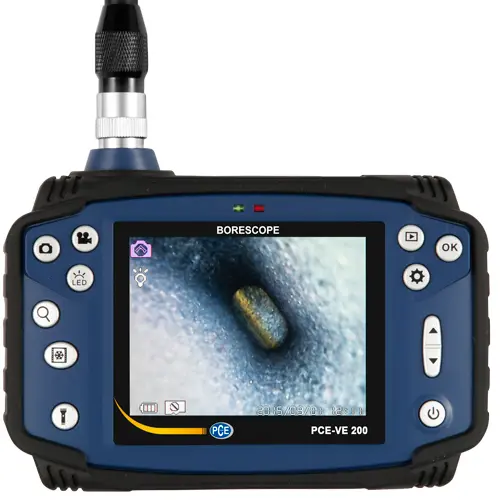

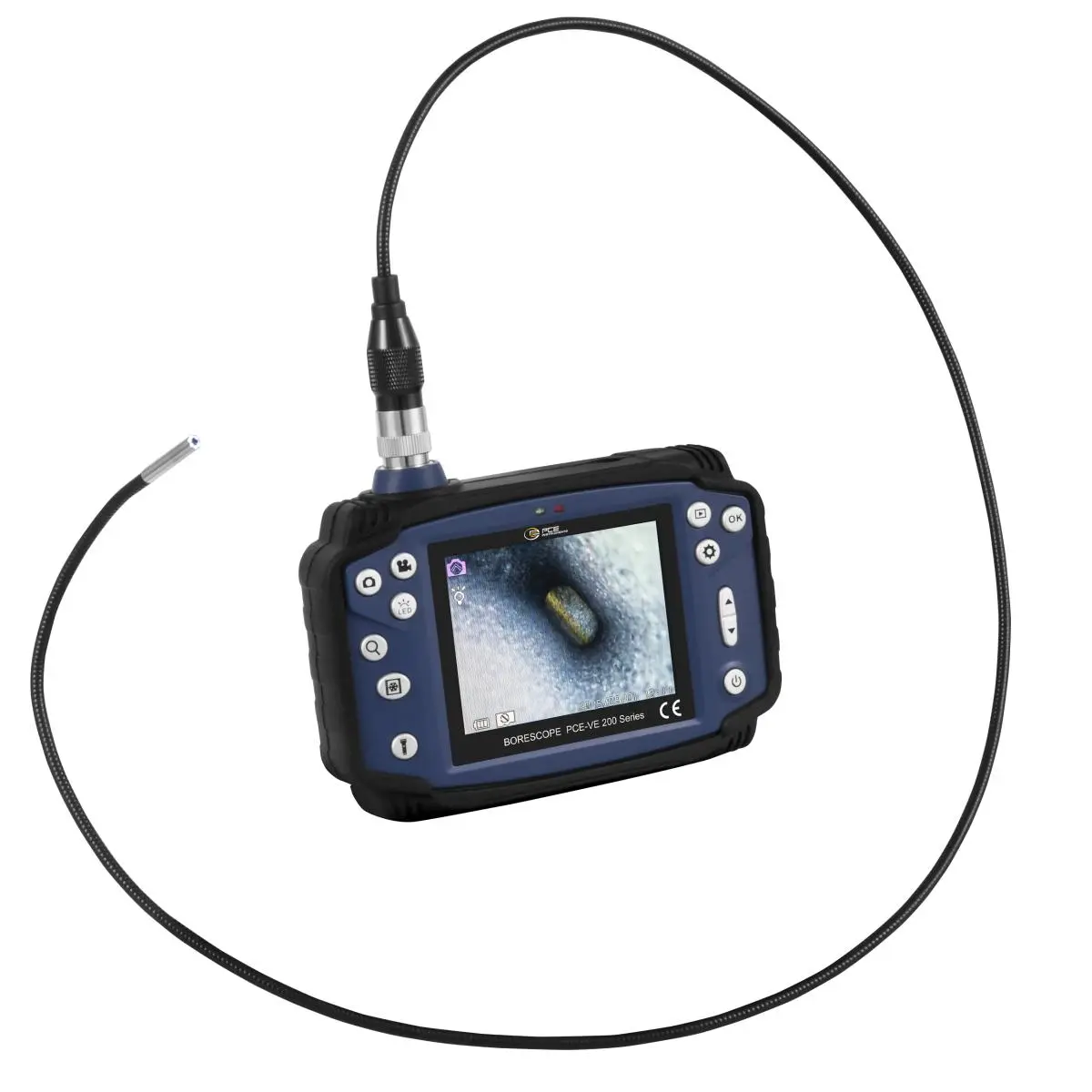

PCE-VE 200 Car Measuring Device
Small diameter (ø 4.5 mm) industrial endoscopic video inspection camera with 1 m / 3.28 ft long cable provides excellent image quality at an affordable price

PCE-VE 200 is a car measuring device, endoscope or borescope for the non-destructive evaluation (NDE) of engines, machines and more. This car measuring device provides excellent image quality at an affordable price. An ideal tool for diagnosing issues in hard-to-reach places, the waterproof camera head features 6 LED lights with adjustable intensity for optimal illumination. In addition, digital image magnification or zoom of up to 4 times is available.

The car measuring device stores the recorded images and videos directly to a micro SD card memory. The 1 m / 3.28 ft cable length and 4.5 mm / 0.18 in diameter allow the video inspection camera unique access to view the insides of walls, pipes, vents, ducts, engines and machinery, thus eliminating the need for costly and time-consuming dismantling. Mechanical engineering, manufacturing, automotive, aviation, construction, plumbing and heating, ventilation, air conditioning and refrigeration (HVACR) professionals alike find this video inspection camera useful in a variety of applications.

***Not for medical use***

Highlights

- Waterproof camera head (IP67 protection class)
- 4.5 mm / 0.18 in diameter, semi-rigid
- 1 m / 3.28 ft cable length
- 180° image rotation

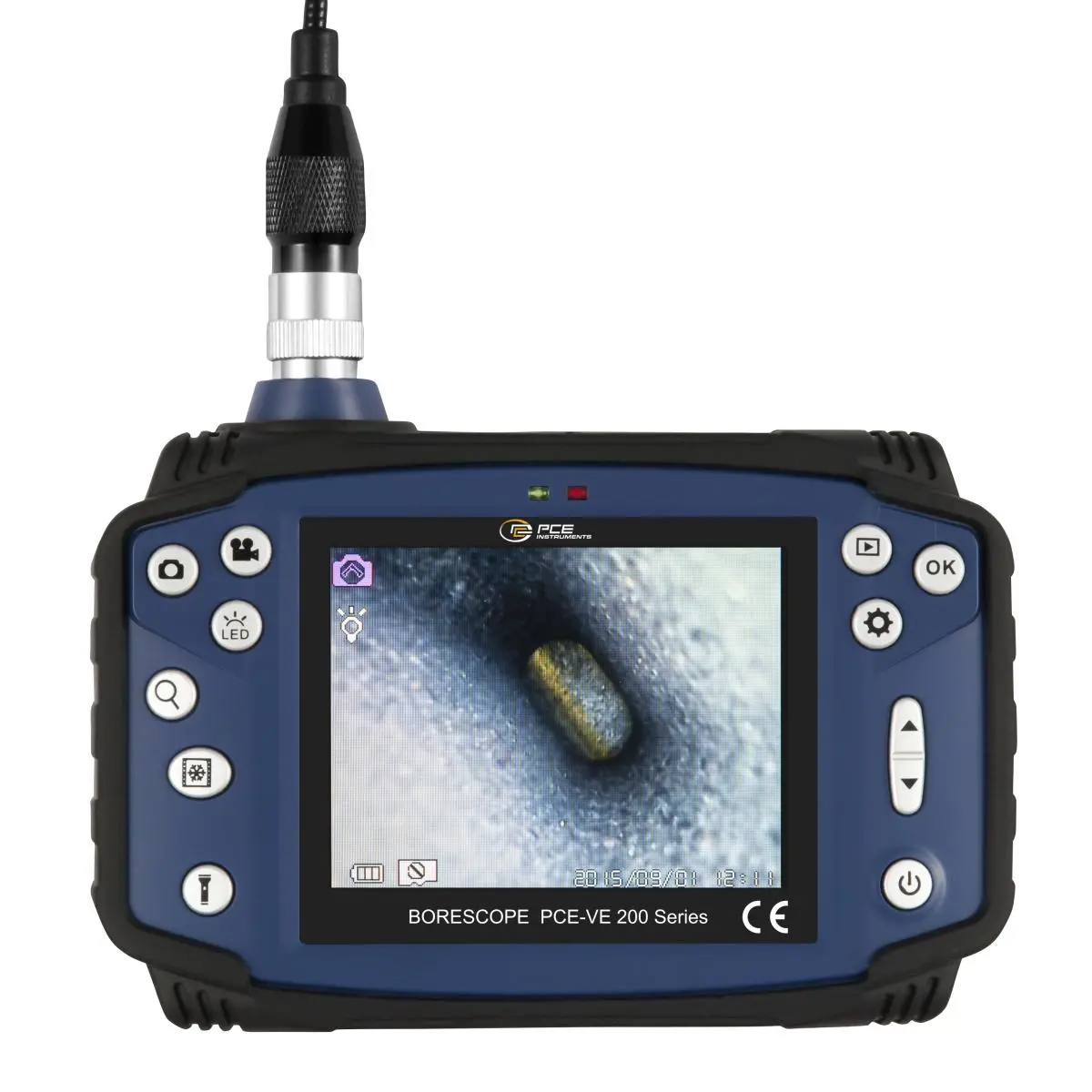

- 3.5" LCD display
- CMOS chip image sensor
- 1600 x 1200 pixels JPEG image / 640 x 480 pixels AVI video resolution
- Micro SD card memory

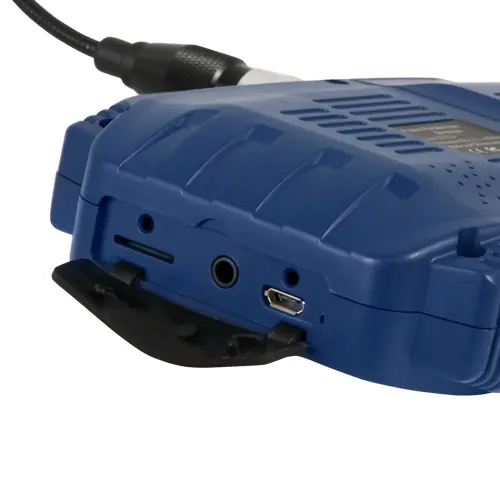

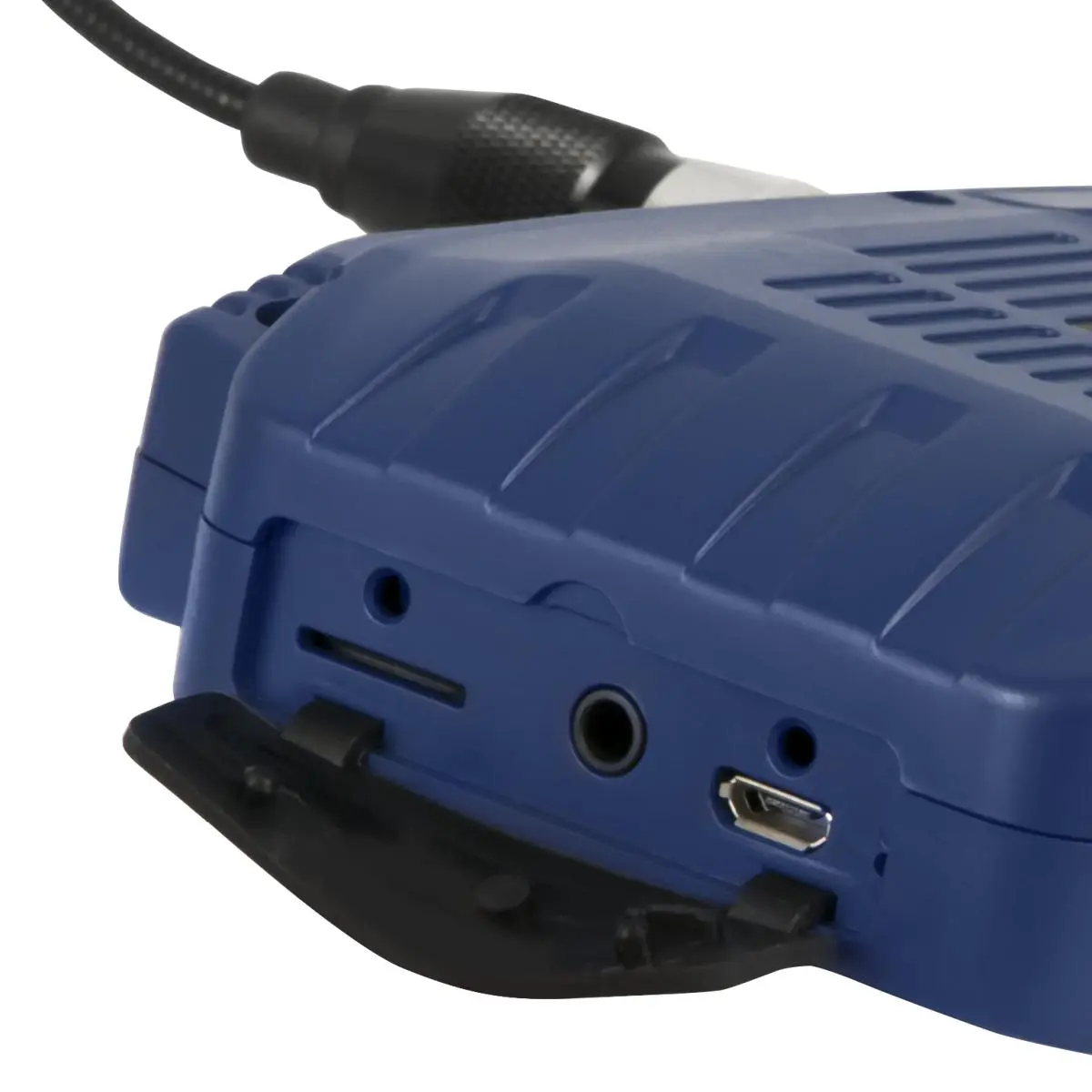

- Micro USB 2.0 and TV outputs

Specification

Technical Specification

Display

3.5" LCD

Resolution video function

AVI (640 x 480)

Resolution image function

JPEG (1600 x 1200)

Image rotation

180° rotation and mirror function

Freeze function

yes

Zoom

up to 4-times

Storage medium

Micro SD card

Menu languages

German
English
Spanish
French
Russian
Japanese
simplified Chinese
traditional Chinese

Interfaces

Micro USB 2.0, TV-output, Micro SD card slot

TV-output

PAL

Power supply

Li-Ion battery

Battery capacity

2600 mAh

Operating conditions

-10 ... +40 °C / 14 ... 104 °F, rel. humidity <75 %

Technical Specification of Video Borescope PCE-VE 200 (Borescope cable)

Cable diameter

4.5 mm / 0.17"

Image sensor

1/8" CMOS chip

Resolution camera

640 x 480 pixel

Camera lighting

6 white LEDs (intensity can be set)

Field of view / angle of view

90 °

Field of view depth

15 ... 100 mm / 0.59 ... 3.94"

Length of camera hose

1 m / 3ft 3"

Pushcable

semi-flexible (semi-rigid spiral)

Environmental conditions of Video Borescope PCE-VE 200

Operating temperature	Probe	In air: -10 … +50 °C / 14 ... 122 °F In water: +5 … +50 °C / 41 ... 122 °F
Main unit	In air: -10 … +50 °C / 14 ... 122 °F
Relative humidity	Probe and main unit	15 ... 90 %
Fluid resistance	Probe and main unit	Machine oil, light oil or cooking salt solution 5 %
Protection against penetration	Probe	Water, oil and dust, according to protection class IP67
Main unit	Rain and wind (battery compartment must be closed) Not under water
