Car Measuring Device PCE-VE 200-S

Order no.: PCE-VE 200-S

GTIN (EAN): 4250348715937

Accessory

Camera cable with front and side camera 9 mm PCE-VE 200-SCSV1 Length: 1 m

£ 215.00

Camera cable with front and side camera 9 mm PCE-VE 200-SCSV3 Length: 3 m

£ 282.00

Camera cable 3.7 mm PCE-VE 200-SCS3 Length: 3 m

£ 426.00

Camera cable 3.7 mm PCE-VE 200-SCS1 Length: 1 m

£ 334.00

Spare Battery for PCE-VE 200 Series

£ 31.00

Semi-Flexible Camera Cable for PCE-VE 200 Series

£ 178.00

Description

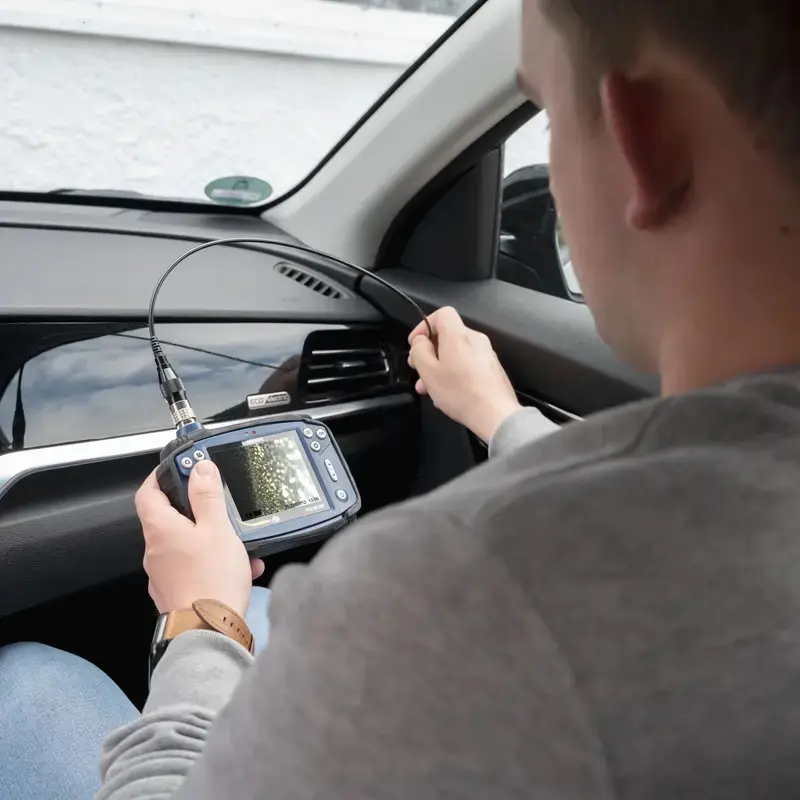

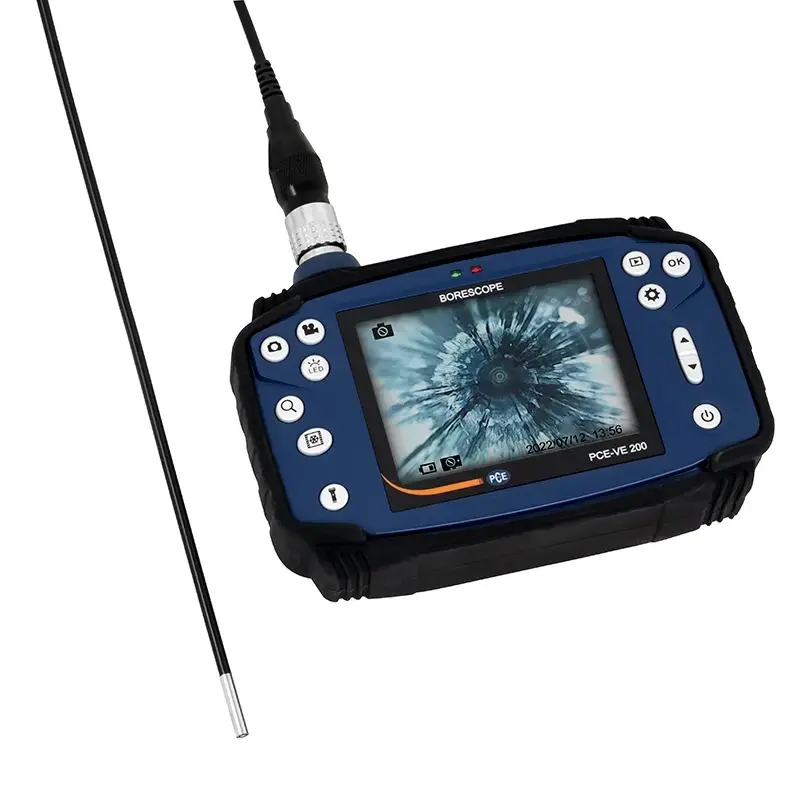

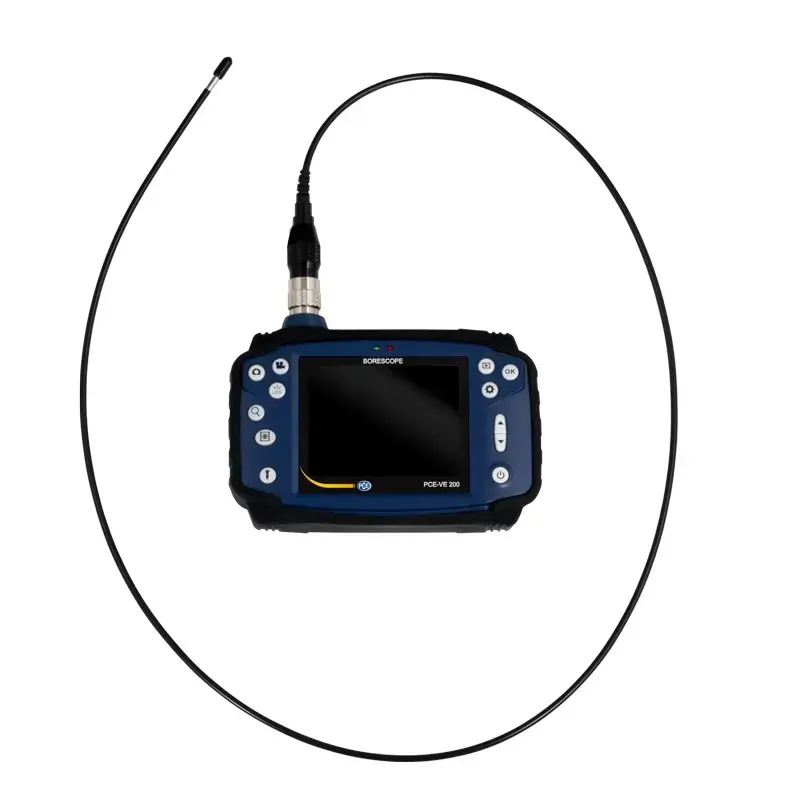

PCE-VE 200-S is a car measuring device, endoscope or borescope for the non-destructive evaluation (NDE) of engines, machines and more. This car measuring device provides excellent image quality at an affordable price. An ideal tool for diagnosing issues in hard-to-reach places, the waterproof camera head features 6 LED lights with adjustable intensity for optimal illumination. In addition, digital image magnification or zoom of up to 4 times is available.

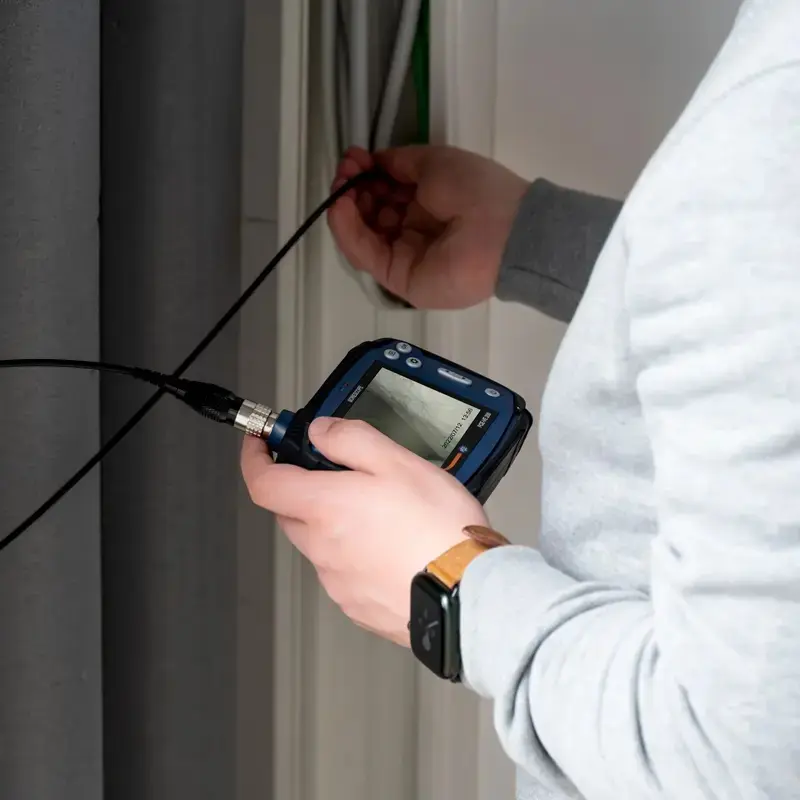

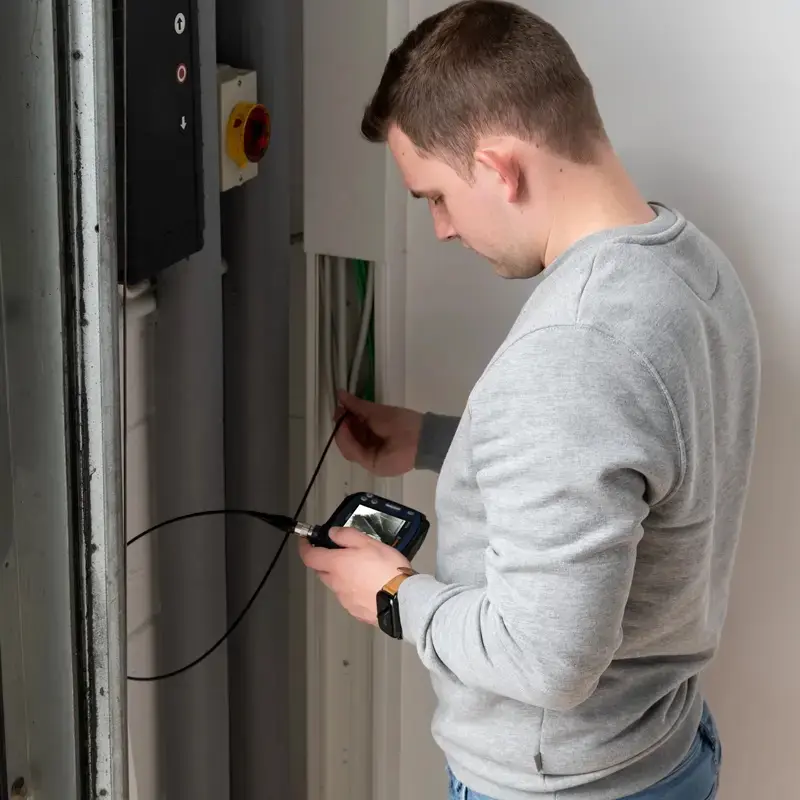

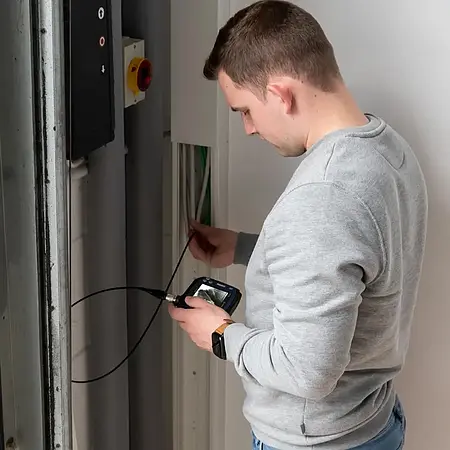

The car measuring device stores the recorded images and videos directly to a micro SD card memory. The 1 m / 3.28 ft cable length and 3.7 mm / 0.14 in diameter allow the video inspection camera unique access to view the insides of walls, pipes, vents, ducts, engines and machinery, thus eliminating the need for costly and time-consuming dismantling. Mechanical engineering, manufacturing, automotive, aviation, construction, plumbing and heating, ventilation, air conditioning and refrigeration (HVACR) professionals alike find this car measuring device useful in a variety of applications.

***Not for medical use***

Highlights

- Waterproof camera head (IP67 protection class)
- 3.7 mm / 0.14 in diameter
- 1 m / 3.28 ft cable length
- 180° image rotation

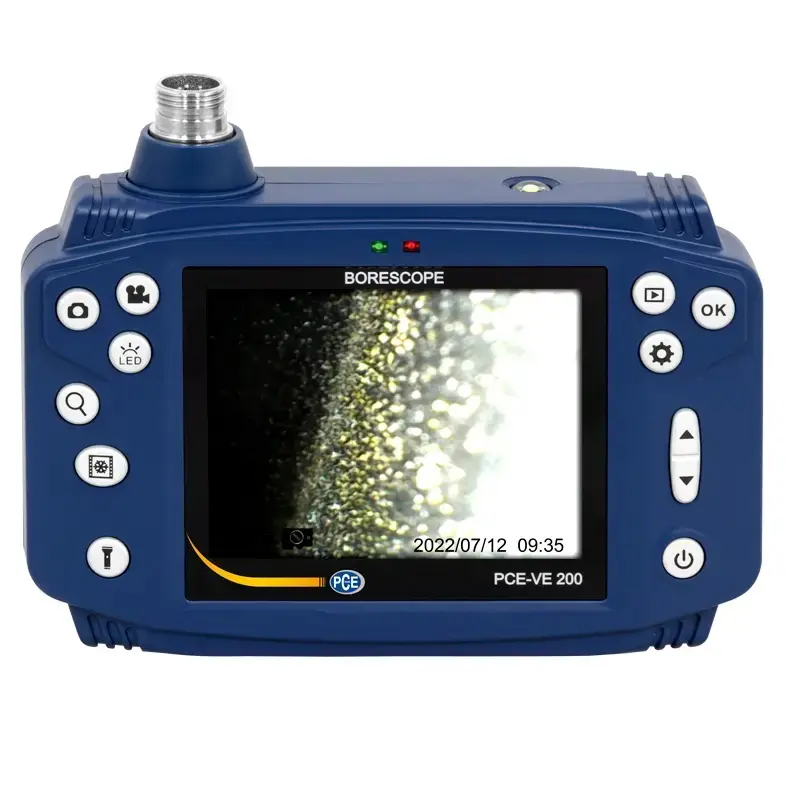

- 3.5" LCD display
- CMOS chip image sensor
- 1600 x 1200 pixels JPEG image / 640 x 480 pixels AVI video resolution
- Micro SD card memory
- Micro USB 2.0 and TV outputs

Specification

Display	LCD, 3.5"
Resolution	1600 x 1200 pixels JPEG image / 640 x 480 pixels AVI video
Image rotation	180°
Freeze functionality	Yes
Zoom	Up to 4 times digital image magnification
Menu languages	English, Spanish, French, German, Russian, Japanese, Simplified Chinese, Traditional Chinese

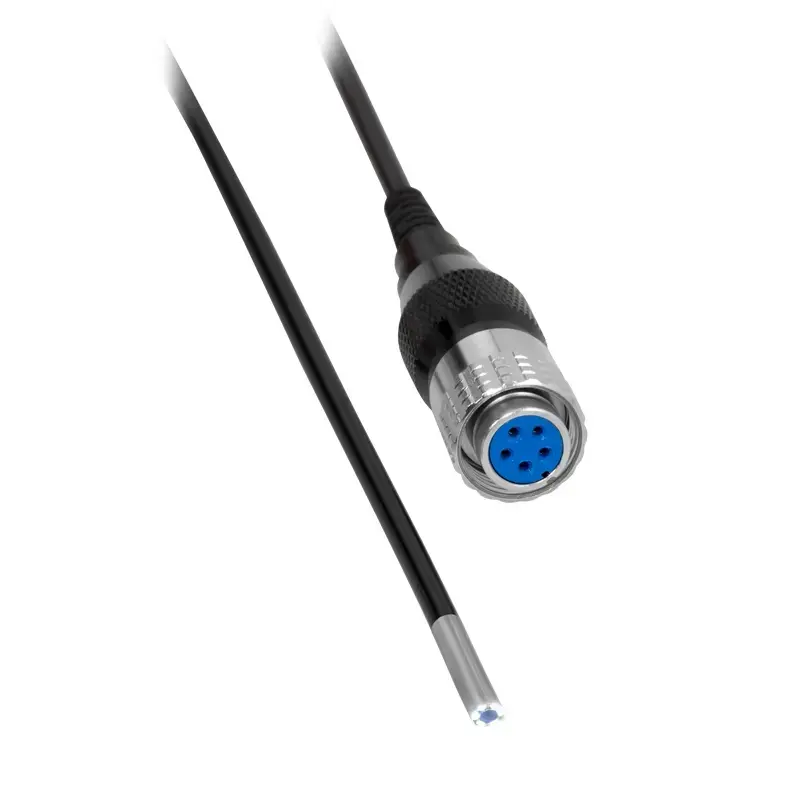

Cable diameter	3.7 mm / 0.14 in cable diameter
Cable length	1 m / 3.28 ft
Cable rigidity	Semi-flexible (semi-rigid spiral)
Image sensor	CMOS chip

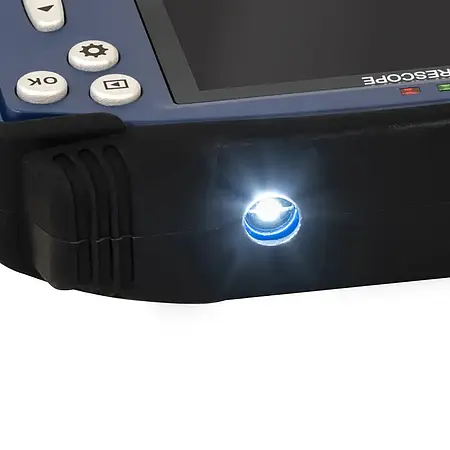

Lighting	6 white LEDs (adjustable intensity)
Field of view / angle / perspective	90°
Sight depth	15 ... 100 mm / 0.59 ... 3.94 in
Storage medium	Micro SD card

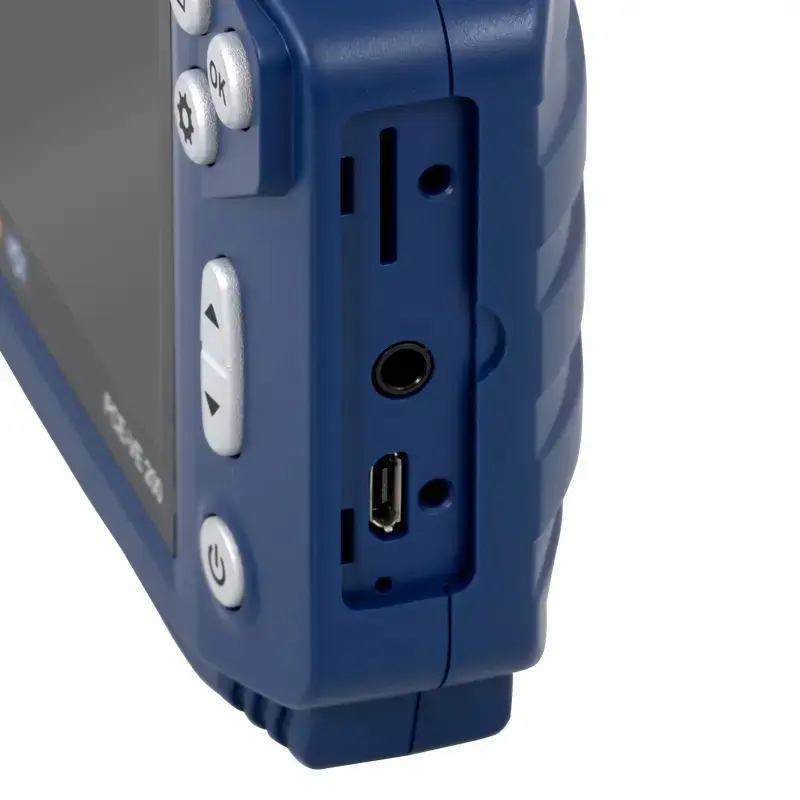

Interfaces	Micro USB 2.0, TV output (PAL), Micro SD card slot
Power supply	Rechargeable 18650 Li-ion battery
Battery capacity	2600-mAh
Battery life	Up to 5 hours from full charge
Operating conditions	Main unit and probe, in air: -10 ... 50°C / 14 ... 122°, rel. humidity 15 ... 90% Probe, in water: 5 ... 50°C / 41... 122°F
Fluid resistance	Main unit and probe: Machine oil, light oil or 5% saline
Protection against	Main unit: Blowing rain (battery compartment must be closed), not underwater Probe: Water, oil and dust, according to protection class IP67
