Price excl. VAT &. delivery
2 year Warranty
- 10 points per channel between -100 … +1250°C
- 12 channelsCalibration certificates are issued especially for the customer and are excluded from the right of return.

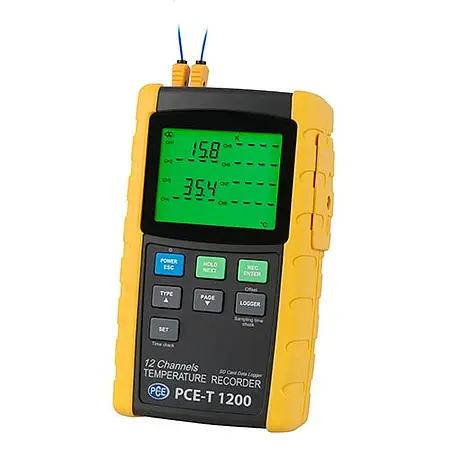

Climate Meter PCE-T 1200
Multichannel datalogging temperature meter with a backlit display, SD card memory and automatic temperature compensation (ATC)

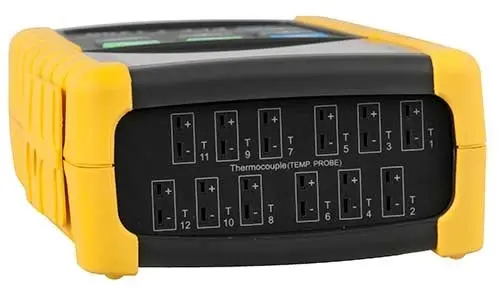

PCE-T 1200 is a 12-channel climate meter that accommodates SD cards up to 16 GB in size. The optional software allows the climate meter to connect to a PC via USB for direct data transfer and analysis via Microsoft Excel. The datalogging interval can be set from 1 second per channel up to a maximum of 3600 seconds. The 4.5" LCD display features a green backlight and can indicate up to eight channels of measurements simultaneously (CH 1 ... CH 8). With just the press of a button, the remaining channels (CH 9 ... CH 12) can be viewed. The climate meter works with six different kinds of transducers or sensors including type K, type J, type T, type E, type R and type S thermocouples.
- 12-channel datalogger for temperature (°C / F)
- Includes 2 Type K sensors 1-meter in length
- 4.5" graphic LCD display (82 x 61 mm / 3.2 x 2.4 in)
- Adjustable data recording timer interval
- Compatible with 6 different types of thermocouples
- High and low alarm for each inputbr/>
- Indication of maximum and minimum values
- Accommodates up to 16 GB SD memory card to save measured data
- Integrated calendar
- Automatic temperature compensation (ATC)
- Hold function to freeze the values indicated
- Integrated stand
| |||||||||||||||||||||||||||||||||||||||||||
Power consumption (lights off / logging off) | 7.5-mA | ||||||||||||||||||||||||||||||||||||||||||
Power consumption (lights off / logging on) | 25-mA | ||||||||||||||||||||||||||||||||||||||||||
Dimensions | 225 x 125 x 64 mm / 8.9 x 4.9 x 2.5 in | ||||||||||||||||||||||||||||||||||||||||||
Weight | 827 g / 1.8 lbs (excl. battery) | ||||||||||||||||||||||||||||||||||||||||||
Operation conditions | 0°C ... 50°C / 32 ... 122°F, 85% rH |
1 x Climate Meter PCE-T 1200
2 x Type K sensor
8 x 1.5V AA batteries
1 x SD memory card
1 x Carrying case
1 x User manual
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Stainless steel penetration / immersion sensor with handle and 1m spiral cable for liquids, semi-solid media and air
Price excl. VAT &. delivery
2 year Warranty
Electrically insulated probe for measuring live surfaces
Price excl. VAT &. delivery
2 year Warranty
High-temperature surface sensor with resilient tip, angled 90° on a 1 m cable
Price excl. VAT &. delivery
2 year Warranty
Flexible ceramic-insulated wire probe for highest temperatures
Price excl. VAT &. delivery
2 year Warranty
Extra long flexible high temperature sensor, handle and 1m spiral cable
Price excl. VAT &. delivery
2 year Warranty
Flexible high temperature sensor, handle and 1 m coiled cable
Price excl. VAT &. delivery
2 year Warranty
Flexible sensor for air and liquids at higher temperatures
Price excl. VAT &. delivery
2 year Warranty
Crocodile clip sensor for pipes with 1 m cable
Price excl. VAT &. delivery
2 year Warranty
Stainless steel air sensor with handle and 1 m cable for air and gases with fast response time
Price excl. VAT &. delivery
2 year Warranty
Price excl. VAT &. delivery
2 year Warranty
Screw-in sensor with T-handle for solid or frozen materials with 1m cable (removable)
Price excl. VAT &. delivery
2 year Warranty
Temperature sensor with resilient plate tip and 1m cable
Price excl. VAT &. delivery
2 year Warranty
Input voltage: 110 V AC, 60 Hz
Output voltage: DC 9 V
Output current: 0.8 A
Connector: US / North American style plug
Price excl. VAT &. delivery
2 year Warranty
Flexible compensation cable, type K (NiCr-Ni). The compensating cable is used for the cost-effective extension of type K thermocouples. The individual thermal strands are sheathed with fiberglass
Price excl. VAT &. delivery
2 year Warranty
Flexible compensation cable, type K (NiCr-Ni). The compensating cable is used for the cost-effective extension of type K thermocouples. The single strands are made of PTFE and twisted.
Price excl. VAT &. delivery
2 year Warranty
Self-adhesive surface sensor with fiberglass insulation for permanent fixation (with adhesive patch) at a specific measuring point
Price excl. VAT &. delivery
2 year Warranty
Screw-on temperature sensor. The sensor is connected to a measuring instrument via a miniature plug.
Price excl. VAT &. delivery
2 year Warranty
Female miniature flat connector for K-Type thermocouples, e.g. for our compensation cables AGL-90, AGL-260 and AGL-400
Price excl. VAT &. delivery
2 year Warranty
Male miniature flat connector for K-Type thermocouples, e.g. for our compensation cables AGL-90, AGL-260 and AGL-400
Price excl. VAT &. delivery
2 year Warranty
Magnetic surface sensor for secure fixation on metallic surfaces
Price excl. VAT &. delivery
2 year Warranty
Flexible sensor for air and liquids
Price excl. VAT &. delivery
2 year Warranty
Extension cable for K-type temperature sensors with plug and socket for standard miniature connector
Price excl. VAT &. delivery
2 year Warranty
Input voltage: 220 / 110 V AC, 50 / 60 Hz
Output voltage: DC 9 V
Output current: 1 A
Connector: Approx. Ø 2.5 mm, UK / European style plug
