Climate Meter PCE-G 2

Order no.: PCE-G 2
GTIN (EAN): 4250348719577
£ 430.00
£ 516.00
price ex. (VAT / delivery)
:
4250348719577
PCE-G 2
Delivery time: 1-2 working days
Non-contact
Mounted
-40 ... 85 °C / -40 ... 185 °F
No
No

Accessory

ISO Calibration Certificate for PCE-G1
ISO Calibration Certificate for PCE-G1
£ 154.00

Description

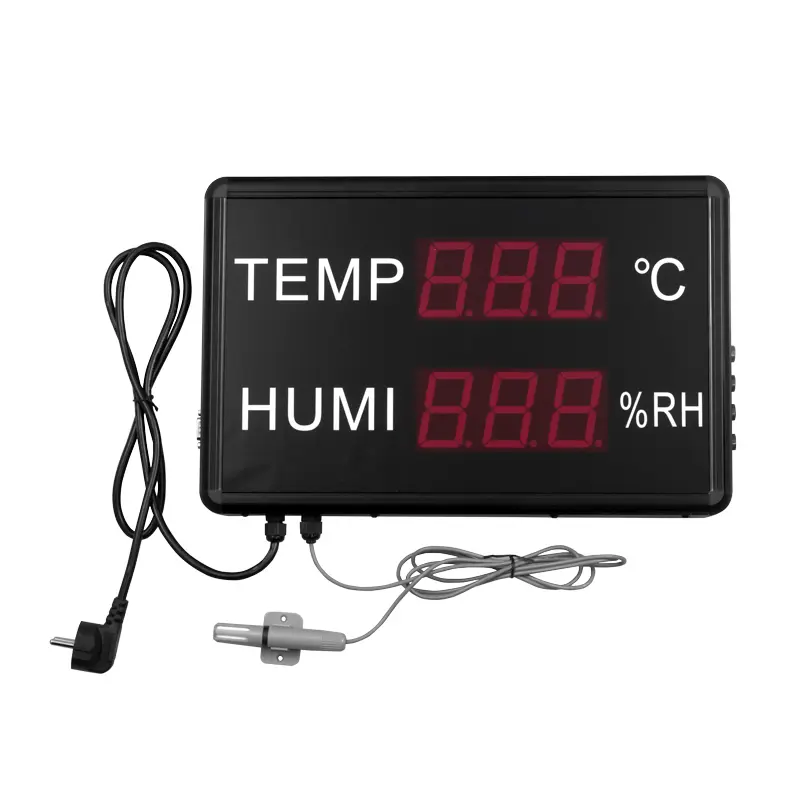

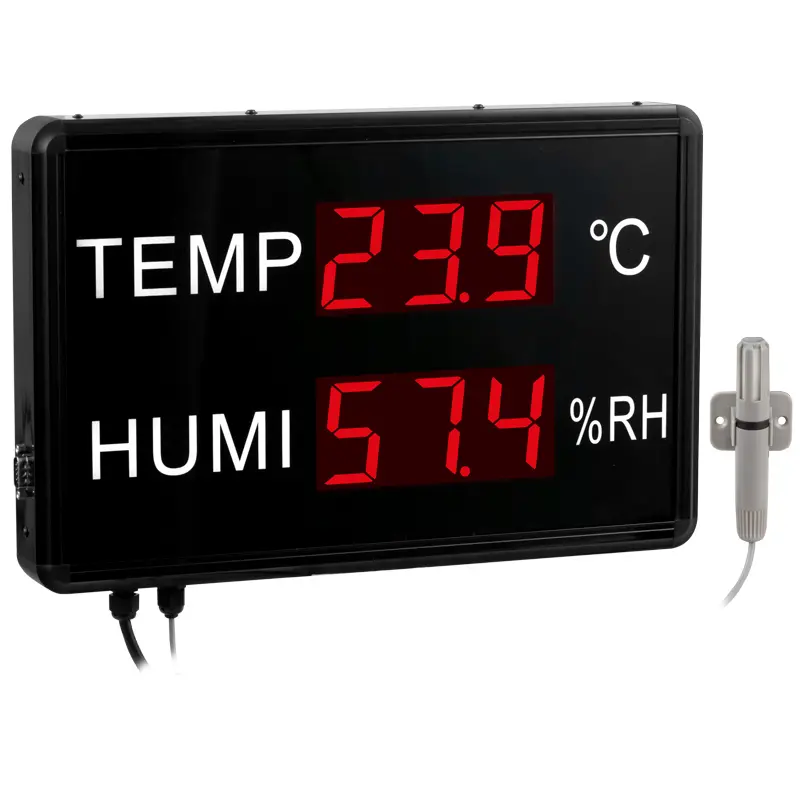

Climate meter PCE-G 2
Large display for temperature and humidity / 55 mm character height / up to 30 m reading distance / external sensor / 230 V mains operation

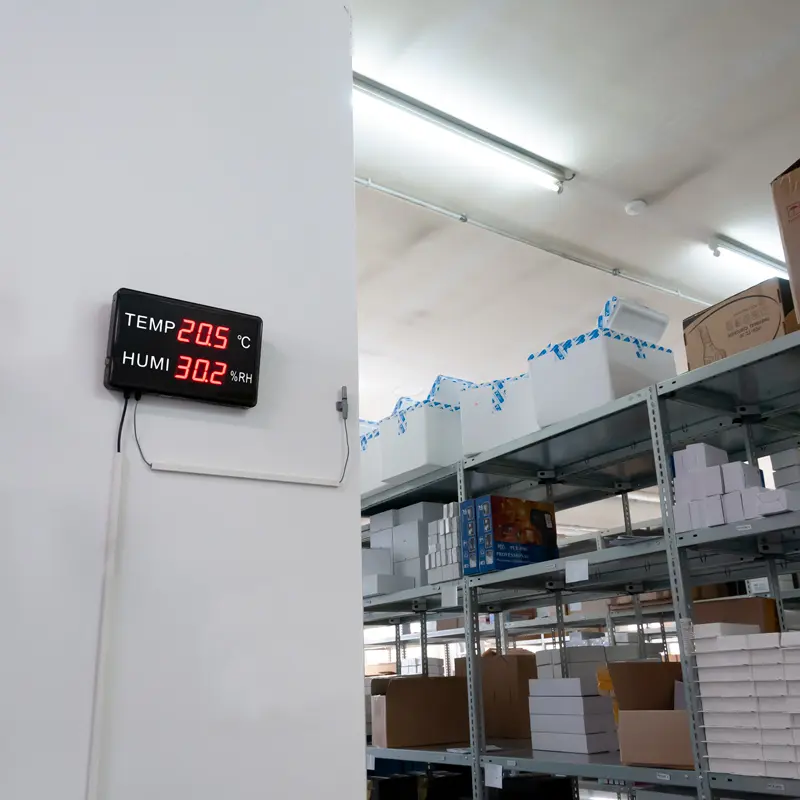

The climate meter is used to measure the environmental parameters of temperature and humidity. The climate meter finds its application in warehouses, open-plan offices, schools, etc. The climate meter has 55 mm high digits that indicate the temperature and humidity.

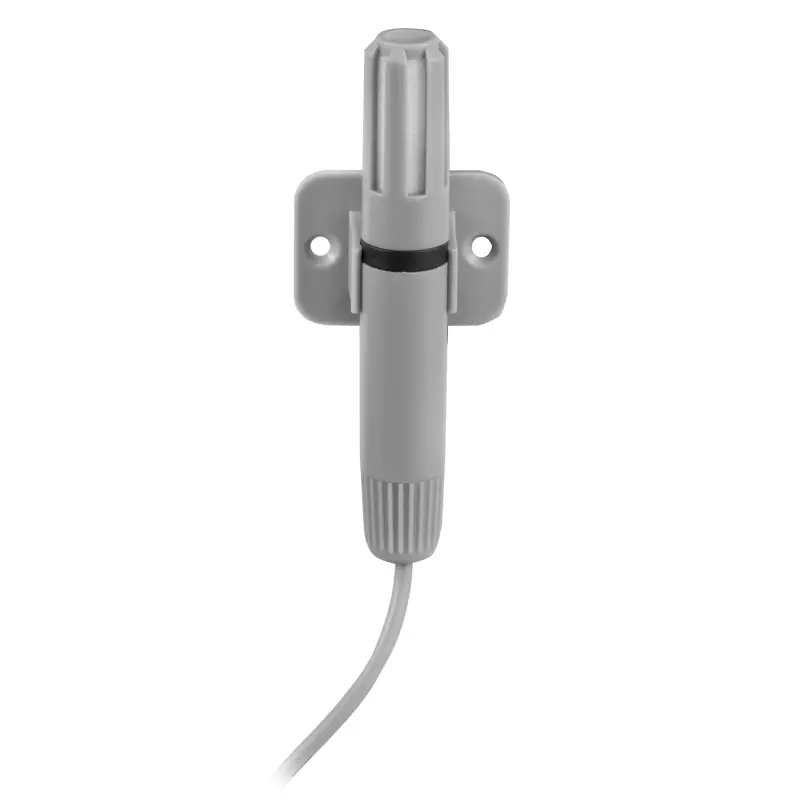

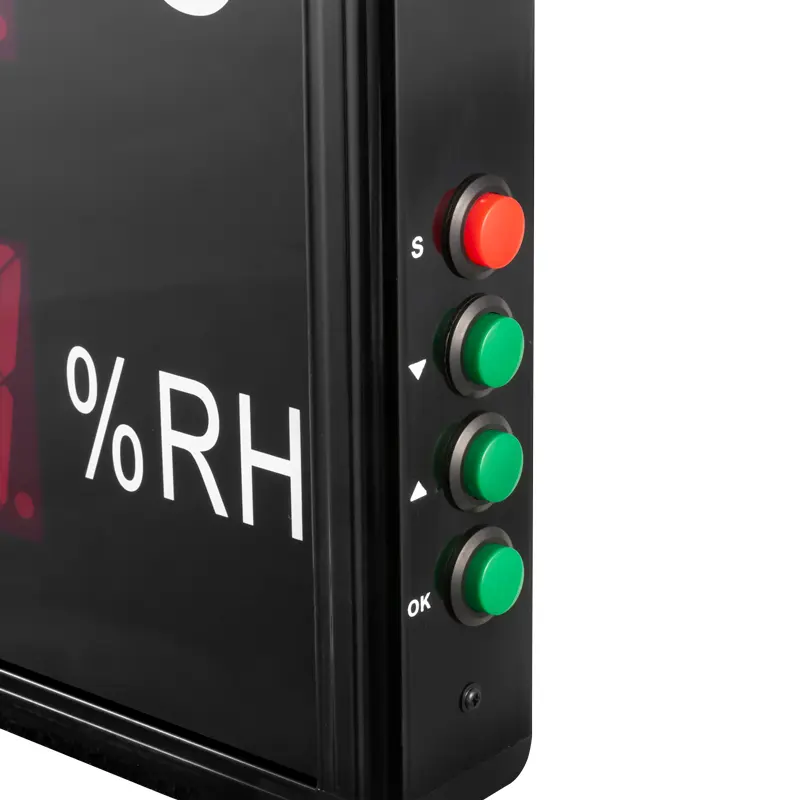

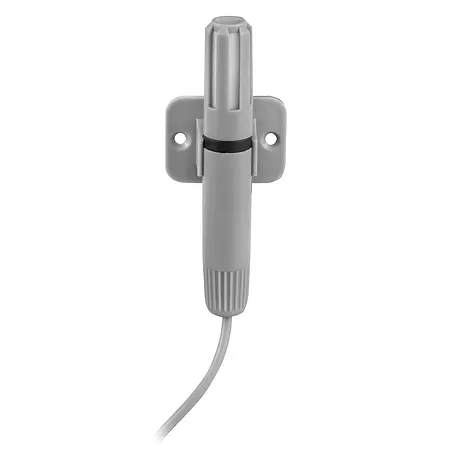

Due to the large size of the digits, the climate meter display can be read from distances up to 30 m. The temperature and humidity sensor of the climate meter is connected by a 2 m long cable. The climate meter is operated by 230 V AC mains voltage. Via the side-mounted buttons, alarm levels can be set on the climate meter.


Highlights

- Temperature and air measurement
- Wall mounted
- 230 V AC power supply
- 55 mm character height
- Up to 30 m reading distance
- External sensor (wired)

Specification

Measuring function
Measuring range temperature
 -40 ... 85 °C
Resolution -10 ... 85 °C: 0.1 °C
  <-10 °C: 1 °C
Accuracy ± 0.3 °C

Measuring range humidity   0 ... 99 % r.H.
Resolution 0.1 % r.H.
Accuracy ± 4 % r.H.

Display 2 x 3 digit LED display (red)
  55 mm character height
Reading distance ca. 30 m
Cable lengths Sensor cable ca. 2 m
  Power supply: ca. 1 m
Power supply Primary: 100 .. 240 V AC 50/60 Hz
  Secondary: 12 V DC, 0.5 A
Operating conditions -20 ... 70 °C / max. 85 % r.H.
Dimensions 395 x 255 x 50 mm
Weight ca. 2.5 kg

Delivery Scope

1 x Climate Meter PCE-G 2
1 x Wall mounting set (2 x dowels and screws)
1 x Power adapter
1 x User manual
