Climate Meter with Capture Hoods PCE-VA 20-SET

Order no.: PCE-VA 20-SET

GTIN (EAN): 4250348714664

Accessory

Telescoping Pole for PCE-VA 20

£ 112.00

Set of 2 x Capture Flow Hoods for PCE-VA 20

£ 159.00

ISO Calibration Certificate CAL-AM

£ 164.00

Description

PCE-VA 20-SET Climate Meter with Capture Hoods
Combination anemometer-hygrometer-thermometer for HVAC system balancing

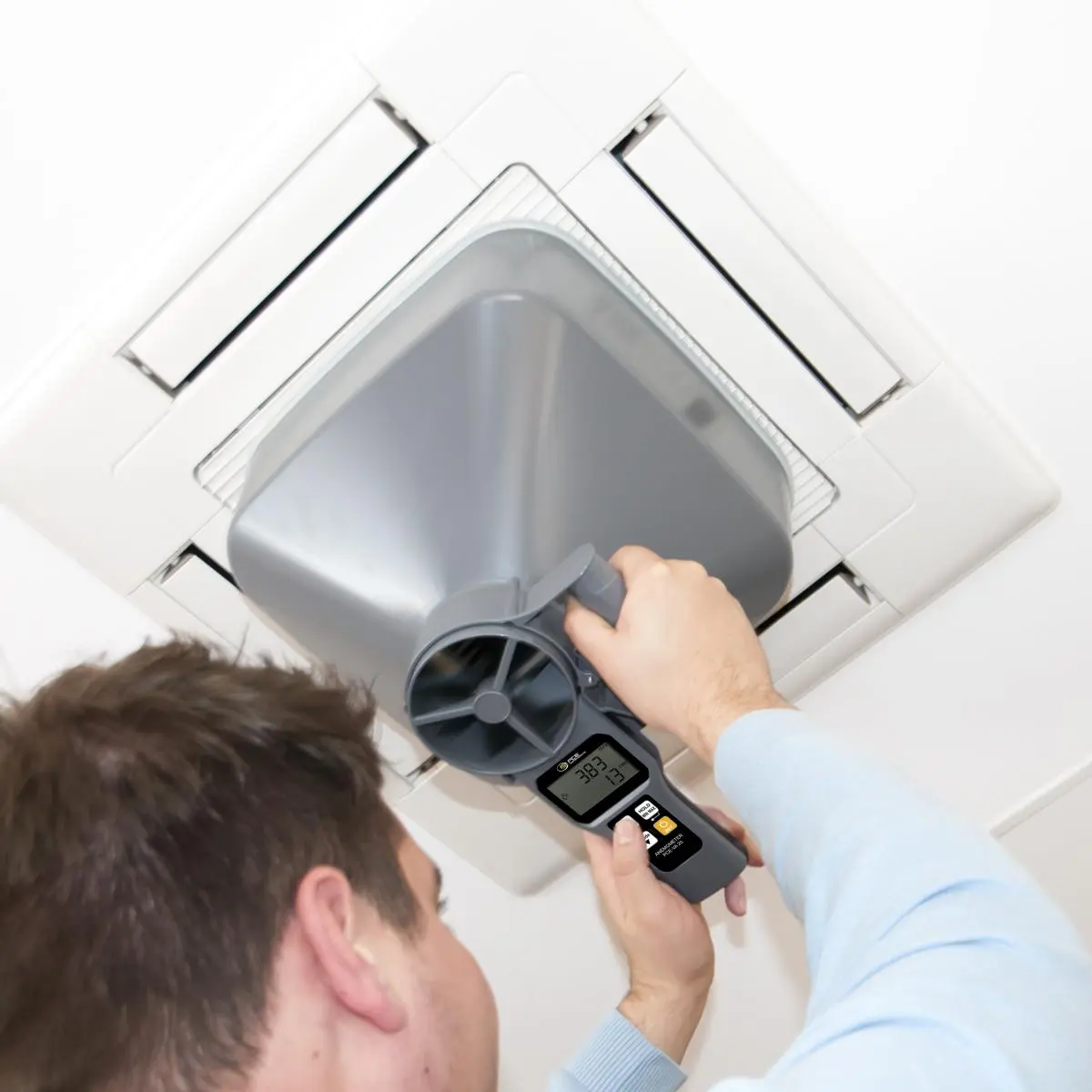

PCE-VA 20-SET is a climate meter with capture hoods for assessing and balancing heating, ventilation and air conditioning or cooling (HVAC) systems. In addition to measuring air flow velocity (i.e., wind speed), this climate meter measures volume flow, relative humidity (RH), air temperature, dew point temperature and wet-bulb temperature. This climate meter features a 10 cm / 3.9" Ø fan impeller, easy-to-read backlit LCD, and functions such as display hold, average value, maximum value, minimum value, battery-saving automatic power off, low-battery indicator, and metric or imperial unit selection.

Highlights

- Measures air flow velocity, volume flow, relative humidity, air temperature, dew point temperature and wet
bulb temperature
- Air flow velocity range: 0.2 ... 30 m/s (39.4 ... 5905.5 fpm)
- Accuracy: ±(1.5% of measured value + 0.3 m/s) when less than 20 m/s, ±(3% of measured value + 0.3
m/s) when more than 20 m/s
- Resolution: 0.1
- Includes 2 x flow hoods (1 x round 210 mm / 8.3" Ø, 1 x square 346 x 346 mm / 13.6 x 13.6 in)
- 10 cm / 3.9 in Ø fan impeller

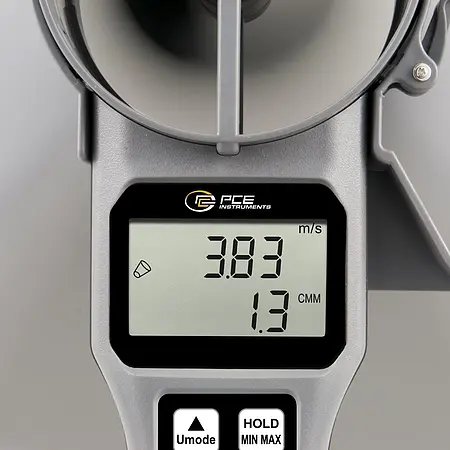

- Easy-to-read backlit LCD
- Display hold, average value, maximum value, minimum value, battery-saving automatic power off, low
battery indicator, and metric or imperial unit selection functions

Specification

Technical Specification

Air flow velocity measuring range

0.2 ... 30 m/s (39.4 ... 5905.5 fpm)

Air flow velocity accuracy

<20 m/s: ±(1.5% of rdg. + 0.3 m/s)
>20 m/s: ±(3% of rdg. + 0.3 m/s)

Air temperature measuring range

-20 ... 60 °C / -4 ... 140 °F

Air temperature accuracy

±0.6 °C

Air temperature resolution

0.1 °C / °F

Humidity measuring range

0.1 ... 99.9 % r.H.

Humidity accuracy

±3 % r.H. (at 25 °C / 77 °F and 10...90 % r.H.)
else: ±5 % r.H.

Humidity resolution

0.1 % r.H.

Temperature response time

60 seconds

Humidity response time

60 seconds

LCD update

1 x per second

Wet bulb temperature display

-20 ... +59.9 °C / -4 ... 139.8°F

Dew point temperature display

-5 ... +59.9 °C / 23 ... 139.8°F

Volume flow display

0 ... 99999 m³/min

Volume flow resolution

0.1 m³/min (0...9999,9 m³/min)
1 m³/min (10000...99999 m³/min)

Automatic shutdown

after 20 minutes of inactivity

LCD size

32.5 x 54 mm / 1.28 x 2.13" (H x W)

Power supply

4 x 1.5 V AAA batteries

Operating conditions

0 ... +50 °C / 32 ... 89.6°F, <80 % r.H.

Storage conditions

-10 ... +50 °C / 14 ... 89.6°F, <90 % r.H.

Dimensions

269 x 106 x 51 mm / 10.6 x 4.1 x 2.0"

Weight

ca. 200 g / 7 oz

Delivery Scope

1 x Climate Meter (PCE-VA 20)
1 x Square capture hood (AFC-PCE-VA)
1 x Round capture hood (AFC-PCE-VA)
4 x AAA batteries
1 x User manual
1 x Carrying case
