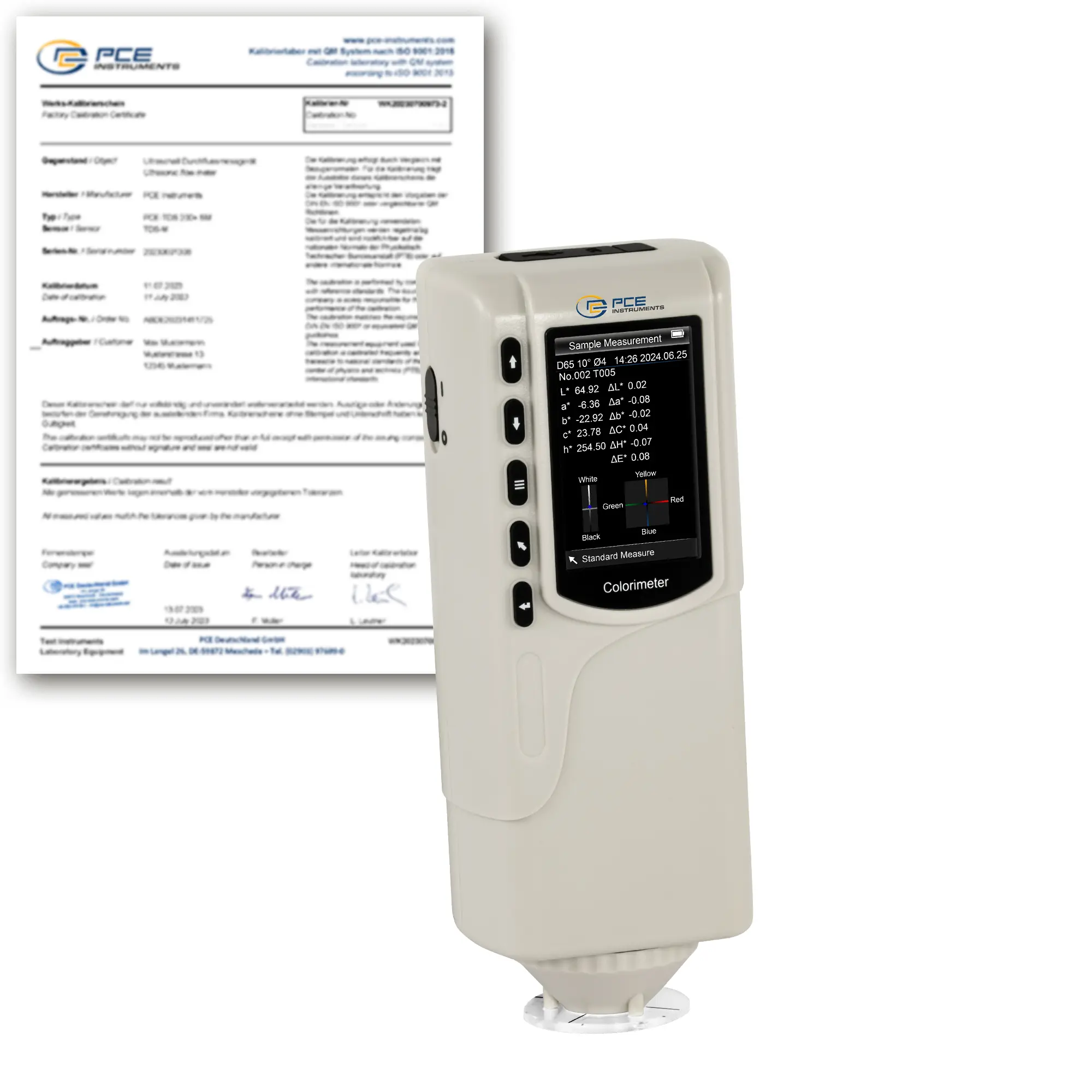

The Colorimeter PCE-CSM 1 was developed for quality control and offers a very high accuracy. When using the Colorimeter, you can choose between different color spaces (CIE L*a*b*C*h, CIE L*a*b* and CIE XYZ). After a measurement with the Colorimeter, the reading can be used as a reference value while other readings can be recorded as a sample and later be compared to the reference value easily.
In addition to the individual color space coordinates, the deviation between the reading is also displayed. When using the Colorimeter, it is possible to store up to 100 reference values and up to 20,000 samples on the device. The measured data can also be transferred to a PC via the USB interface. A special PC software is included in the package.
| General technical data | |
| Display size | 2,8 Inch |
| Storage medium | Internal memory |
| Storage capacity | 20000 Values |
| Memory capacity (additional information) | 100 standards, 20000 samples |
| Interface | Mini-USB |
| Sensor | Silicon photodiode |
| Light source | LED Illuminant: D65 |
| Colour spaces | CIEL*a*b*C*h, CIEL a* b*, CIEXYZ |
| Measuring aperature | Ø 4 mm |
| Measuring geometry | 8°/d |
| Calibration | White or black calibration selectable |
| Colour difference | ΔE*ab ΔL*ab ΔE*C*H |
| Menu language | English, Chinese |
| Power supply | 3.7 V / 0.5 A |
| Connector type | Device-europlug |
| Capacity | 3200 mAh |
| Operating conditions | 0 ... 40 °C , 0 ... 85 % RH |
| Storage conditions | 0 ... 40 °C , 0 ... 85 % RH |
| Dimensions ( L x W x H ) | 205 x 67 x 80 mm |
| Weight | 500 g |
