Condition Monitoring Inspection Camera
LED illumination / MicroSD memory / Detachable remote control display / Small 3.9 mm (.16 in) cable diameter / 1 m (3.28 ft) cable length

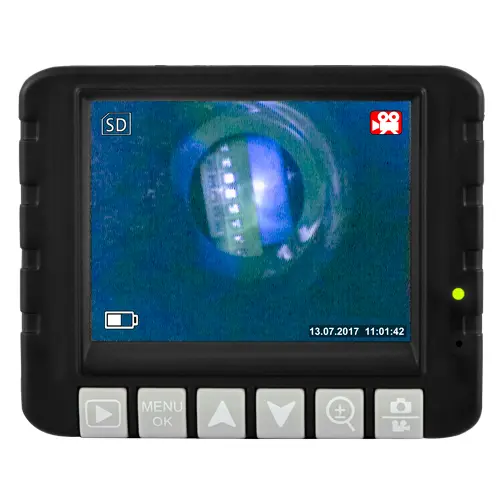

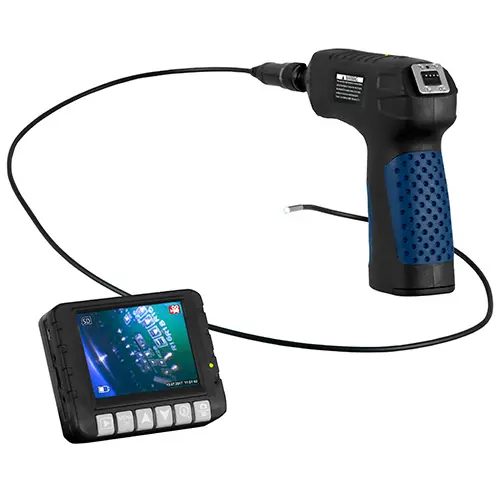

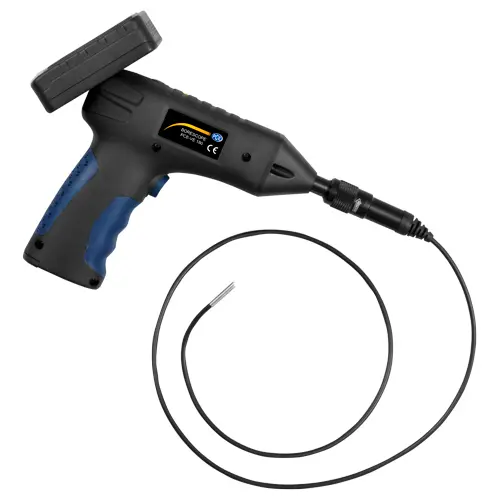

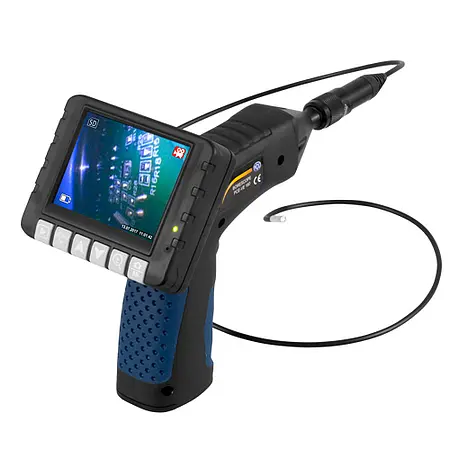

The PCE-VE 180 is a rechargeable handheld condition monitoring inspection camera with video recording and image capture functionality. Equipped with built-in LED lighting on the waterproof camera tip, the condition monitoring inspection camera features a detachable remote control with integrated 3.5" LCD for easy viewing and navigation. The remote control communicates using radio transmission at 2.4 GHz.

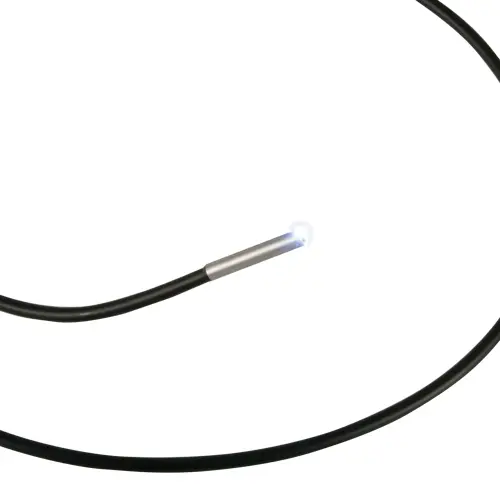

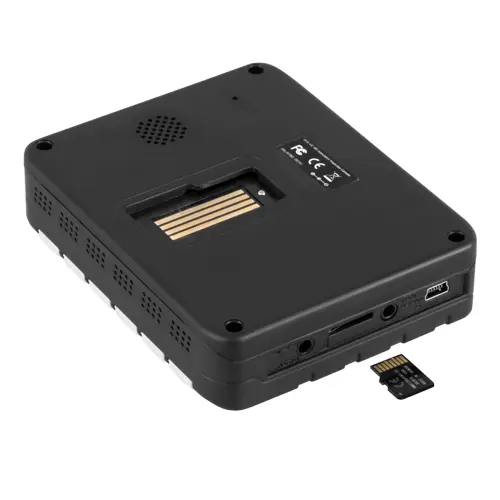

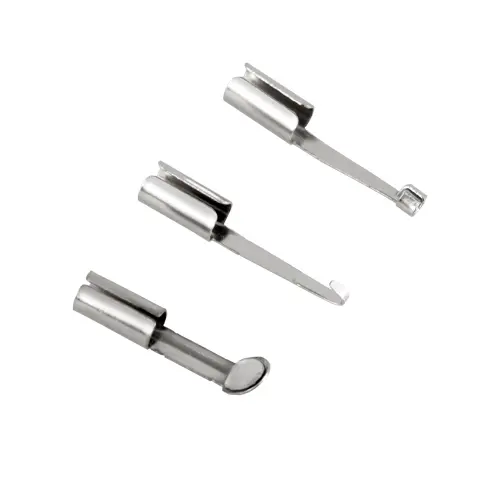

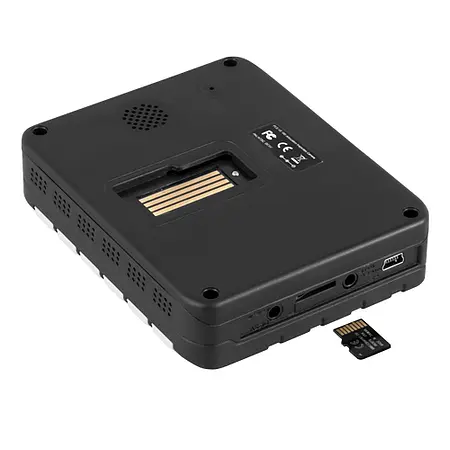

The condition monitoring inspection camera is powered by a rechargeable battery that allows for up to 3 hours of continuous use. Recorded images and videos are saved to a MicroSD memory card with a capacity of up to 32 GB. The semi-flexible gooseneck cable of the condition monitoring inspection camera has a small diameter of just 3.9 mm / .16 in for insertion into tiny cavities. An IP67 ingress protection rating protects the condition monitoring inspection camera against dust and water, allowing for use in adverse conditions. The condition monitoring inspection camera comes with three different attachments: a 90° angle mirror for viewing side walls and around corners, as well as a hook and a magnet for pulling parts out of cavities.
***Not for medical use***
| Cable length | 1 m / 3.28 ft |
| Type of cable | Semi-flexible (gooseneck) |
| Cable diameter | 3.9 mm / .16 in |
| Illumination | 2 LEDs |
| Resolution | 1280 x 980 pixels (interpolated) |
| Ingress protection rating | IP67 protection against water, oil and dust |
| Focal distance | 30 ... 80 mm / 1.18 ... 3.15 in |
| Field of view | 60° |
| Display size | 3.5" / 320 x 240 pixels |
| Memory formats | Images: JPG / BMP Video: AVI |
| Memory | Micro SD card (max. 32 GB) |
| Radio transmission | 2.4 GHz |
| Power supply | Remote / display: Li-Ion 3.7 V 1200-mAh Pistol grip: Li-Ion 3.7 V 1600-mAh AC power adapter / battery charger: 5V / 2 A |
| Battery life | Approx. 1 ... 3 hours continuous use |
