The condition monitoring is a handy device for measuring the speed of objects with a measuring range of 60 to 20,000 RPM. The condition monitoring is suitable for inspecting objects with periodic movements and for detecting faults. The condition monitoring enables precise measurements through fine and coarse adjustment. With the fine adjustment, the speed can be changed in small steps: +0.1 RPM for speeds below 1000 RPM and +1 RPM for speeds above 1000 RPM.The coarse setting allows larger changes: +10 RPM for speeds below 1000 RPM and +100 RPM for speeds above 1000 RPM.
Equipped with an illuminated LC display and a digit height of 16 mm, the condition monitoring provides a clear display even in poor lighting conditions. The flash light source with over 36 LEDs generates bright flashes of light for optimum measurements. The automatic switch-off after 5 minutes of inactivity saves energy and extends battery life. The condition monitoring has a memory for up to 10 flash frequencies to enable a quick change to different frequencies. The condition monitoring automatically warns when the supply voltage is too low to ensure trouble-free operation.
Visual speed | |
Measuring range | 60 RPM ... 999.9 RPM |
Resolution | 0.1 RPM |
Accuracy | 0.05 % |
Visual speed | |
Measuring range | 1000 RPM ... 20000 RPM |
Resolution | 1 RPM |
Accuracy | 0.05 % |
General technical data | |
Display type | LCD with illumination |
Display size | 2.1 inch |
Storage medium | Internal memory |
Memory capacity | 10 values |
Automatic switch-off | 5 min |
Light intensity | approx. 1400 lx @20cm @10000 RPM |

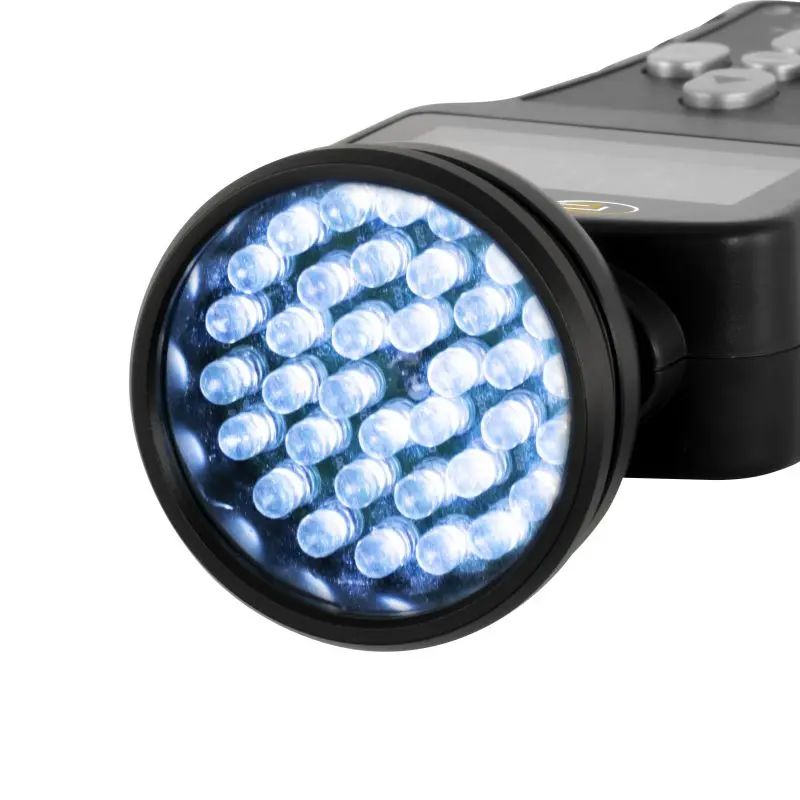

Light source | 36 LED's |
Menu language | English |
Protection class (device) | IP20 |
Weight | 180 g |
Dimensions (L x W x H) | 180 x 68 x 56 mm |
Operating conditions | 0 ... 50 °C , 10 ... 85 % r.H |
Storage conditions | 0 ... 50 °C , 10 ... 85 % r.H |
