Conductivity Data-logging Meter PCE-PHD 1-LF

Order no.: PCE-PHD 1-LF
GTIN (EAN):
£ 380.00
£ 456.00
price ex. (VAT / delivery)
PCE-PHD 1-LF
Delivery time: 1-2 working days
Liquids
pH

Description

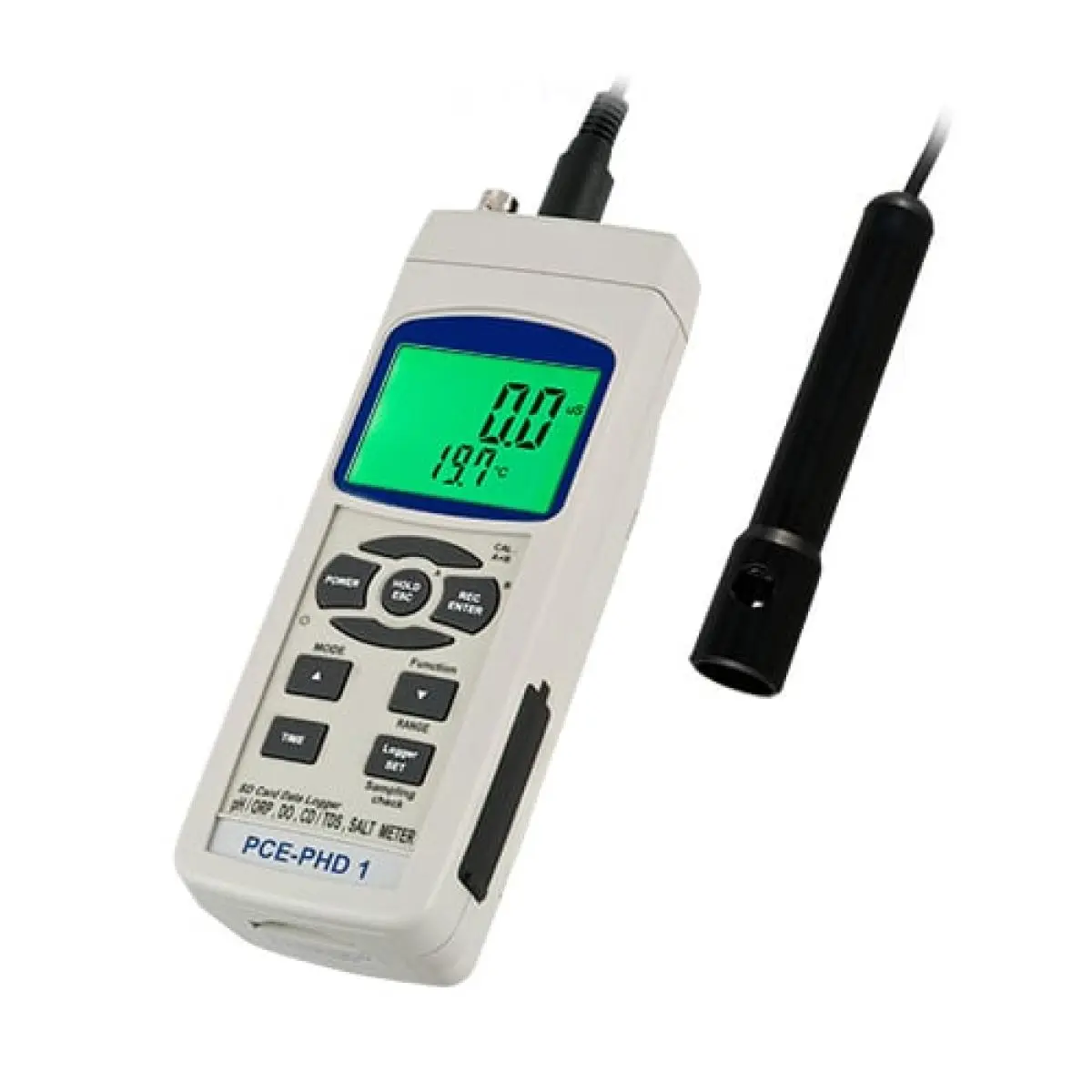

PCE-PHD 1-LF Conductivity Data-Logging Meter
SD card memory (1 ... 16 GB), stored data is stored as an Excel file / large, easy-to-read display / RS-232 interface and optional software for direct transfer to the PC / Includes a conductivity electrode

PCE-PHD 1-LF Multifunction Conductivity Data-Logging Meter is a portable, easy-to-use measuring device with multiple capabilities for inspecting water quality. Offering extraordinary precision at an affordable price, the Multifunction Conductivity Data-Logging Meter is used for laboratory and in situ testing of the pH value, redox, conductivity, salt content, oxygen level and temperature of water.



Temperature compensation guarantee a high level of accuracy even with variable temperature measurements. PCE-PHD 1-LF is supplied with a conductivity electrode. Additional electrodes are available for purchase separately, as is an optional mains adapter for power and a software kit with an RS-232 cable. PCE-PHD 1-LF acts as a real-time data logger. All values can be stored directly on the included SD card in Microsoft Excel format or transferred to a PC by means of the RS-232 port. Thus, no additional software is required for evaluation of the data.


Highlights

- Real-time data logger
- Compatibility with SD cards up to 16 GB
- The stored data is saved directly as an Excel file on the SD card (no software needed for evaluation)
- RS-232 interface for online data transmission
- High precision
- Low battery indication
- Large LC display
- Adjustable measuring rate
- Easy to use
- Robust housing
- Automatic calibration
- Manual or automatic temperature compensation
- BNC connector
- Suitable for laboratory and on-site measurement
- Electrode for conductivity included

Specification

Conductivity
Measurement range 0 ... 200 µS/cm, 0.2 ... 2.0 mS/cm, 2 ... 20.0 mS/cm, 20 ... 200 mS/cm
Resolution 0.01 µS/cm, 0.001 mS/cm, 0.01 mS/cm, 0.1 mS/cm
Accuracy ±2 % of the measurement range + 1 digit
Calibration 1413 mS/cm
Temperature compensation Automatic (0 ... 60 ºC / 32 ºF ... 140 ºF)

General specifications
Measurement rate 1 second up to 8 hrs 59 mins 59 secs
Display LCD 52 x 38 mm / 2 x 1.5"
Memory SD card up to 16 GB (2 GB card included)

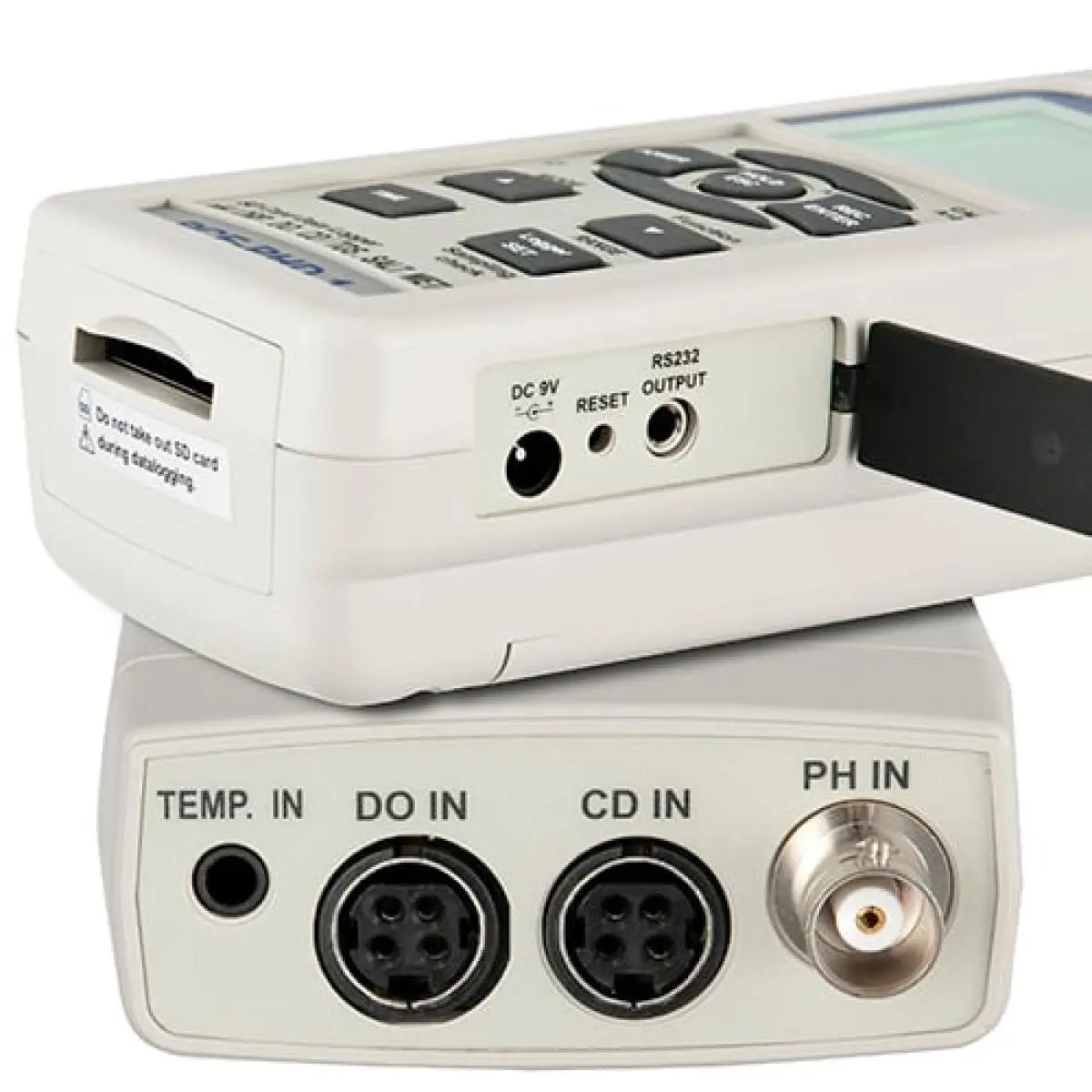

Interface RS-232
Software Optional
Power supply 6 x 1.5 V AA batteries (optional power adapter)
Operating conditions 0 ... +50 ºC / < 85 % RH
Dimensions 177 x 68 x 45 mm / 7.0 x 2.7 x 1.8"
Weight 490 g / 1.1 lbs


Delivery Scope

1 x PCE-PHD 1-LF Conductivity Data-Logging Meter

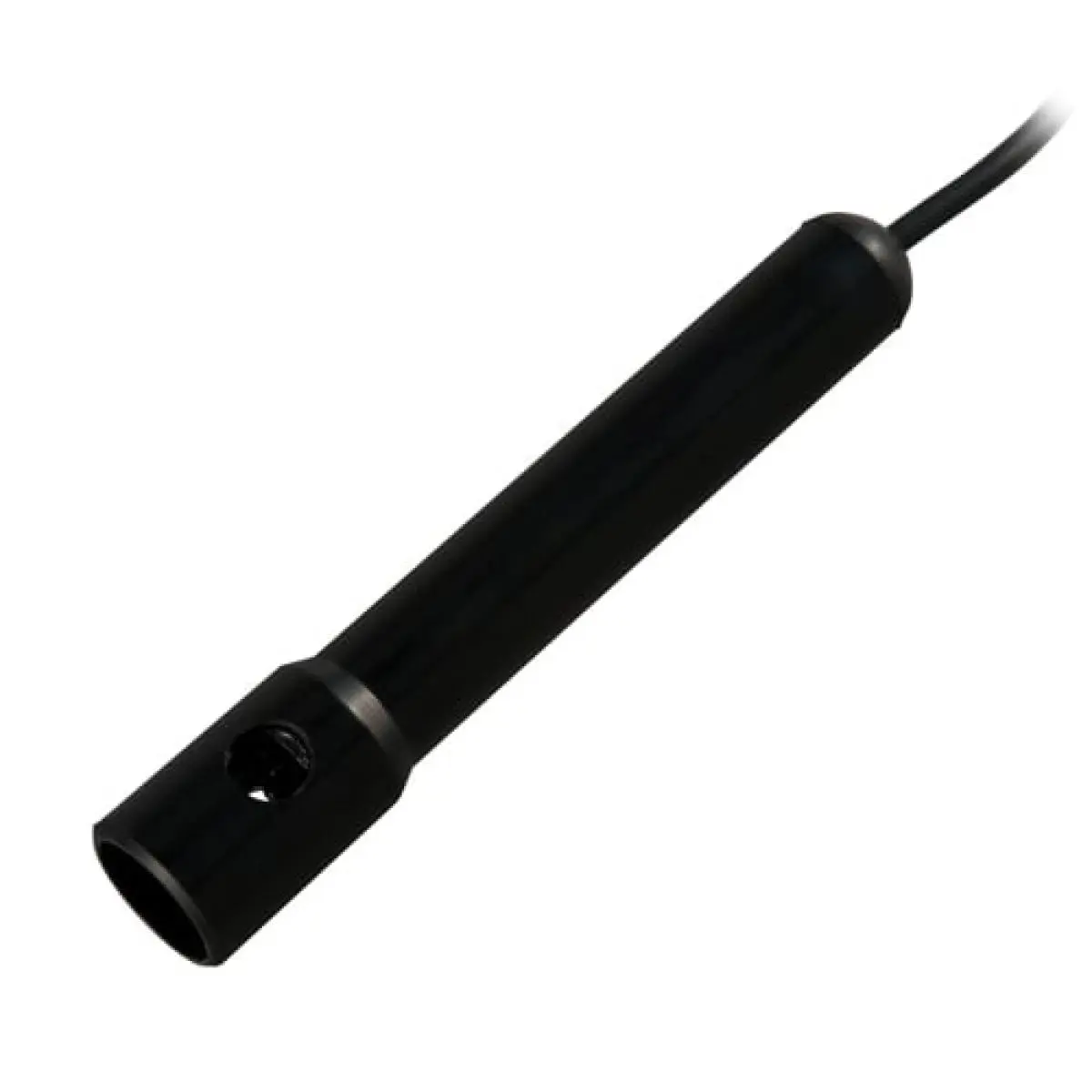

1 x conductivity electrode
1 x SD memory card 2GB
6 x 1.5 V AA batteries
1 x user manual
