Data Logger / Data Logging Instrument PCE-RAM 9

Order no.: PCE-RAM 9
GTIN (EAN): 4250348737083
£ 352.00
£ 422.40
price ex. (VAT / delivery)
:
4250348737083
PCE-RAM 9
Delivery time: 1-2 working days

Description

Data Logger / Data Logging Instrument for detecting gamma, beta and X-ray radiation / temperature and humidity sensor / Geiger-Müller counter tube / waterproof up to 1.5 m water depth

Our Data Logger / Data Logging Instrument is a versatile and precise device that is used in various areas such as security and emergency services, industrial facilities, research facilities, airports, harbours and by private individuals to monitor radiation and environmental risks. It measures gamma, beta and X-ray radiation and enables precise measurement over a measuring range of 0.00 ... 10 mSv/h with a resolution of 0.01 mSv/h. The Data Logger / Data Logging Instrument offers a high sensitivity of 80 cpm/μSv/(Co-60) and a wide energy range from 20 keV to 3000 keV, enabling accurate measurement of different types of radiation. It has an internal memory for up to 1000 measured values and allows this data to be transferred as a csv file to a computer for further analysis. In addition, the history of the last 1000 data records can also be called up on the measuring device.

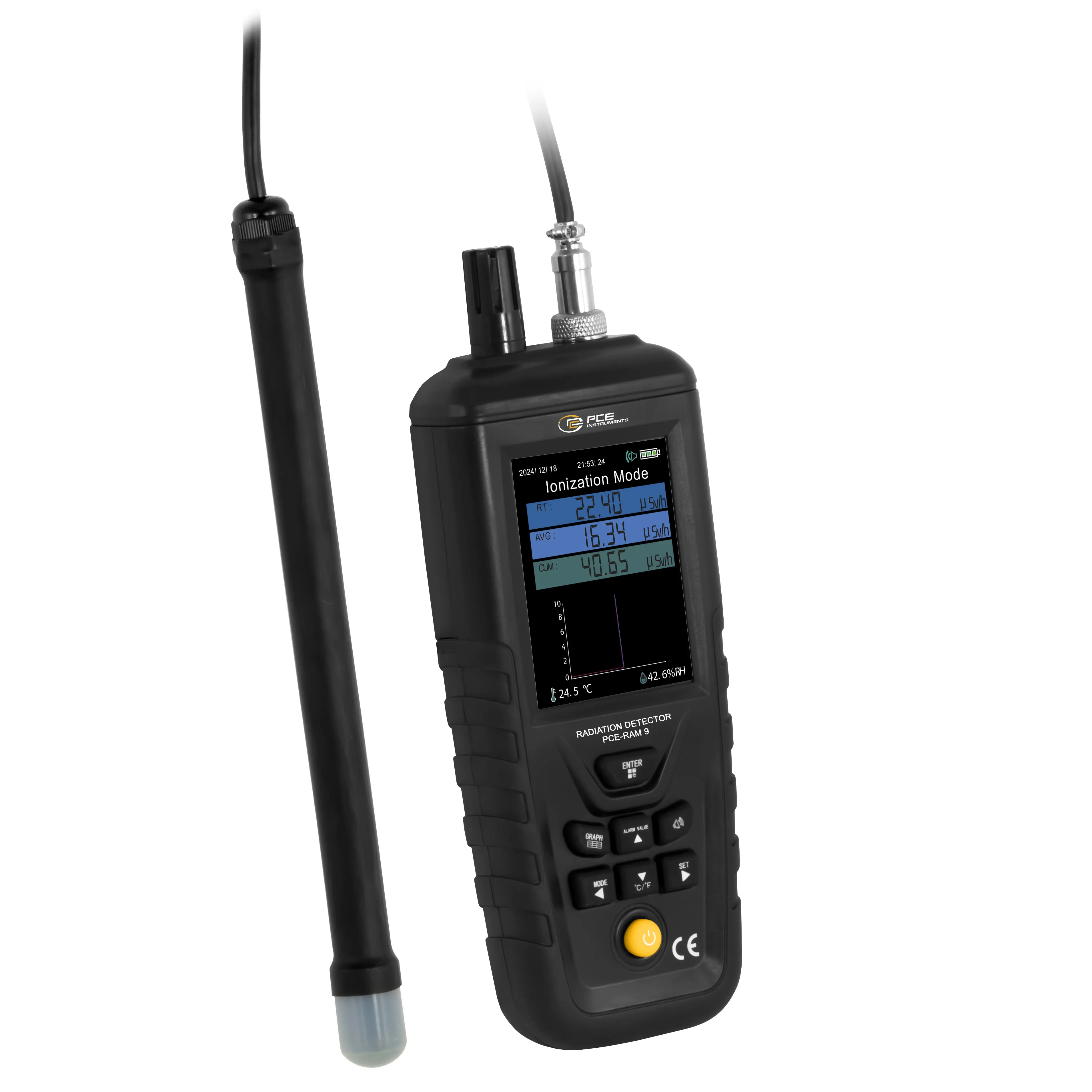

The Data Logger / Data Logging Instrument is supplied with a probe that is protected to IP67 and remains waterproof up to a water depth of 1.5 metres. In addition, it offers an adjustable alarm that is triggered when set radiation levels are exceeded and a 3.2 inch TFT colour display for a user-friendly display of the measured values. Our Data Logger / Data Logging Instrument has another function, automatic voice output in English, which allows the user to hear the options selected in the menu via voice feedback and simplifies operation.


Highlights

- γ-, β-, X- radiation
- sensor: Geiger-Müller counter tube
- adjustable alarm

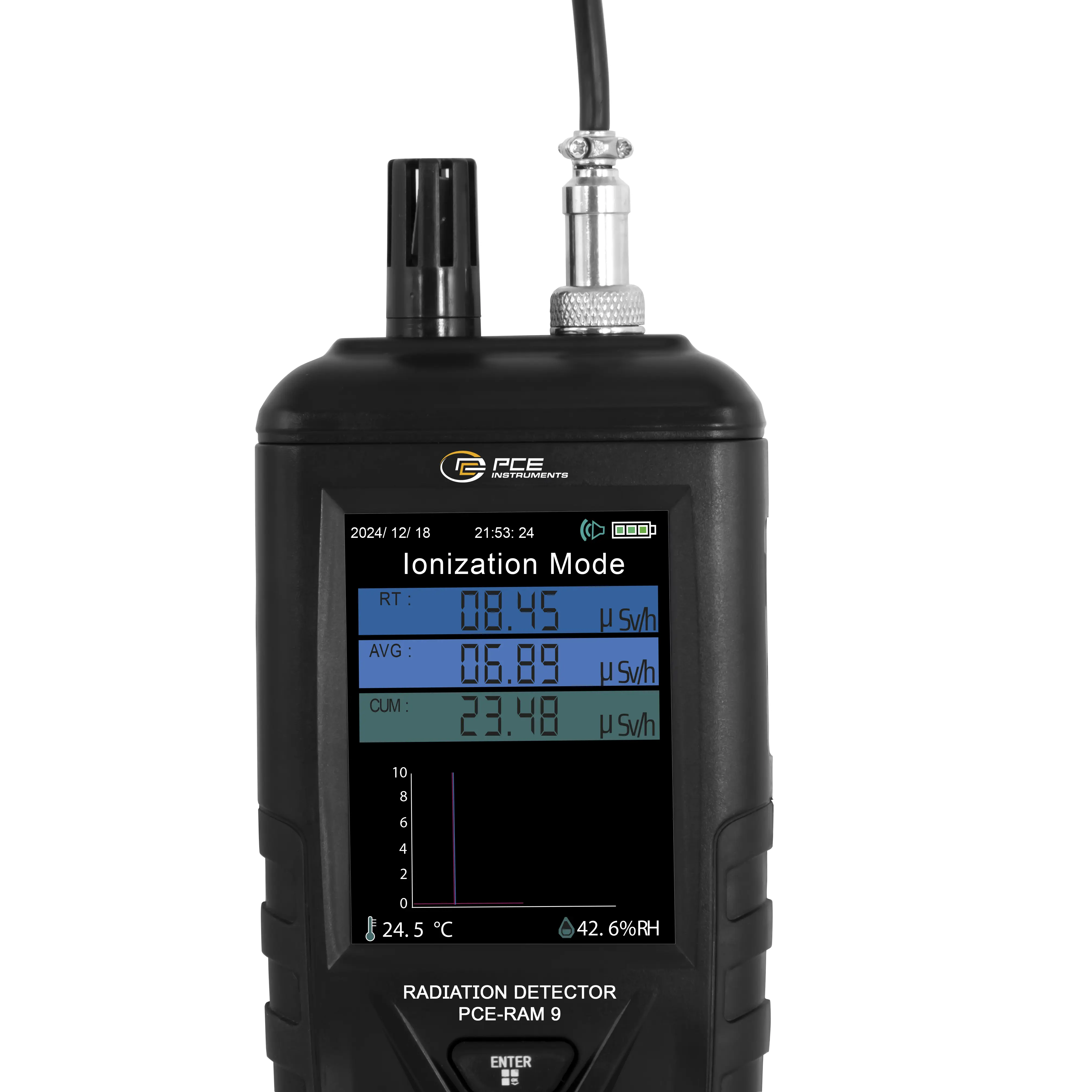

- 3.2 inch TFT colour display

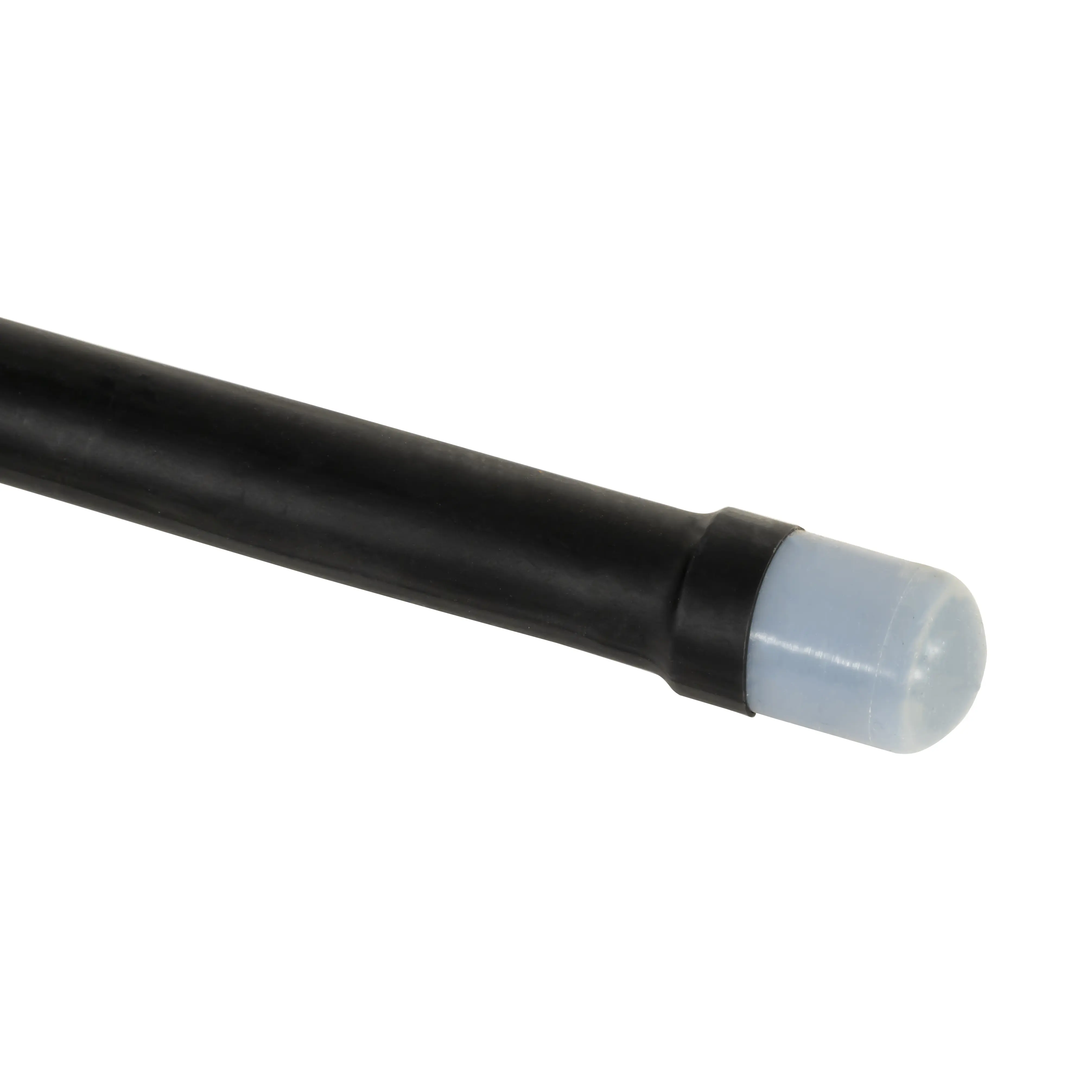

- probe: IP67, waterproof up to 1.5 m water depth
- internal memory for 1000 readings
- data transfer to computer

Specification

Relative humidity
Measurement range up to  0 ... 100 %
Resolution  0,1 %
Accuracy  ±3 % of Rd

Radiation
Measurement range up to  0 ... 10 mSv/h
Resolution  0,01 mSv/h
Accuracy  ≤10% of Rd

Radiation
Measurement range up to  0 µSv/h ... 999,9 Sv/h
Resolution  0,01 µSv/h
Accuracy  ≤10% of Rd

Temperature
Measurement range up to  20 ... 60 °C
Resolution  0,1 %
Accuracy  ±2 °C

Temperature
Measurement range up to  32 ... 212 °F
Resolution  0,18 °F
Accuracy  ±3.6 °F

General technical data
Measuring functions  Real-time value, Average value, Accumulated value
Energy range  20 ... 3000 keV
Display type  TFT colour display
Display size  3,2 Inch
Display resolution  320 x 240 pixels
Storage medium  Internal memory
Storage capacity  1000 Values
Storage interval from  10 s
Storage interval to  60 min.

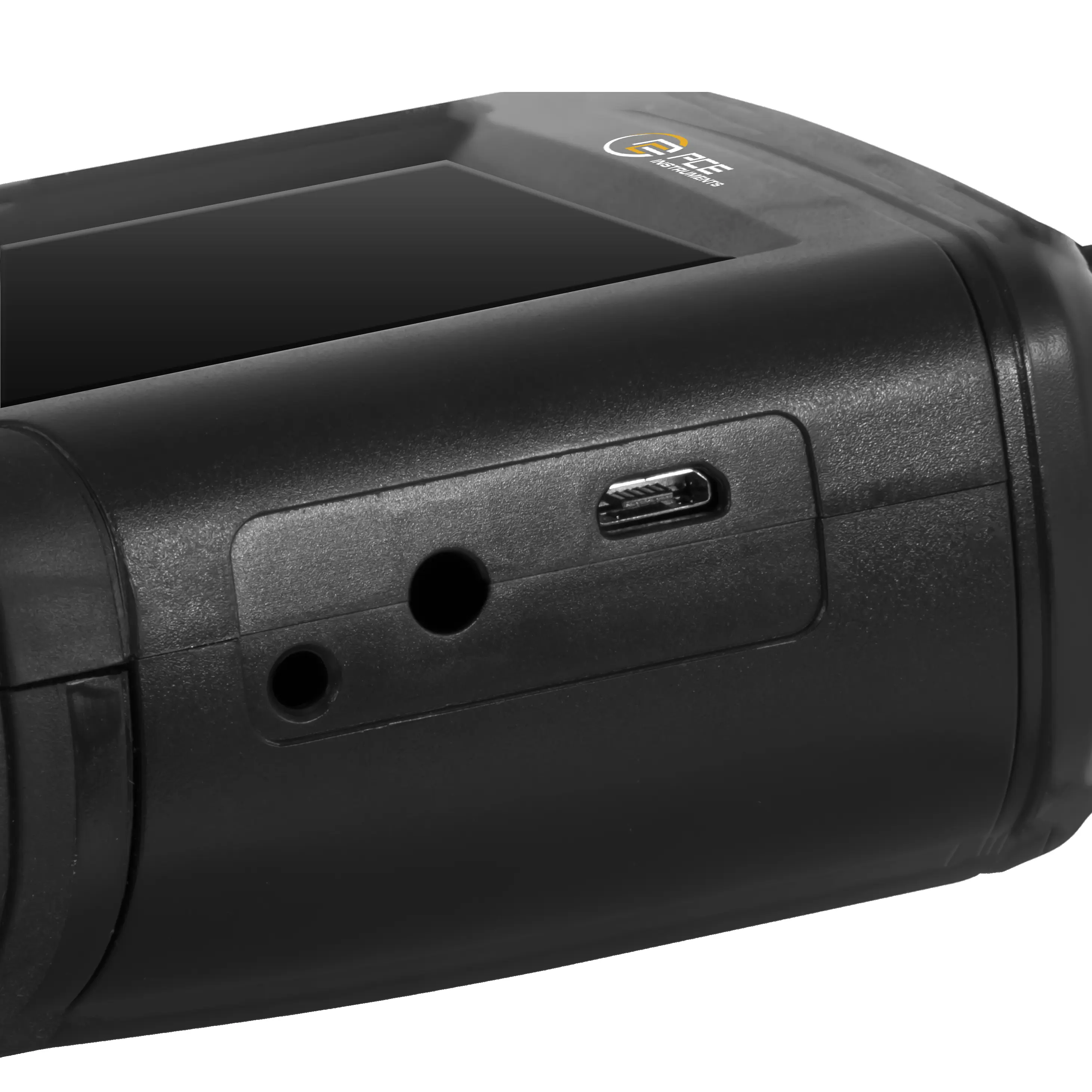

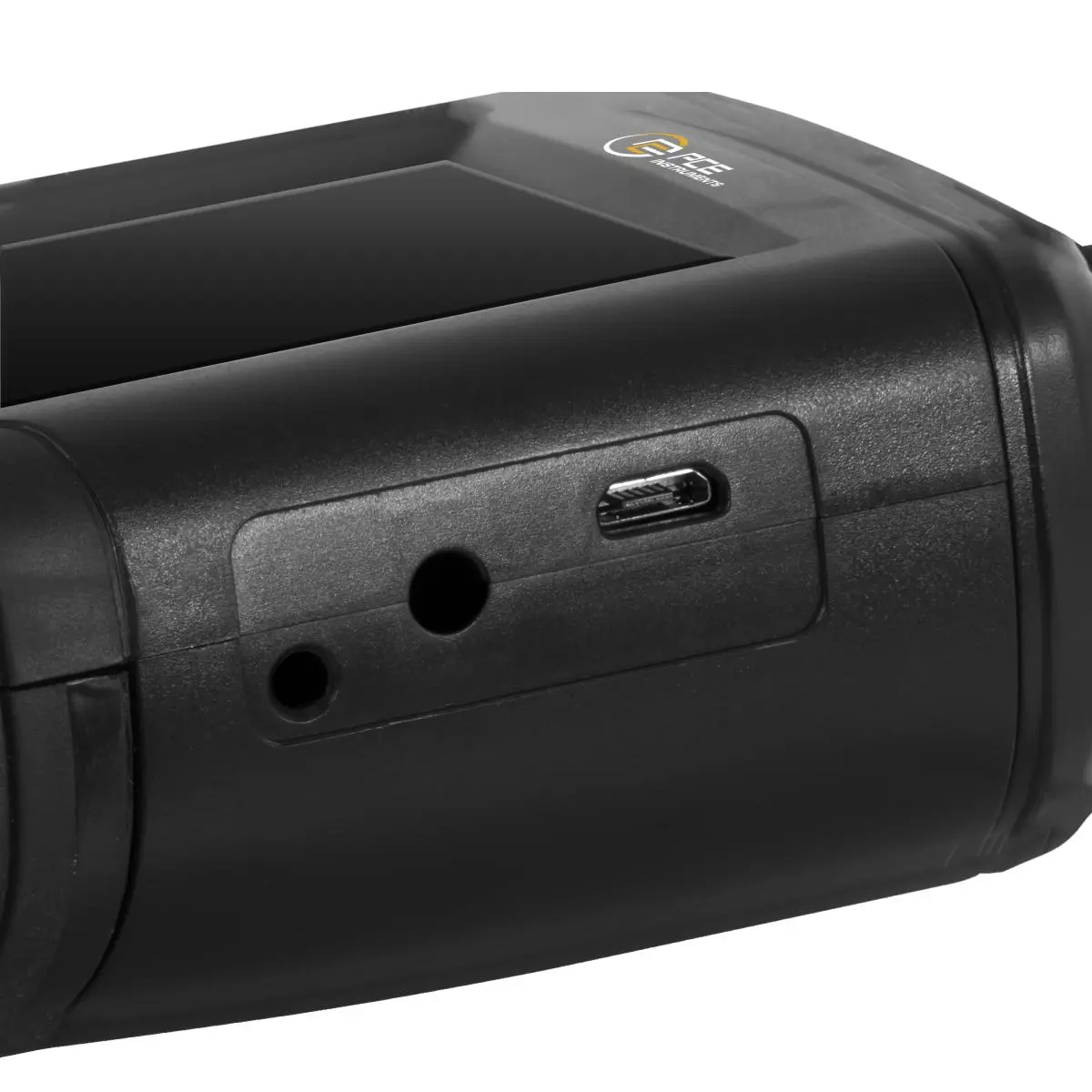

Interface  Micro-USB
Sensor  Geiger-Mueller counter tube
Operating time  3 h
Automatic power-off from...to  10 ... 60 min.
Automatic power-off can be deactivated  Yes
Cable length  170 cm
Alarm  Acoustic
Dimensions  Probe: L: 225 mm x ⌀ 17 mm
Alarm settings  0 ... 99.99 µSv/h
Menu language  German, English, French, Spanish, Chinese, Japanese
Protection class (device)  IP20
Protection class (additional information)  Probe: IP67
Power supply  5 V DC

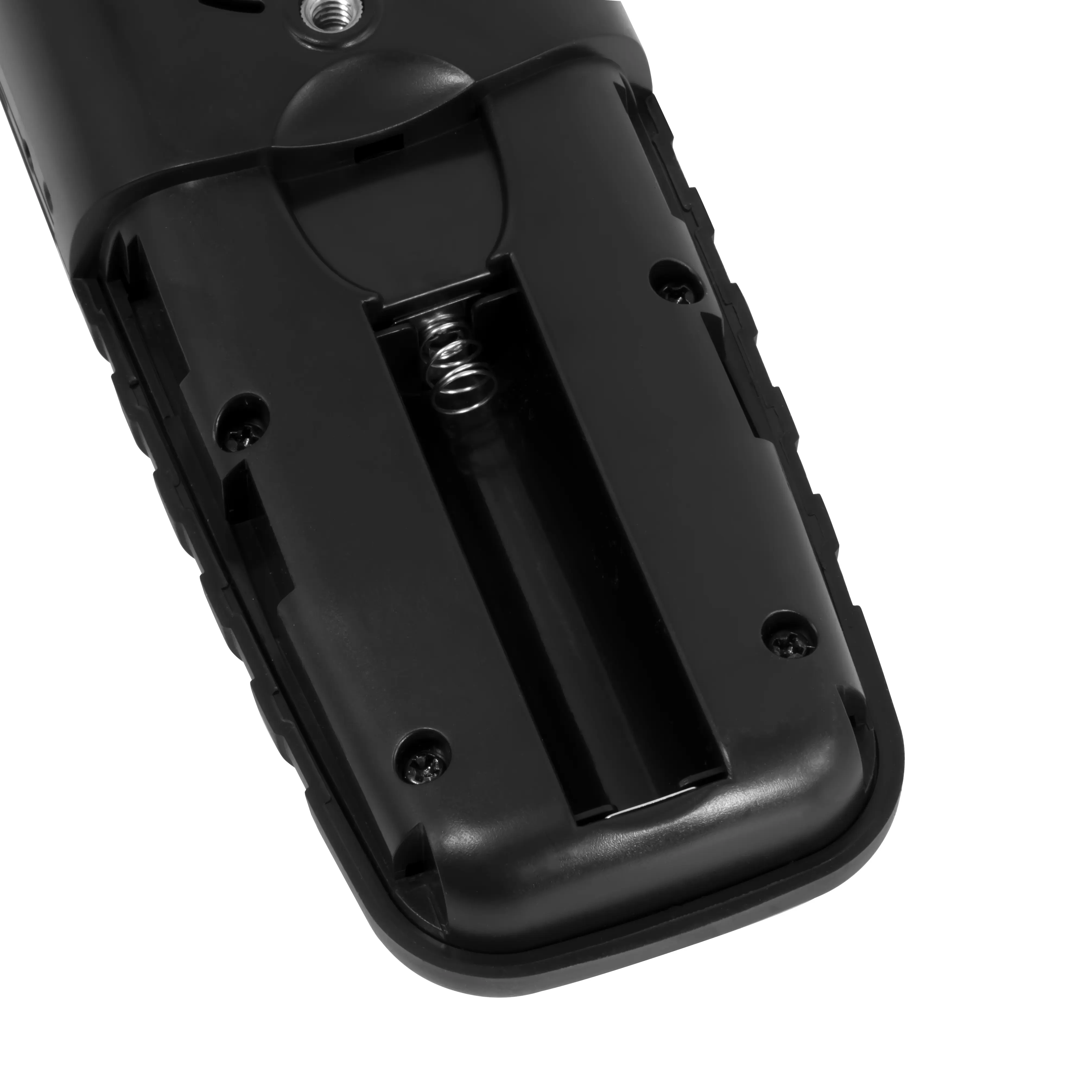

(Rechargeable) battery  1 x 3,7 V 18650 , Lithium-ion battery
Capacity  2200 mAh
Operating conditions  0 ... 50 °C , 0 ... 90 % RH
Storage conditions  0 ... 50 °C , 0 ... 90 % RH
Dimensions ( L x W x H )  220 x 80 x 46 mm
Weight  237 g

Delivery Scope

1 x Data Logger / Data Logging Instrument PCE-RAM 9
1 x lithium battery 3.7 V
1 x micro-USB cable

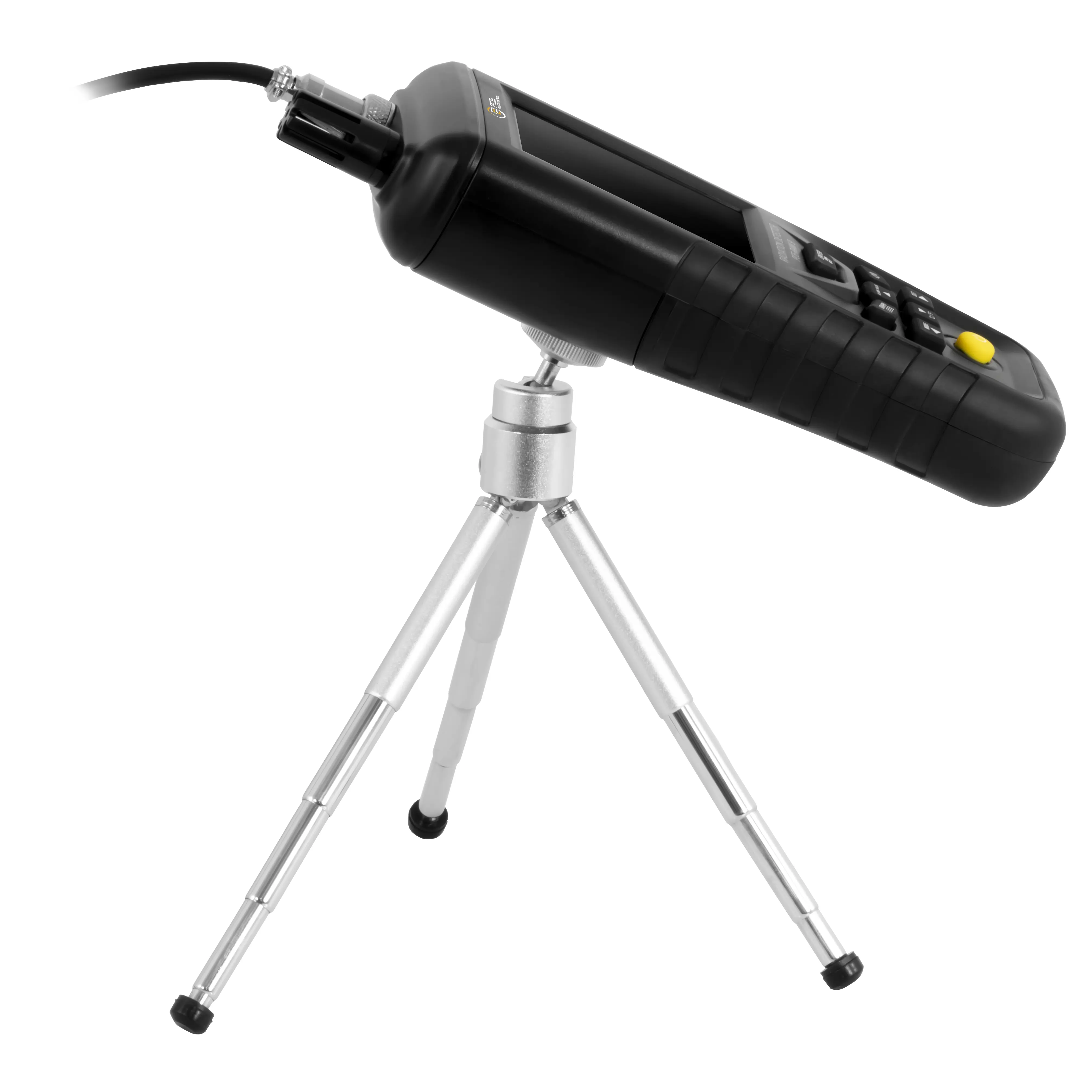

1 x mini tripod

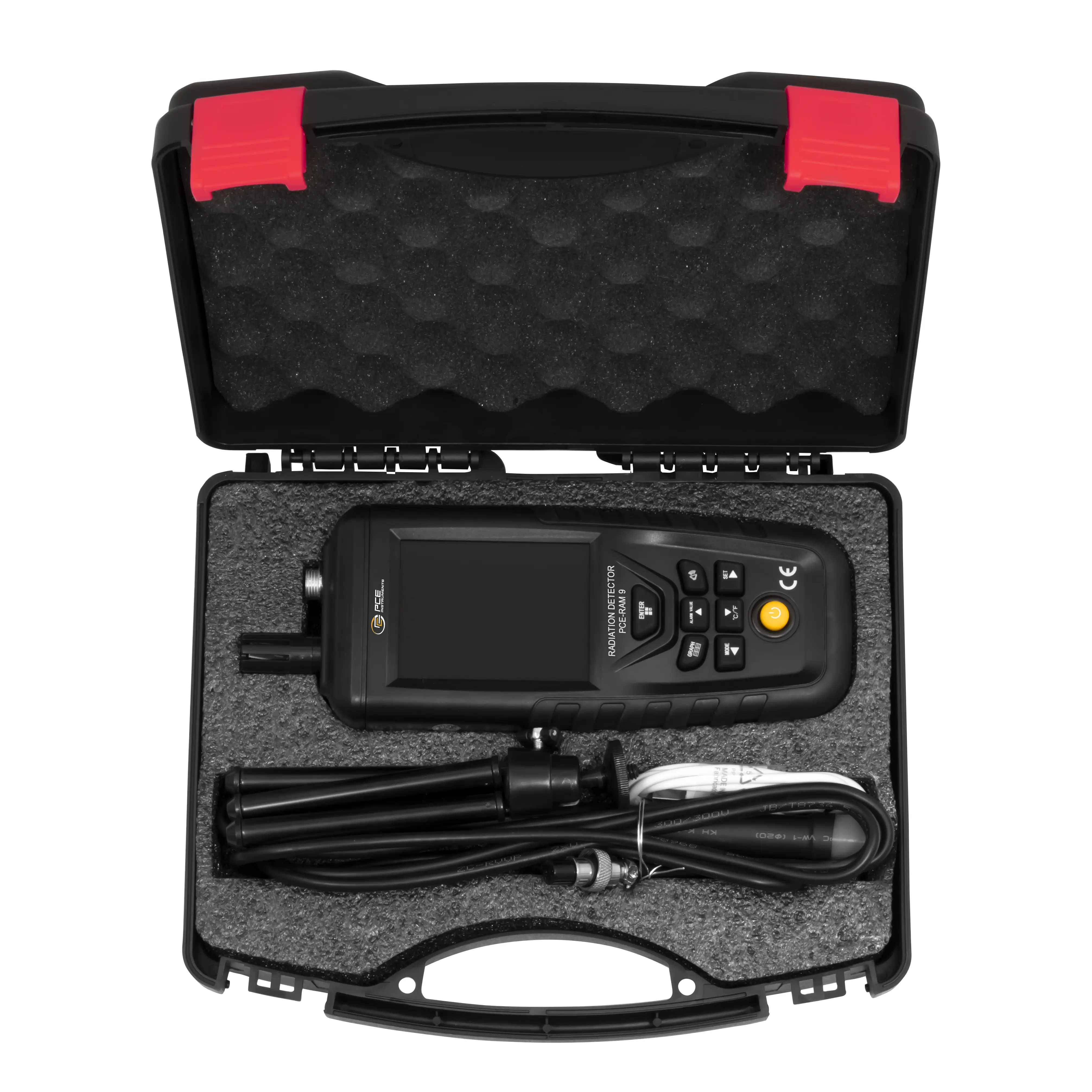

1 x carrying case
1 x instruction manual
