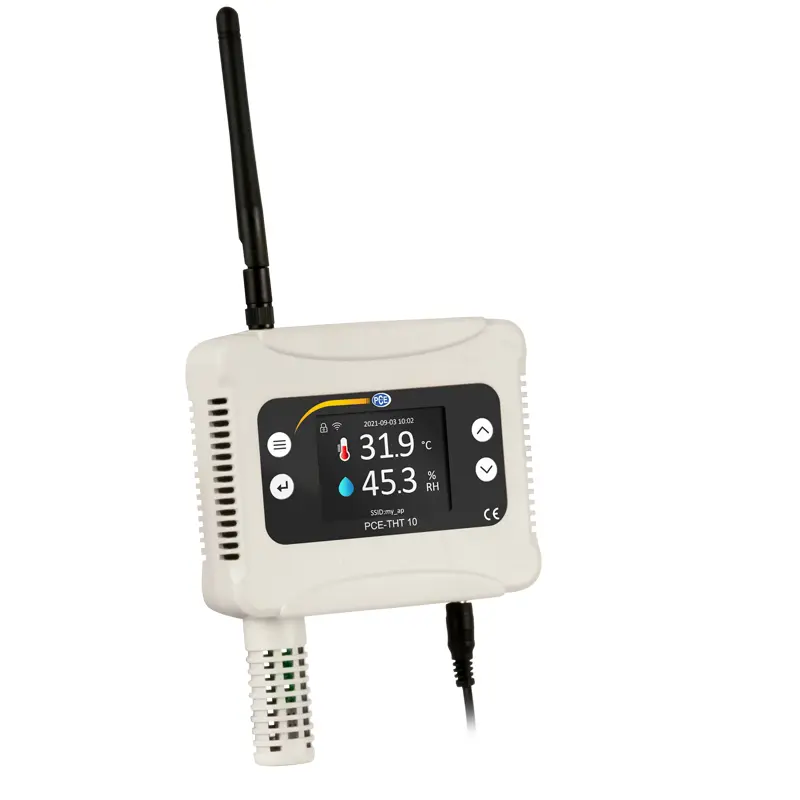

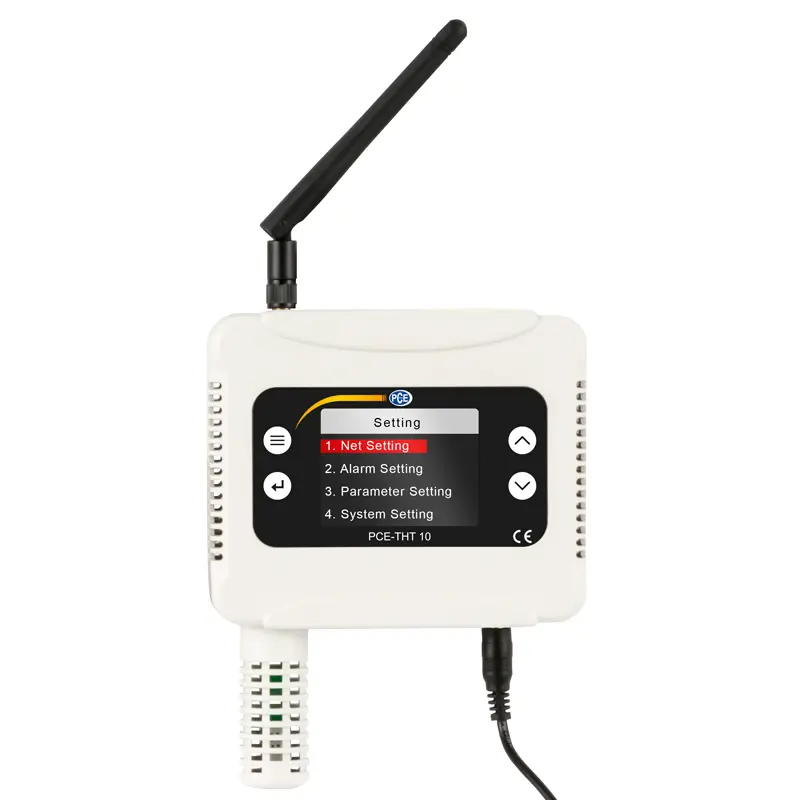

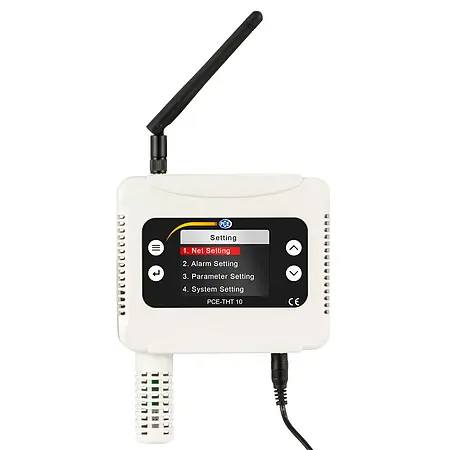

WiFi Data Logger PCE-THT 10-ICA incl. ISO Calibration Certificate

Order no.: PCE-THT 10-ICA
GTIN (EAN):
£ 361.00
£ 433.20
ISO Calibration
price ex. (VAT / delivery)
PCE-THT 10-ICA
Delivery time: 10 - 14 days
Temp. / Humidity

Accessory

ISO Calibration Certificate for Temperature and Humidity
ISO Calibration Certificate for Temperature and Humidity
£ 142.00

Description

WiFi data logger for wall mounting / Data memory for 12800 measuring points / Colour display /
Measuring range -20 ... 60 °C / Mains operation / With ISO calibration certificate

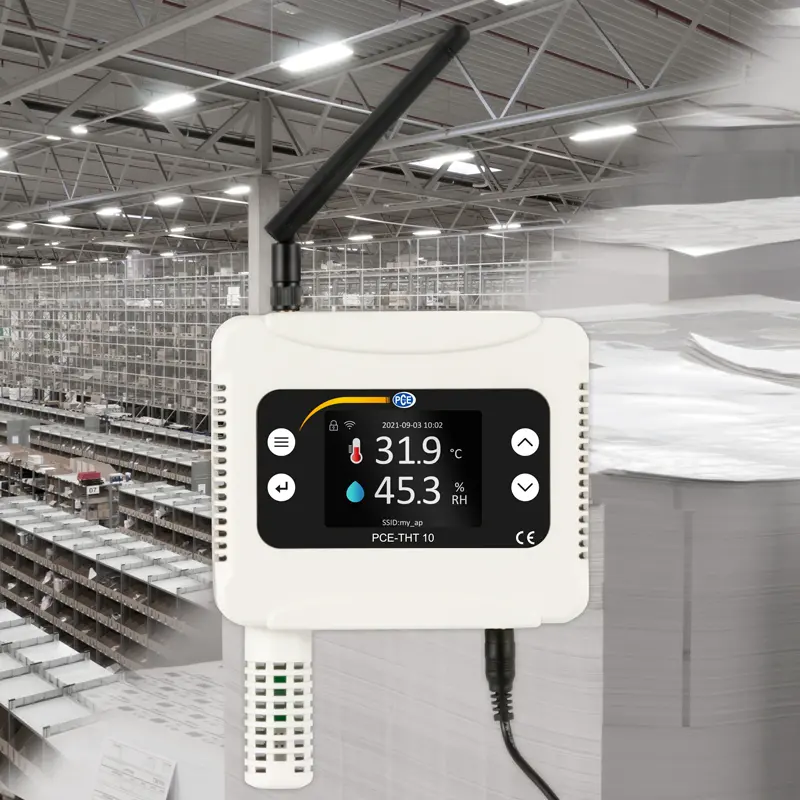

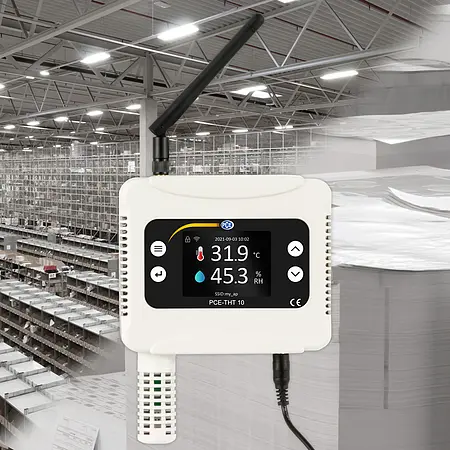

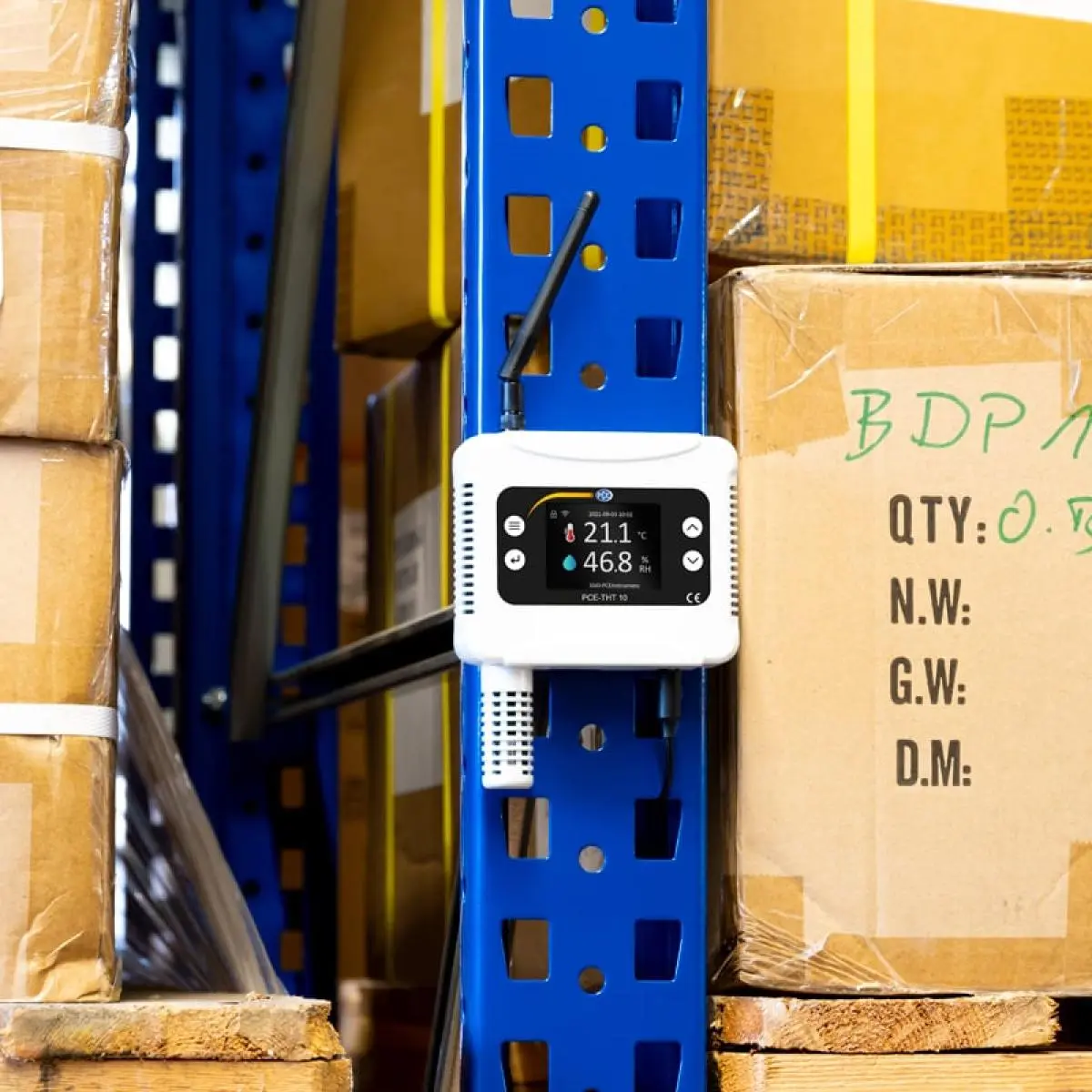

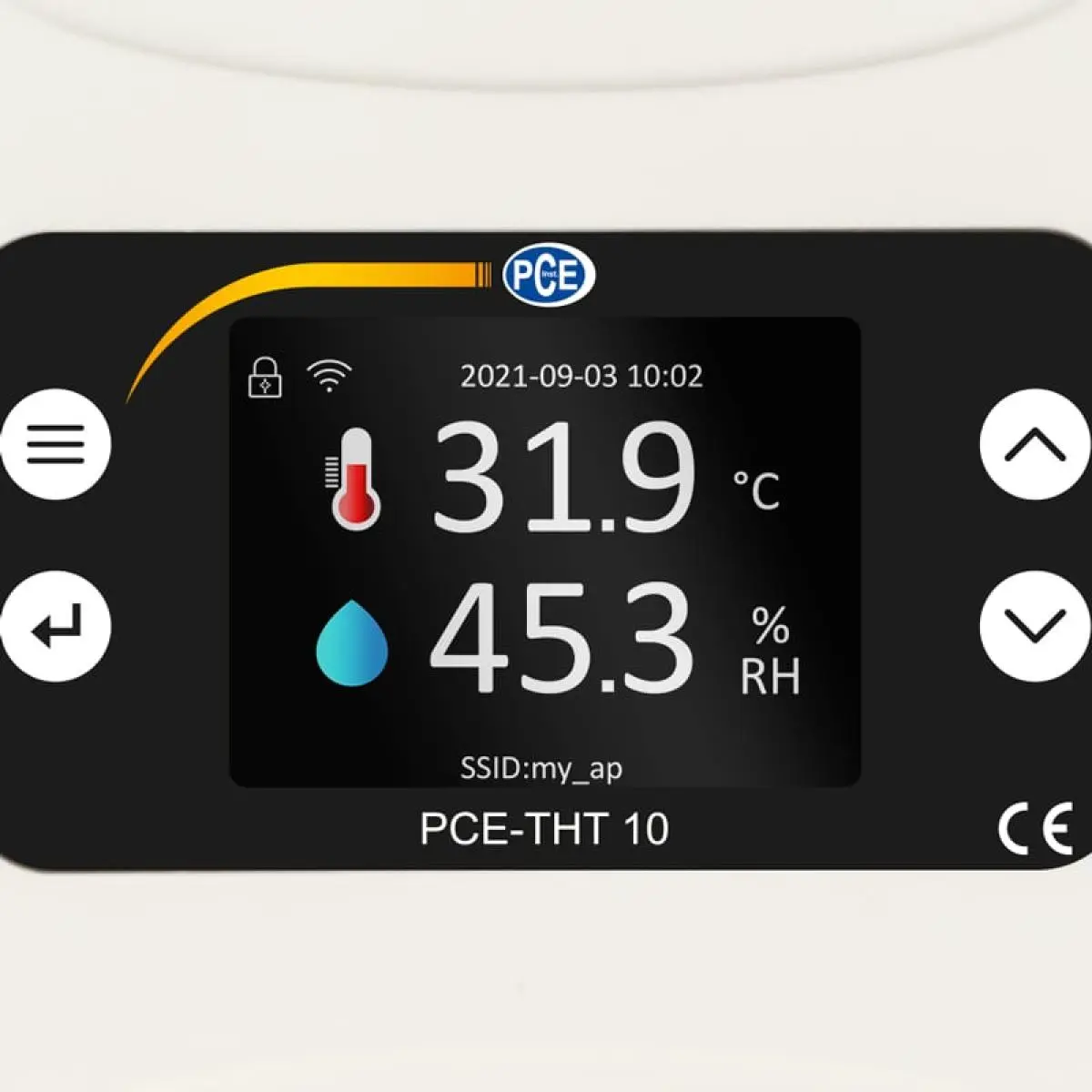

The WiFi data logger has a temperature measuring range of -20 ... 60 °C and a humidity measuring range of 0 ... 99.9% RH. The readings from the thermo-hygrometer can be read directly on the 2.3" colour display. With the data logger function, all readings from the thermo-hygrometer are stored on the 12800 measuring point memory. The thermo-hygrometer is therefore used to monitor the climatic conditions in offices, logistics, greenhouses or classrooms.

Analysis of the measured values ​​recorded can be carried out with the software for the WiFi data logger. If there are several thermo-hygrometers in a network, all of them can be controlled by the software at the same time. The thermo-hygrometer software can be found in the PCE Instruments download portal.

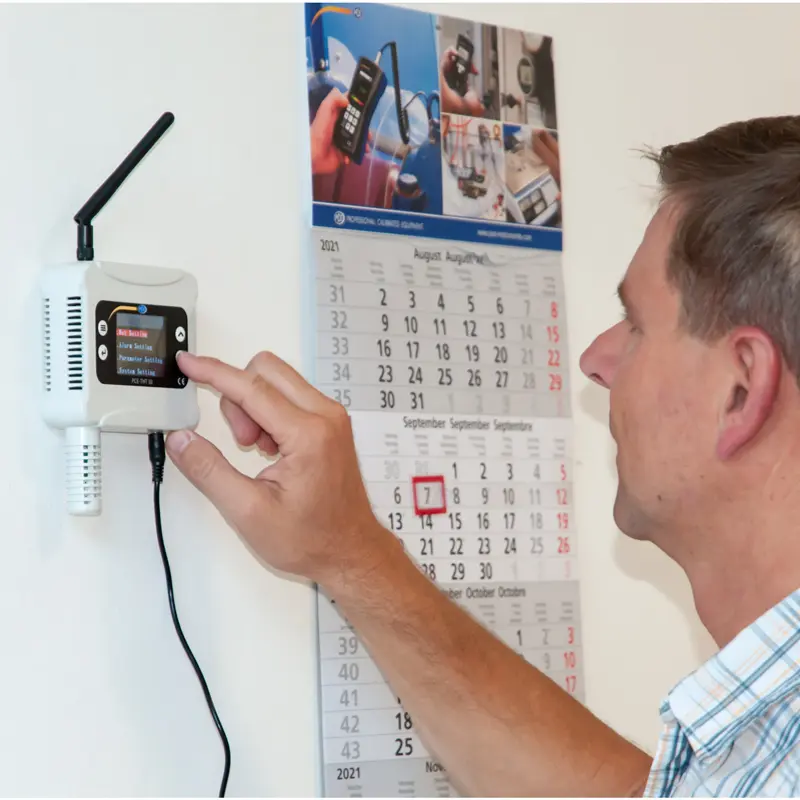

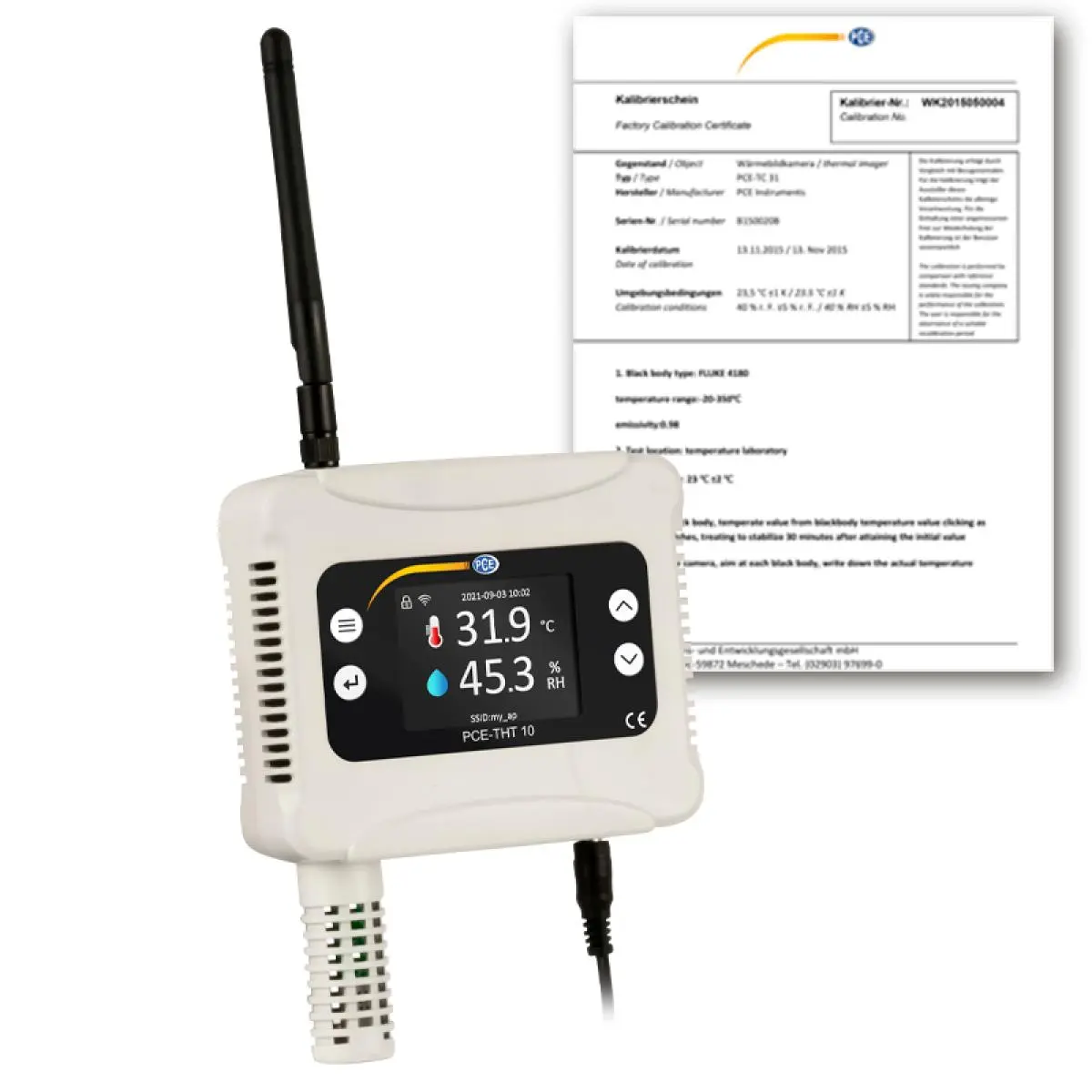

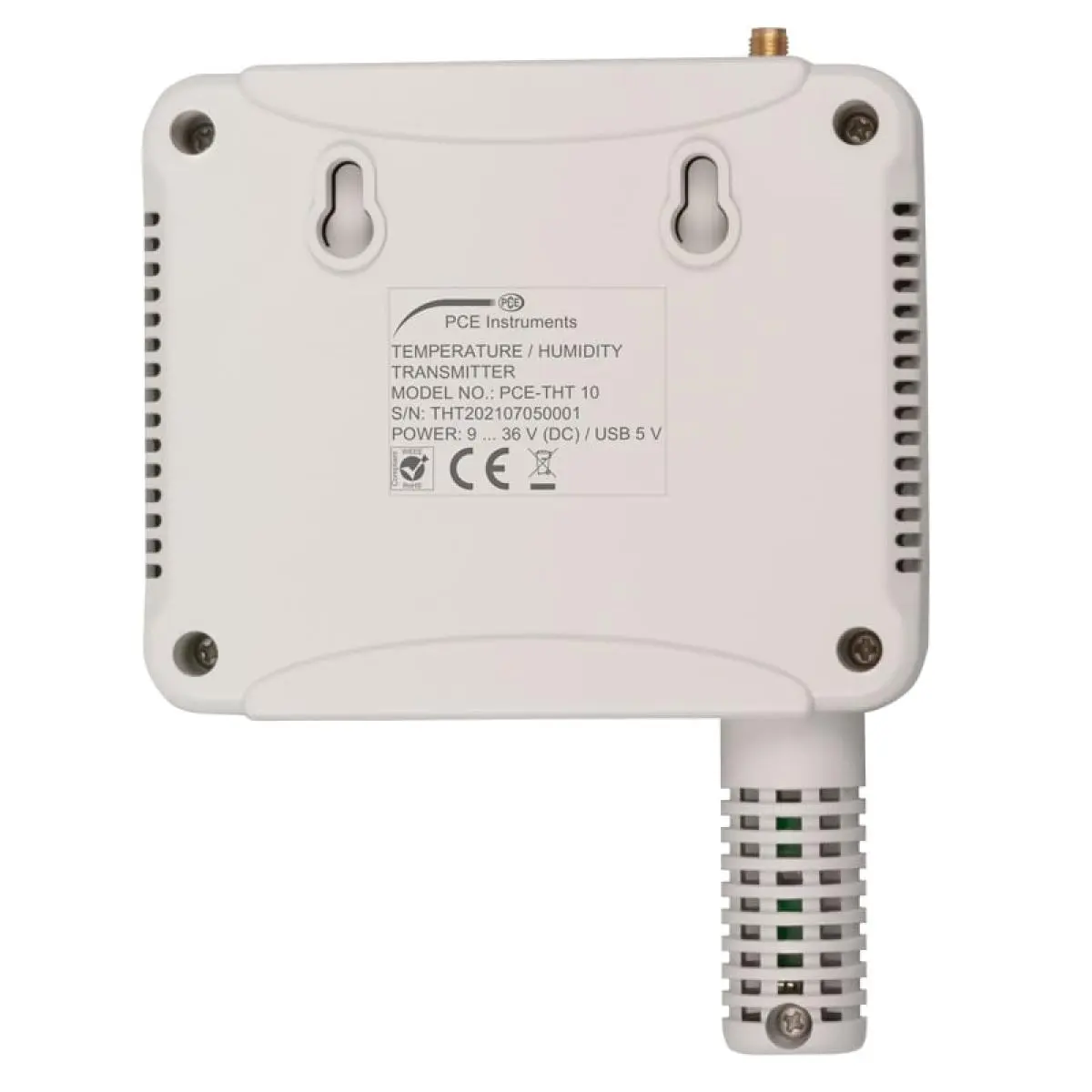

The WiFi data logger is supplied with power via the 12 V DC mains power converter or the micro-USB interface. For wall mounting, there is a hole on the back to hook the thermo-hygrometer to screws. The thermo-hygrometer is equipped with an ISO calibration certificate.

Highlights

- WiFi interface
- Data memory for 12800 measuring points
- 2.3" colour display
- Measuring ranges -20 ... 60 °C / -4 ... 140 °F, 0 ... 99.9 % RH
- For mounting on the wall
- incl. ISO Calibration Certificate

Specification

Temperature measurement
Measuring range -20 ... 60 °C / -4 ... 140 °F
Resolution 0.1 °C
Accuracy ±0.5 °C

Humidity measurement
Measuring range 0 ... 99.9 % RH
Resolution 0.1 % RH
Accuracy ±3 % RH

Further specifications
Memory size 12800 measuring points
Storage rate 2 s
Display 2.3" LC display
Interface WLAN, Micro-USB (only for power supply)
WLAN frequency band 2.4 GHz
Power supply mains adapter   primary: 100 ... 240 V AC, 50/60 Hz
  secondary: 12 V DC, 1 A
Power supply Micro-USB, 5 V DC, 1 A
Ambient conditions 0 ... 50 °C / 32 ... 122 °F, <95 % RH, non-condensing
Dimensions 145 x 110 x 33 mm / 5.7 x 4.3 x 1.3"
Weight 122 g / 4.3 oz

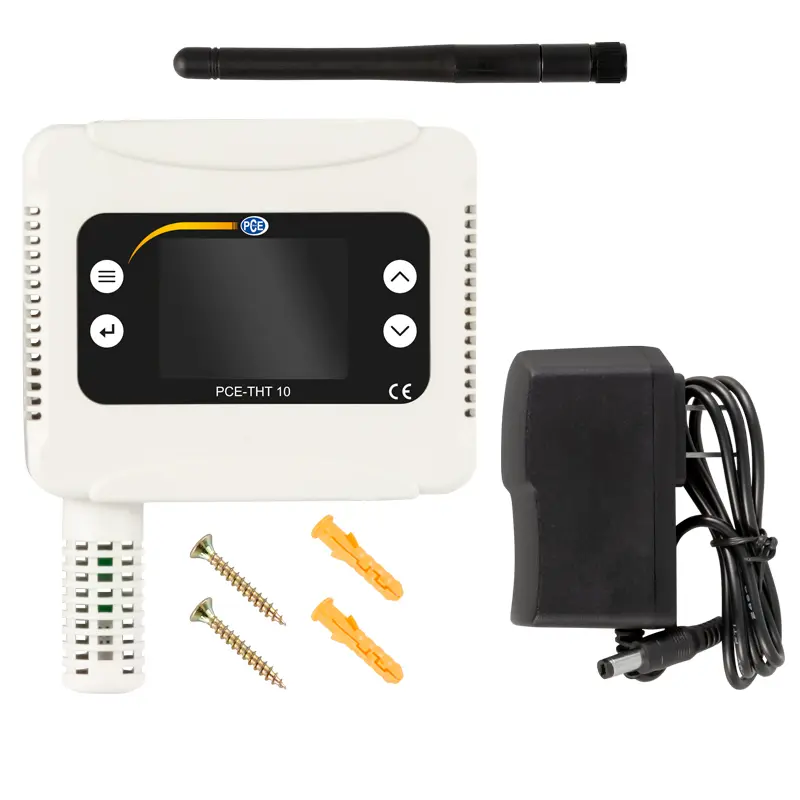

Delivery Scope

1 x WiFi Data Logger PCE-THT 10-ICA
1 x Mains power adapter
2 x Screws
2 x Dowels
1 x Instruction manual
1 x ISO Calibration Certificate

N.B. Calibration certificates are issued specifically for the customer and are excluded from the right of return.
