PCE-VE 380N Drain Camera
Waterproof downhole video inspection camera or industrial endoscope with 30 m / 98 ft long cable on reel

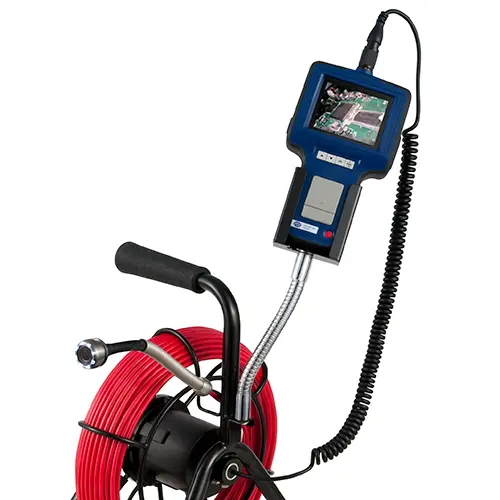

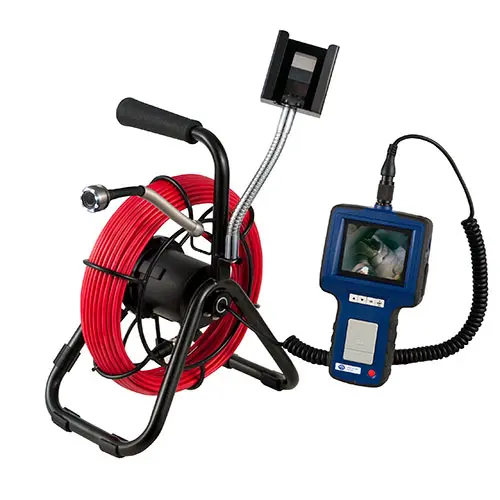

PCE-VE 380N is a drain camera, industrial borescope or inspection camera with a handheld monitor that allows you to gain valuable visual insight into the inner workings of machines and other small spaces such as ventilation ducts, drainpipes and downpipes, sewer pipes, chimneys and more.

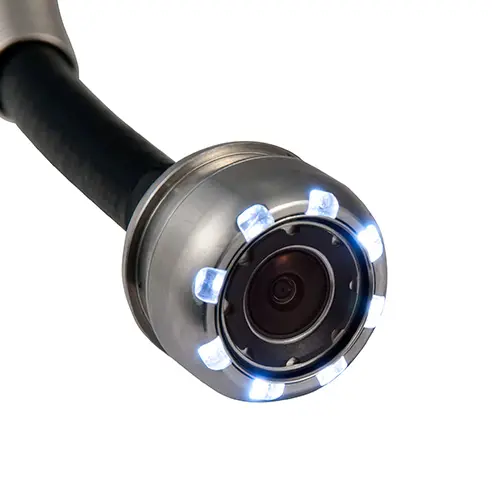

This semi-flexible / semi-rigid waterproof inspection camera is ideal for a variety of industrial and trade applications. With a sleek 28 mm / 1.11 in diameter waterproof camera head, PCE-VE 380N is a user-friendly inspection scope that can handle bends in pipes with diameters of only 90 mm / 3.54 in. Images and video can be stored directly on the device or on the memory card.
Cable diameter |
28 mm / 1.11 in |
Cable length |
30 m / 98 ft |
Depth of field |
10 mm … ∞ / 0.4 in to infinity |
Field of view |
150.8° |
| Bending radius | 90 mm / 3.54 in |
| Illumination | 8 LEDs |
| Image sensor | CMOS / 640 x 480 |
| Picture rate | 30 / sec. |
| Display |
88.9 mm / 3.5 in TFT LCD monitor |
| Interface | Mini USB 1.1 / AV out |
| Storage options | Image or video |
| Storage | 8 GB memory card (can be increased to 32 GB) |
| Compression format | MPEG 4 |
| Picture format | JPEG (640 x 480) |
| Video output format | NTSC / PAL |
| Video format | ASF (320 x 240) |
| Operation and storage temperature | -10 ... 60°C / 14 ... 140°F |
| Voltage supply | Rechargeable 3.7V lithium-ion battery |
| Dimensions, handheld device | 207 x 118 x 37 mm / 8.15 x 4.65 x 1.46 in |
| Weight, incl. carrying case | 9.98 kg / 22 lbs |
| Protection type, camera | IP 68 = No ingress of dust; complete protection against contact (dust tight) and waterproof; meaning it can be underwater for 30 minutes at depths of up to 1.5 m / 4.92 ft |
|
|
|
