- Measures the hardness of metals and alloys with a minimum thickness of 2 mm
- Displays measurements in Rockwell A (HRA), Rockwell B (HRB), Rockwell C (HRC), Brinell (HB), Vickers (HV) and MPa (N/mm²) SI units
- Measuring range: 61 … 85.6 HRA, 41 … 100 HRB, 20.3 … 68 HRC, 85 … 650 HB, 50 … 999 HV, 255 … 2180 MPa (N/mm²)
- Accuracy: ± 1.5 HR, ± 3% HB, ± 3% HV
- Stores up to 2000 measurement groups / 20 calibration sets to memory
- Provides measurements in just 2 seconds

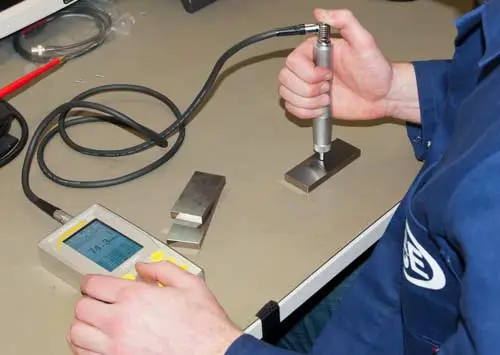

- Probe fits into small spaces and hard-to-reach places

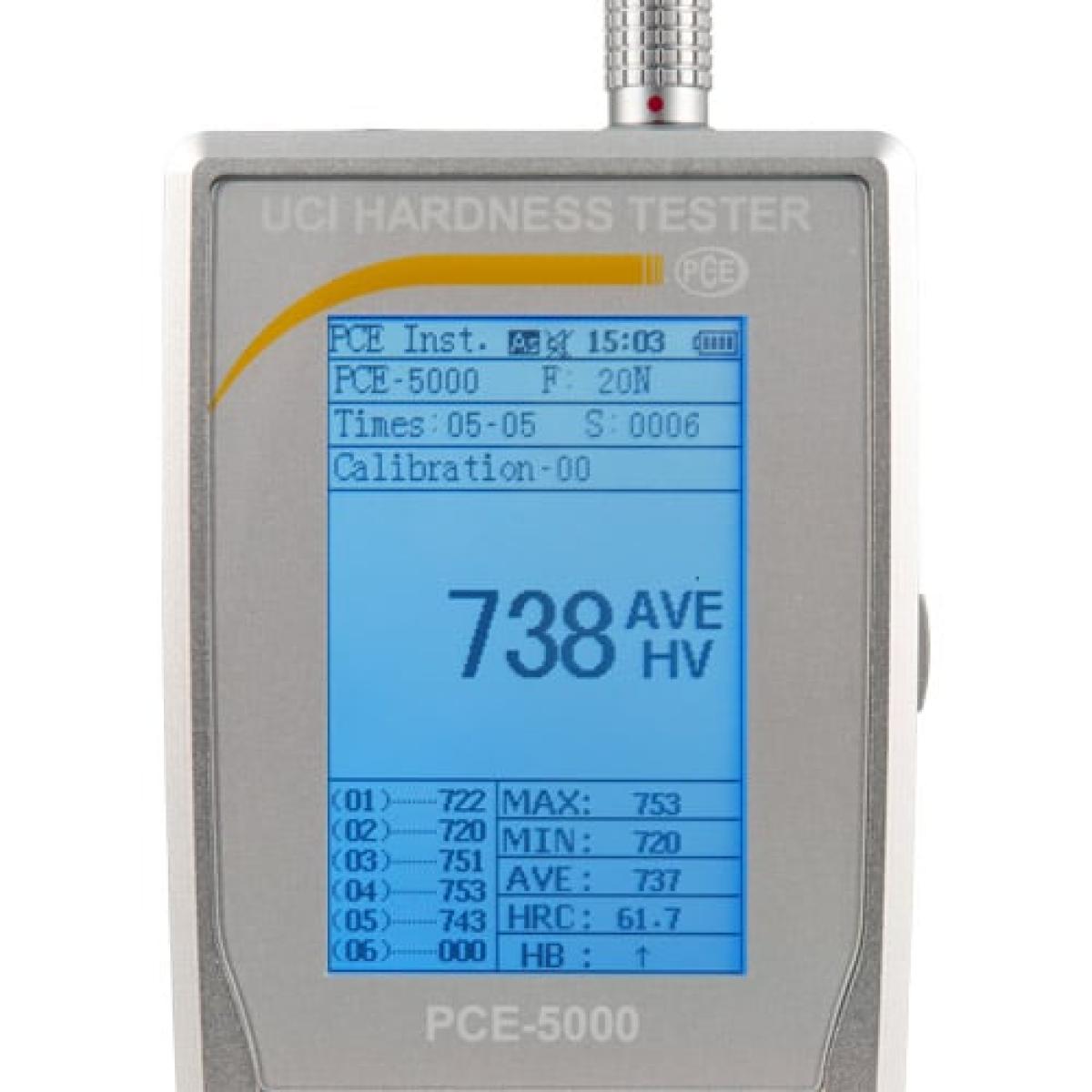

- Features a large and easy-to-read LCD screen, simple calibration and an RS-232 interface

Measuring range
Rockwell A B C	61 … 85.6 HRA, 41 … 100 HRB, 20.3 … 68 HRC
Brinell	85 … 650 HB
Vickers	50 … 999 HV
Tensile strength	255 … 2180 N/mm²
Accuracy
Rockwell	± 1.5 HR
Brinell	± 3% HB
Vickers	± 3% HV
General specifications
Measurement method	Ultrasonic contact impedance (UCI) per ASTM A1038
Direction of measurement	360°
Measurement time	2 seconds
Hardness units	HRA, HRB, HRC, HB, HV, MPa
Display	LCD with backlight
Minimum material thickness	2 mm
Data memory	Up to 2000 measurement groups Up to 20 calibration sets
Measurement probe	20 N (standard)
Probe cable length	1.5 m / .06 in
Functions	Single value, min / max, average value
Power supply	4.2V rechargeable battery, 4800-mAh
Battery life	Approx. 10 hrs of operation at full charge (without backlight)
Dimensions	162 x 81 x 31 mm / 6.38 x 3.19 x 1.22 in
Operating conditions	-10 ... 40°C / 14 ... 104°F, ≤ 85% RH
Storage conditions	-20 ... 60°C / -4 ... 140°F, ≤ 85% RH
Weight	Approx. 755 g / 1.67 lb (including probe)

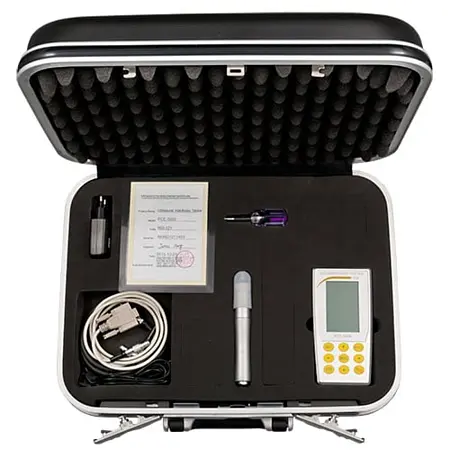

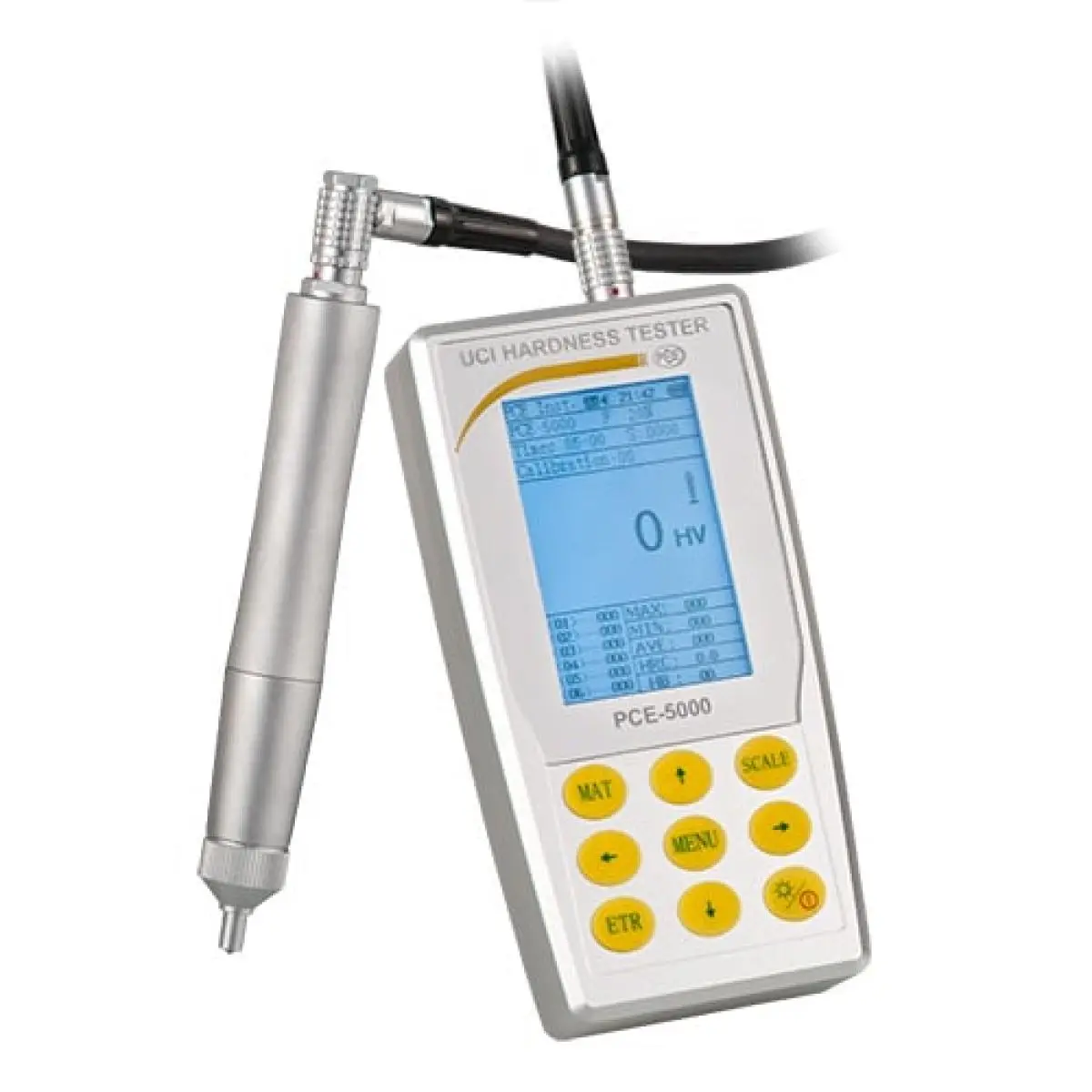

1 x PCE-5000 UCI durometer with 1 x 4.2V battery

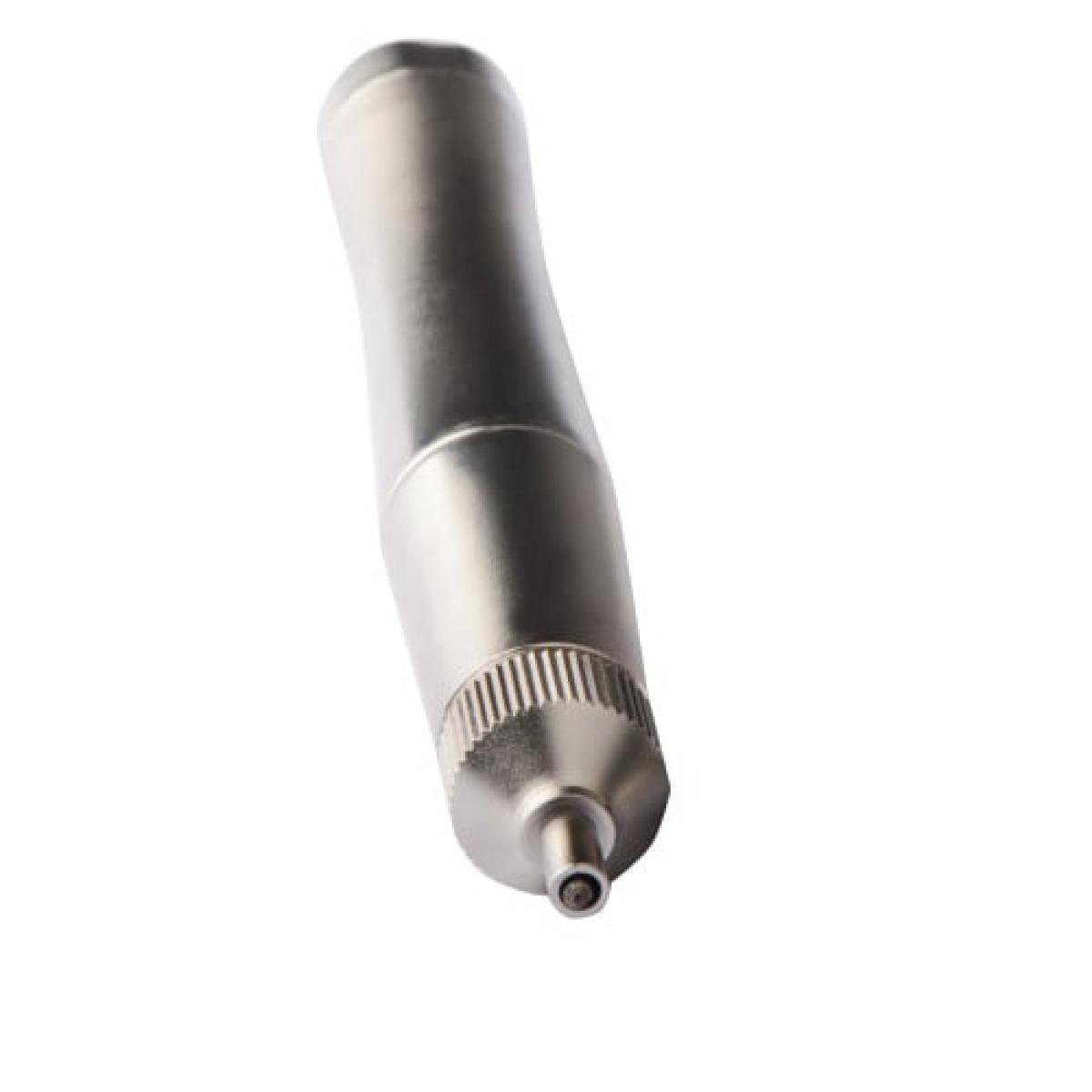

1 x 20 N probe (standard)
1 x Protective cap for probe (silicon)
1 x Probe cable
1 x USB cable
1 x USB charger
1 x RS-232 interface cable
1 x Screwdriver
1 x Vibration-resistant carrying case
1 x User manual
