Electromagnetic Field Meter PCE-MFM 3500

Order no.: PCE-MFM 3500
GTIN (EAN): 4250348720016
£ 450.00
£ 540.00
price ex. (VAT / delivery)
:
4250348720016
PCE-MFM 3500
Delivery time: 1-2 working days

Accessory

ISO Calibration Certificate for Electromagnetic Meter CAL-PCE-MFM
ISO Calibration Certificate for Electromagnetic Meter CAL-PCE-MFM
£ 198.00

Description

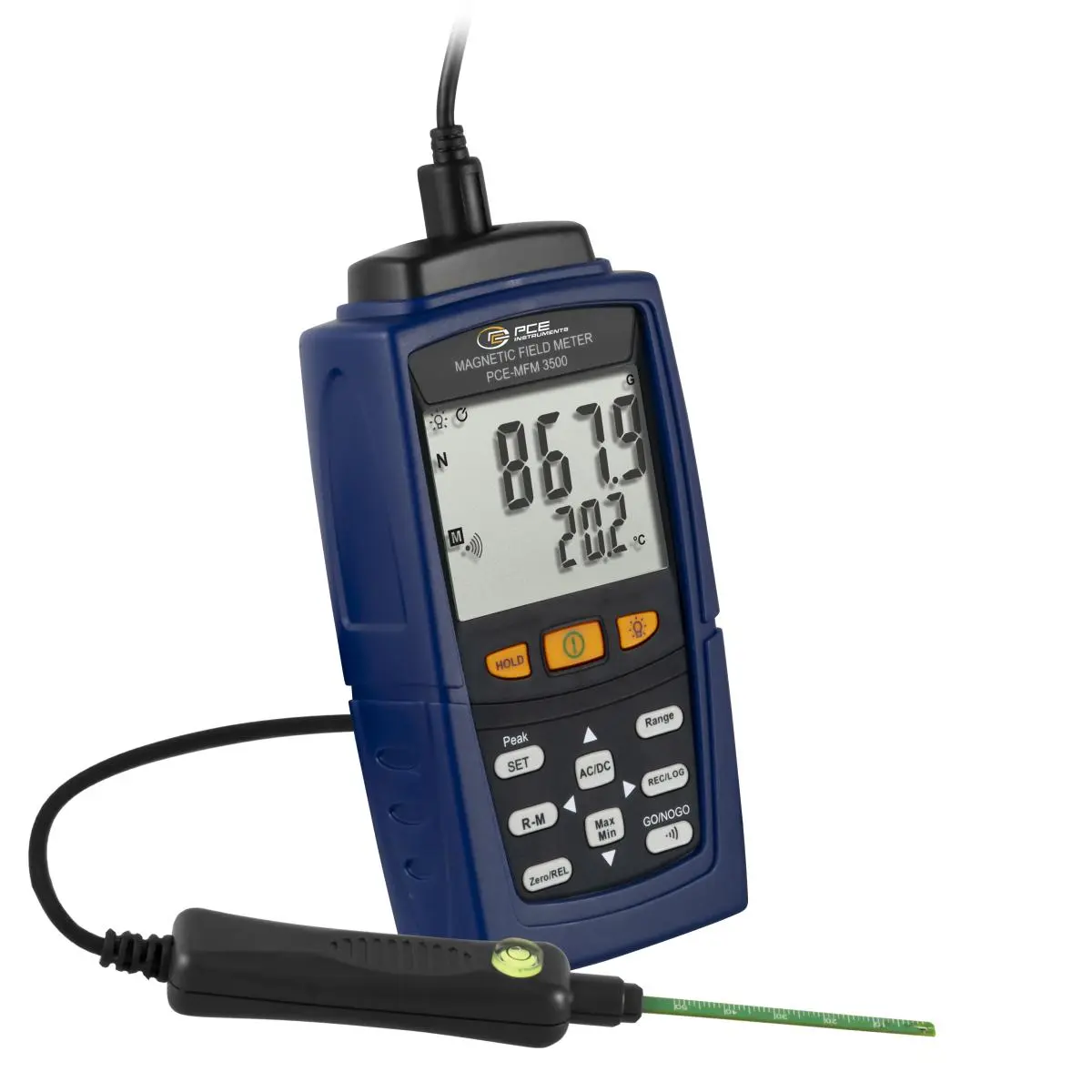

Electromagnetic field meter PCE-MFM 3500
Gauss meter with external sensor / Measuring range up to 30,000 G / Leveling bubble / Built-up memory for up to 7,000 values ​​/ Software for live view and reading /  Battery and also mains operation / Sensor cable approx. 1 m (3.3 ft) / Battery life approx. 100 hours

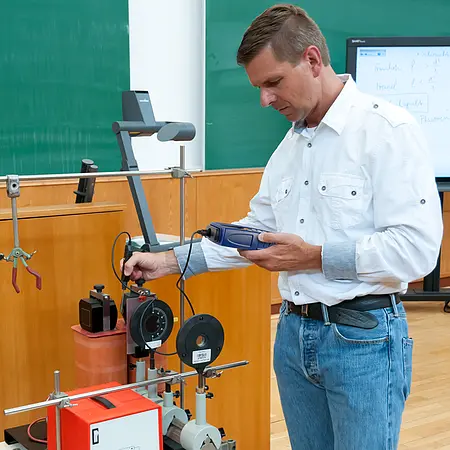

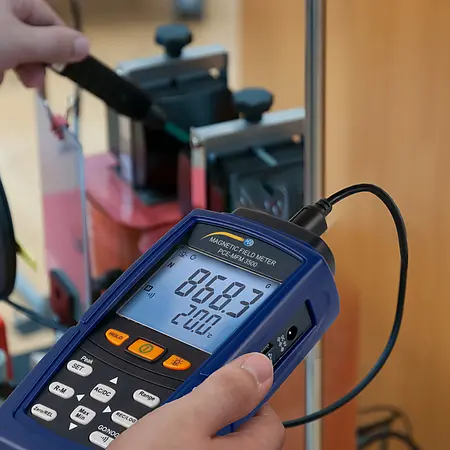

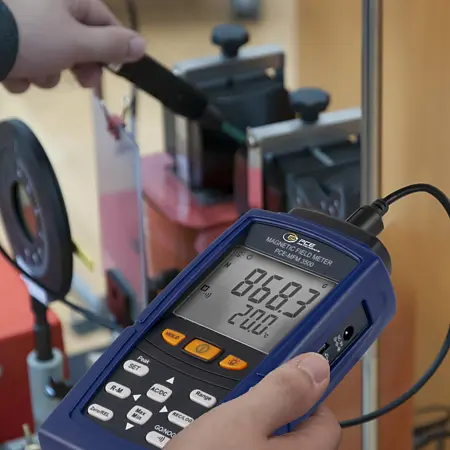

The gauss meter is a reliable measuring device for measuring the existing magnetic field. This gauss meter is suitable for measuring both static (permanent magnet) and alternating magnetic fields. The flat probe of the external probe on the Milli-Gauss meter allows the operator to perform measurements even in very small openings. The measuring range of up to 30,000 G in the gauss meter covers a wide range of measuring tasks. In addition to measuring the magnetic field, the gauss meter also measures the temperature at the same time. The Milli-Gauss Meter also has an adjustable alarm function. This adjustable alarm function in the gauss meter warns the operator immediately as soon as a set measured value is exceeded.

As an additional function, the gauss meter has a memory function. Thanks to the built-in memory, measured values ​​can be stored automatically as well as manually with the gauss meter. To analyze the measured data, the gauss meter can be connected to a PC via the mini-USB interface. With the software, the data stored on the gauss meter can be read out and analyzed. In addition, the software can be used for live viewing and operation of the gauss meter.

Highlights

- Adjustable alarm function
- Data memory with PC connection
- Temperature measurement
- Switchable AC / DC measurement
- Sensor alignment with bubble possible
- Rubber protective cover for the handset

Specification

Measuring function DC Milli Tesla
Measuring range Resolution Accuracy
300.00 mT 0.01 mT ± (4% + 10 Dgt)
2,000.0 mT 0.1 mT ± (4% + 10 Dgt)
2,000.1 ... 3,000.0 mT 0.1 mT N / A

Measuring function DC Gauss
Measuring range Resolution Accuracy
3,000.0 G 0.1 G ± (4% + 10 Dgt)
20,000 G 1 G ± (4% + 10 Dgt)
20.0001 ... 30.000 G 1 G N / A

Measuring function AC milli Tesla
Measuring range Resolution Accuracy
150.00 mT 0.01 mT ± (5% + 20 Dgt)
1,500.0 mT 0.1 mT ± (5% + 20 Dgt)

Measuring function AC Gauss
Measuring range Resolution Accuracy
1,500.0 G 0.1 G ± (5% + 20 Dgt)
15,000 G 1 G ± (5% + 20 Dgt)

The accuracies refer to the following ambient conditions:
23°C / 73.4°F ± 5°C / 41°F, < 80% RH

Measuring function Temperature
Measuring range Resolution Accuracy
-20 ... 50°C ± 0.1°C ± 1.0°C
-4 ... 122°F ± 0.18°F
 ± 1.8°F

AC Frequency 40 ... 500 Hz
Storage Manual: up to 200 values
  Automatic: up to 7,000 values

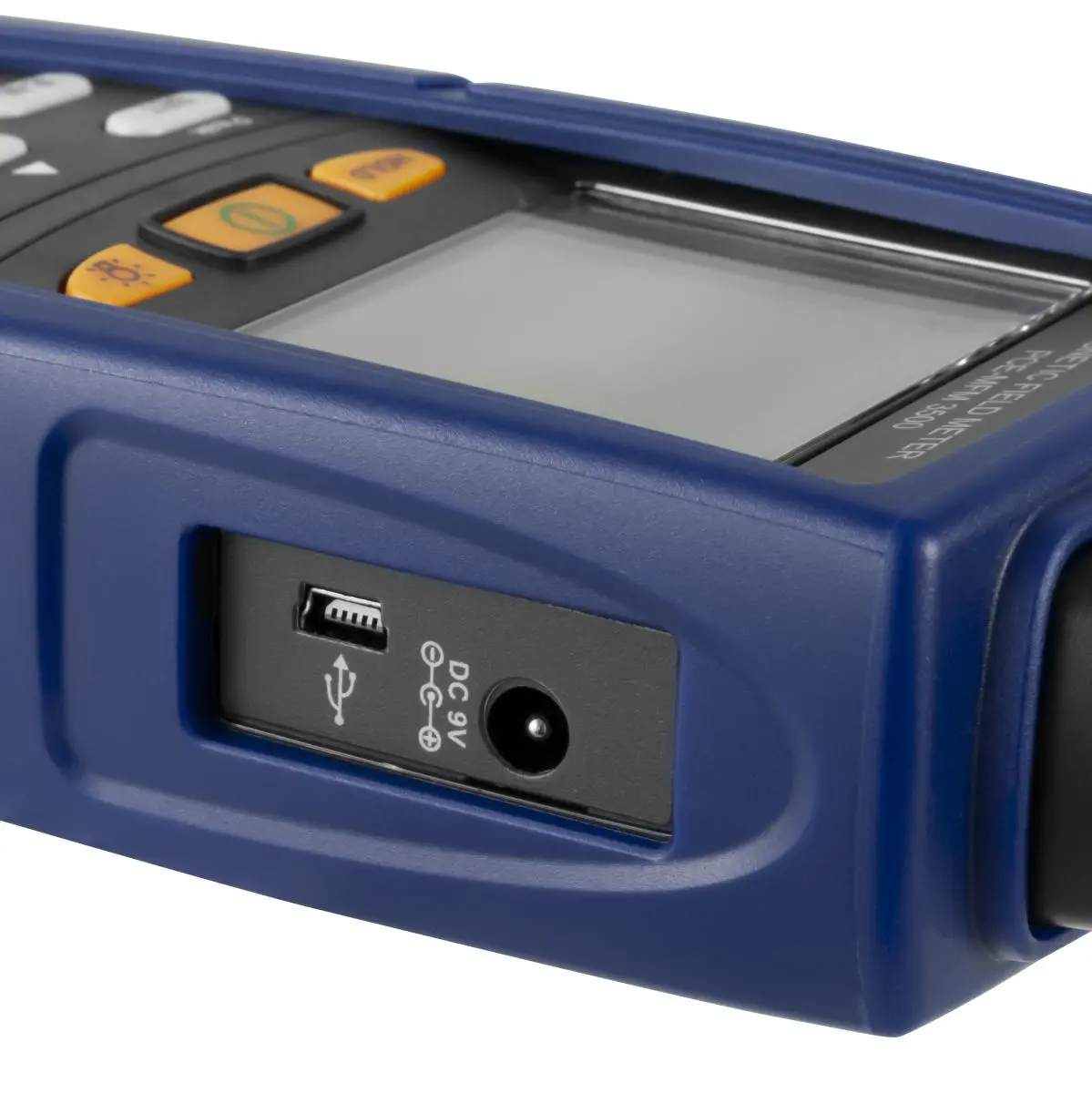

Interface Mini USB

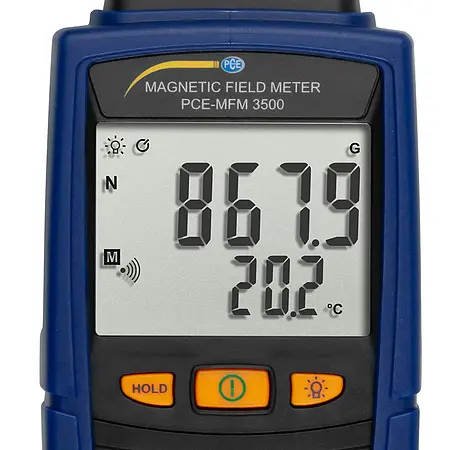

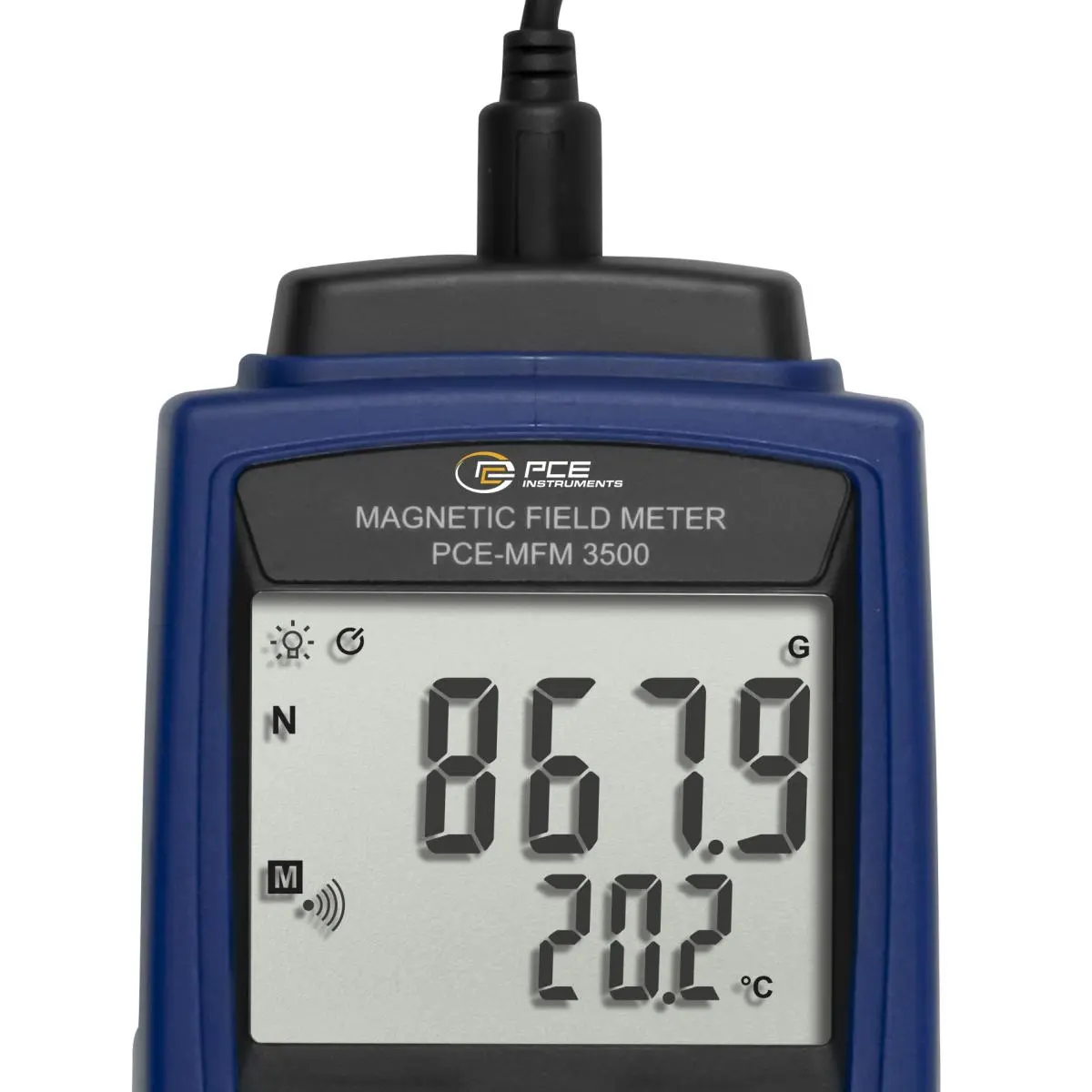

Display LC display, 5 digits, display up to 30,000

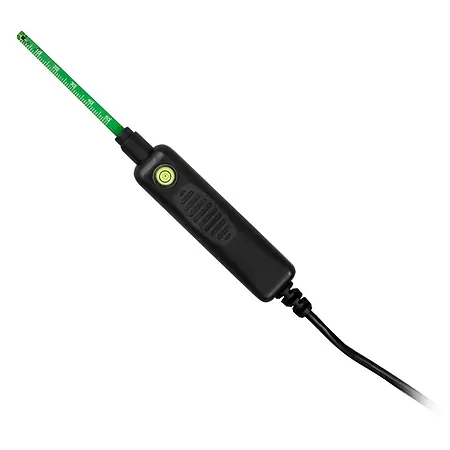

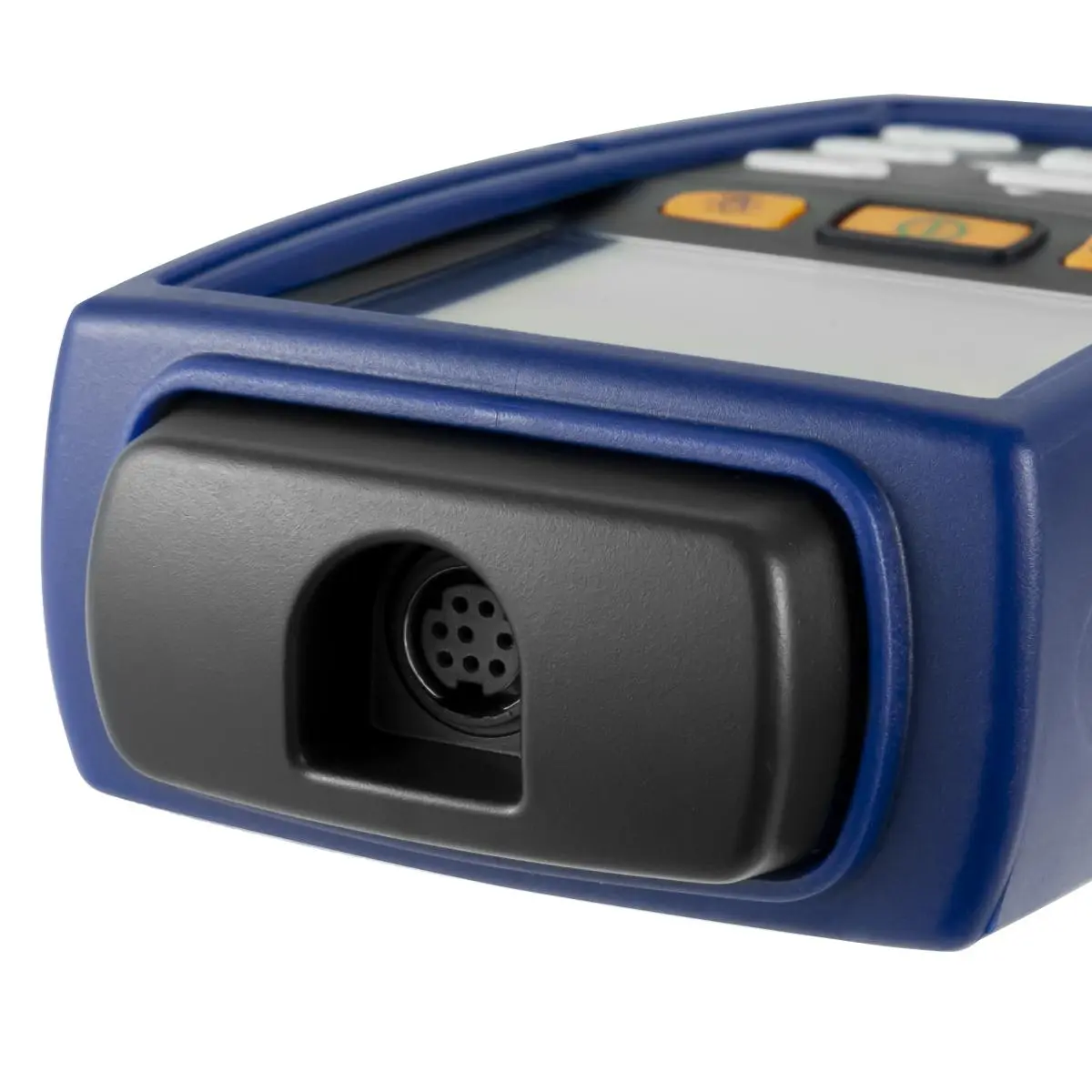

Sensor Removable, cable length approx. 1 m / 3.3 ft
Automatic switch-off function        Off or after 15 minutes
Power supply batteries    6 x 1.5V AAA
Battery Life About 100 hours
Power supply power supply Primary: 100 ... 240V
  Secondary: 9V, 0.5A
Operating conditions 5 ... 40°C / 41 ... 104°F, < 80% rh
Storage conditions 0 ... 50°C / 32 ... 122°F, < 70% rh
Working height 2,000 m /  6,561.7 ft
Pollution degree 2
Dimensions
 156 x 73 x 35 mm / 6.1 x 2.9 x 1.4 in
Weight About 320 g / < 1 lb (with batteries)

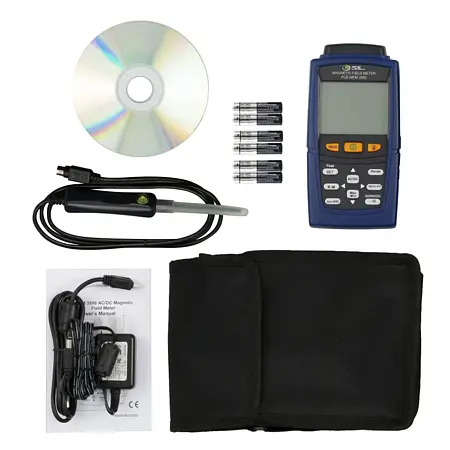

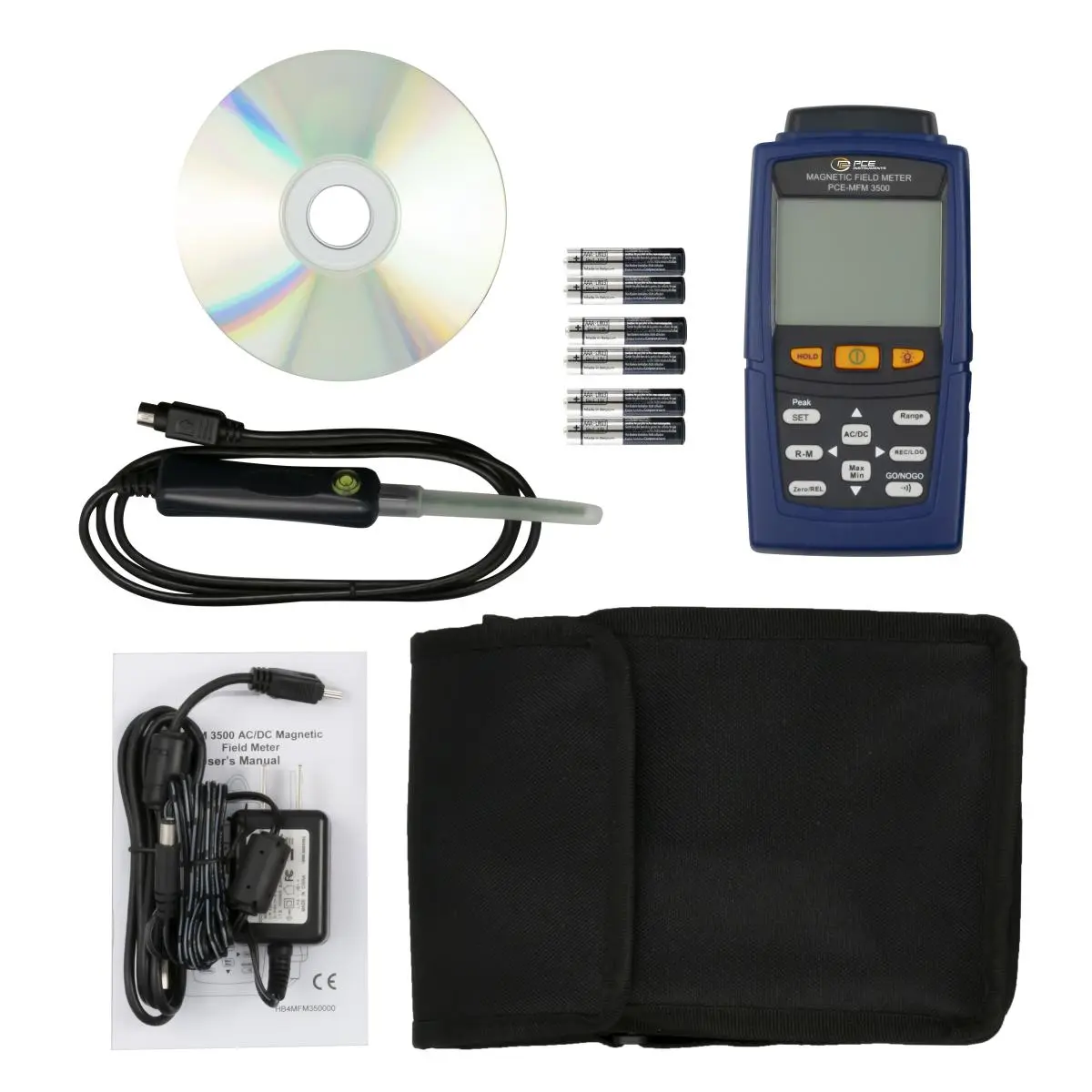

Delivery Scope

1 x Electromagnetic field meter PCE-MFM 3500
1 x Probe
1 x Mini USB cable
1 x Software CD
6 x AAA 1.5V batteries
1 x Power supply
1 x Device bag
1 x User manual
