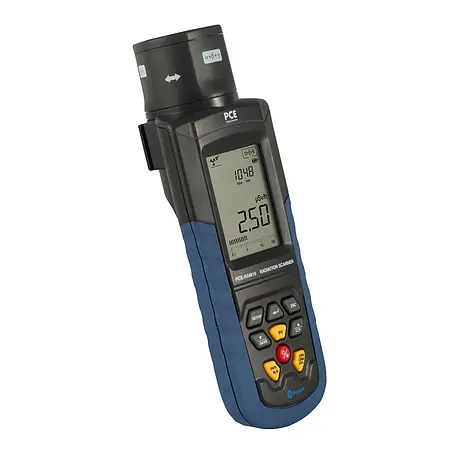

Environmental Tester PCE-RAM 10

Order no.: PCE-RAM 10
GTIN (EAN): 4250348714701
£ 395.00
£ 474.00
Wireless
price ex. (VAT / delivery)
:
4250348714701
PCE-RAM 10
Delivery time: Available soon!
Radiation
<10%
No
Handheld
Internal
No
Yes

Description

Environmental Tester to detect  α-, β-, γ- and x- radiation / High accuracy / Internal data memory /
Large LCD display / Data transfer to computer / Bluetooth interface

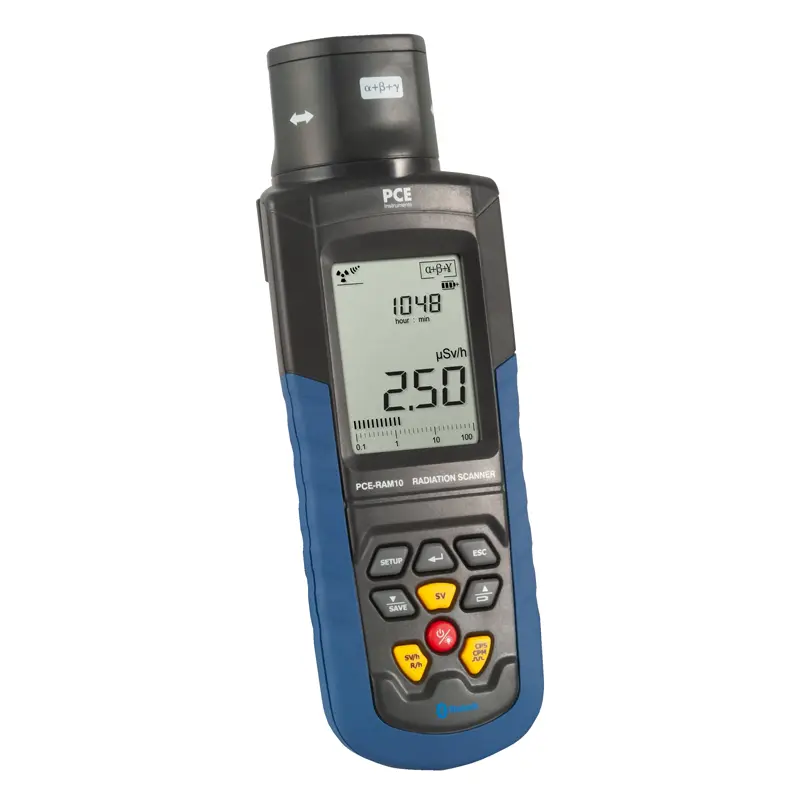

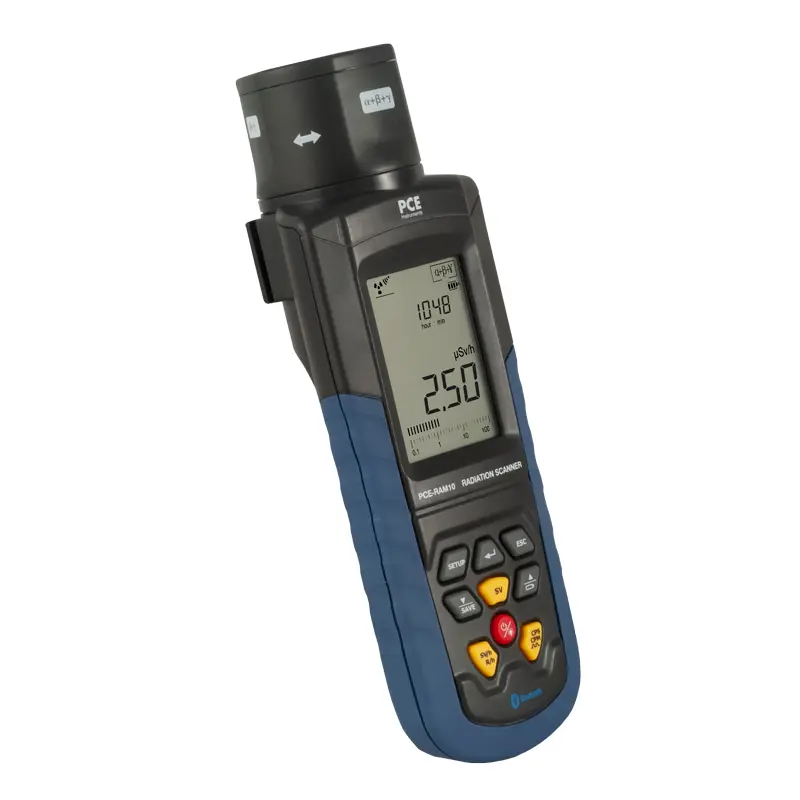

The Environmental Tester was developed to detect α-, β-, γ- and x- radiation. The Environmental Tester  provides many features including a large, high-resolution LCD display with background lights and many indicators. The Environmental Tester has an internal data storage for up to 2000 data sets, which are saved either manually or automatically. Furthermore the Environmental Tester is equipped with a Bluetooth interface to transfer the measured data in real-time to a computer.



With the software that is included in the delivery, the data can then be further processed and reviewed. The Environmental Tester stands out with its high accuracy and practical design. The Environmental Tester can be applied in the pharmaceutical industry, laboratories, power plants, quarries, the emergency services, metal industries, petroleum reservoirs, environmental protection etc.


Highlights

- α-, β-, γ- and x- radiation
- High measuring accuracy
- Internal data storage for 2000 values
- Large LCD display
- Bluetooth interface
- Software for data processing

Specification

Types of radiation α-, β-, γ- and x- radiation
Measurement ranges Radiation dose rate: 0.01 ... 1000 μSv / h
Pulse dose rate: 0 ... 30,000 cpm, 0 ... 5000 cps
Radiation dose accumulation: 0.001 ... μSv ... 9.999 Sv
Pulse dose accumulation: 0 ... 9,999
Sensitivity 108 pulses or 1000 cpm / mR / hr in Cobalt-60 irradiated environment with current of 1 μSv / h
Alpha rays: from 4 MeV
Beta rays: from 0.2 MeV
Gamma rays: from 0.02 MeV
X-rays: from 0.02 MeV
Accuracy

<10% (less than 500 μSv / hr)
<20% (less than 600 μSv / hr)

Radiation selection Combination of α-, β-, γ- and X-rays
Sensor Halogen compensation accumulator
Output port Bluetooth
Average process time Manual or automatic, adjustable between 2 ... 12 seconds

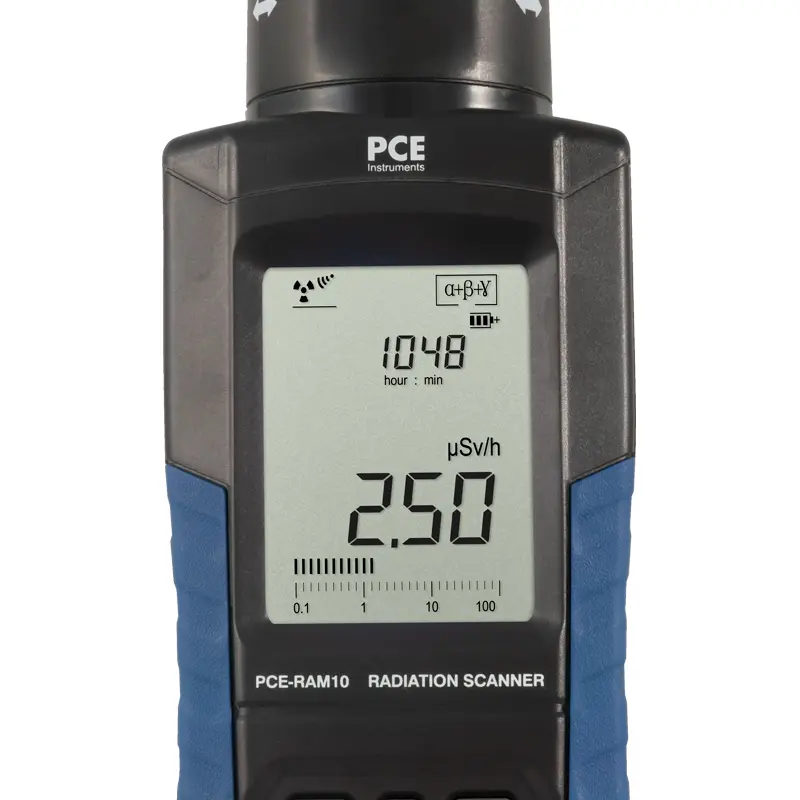

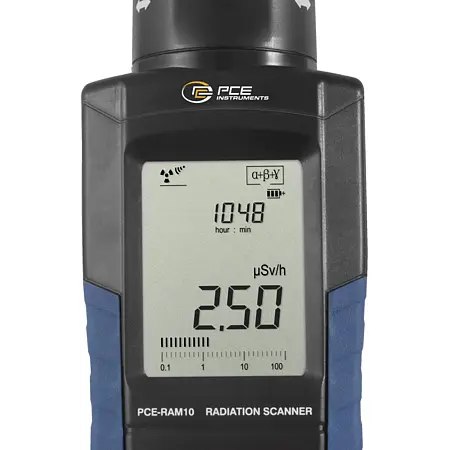

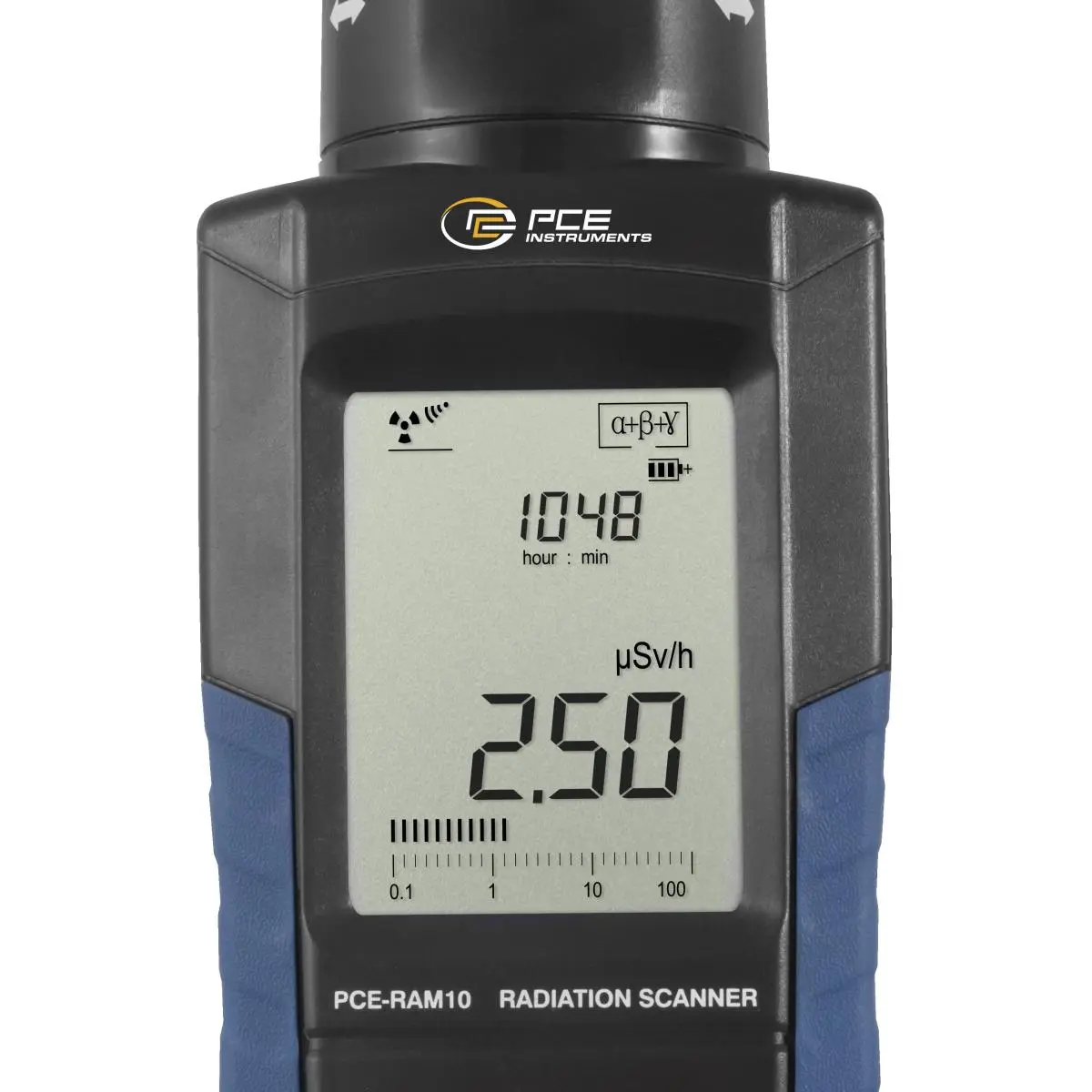

Display Digital LCD display, with bar graph display
Alarm function Acoustic alarm for manually selected value
Normal radiation value of natural environment Less than 0 ... 0.2 μSv / h
Internal data storage Automatic memory for <2000 measured values
Software Data transmission in real-time, analysis and recording
Operation temperature 0 ... +50°C / 0 ... 122°F
Power supply 4 x 1.5V AA Batteries
Dimensions 200 x 70 x 45 mm / 7.9 x 2.8 x 1.8 in
Weight 206 g / < 1 lb

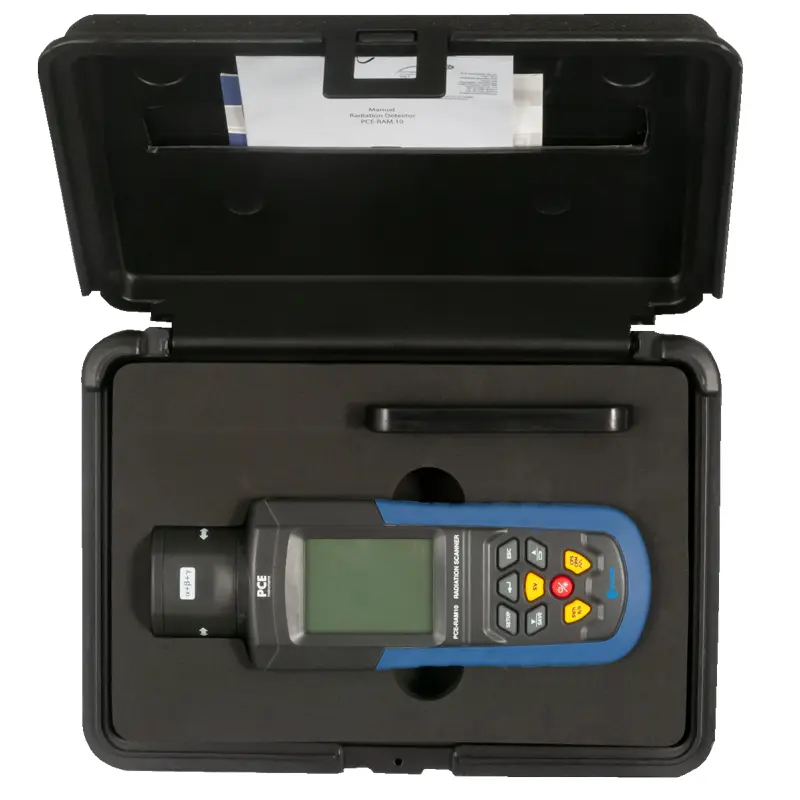

Delivery Scope

1 x Environmental Tester PCE-RAM 10
1 x Software
4 x 1.5 V AA Batteries

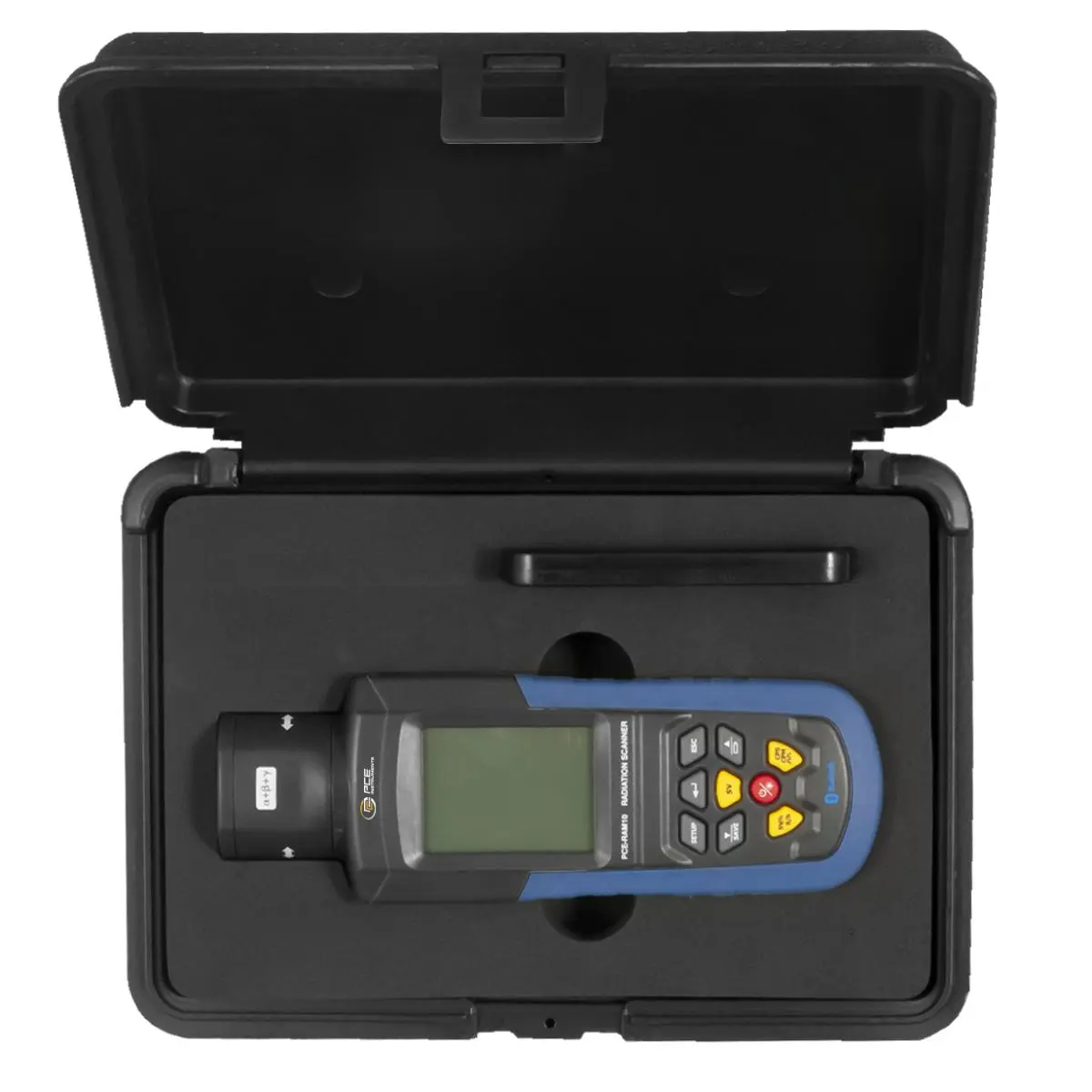

1 x Carrying case
1 x User manual
