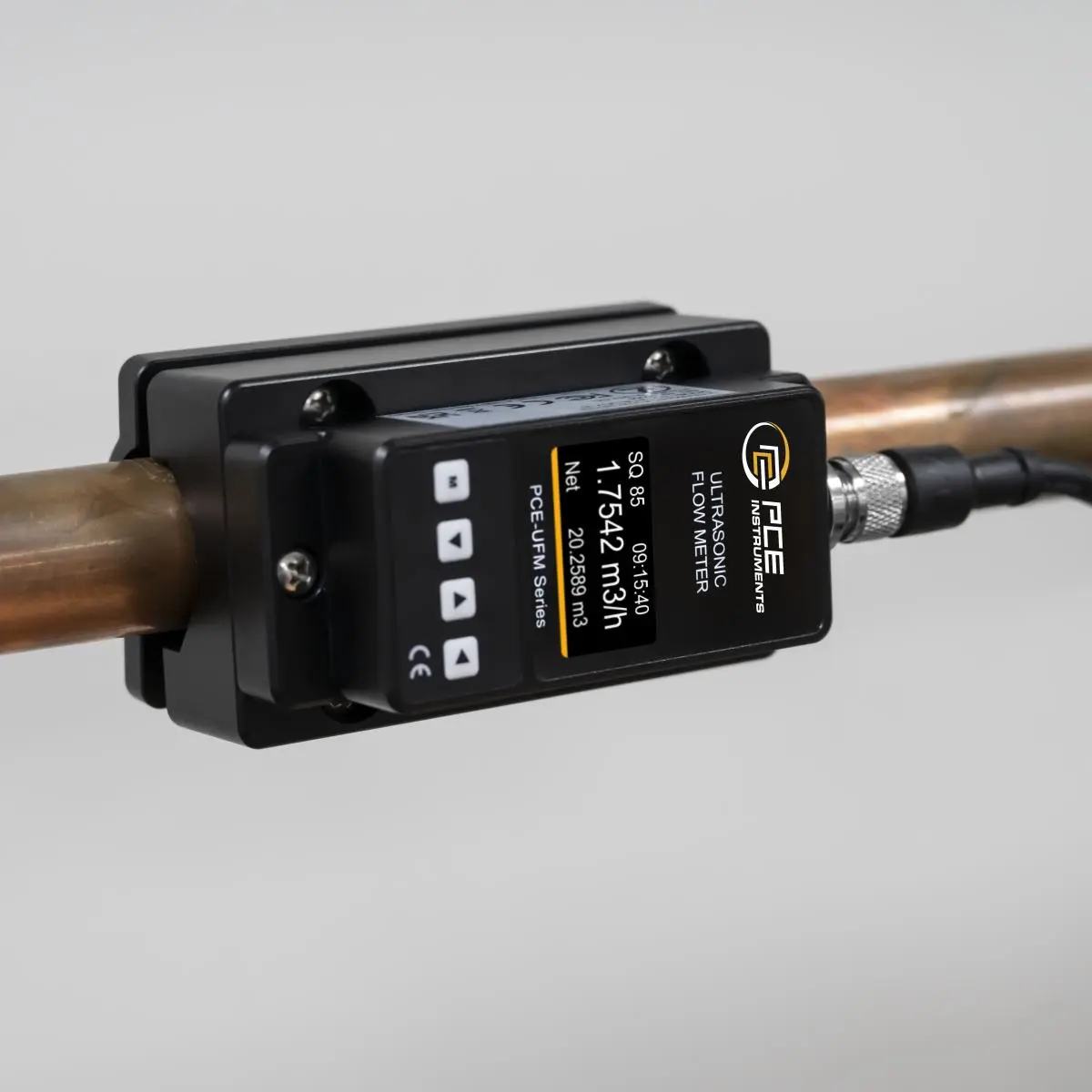

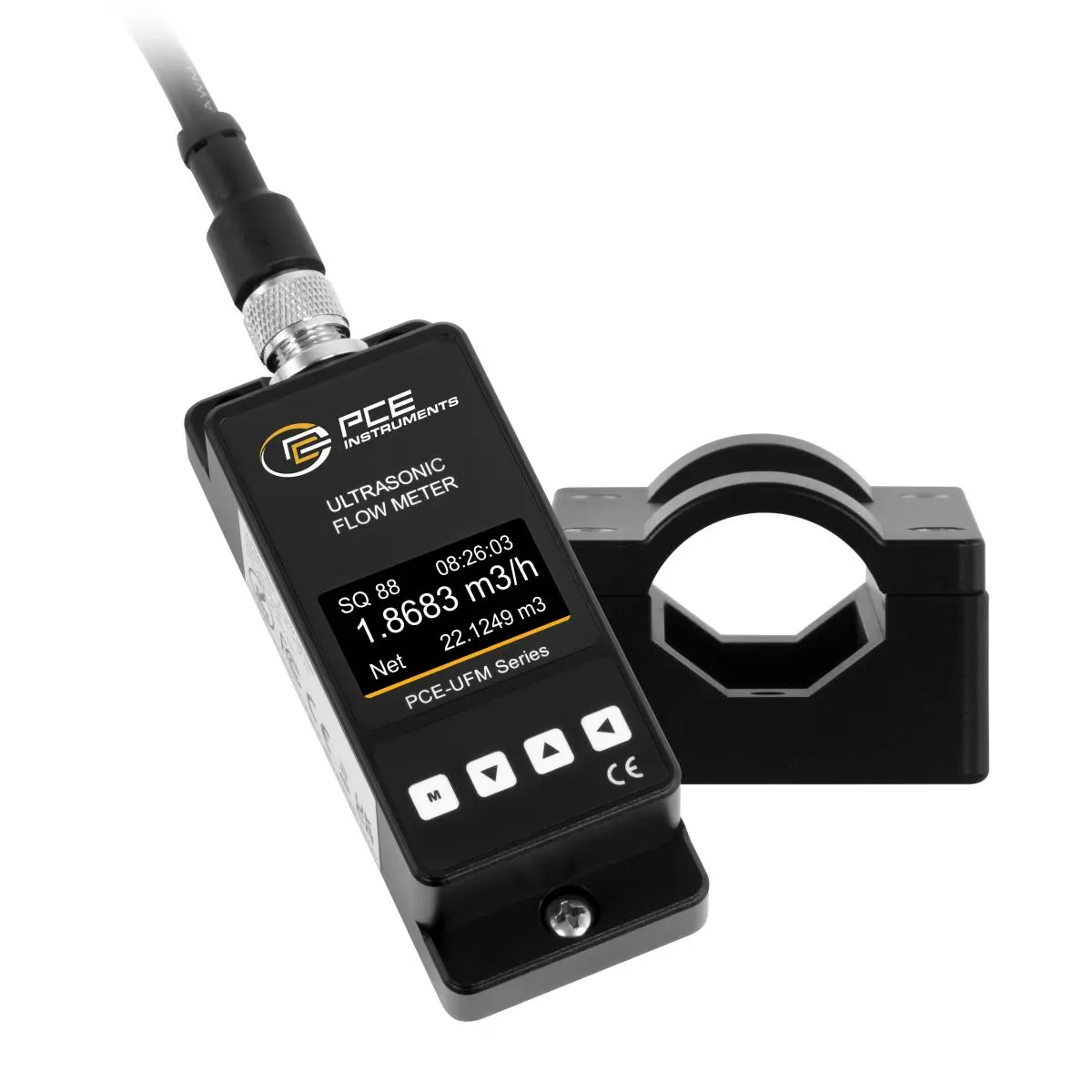

Ultrasonic Flow Meter PCE-UFM 20

Order no.: PCE-UFM 20

GTIN (EAN): 4250348732637

Description

Ultrasonic Flow Meter / Measurement of Flow and Volume Flow via Ultrasonic / Compatible with Various Pipe Materials and Fluids / Analog Output 4 ... 20mA / RS485 Interface

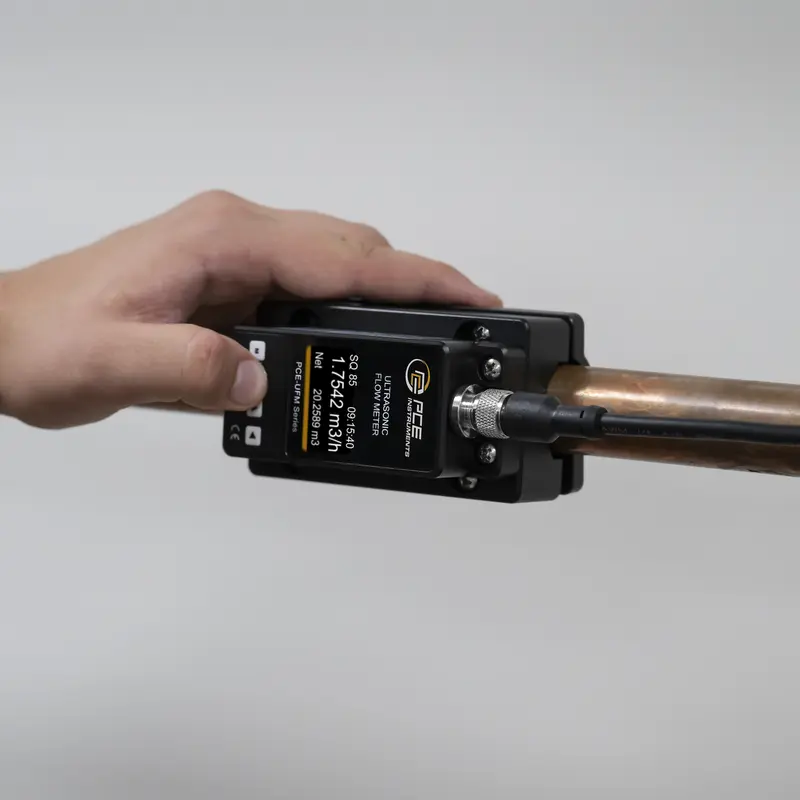

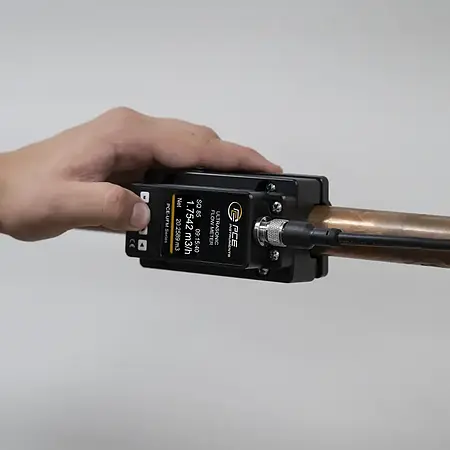

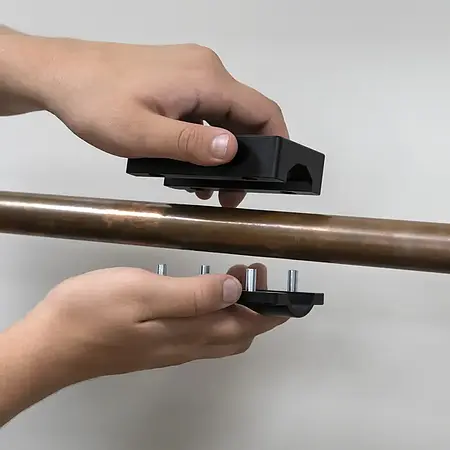

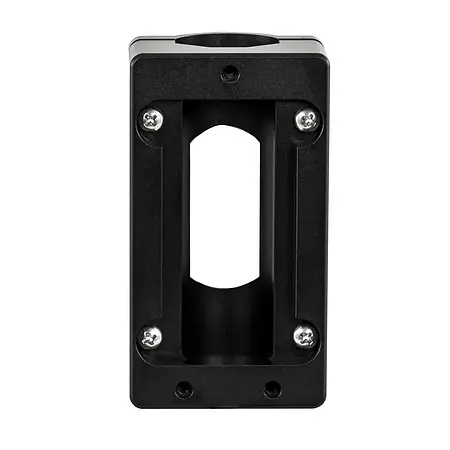

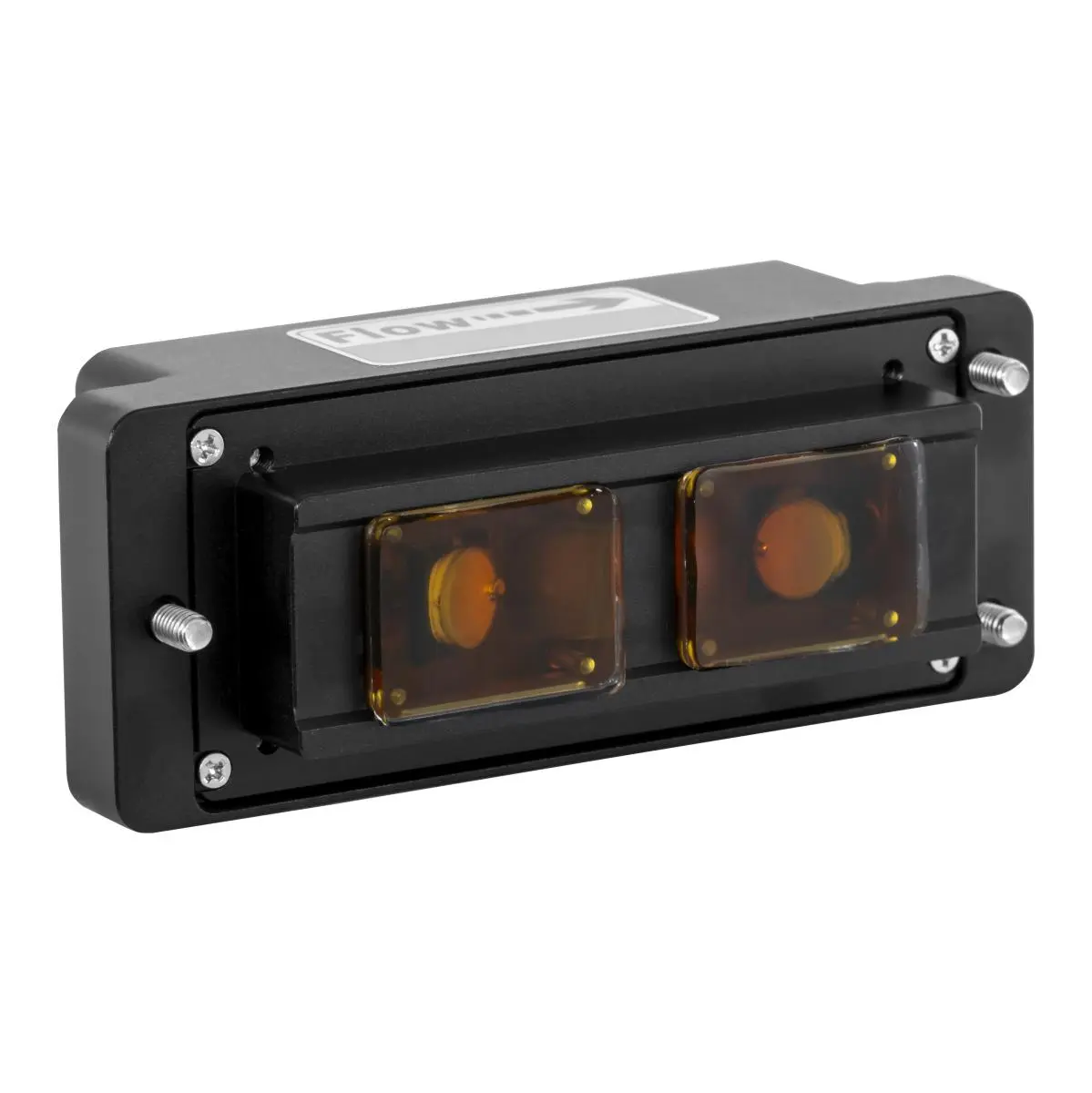

Our ultrasonic flow meter offers the capability to measure flow rates from ±0.1 m/s to ±5 m/s using ultrasonic technology. This flow meter is suitable for small pipes with a diameter of DN20 / 3/4" and is compatible with various pipe materials such as steel, copper, aluminum, and plastics. Due to its compact design, it can be quickly and easily mounted on the pipe.

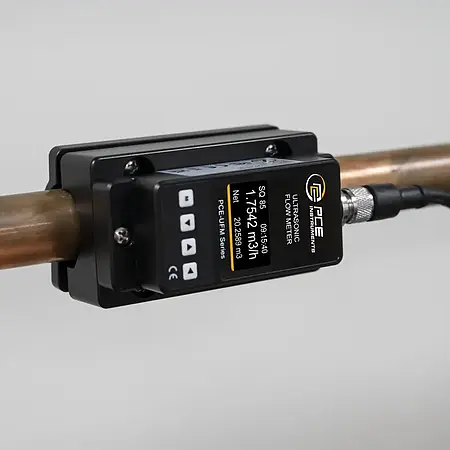

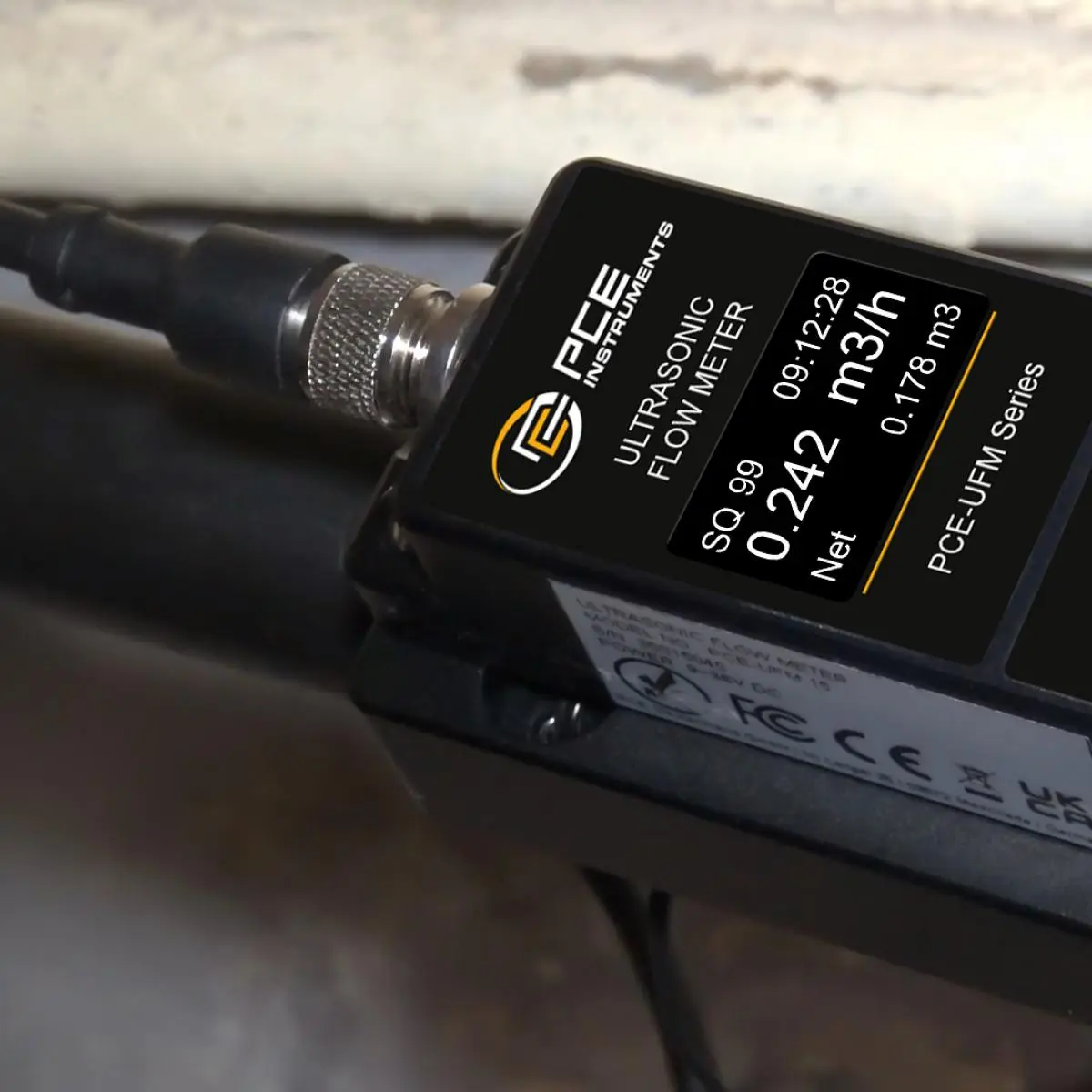

The flow meter's display provides information on flow velocity, date, and time. In another view, it also displays the volume flow rate for the day, month, and year. Additionally, the flow meter can output the measurement value as an analog signal (4 ... 20mA) and digitally via an RS485 interface.

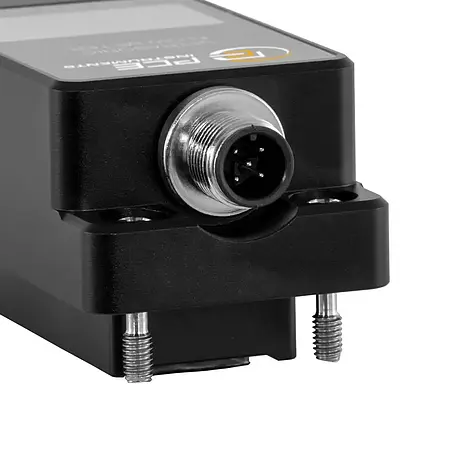

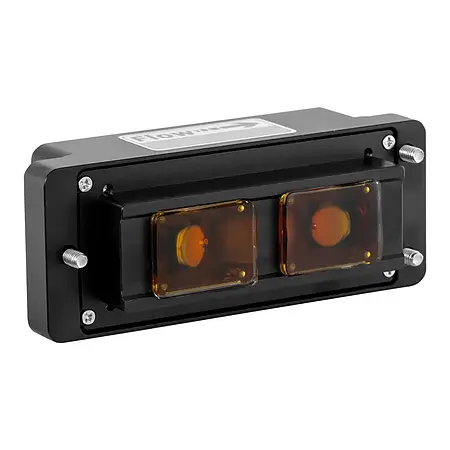

With a power supply range of 9 ... 36 V DC, the ultrasonic flow meter is highly versatile and can be used in a wide range of applications. It comes with a 2m connection cable and coupling pads for improved signal transmission.

This flow meter can be used in various applications, including heating systems, cooling water systems, and industrial processes where flow monitoring and control are necessary.

Highlights

- Measurement Range ±0.1 m/s ... ±5 m/s

- Display of Flow, Volume Flow

- Pipe Size: DN20

- Suitable for Various Pipe Materials and Media

- Analog Output: 4 ... 20mA

- Interface: RS485

Specification

Velocity m/s
Measurement Range	0.1 ... 5 m/s
Resolution	0.001 m/s
Accuracy	2%
Pipe Size	DN20

General Technical Data
Display Type	OLED
Analog Output	4 ... 20mA
Data Interface	RS485
Voltage Supply	9 ... 36 V DC
Materials	PVC, Steel, Stainless Steel, Copper, PVDF (Polyvinylidenfluorid), PFA (Perfluoralkoxy-Polymere), PTFE (Polytetrafluorethylen), PU (Polyurethane), Aluminum
Measuring Medium	Water, Seawater, Oil, User-defined (manual input of sound velocity for the medium)
Menu Language	English
Protection Class	IP54
Weight	515 g
Device Weight with Accessories	652 g
Device Weight with Accessories and Packaging	892 g
Dimensions (L x W x H)	110 x 58 x 67 mm
Dimensions including Packaging (L x W x H)	210 x 153 x 104 mm
Operating Conditions	0 ... 50 °C
Operating Condition r.H.	< 95%
Storage Conditions	0 ... 50 °C
Storage Conditions r.H.	< 95%

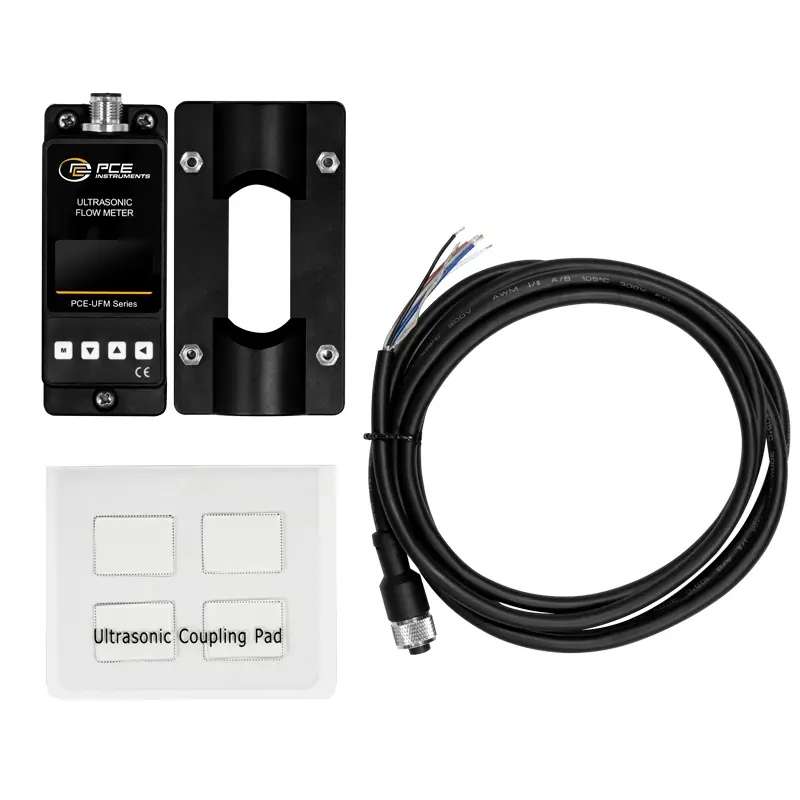

Delivery Scope

1 x Ultrasonic Flow Meter PCE-UFM 20

1 x 2m Connection Cable

4 x Coupling Pads

1 x User Manual
