Airborne Particle-Counting Hygiene Meter PCE-PCO 1

Order no.: PCE-PCO 1
GTIN (EAN): 4250348714817
£ 843.00
£ 1,011.60
Topseller
price ex. (VAT / delivery)
:
4250348714817
PCE-PCO 1
Delivery time: 1-2 working days

Description

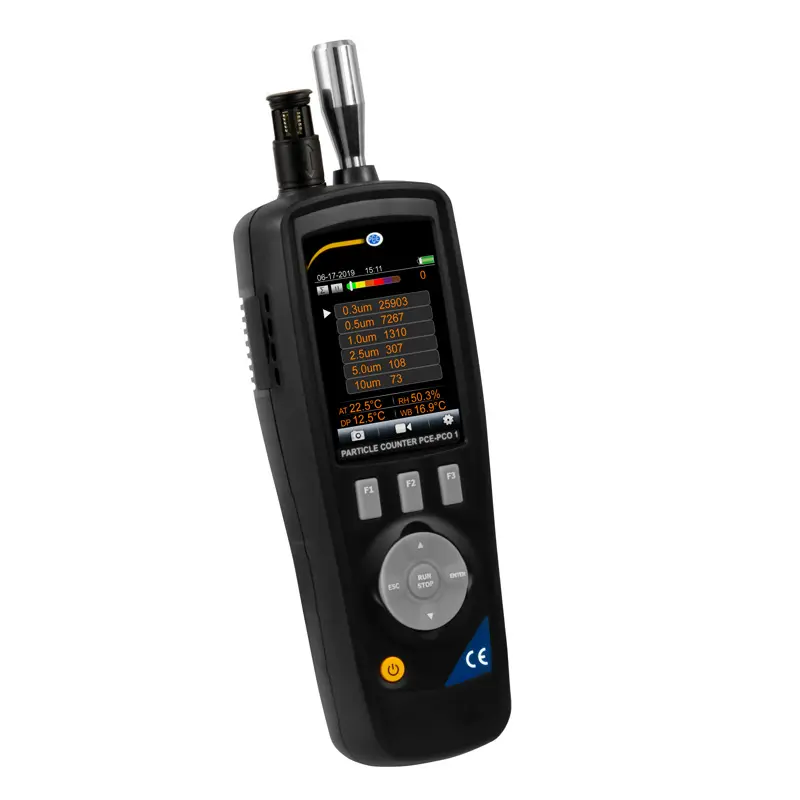

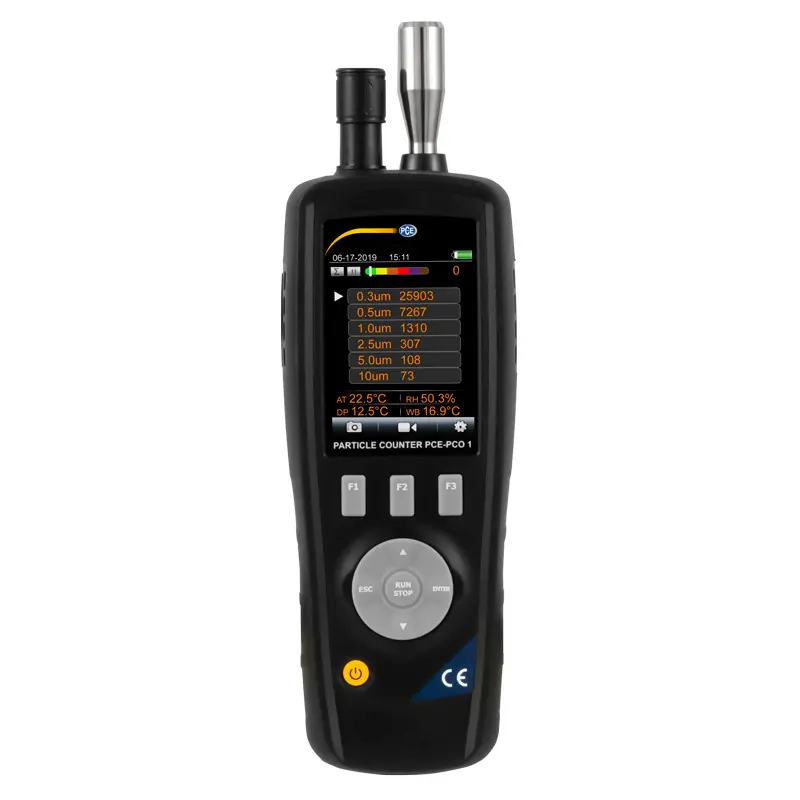

PCE-PCO 1 Airborne Particle-Counting Hygiene Meter
Handheld laser particle counter for monitoring clean room particulate concentrations, indoor air quality and exposure to dust

This is an airborne particle-counting hygiene meter or dust measuring device for measuring the concentration of particles in the air. The handheld particle counter is ideal for monitoring clean rooms, indoor air quality, exposure to exhaust, tobacco or cigarette smoke and other harmful air pollutants, and levels of airborne dust. Cigarette smoke particles mainly are distributed in the size range from 0.1 to 1.0 micron.

A variety of materials are explosible in dust form. Some examples include: food (e.g., candy, sugar, spice, starch, flour and feed), grain, tobacco, plastics, wood, paper, pulp, rubber, pesticides, pharmaceuticals, dyes, coal and metals (e.g., aluminum, chromium, iron, magnesium and zinc). These materials are used in agriculture, chemical manufacturing, pharmaceutical production, furniture, textiles, fossil fuel power generation, recycling operations, metal working and processing (including additive manufacturing and 3D printing) and many other industries and processes.

In addition to being a combustion hazard, certain kinds of dust can be a health hazard. Exposure (such as skin contact, eye contact and inhalation) can be linked to sneezing, a stuffy or runny nose, itchy or red eyes, headaches, fatigue, fever, cough, shortness of breath, dermatitis, asthma, bronchitis, pneumonia (e.g., Legionnaires’ disease and hypersensitivity pneumonitis) and cancer.


Highlights

- Measures 6 sizes of particles: 0.3 µm, 0.5 µm, 1.0 µm, 2.5 µm, 5.0 µm, 10 µm
- Offers a robust, 80 MB internal memory
- Features a large, full-color LCD display with backlight
- Includes a built-in camera for image and video recording
- Contains sensors for measuring air temperature, dew point and relative humidity
- Displays temperature measurements in degrees Celsius (°C) or degrees Fahrenheit (°F)

Specification

General specifications
Environmental conditions 0 ... +50 °C / +32 ... +122 °F, 10 ... 90 % RH (non-condensing)
LCD display2.8 " / 320 x 240 pixels, back-lit, color
Rechargeable battery7.4 V, 1200 mAh (Li-Polymer), operating time appr. 4 hours
Dimensions240 x 75 x 55 mm / 9.45 x 2.95 x 2.17"
Weight420 g / 0.93 lb
MemoryInternal: 80 MB
External: Micro SD card up to 8 GB (optional)
Particle counting specifications
Measurable particle sizes (channels)0.3 µm / 0.5 µm / 1.0 µm / 2.5 µm / 5.0 µm / 10 µm
Flow rate 0.1 cfm (2.83 L/min)
Coincidence error<5% at 2,000,000 particles per cubic foot
Counting efficiency 50 % at particle size 0.3 µm
100 % at particle size> 0.45 µm (per ISO 21501)
Data storage5000 records
Counting modesCumulative, differential, concentration
Air temperature, dew point and relative humidity measuring specifications
Air temperature measuring range0 ... +50 °C / +32 ... +122 °F
Air temperature accuracy±0.5 °C with +10 ... +40 °C / +50 ... +104 °F
Otherwise ± 1 °C
Dew point measuring range0 ... +50 °C / +32 ... +122 °F
Dew point accuracy±0.5 °C with +10 ... +40 °C / +50 ... +104 °F
Otherwise ± 1 °C
Relative humidity measuring range0 ... 100 % RH
Relative humidity accuracy±3 % RH with 40 ... 60 % RH
±3.5 % RH with 20 ... 40 % and 60 ... 80 % RH
±5 % RH with 0 ... 20 % and 80 ... 100 % RH

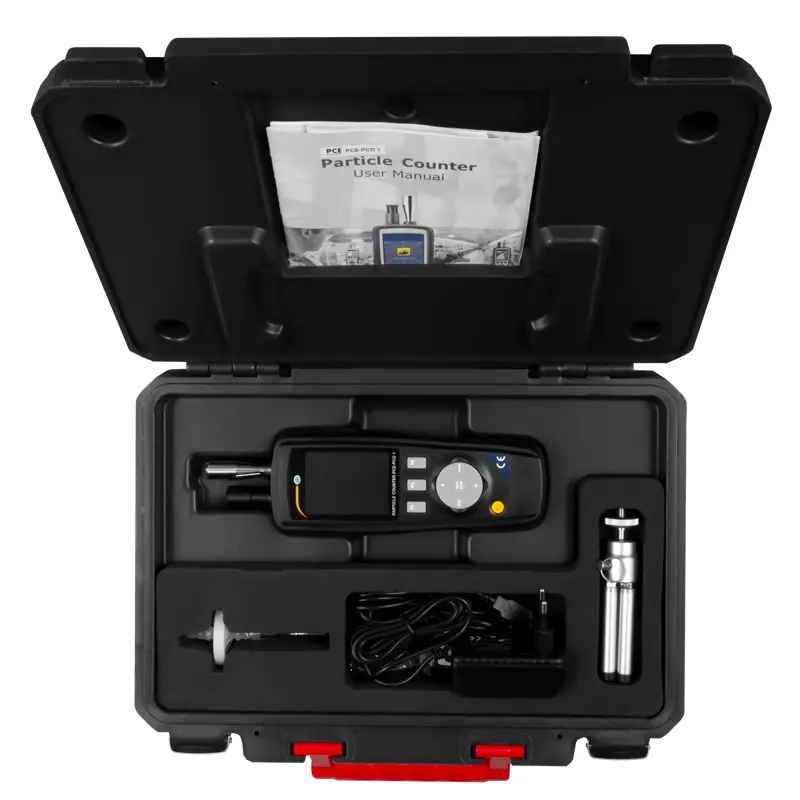

Delivery Scope

1 x PCE-PCO 1 airborne particle-counting hygiene meter
1 x zero filter
1 x rechargeable battery
1 x charger
1 x USB cable
1 x user manual
1 x CD-ROM (software)
1 x mini tripod
1 x hard case
