Force Gauge PCE-DDM 5

Order no.: PCE-DDM 5

GTIN (EAN): 4250348712981

Accessory

ISO Calibration Certificate CAL-P-5T

£ 224.00

DAkkS calibration certificate for tensile/compressive force DIN ISO 376

£ 1,268.00

DAkkS calibration certificate for tensile/compressive force DAkkS-DKD-R 3-3 Process A

DAkkS calibration cert. for tensile/compressive force DAkkS-DKD-R 3-3 Process A

£ 1,212.00

Description

PCE-DDM 5 Force Gauge

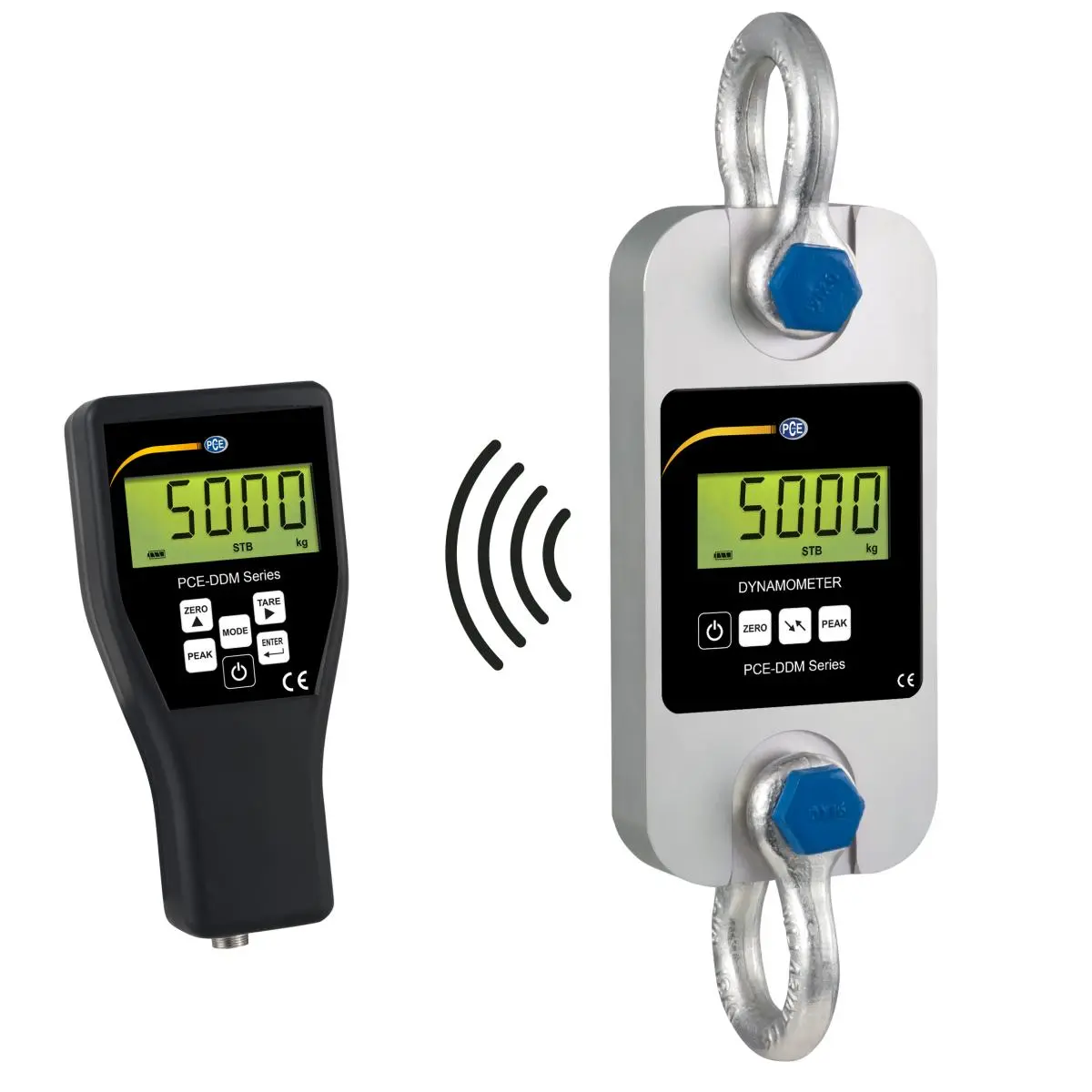

Measurement range up to 5 t / Peak hold function / Includes remote control indicator, shackles and protective carrying case

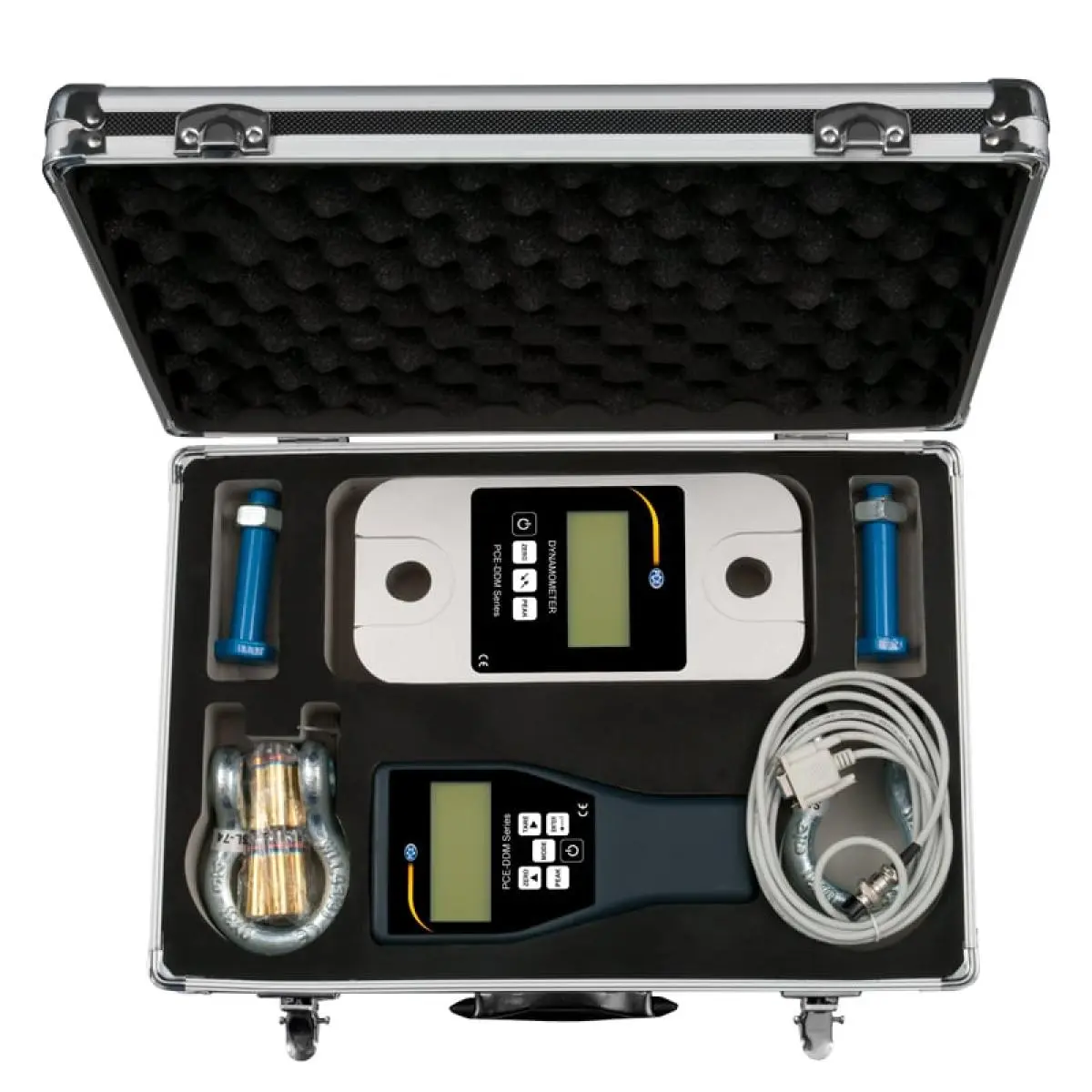

The PCE-DDM 5 Force Gauge is the ideal tool for measuring strong tensile forces. The PCE-DDM 5 Force Gauge is delivered in a protective carrying case and includes two shackles made of heavy-duty aluminum. The instrument is manufacturer calibrated, but can be certified to ISO standards for an additional fee. Despite its high measurement capacity, the Force Gauge is a compact portable device with a low net weight. Interesting functions of the Force Gauge are the peak hold function, summation function, and the ability to select different units of measurement such as kg / t / lbs / N / kN. The instrument is only suitable for weighing and for tension force testing. For compression force testing, please see the PCE-FB series force gauges.

Highlights

Measurement range up to 5000 kg / 50 kN
High capacity
Compact and portable
Long battery life

Peak hold function
Summation function
Selectable units of measurement: kg / t / lb / N / kN
Adjustable gravitation range

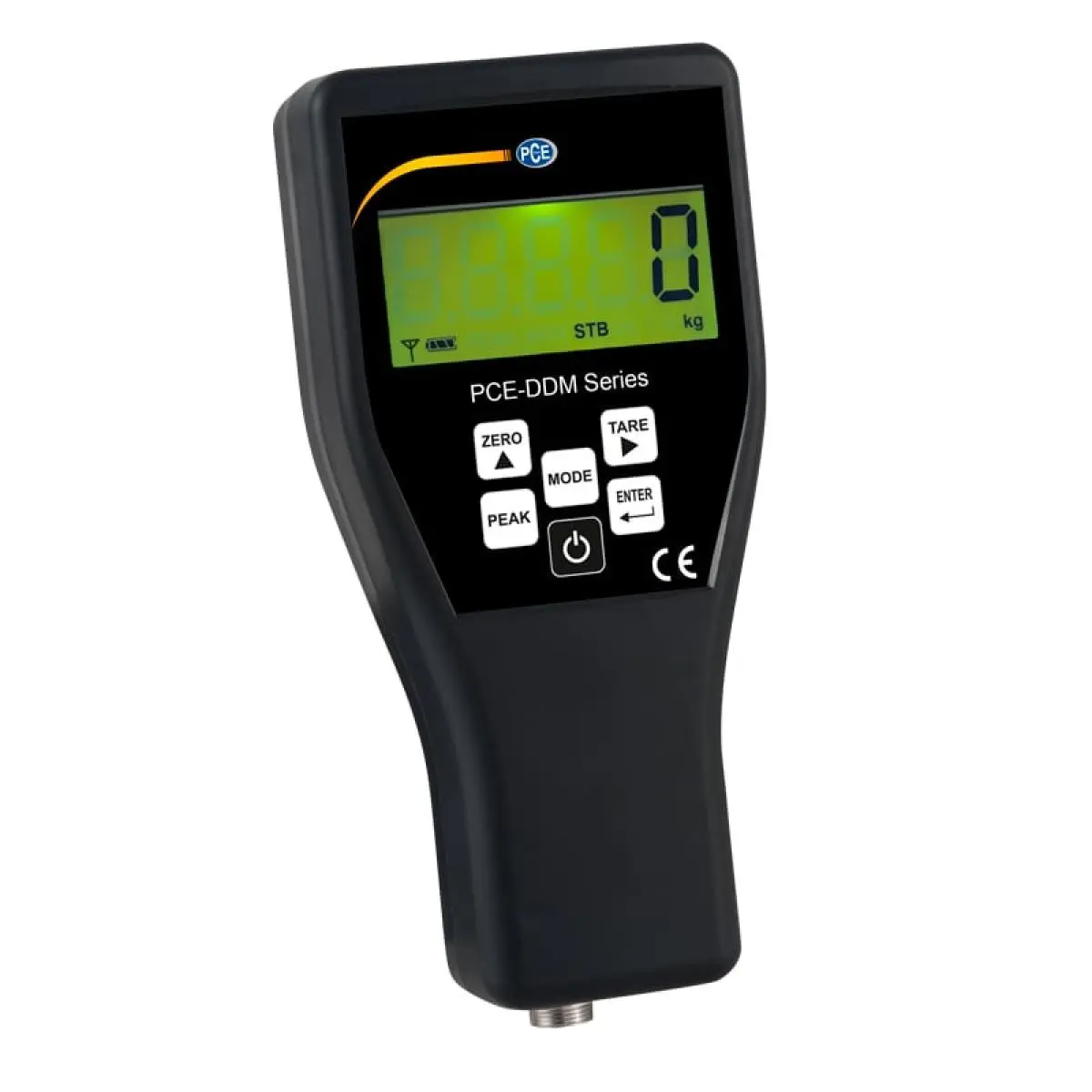

Remote control indicator, shackles and carrying case included

Specification

Technical specifications
Measuring range	5000 kg / 50 kN / 11023 lbs
Resolution	2 kg / 20 N / 4 lbs
Min. range	40 kg / 88 lbs
Weight (with shackle)	3 kg / 6.6 lbs (6 kg / 13 lbs)
Accuracy	±0.1 % of measurement range
Tare range	Max. 20 % of measurement range
Display	LCD with 22 mm / 0.9 in digit height
Units of measurement	kg / t / lb / N / kN
Sampling rate	2.5 Hz
Operating temperature	-10° C ... +40° C / +14° F ... +104° F
Power supply	3 x 1.5 V AA batteries
Operating time	Approx. 50 hours
