Force Gauge PCE-HFG 1K

Order no.: PCE-HFG 1K
GTIN (EAN): 4250348722843
£ 472.00
£ 566.40
price ex. (VAT / delivery)
:
4250348722843
PCE-HFG 1K
Delivery time: 1-2 working days
analog
internal
no
no

Description

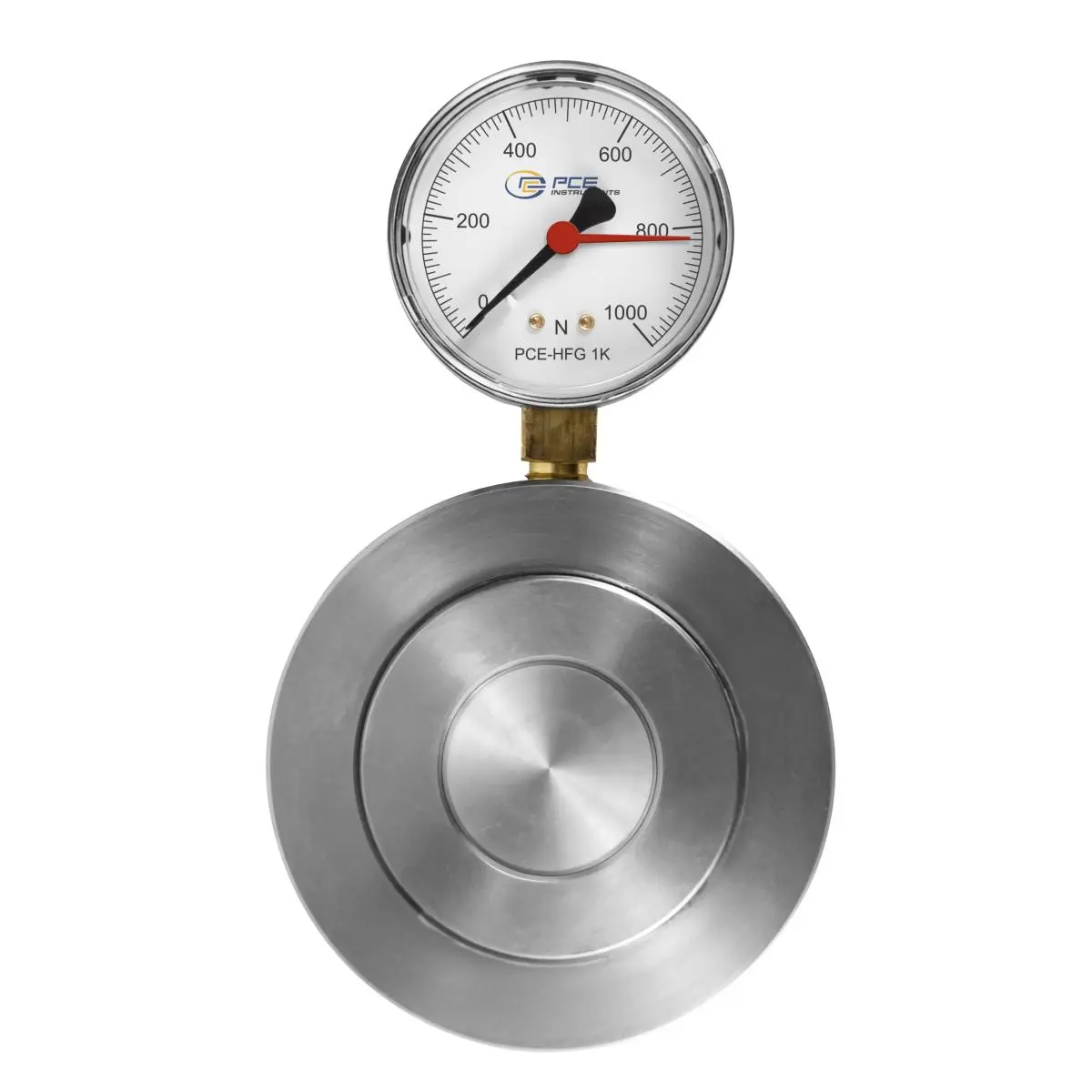

Force Gauge PCE-HFG 1K
Force gauge with analog scale / Compact for small installation spaces /

Drag pointer / With mounting holes / 27 mm ring opening


A force measuring device is based on the principle that the force acting on the pressure adapter is measured hydraulically. The hydraulic pressure generated is displayed by the force measuring device on a scale in Newtons. With the integrated drag pointer, our force measuring device can display the respective maximum measured value.

Another special feature of the force measuring device is the 27 mm ring opening. With this ring opening, measurements can be carried out with the force measuring device on, for example, guide rails, shafts and also bolts of, for example, a hydraulic press. With the insertable punch adapter, the force measuring device can be converted from a ring force measuring device into a pressure punch force measuring device in a matter of seconds. The force transducer can therefore be used flexibly.

A force measuring device is used wherever forces act that are to be measured. A force measuring device is therefore ideally suited for maintenance measurements and adjustment work on, for example, industrial machines.




Highlights

- Stainless steel force gauge
- Measurement of static compressive forces
- Ring force transducer and pressure adapter
- Screw mount for axial assembly
- Integrated drag pointer
- Pressure force display in Newton [N]

Specification

Measuring range0 … 1,000 N / 225 lbs
Resolution
20 N / 4.5 lbs
Measuring accuracy ±2.5% of the measuring range

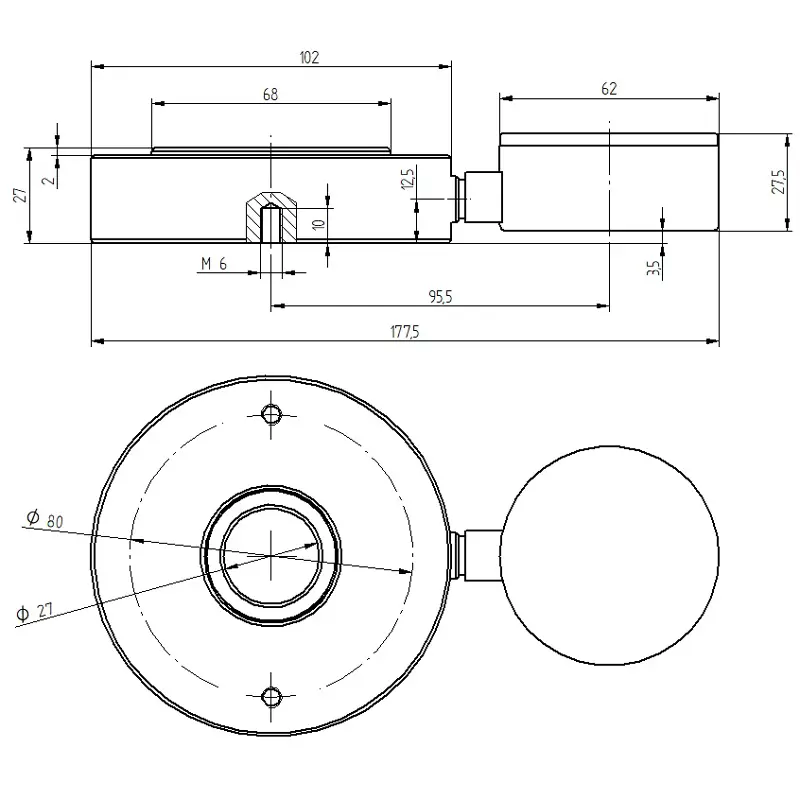

Dimensions of the display        Ø 55 mm
Mounting holes 2 x M6
Ambient conditions0 … 50°C / 32 ... 122°F

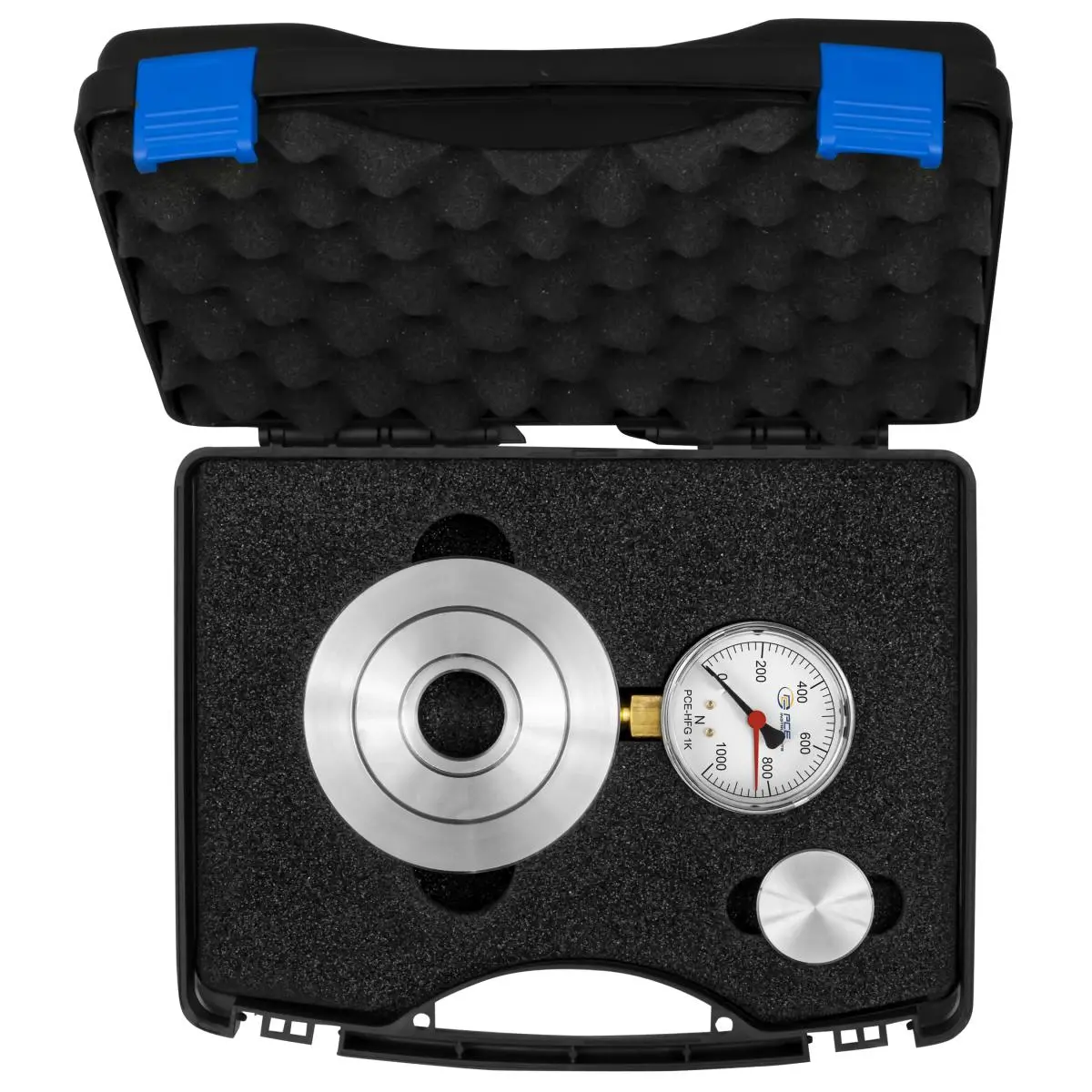

Delivery Scope

1 x Force Gauge PCE-HFG 1K
1 x Instrument case

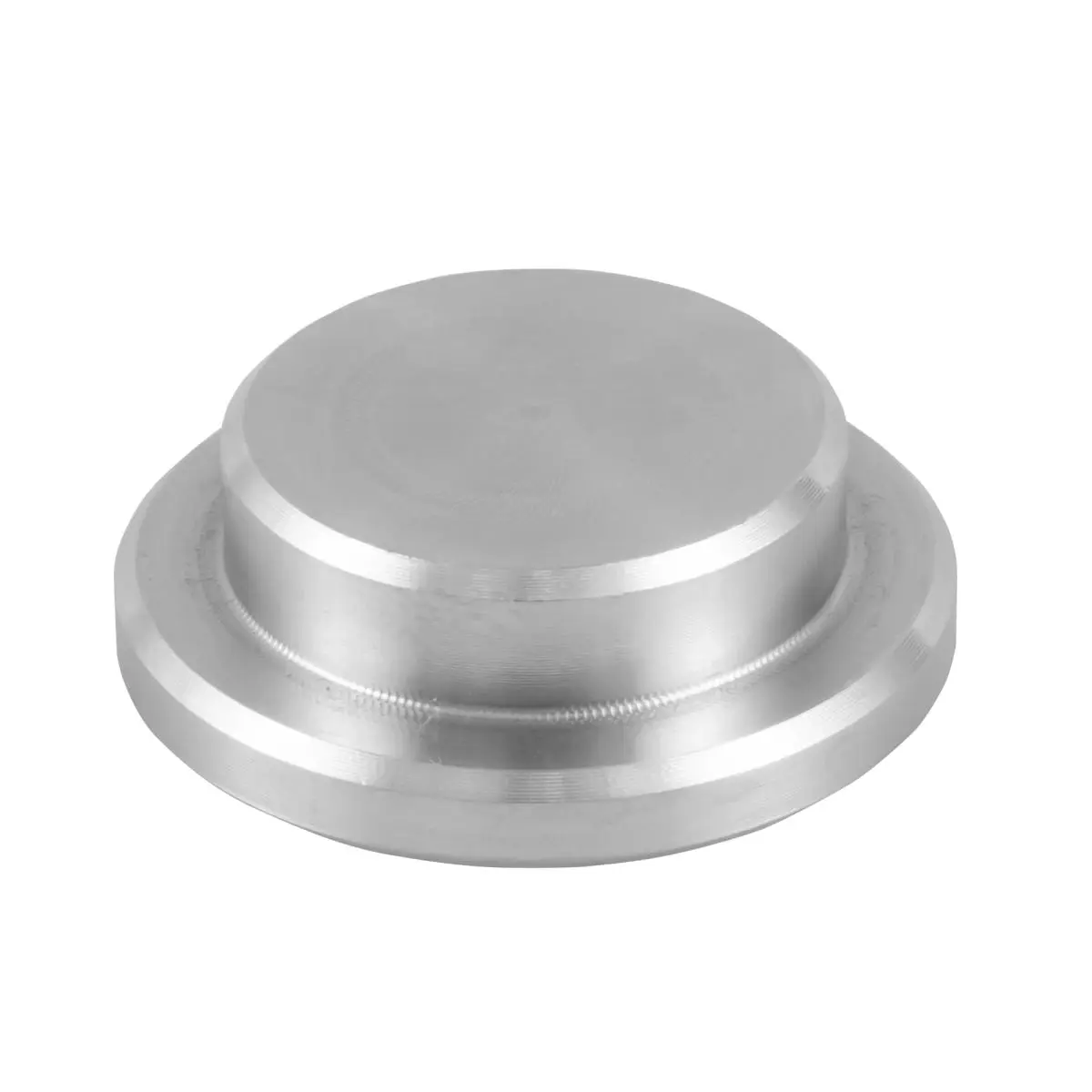

1 x Compression adapter
1 x Instruction manual
