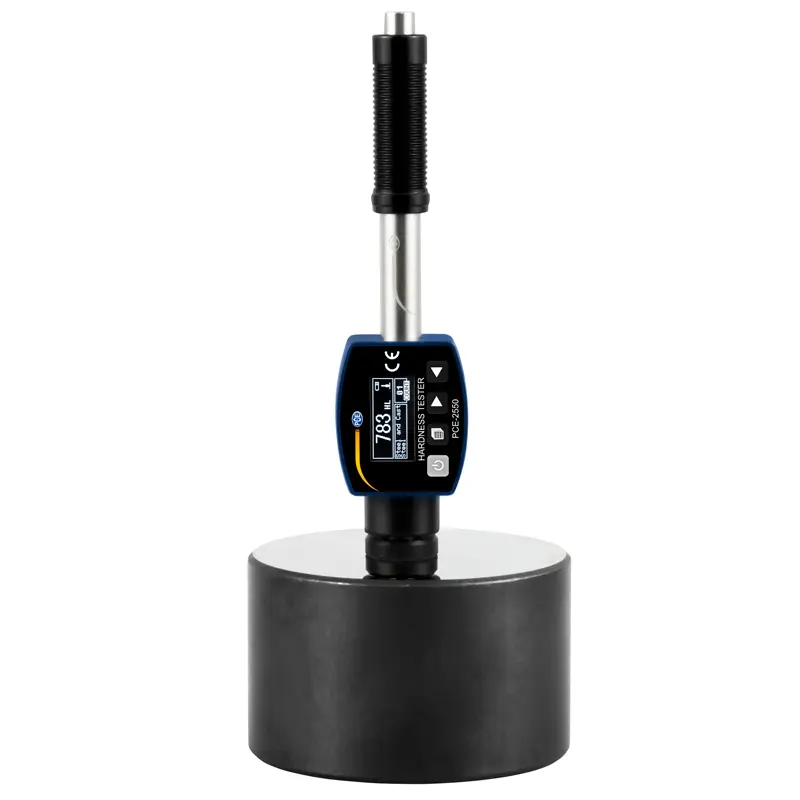

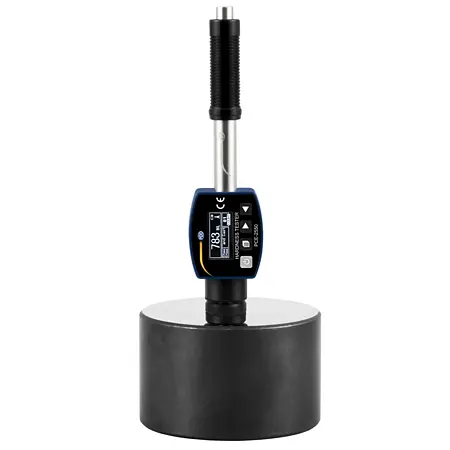

Hardness Tester PCE-2550

Order no.: PCE-2550

GTIN (EAN): 4250348719669

Accessory

Adapter set for hardness measuring instruments with Impact D impactor

£ 296.00

Calibration certificate CAL-HT-2

£ 238.00

Adaptor convex outside vZ25-50

£ 36.00

Adaptor convex outside Z10-15

£ 36.00

Adaptor spherical inside HK16.5-30

£ 32.00

Adaptor spherical inside HK12.5-17

£ 32.00

Adaptor spherical inside HK11-13

£ 32.00

Adaptor concave inside HZ16.5-30

£ 32.00

Adaptor concave inside HZ12.5-17

£ 36.00

Adaptor concave inside HZ11-13

£ 32.00

Description

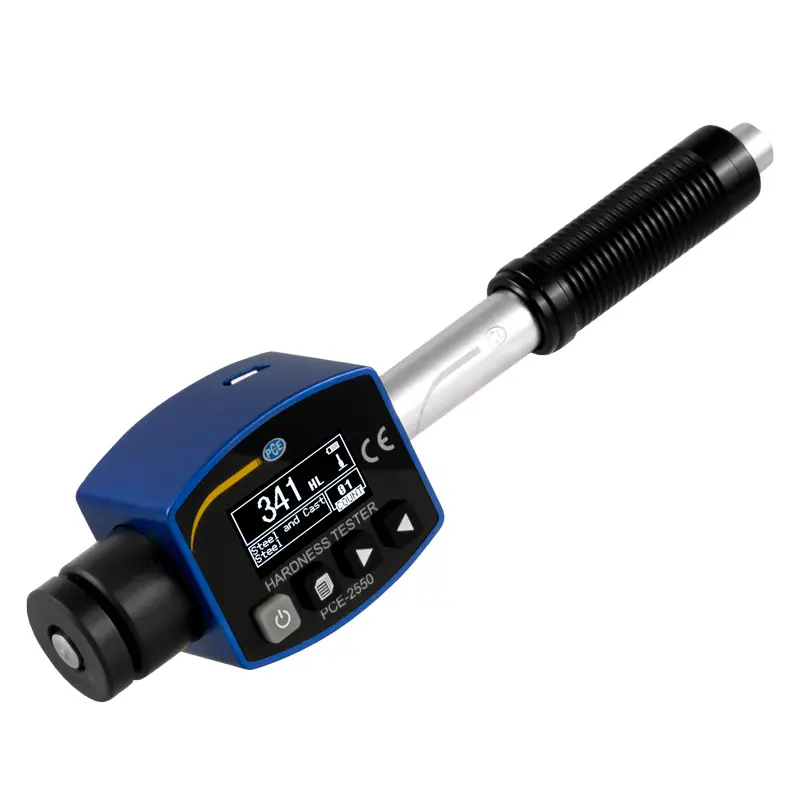

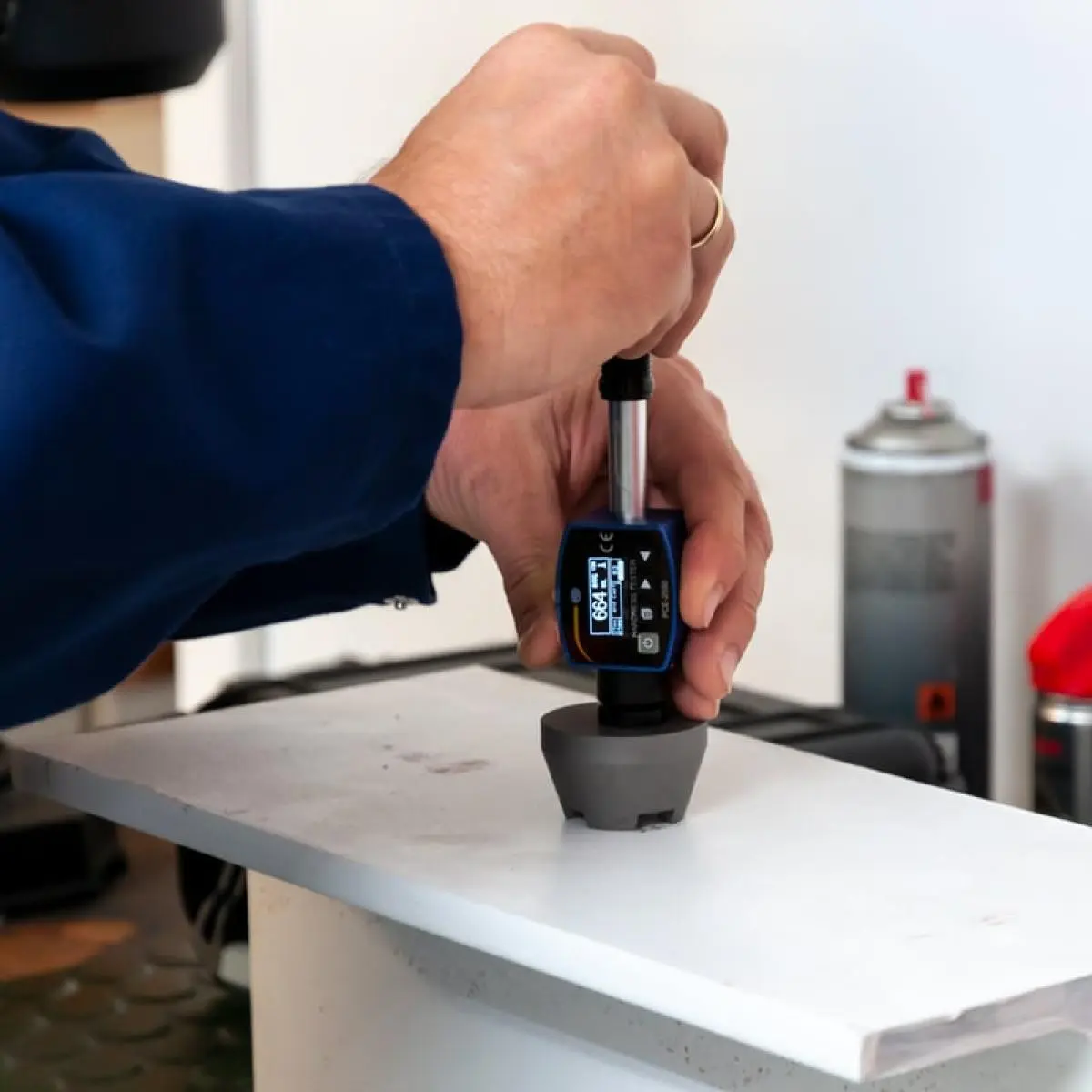

Hardness tester PCE-2550
Portable metal hardness tester with integrated impact mechanism / For metallic materials / Data download via USB / Measurement memory of up to 360000 points

Due to its compact design, the PCE-2550 metal hardness tester is very easy to use for incoming and outgoing inspection. Due to the adjustable hardness scales, the metal hardness tester PCE-2550 is versatile. The measuring range of the metal hardness tester PCE-2550 is sufficiently large for very soft, as well as for extremely hard surfaces.

The measured values can be stored in the PCE-2550 and later read out and processed via the available software. Up to 350 data groups can be stored in the metal hardness tester. The OLED display can also be read well in dark environments.

Highlights

- Determines all common hardness parameters
- High precision
- Measurement possible in any position
- Refined charge-trigger mechanism
- Internal measured value memory

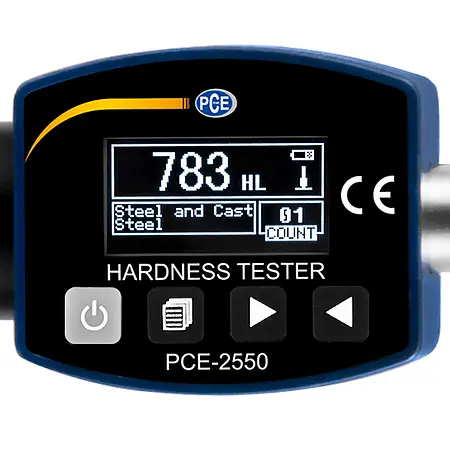

- Immediate display on a large OLED display

Specification

Measuring ranges	170 ... 960 HLD
Measuring direction	360°
Impact device	Type D
Measurement units	HL, HB, HRB, HRC, HRA, HV, HS
Selectable materials	10
Calibration	On enclosed hardness test block
Minimum weight of the workpiece	2 kg (on stable support / 50 g with coupling gel)
Minimum thickness of the workpiece	5 mm with coupling paste
Display	OLED display
Internal measured value memory	350 data groups
Alarm	Maximum or minimum value
Auto. Power Off	Yes
Power supply	2 x CR2016 button cells

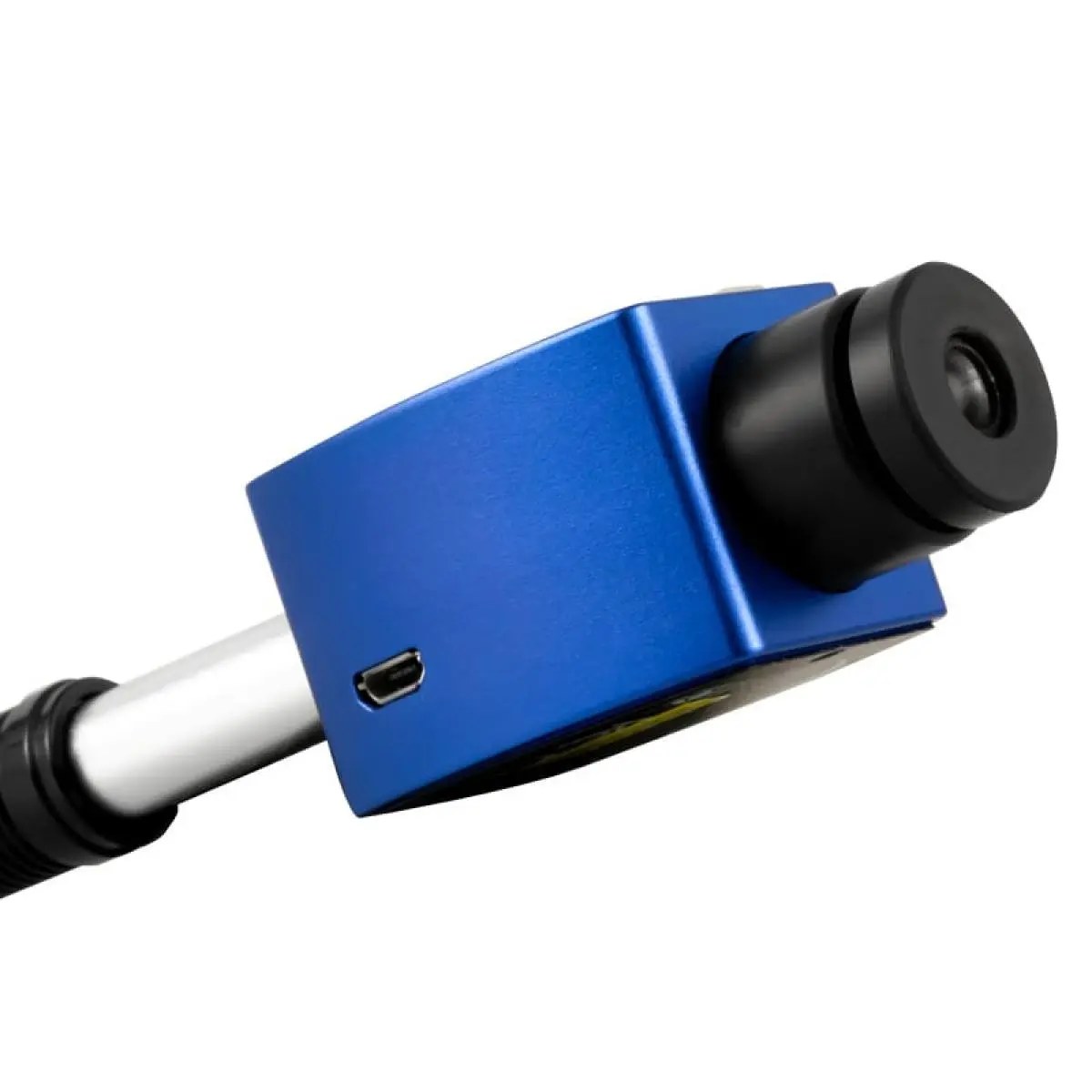

Interface	USB
Ambient temperature	0 ... 40°C / 32 ...104°F
Dimensions	145.5 x 32 x 26 mm
Weight	160 g / < 1 lb

Material	Steel and cast steel
Scale	Rockwell, Brinell, Vickers, Shore
Measuring range	HRC: 17.9 ... 68.5
	HRB: 59.6 ... 99.6
	HRA: 59.1 ... 85.8
	HB: 127 ... 651
	HV: 83 ... 976
	HS: 32.2 ... 99.5

Material	Tool steel
Scale	Rockwell, Vickers
Measuring range	HRC: 20.4 ... 67.1
	HV: 80 ... 898

Material	Stainless steel
Scale	Rockwell, Brinell, Vickers
Measuring range	HRB: 46.5 ... 101.7
	HB: 85 ... 655
	HV: 85 ... 802

Material	Cast iron
Scale	Rockwell, Brinell, Vickers
Measuring range	HRC: ---
	HB: 93 ... 334
	HV: ---

Material	Ductile iron
Scale	Rockwell, Brinell, Vickers
Measuring range	HRC: ---
	HB: 131 ... 387
	HV: ---

Material	Cast aluminum alloy
Scale	Rockwell, Brinell
Measuring range	HRB: 23.8 ... 84.6
	HB: 19 ... 164

Material	Brass
Scale	Rockwell, Brinell
Measuring range	HRB: 13.5 ... 95.3
	HB: 40 ... 173

Material	Bronze
Scale	Brinell
Measuring range	HB: 60 ... 290

Material	Machined copper alloy
Scale	Brinell
Measuring range	HB: 45 ... 315

Material	Machined steel alloy
Scale	Brinell
Measuring range	HB: 143 ... 650

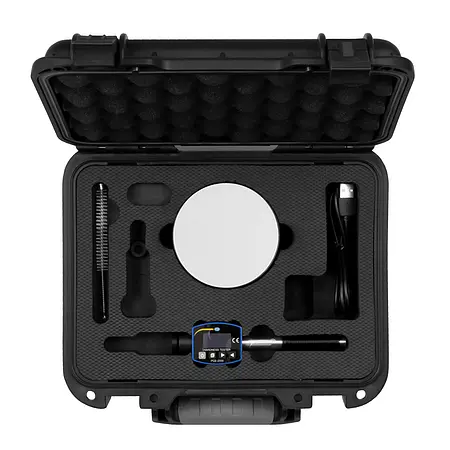

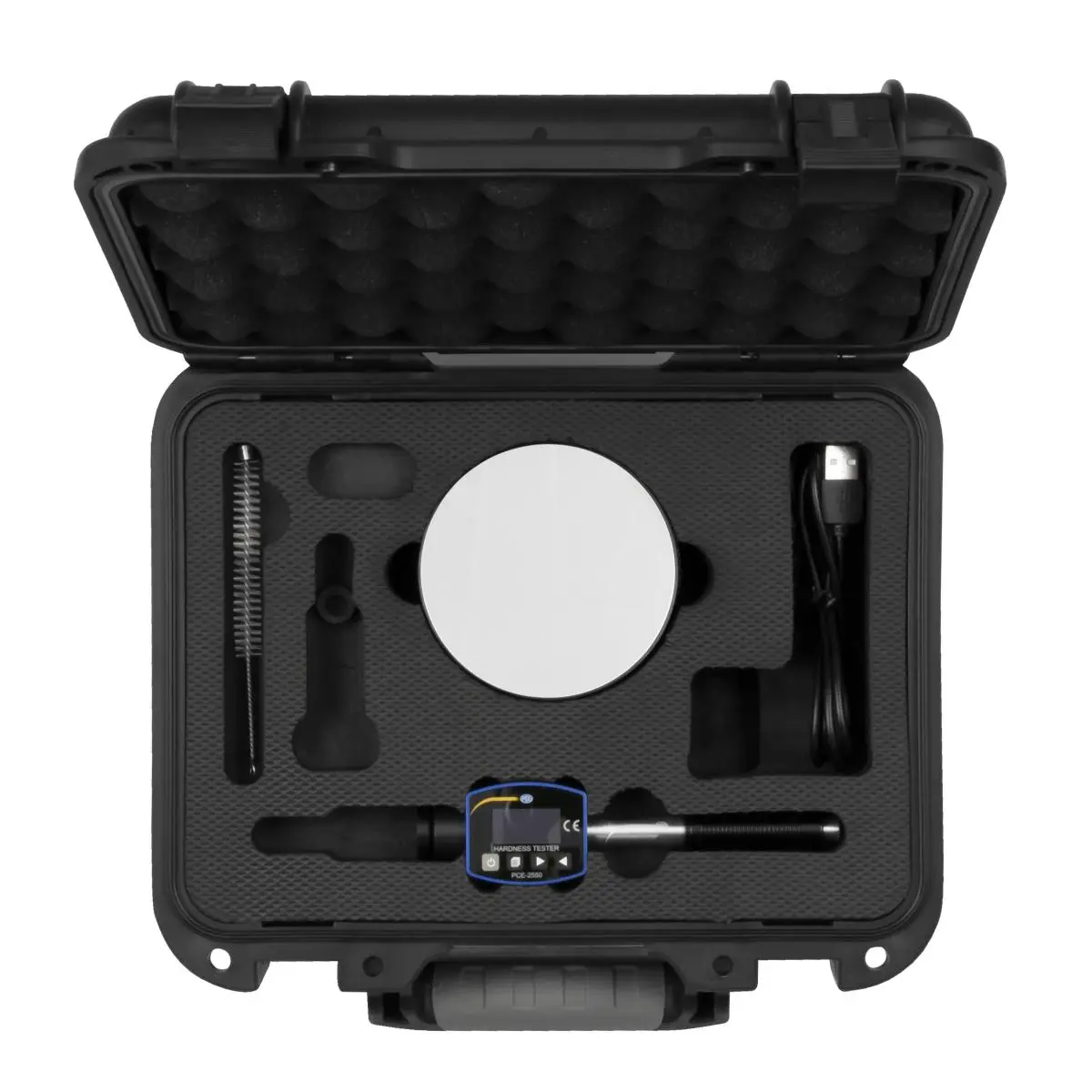

Delivery Scope

1 x Hardness tester PCE-2550
1 x USB connection cable
1 x Software
1 x Hardness test block
1 x Cleaning brush
1 x Support ring with Ø14 mm
1 x Transport case
1 x User manual
