Hardness Tester PCE-2900

Order no.: PCE-2900
GTIN (EAN): 4250348717405
£ 1,569.00
£ 1,882.80
price ex. (VAT / delivery)
:
4250348717405
PCE-2900
Delivery time: 1-2 working days

Accessory

Calibration certificate CAL-HT-2
Calibration certificate CAL-HT-2
£ 238.00
Impact Sensor G
Impact Sensor G
£ 432.00
Impact Sensor DL
Impact Sensor DL
£ 432.00
Impact Sensor DC
Impact Sensor DC
£ 219.00
Impact Sensor D
Impact Sensor D
£ 219.00
Impact Sensor C
Impact Sensor C
£ 219.00
Adaptor spherical inside HK16.5-30
Adaptor spherical inside HK16.5-30
£ 32.00
Adaptor spherical inside HK12.5-17
Adaptor spherical inside HK12.5-17
£ 32.00
Adaptor spherical inside HK11-13
Adaptor spherical inside HK11-13
£ 32.00
Adaptor convex outside Z10-15
Adaptor convex outside Z10-15
£ 36.00
Adaptor convex outside vZ25-50
Adaptor convex outside vZ25-50
£ 36.00
Adaptor concave inside HZ16.5-30
Adaptor concave inside HZ16.5-30
£ 32.00
Adaptor concave inside HZ12.5-17
Adaptor concave inside HZ12.5-17
£ 36.00
Adaptor concave inside HZ11-13
Adaptor concave inside HZ11-13
£ 32.00

Description

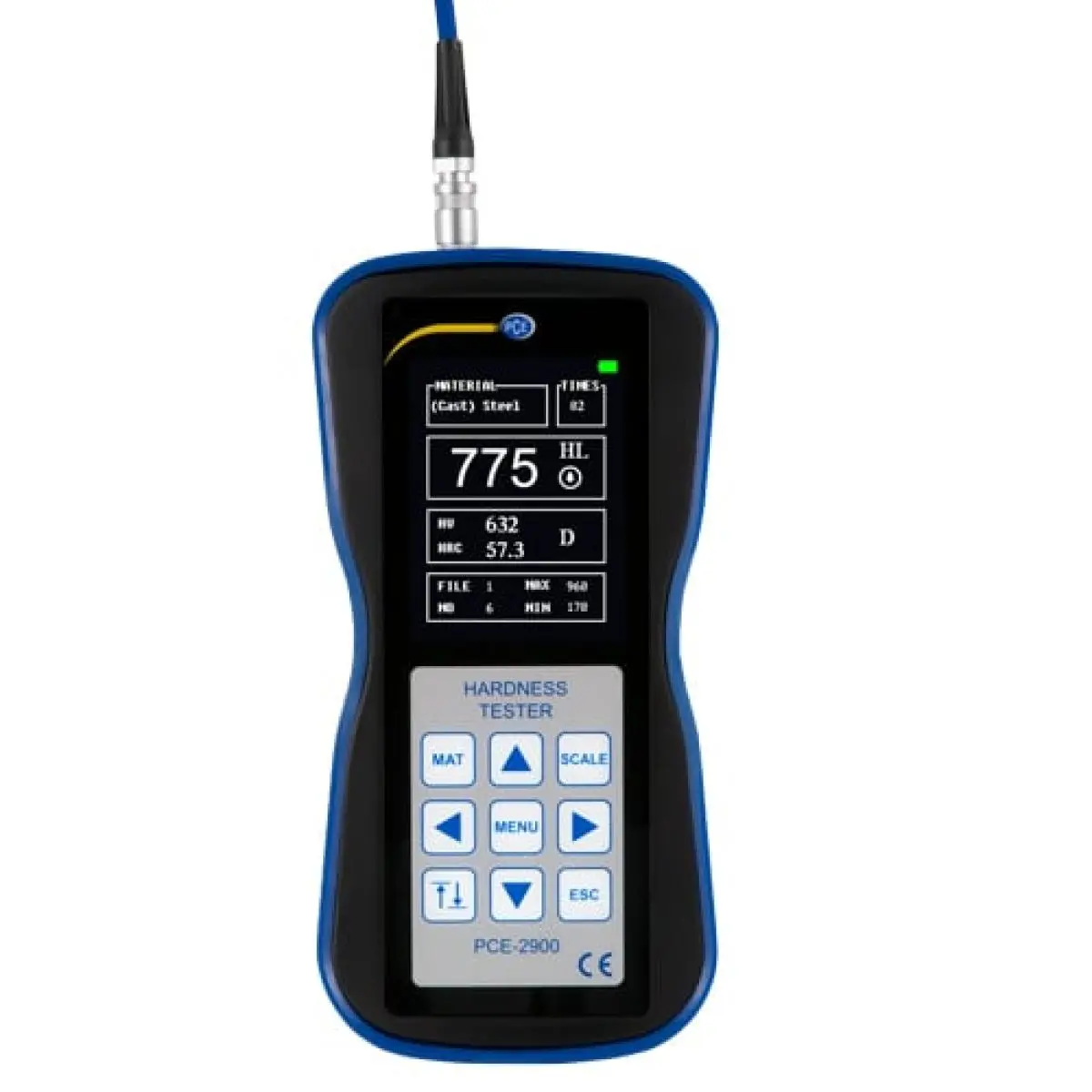

Hardness Tester PCE-2900
Modern, dynamic hardness tester with colour display / Memory / For metallic materials with hardness scales such as Vickers, Rockwell, Brinell, Leeb, Shore and Tensile

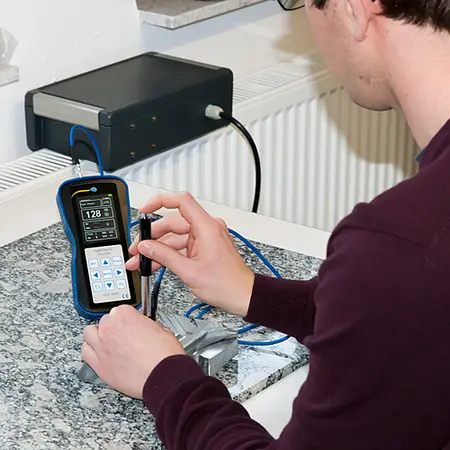

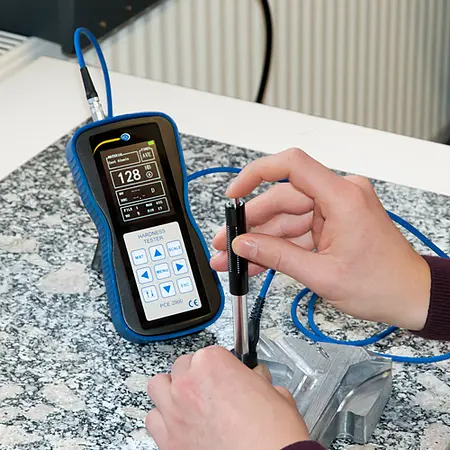

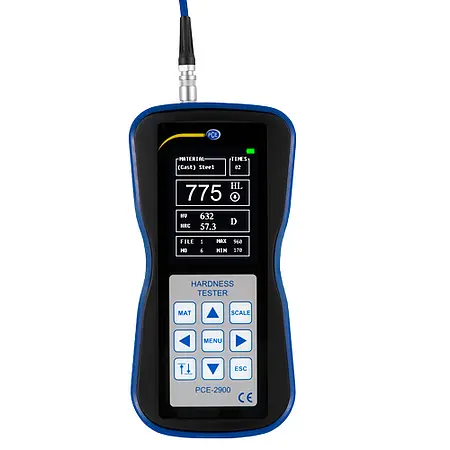

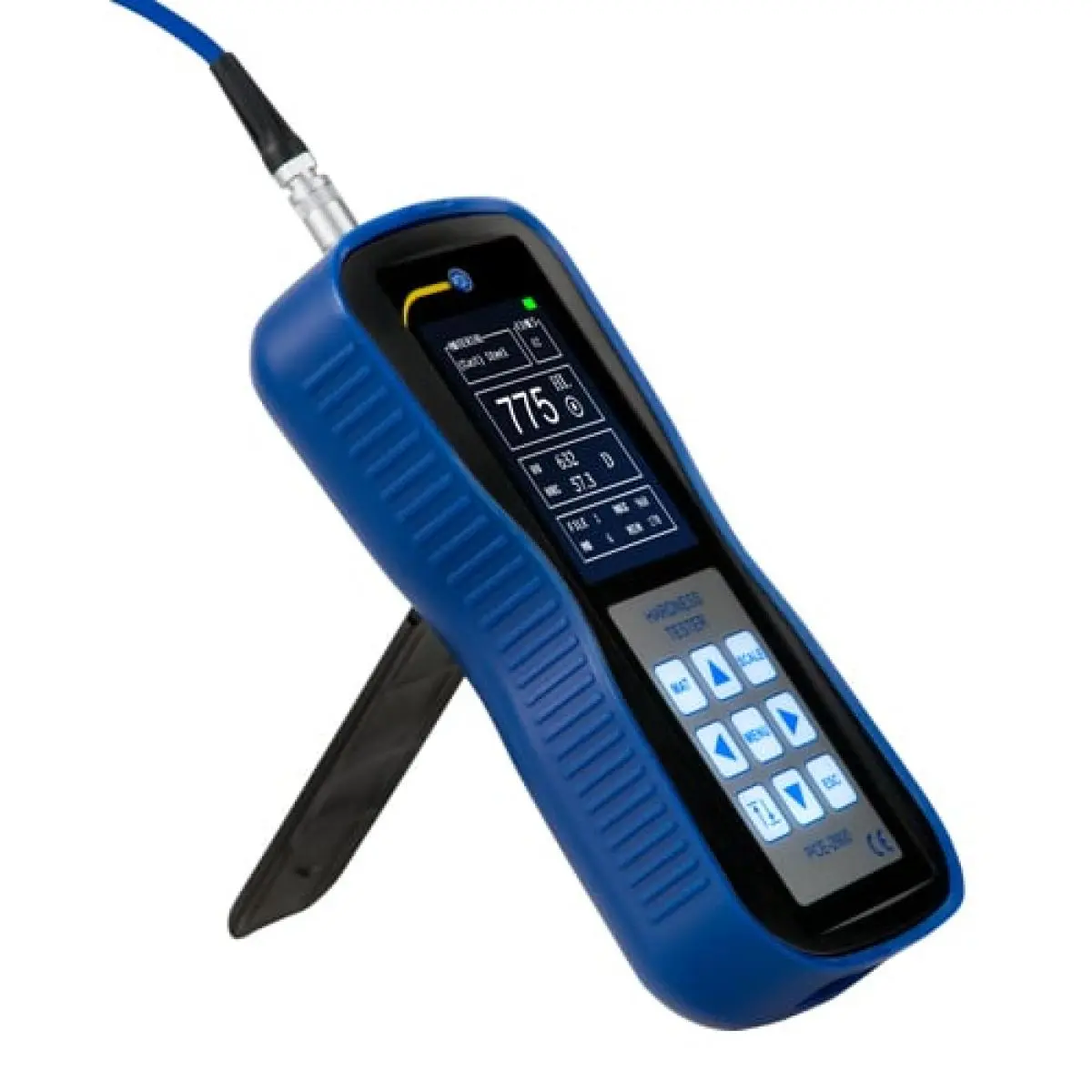

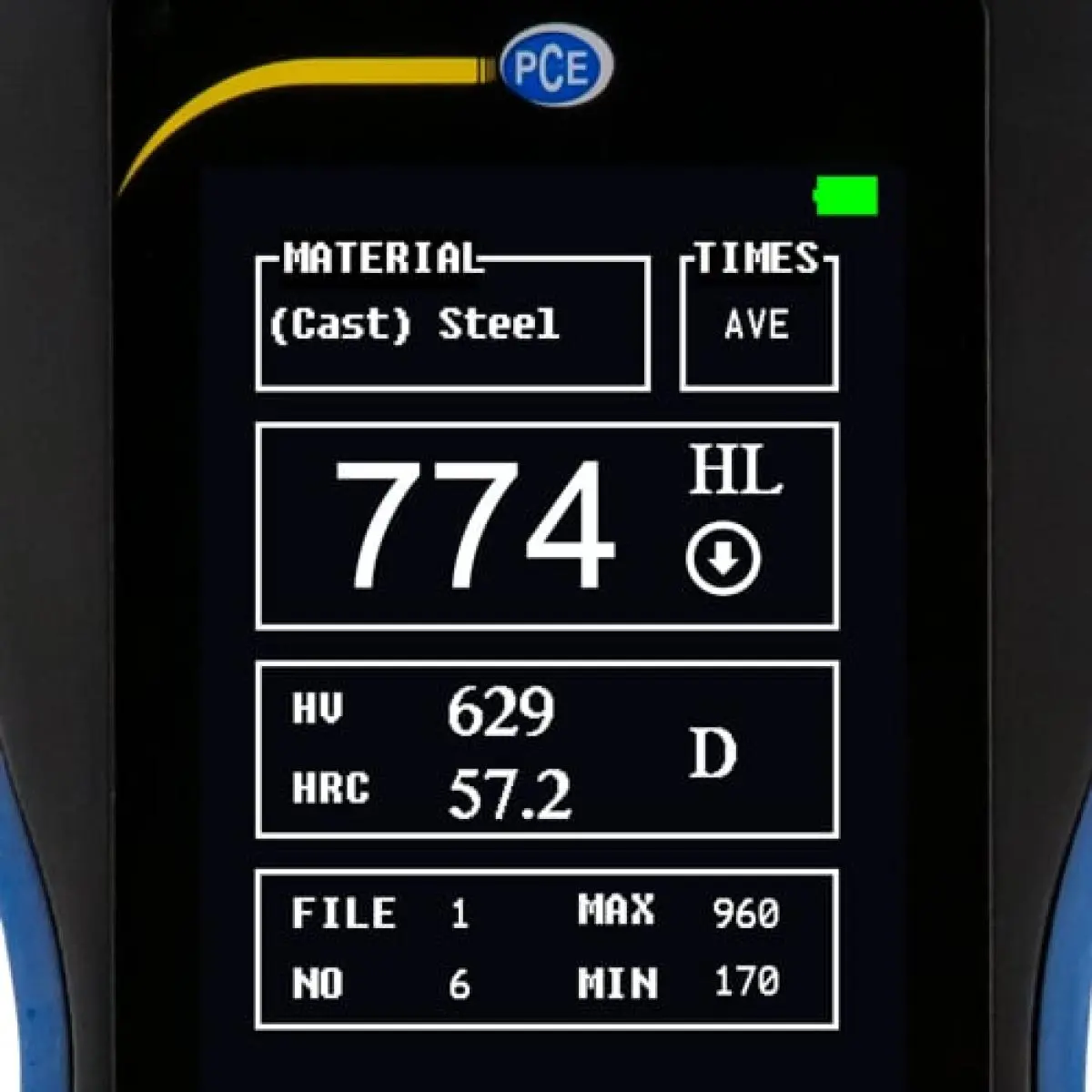

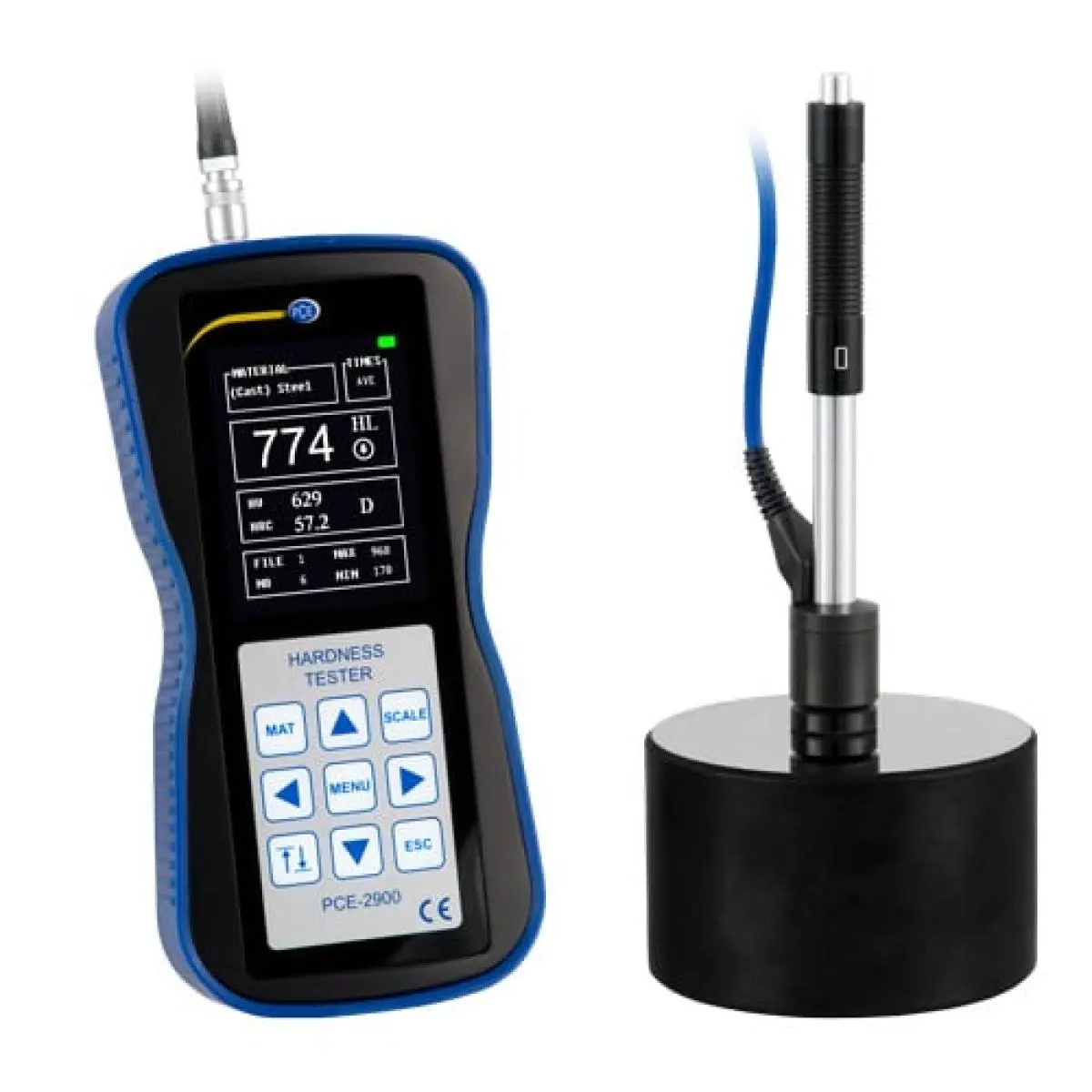

The hardness tester PCE-2900 has been developed for hardness measurements on metallic materials. The hardness tester measures the material hardness in Vickers, Brinell, Rockwell, Leeb and Shore. The hardness tester PCE-2900 measures the hardness according to the Leeb rebound principle. An impactor bounces on the workpiece via a firing pin and the metal hardness is measured via the rebound. The PCE-2900 hardness meter is equipped with a backlit colour display.

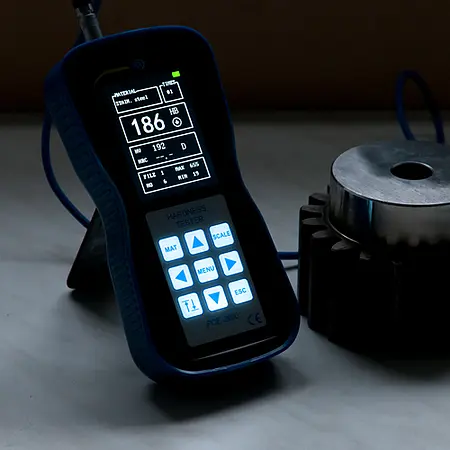

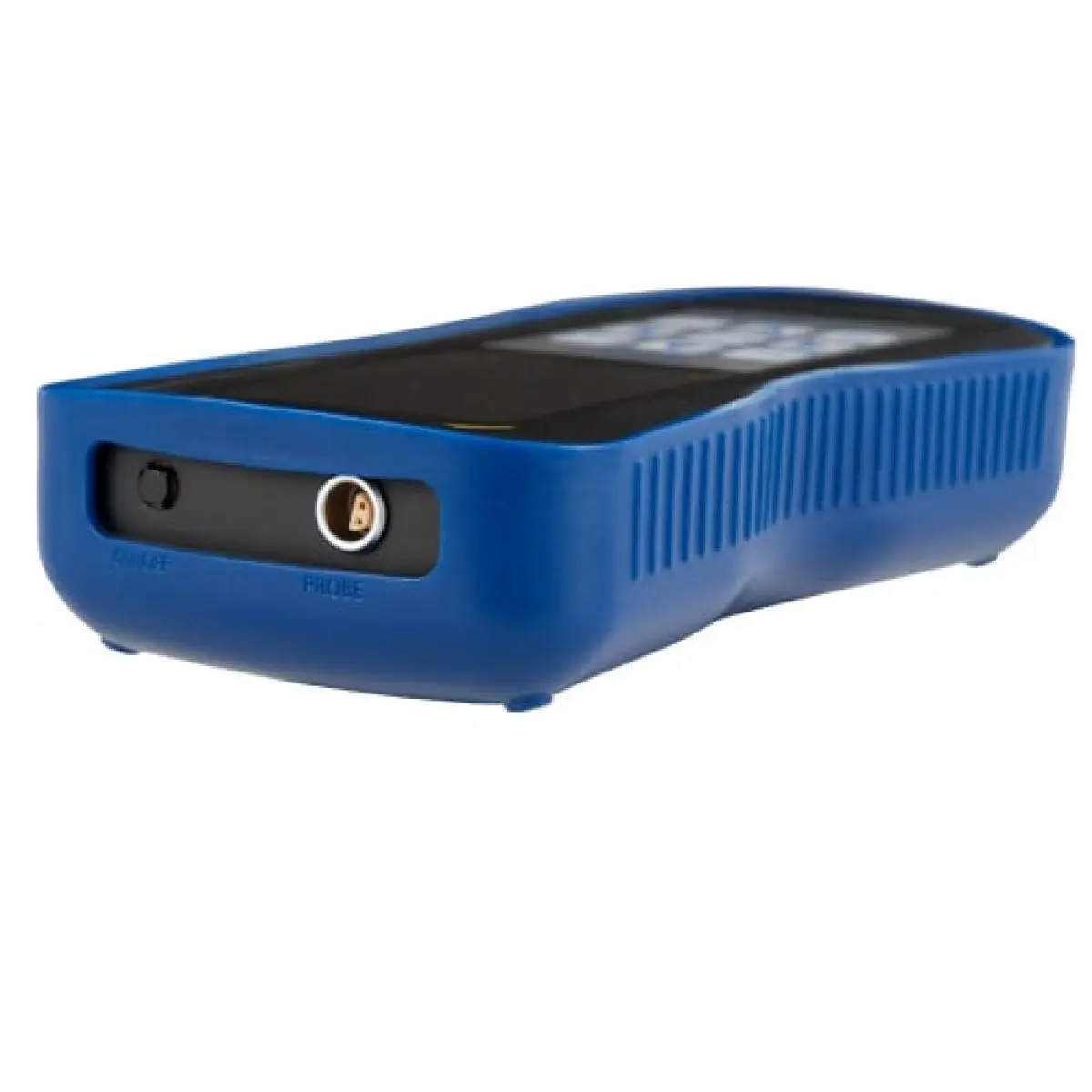

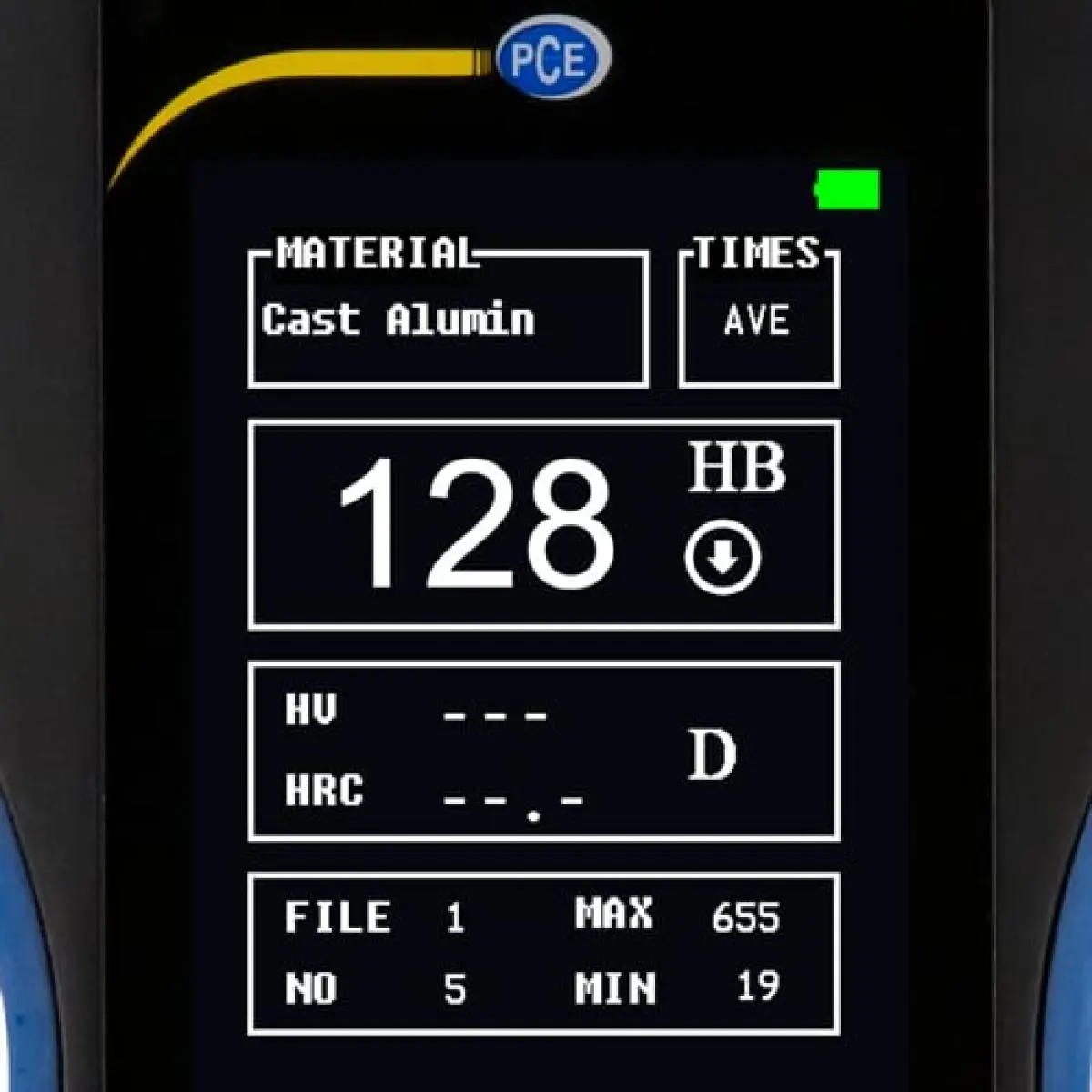

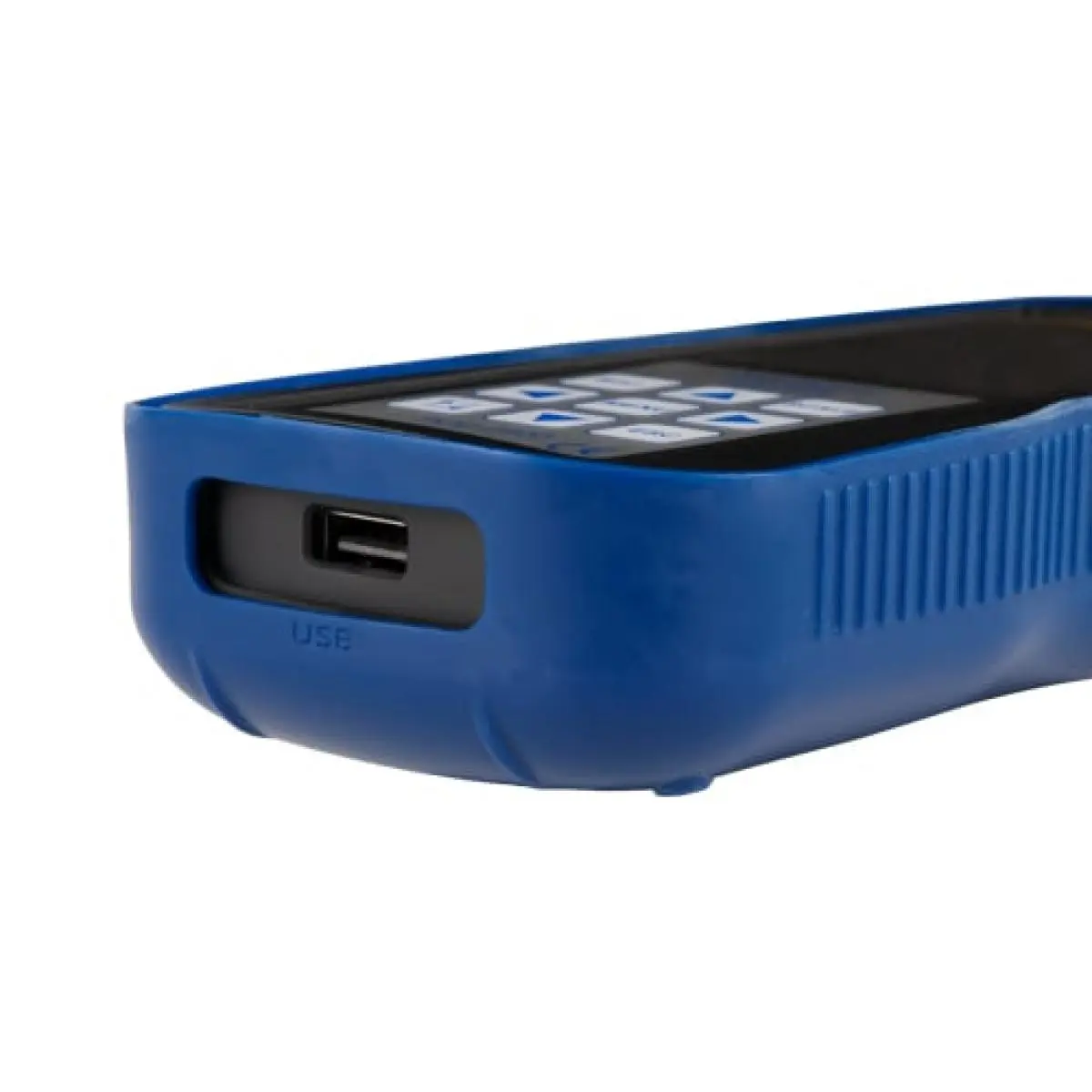

Likewise, the buttons on the PCE-2900 are illuminated. Thus, the display can be read well even in low light conditions. The impact device is connected to the hardness tester via a cable. The hardness tester PCE-2900 has an internal memory of 6 x 100 measurement sets. The memory thus allows a documentation of the measured values. Via the integrated USB and WiFi interface, the measured values can be transferred from the hardness tester via software to a PC. The hardness tester is powered by commercially available 1.5V AA batteries and has a battery life of about 50 hours.


Highlights

- USB and WiFi for data transmission
- Large, bright touch-screen LCD display
- Large measuring range
- Measurement possible in every position
- Hardness scales (HRC, HRB, HV, HB, HS)
- For all metallic materials

Specification

Measuring range

170 ... 960 HLD
Reproducibility ± 6 HLD
Impactor Type D
Measuring direction 360°
Adjustable scales Leeb, Brinell, Rockwell A, Rockwell B, Rockwell C, Vickers, Shore
Surface quality Ra of the workpiece 2 µm
Minimum weight of the workpiece Direct measurement: 5 kg / 11 lbs
Tied measurement: 2 ... 5 kg / 4.4 ... 11 lbs
With coupling gel: 0.05 ... 2 kg / 0.1 ... 4.4 lbs
Minimum thickness of the workpiece Direct measurement: > 5mm / > 0.19 in
With coupling gel: 0.8 ... 5 mm / 0.03 ... 0.19 in
Display Colour LCD
Internal measured value memory 600 records in 6 files
Interface USB, WiFi
Power supply 2 x 1.5V AA batteries
Operating time ca. 50 hours
Operating conditions 10 ... 50°C / 50 ... 122°F  max. 90% r.H.
Storage conditions -30 ... 60°C / -22 ... 140°F  max. 90% r.H.
Dimensions 160 x 80 x 35 mm / 6.3 x 3.1 x 1.3 in
Weight 350 g / < 1 lb

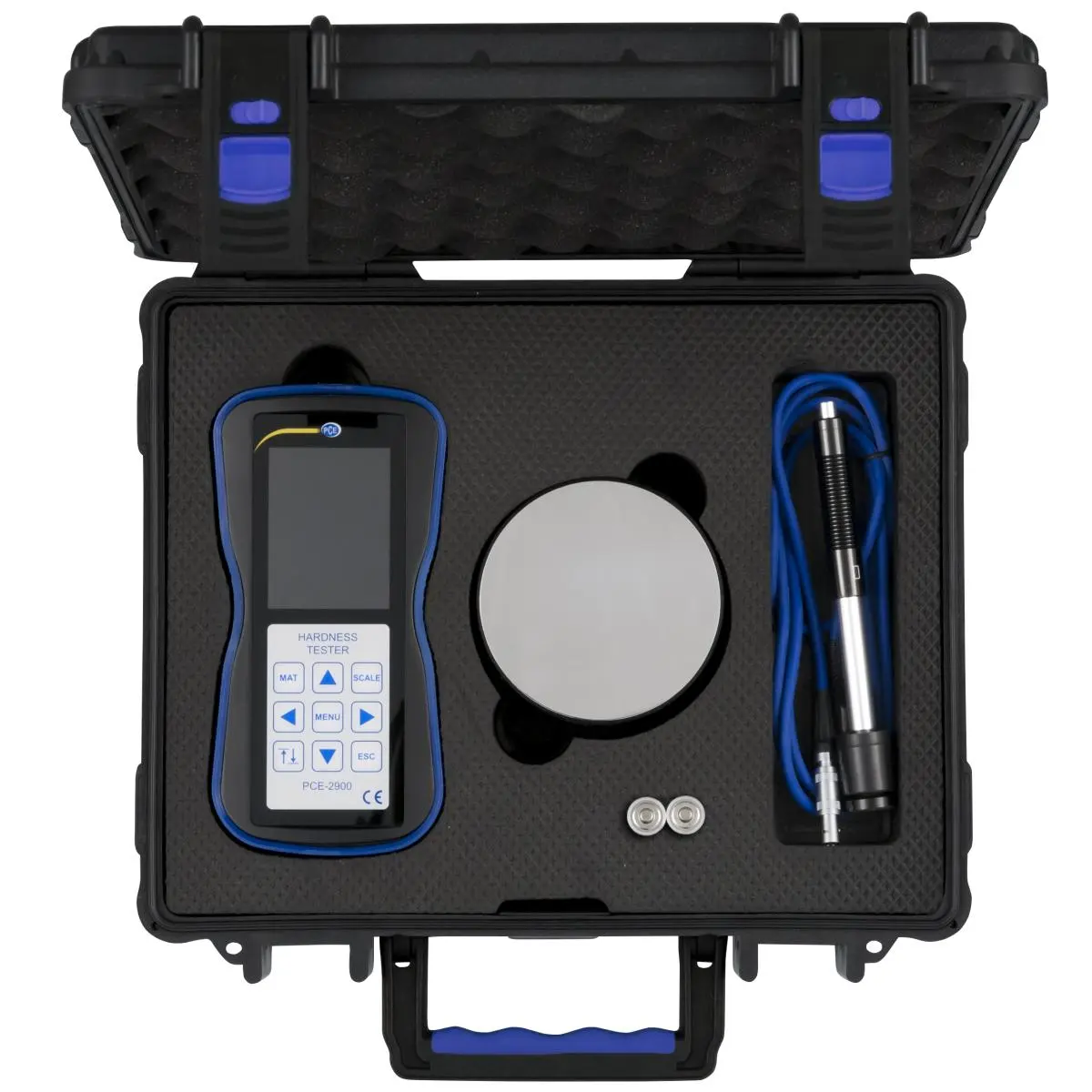

Delivery Scope

1 x Hardness Tester PCE-2900

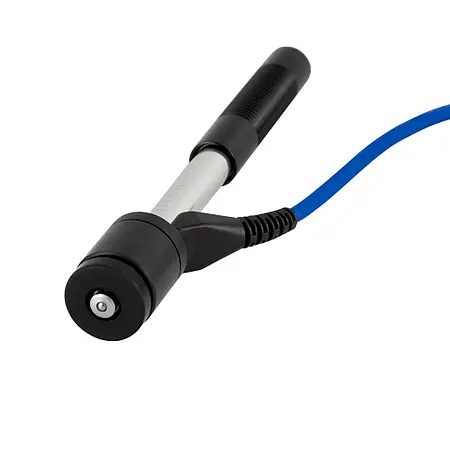

1 x Impactor D

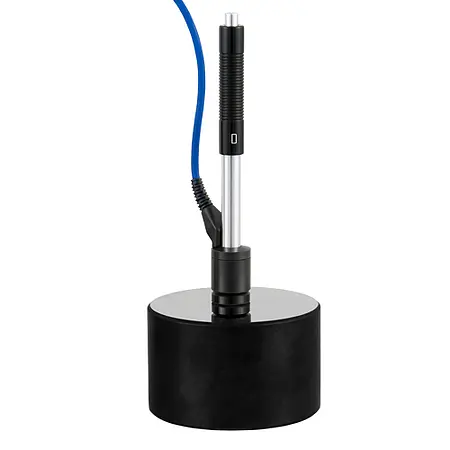

1 x Test block
2 x 1.5V AA batteries
1 x User manual
1 x Carry case
