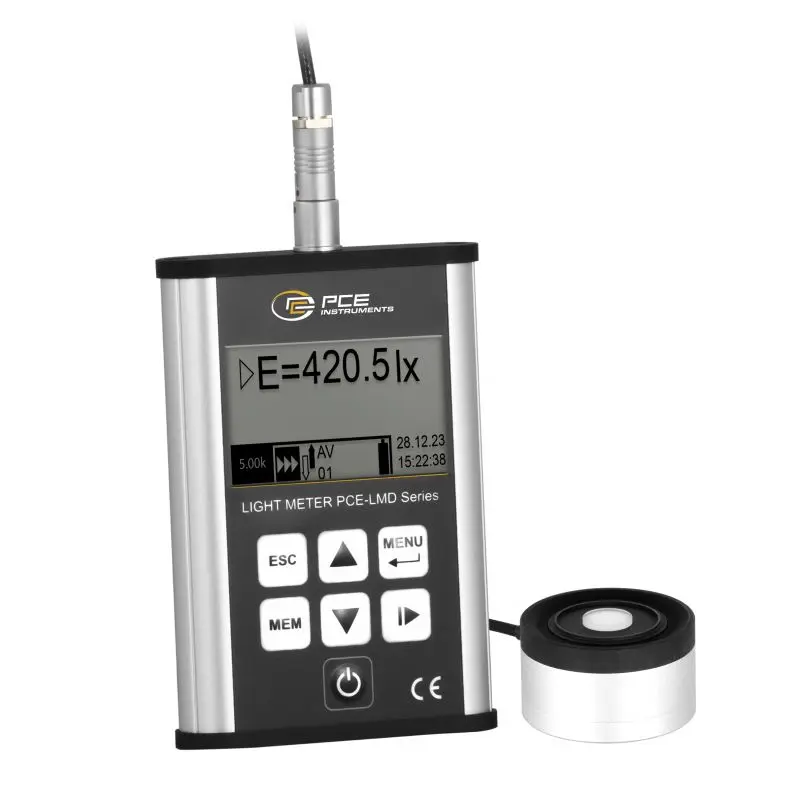

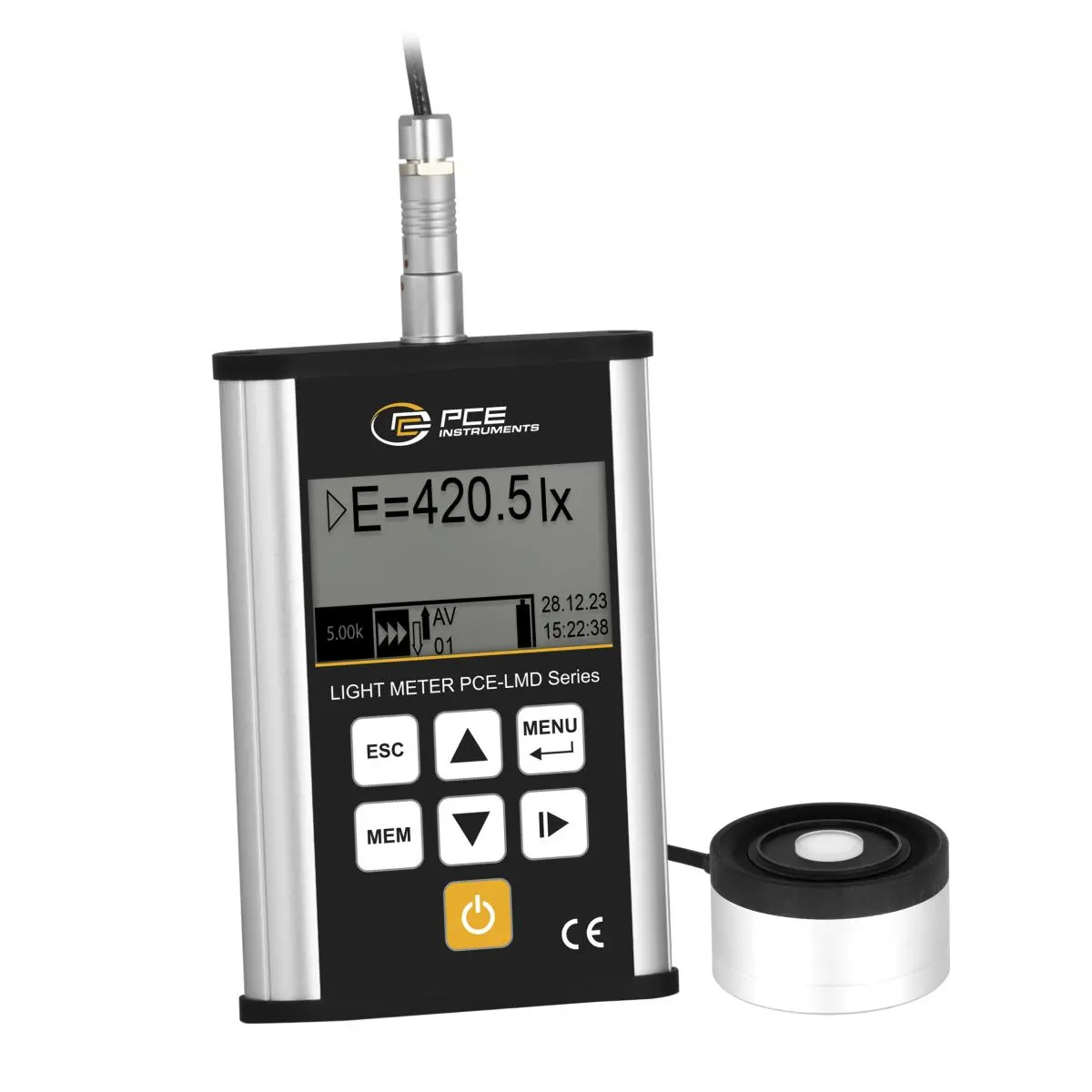

The illuminometer is a precise measuring instrument that meets the highest demands for light measurements. In accordance with DIN 5032-7, it fulfils the requirements of precision class A, which enables accurate and reliable detection of light intensities. With an impressive measuring range of 0.000 lux to 500,000 lux, the illuminometer is extremely versatile.
Whether for lighting control at the workplace, in exhibitions or outdoors - the illuminometer covers a wide range of applications. Accuracy class A not only ensures precise measurements, but also high reproducibility of the results. This is particularly important in applications where accurate light measurements are crucial.

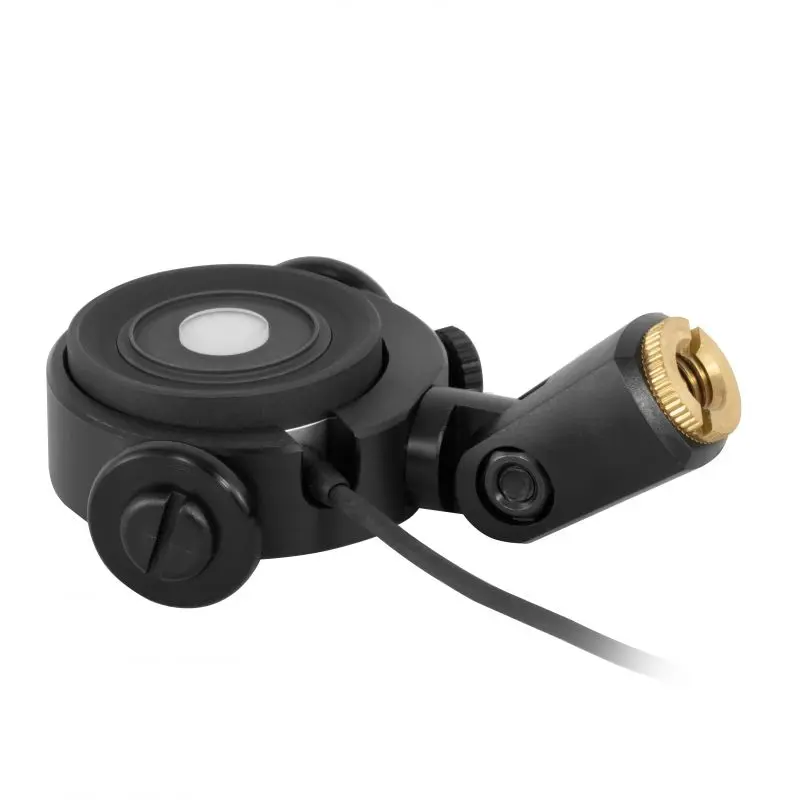

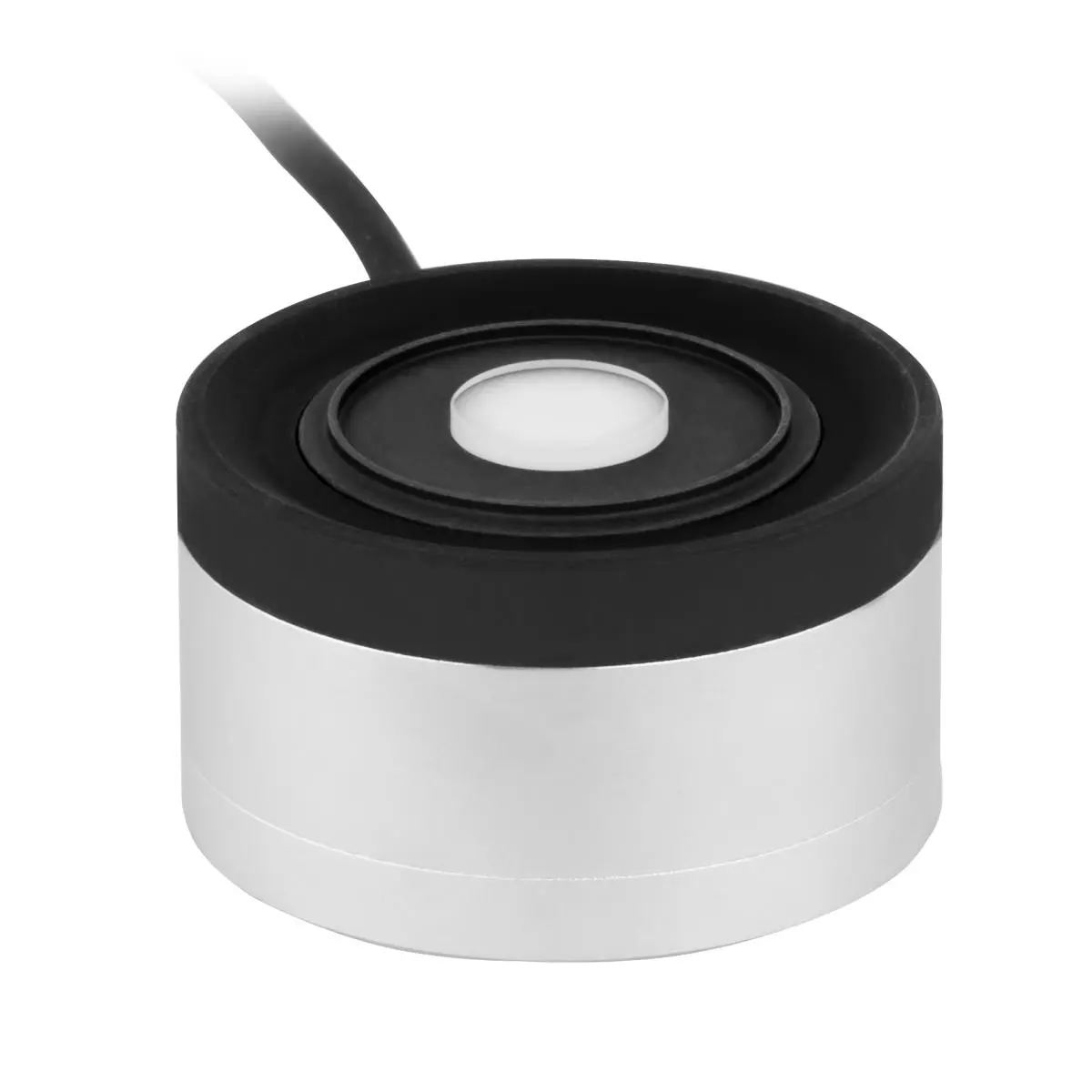

The illuminometer has an external sensor and a probe holder that allows measurements to be taken in hard-to-reach places and ensures maximum practicality in various application scenarios. Another feature of the luxmeter is the integrated measured value memory. With this function, measurement results can be easily saved and also automatically recorded. This is particularly useful in situations where the measured values are to be used for later analyses. The illuminometer creates a text document in which the data is stored.
With the help of the luminance adapter from our accessories, the illuminometer can be upgraded for surface-mounted measurements or distance measurements with a 1° measuring angle. Overall, the illuminometer offers an unbeatable combination of precision, versatility and user-friendliness. Whether you need to measure light conditions indoors, outdoors or in industrial environments, this illuminometer is the ideal choice for precise and reliable light measurements.
Light | |
Measurement range | 0 lx ... +50 lx |
Resolution | 0.001 lx |
Accuracy | Total error ≤ 2.0% (CIE, DIN 5032-7) Class A @ 10 ... 40 °C |
Light | |
Measurement range | +50 lx ... +5 klx |
Resolution | 0.1 lx |
Accuracy | Total error ≤ 2.0% (CIE, DIN 5032-7) Class A @ 10 ... 40 °C |
Light | |
Measurement range | +5 klx ... +500 klx |
Resolution | 0.01 klx |
accuracy | total error ≤ 2.0% (CIE, DIN 5032-7) class A @ 10 ... 40 °C |
General technical data | |
Units | lx, klx |
Display type | LCD |
Display refresh rate | 1 x per second |
Storage medium | Micro-SD card |
Memory interval of | 1 s |
Memory interval up to | 60 s |
Memory capacity | 8 GB |
Interface | Micro-USB |
Standard(s) | DIN 5032-7, ISO/CIE 19476, EN 12464-1, EN 12464-2, EN 12665 |
Operating time | 23 h |
Measurement rate | 1 Hz |
Classification | A (CIE, DIN 5032-7) |
Menu language | English, Polish |
Protection class (appliance) | IP20 |
Power supply | 5V DC / max. 2,1A |
Weight | 172 g |
Device weight with delivery | 1.67 kg |
Equipment weight with scope of delivery and outer packaging | 1,71 kg |
Dimensions (L x W x H) | 118 x 74 x 21 mm |
Other dimensions | Probe dimensions: Ø 44 x 25 mm . Extension rod: approx. 1 metre |
Operating conditions | -20 ... 50 °C , 90 % r.H. |
storage conditions | -20 ... 50 °C , 90 % RH |
Languages of the instructions | English |
