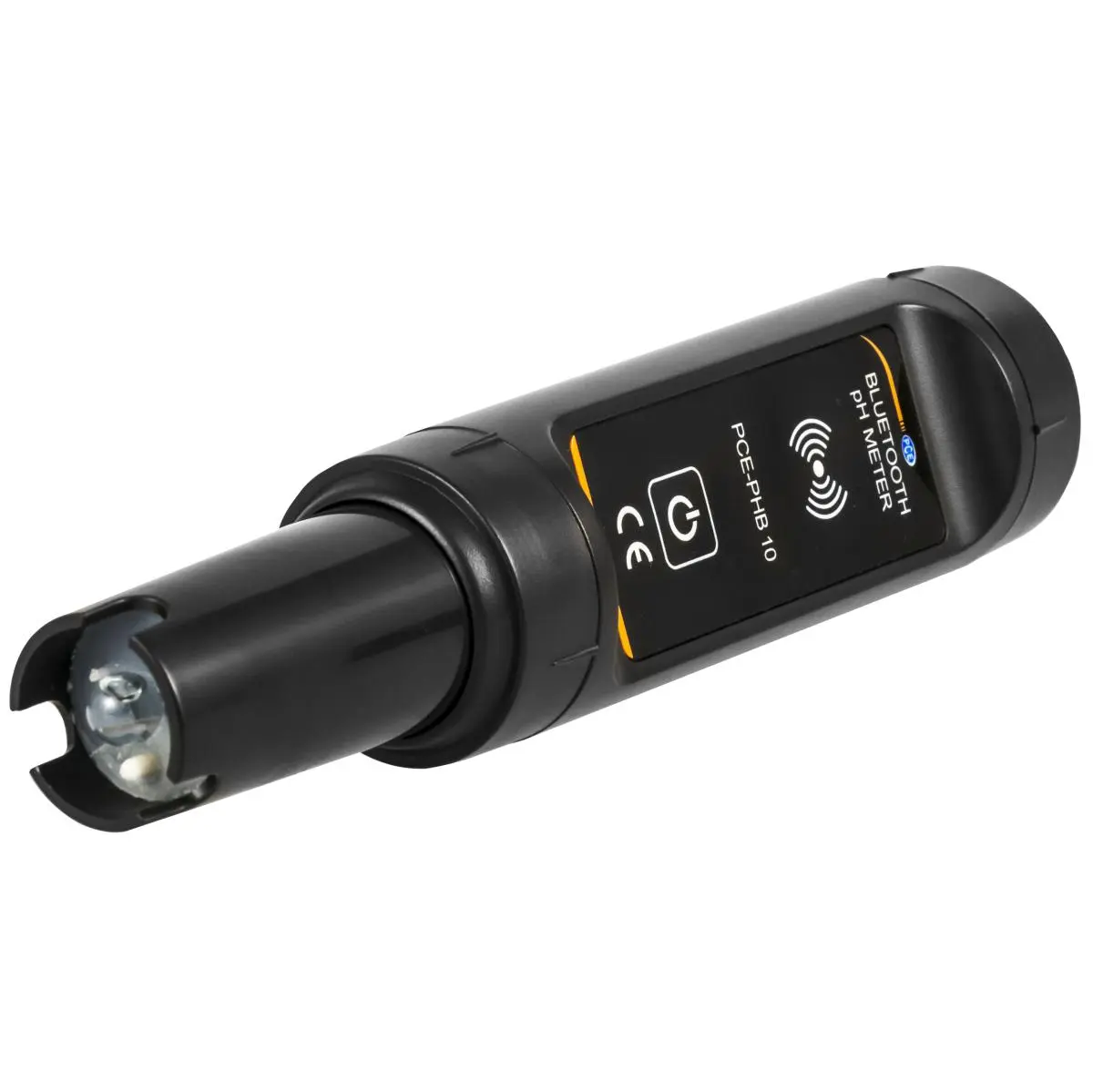

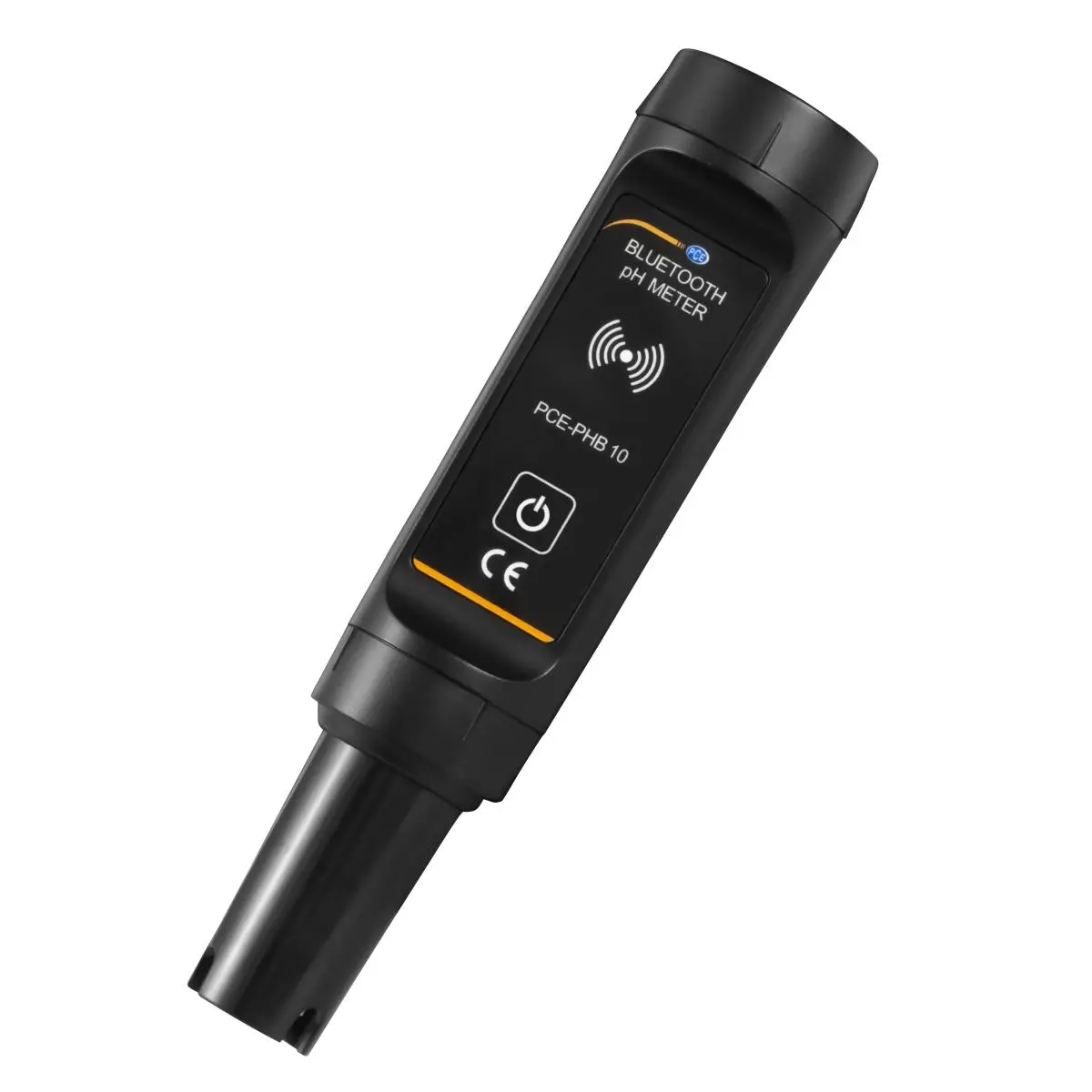

IoT Sensor PCE-PHB 10 Especially for Outdoor Use

Order no.: PCE-PHB 10
GTIN (EAN): 4250348723185
£ 84.00
£ 100.80
Wireless
price ex. (VAT / delivery)
:
4250348723185
PCE-PHB 10
Delivery time: 1-2 working days

Accessory

ISO certificate CAL-PCE-PH for pH meters
ISO certificate CAL-PCE-PH for pH meters
£ 64.00

Description

Bluetooth IoT Sensor with references included / Measuring range -2.0 ... 20.0 pH / Optional with calibration certificate / Temperature compensation between 0 ... 100°C (32 ... 212°F) / Exchangeable batteries / Transport bag / Removable electrode

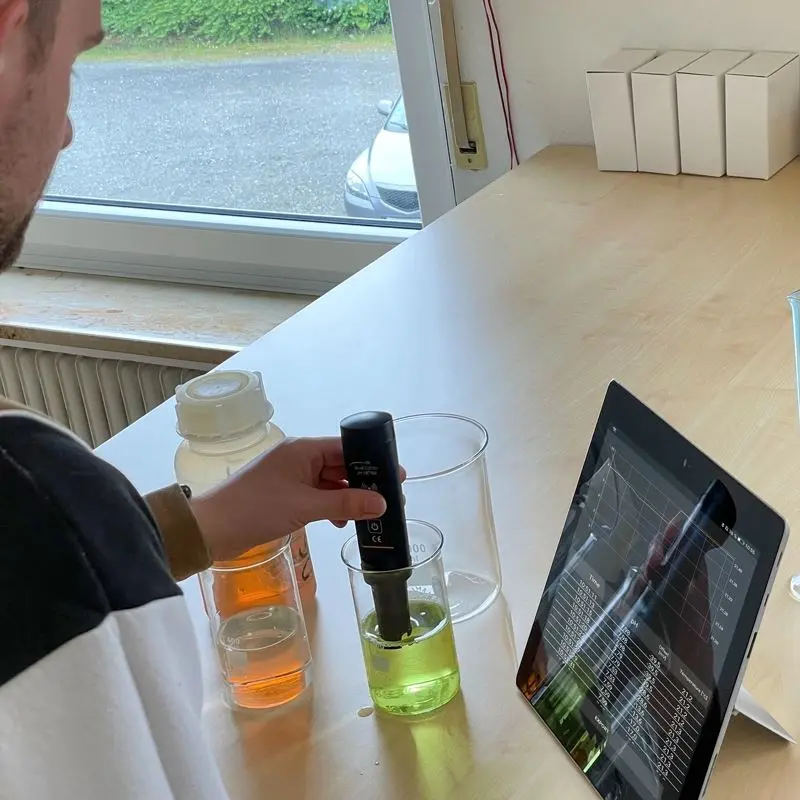

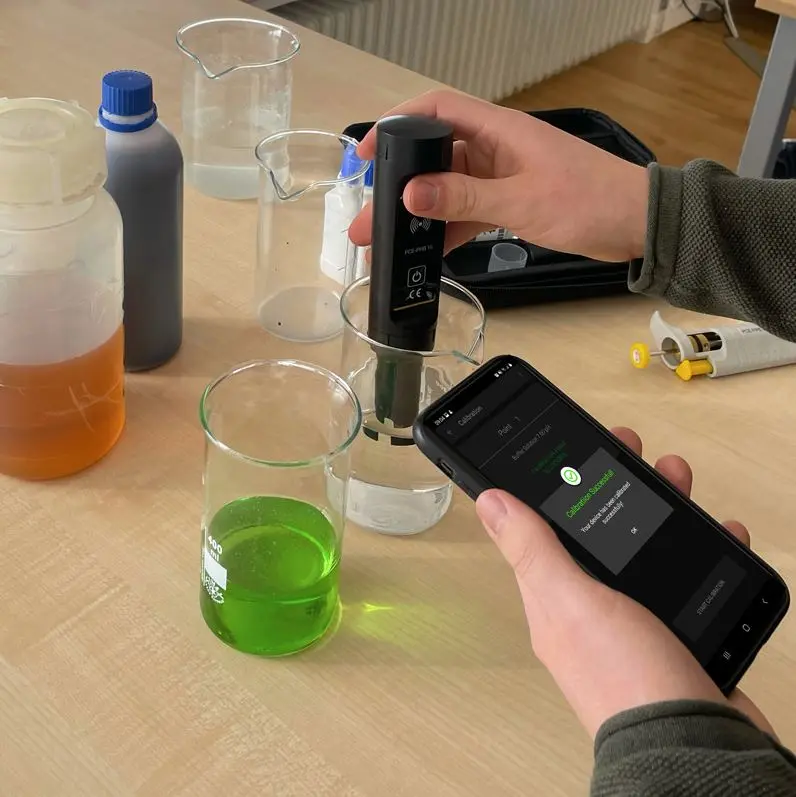

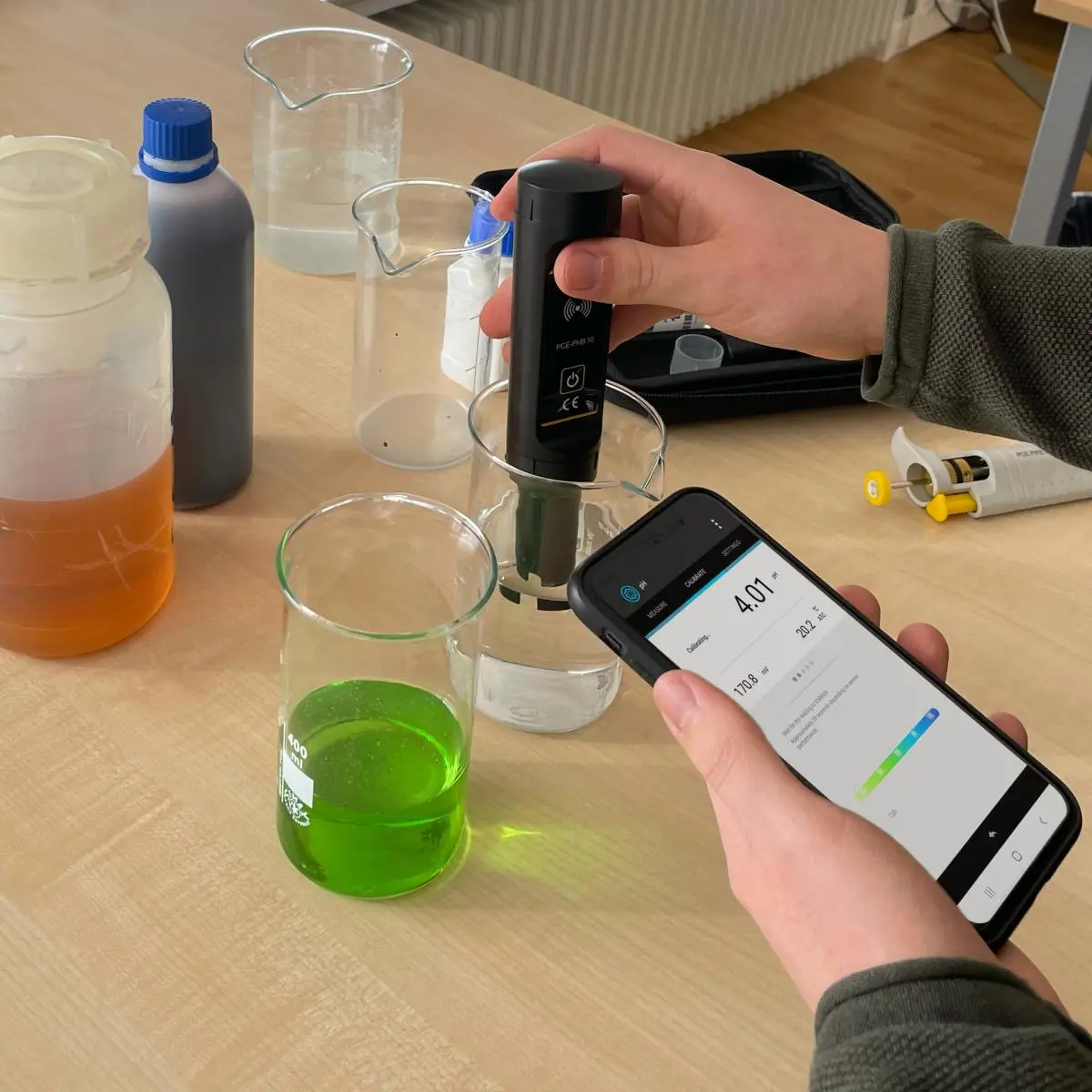

The IoT sensor with a measuring range of -2… 20 pH is used to analyze liquid samples. Thus, the water quality of swimming pools, lakes or rivers can be determined with the IoT sensor. A 3-point calibration can be carried out on the IoT sensor so that the measurement result is as accurate as possible. In addition, an automatic temperature compensation is carried out for each measurement.

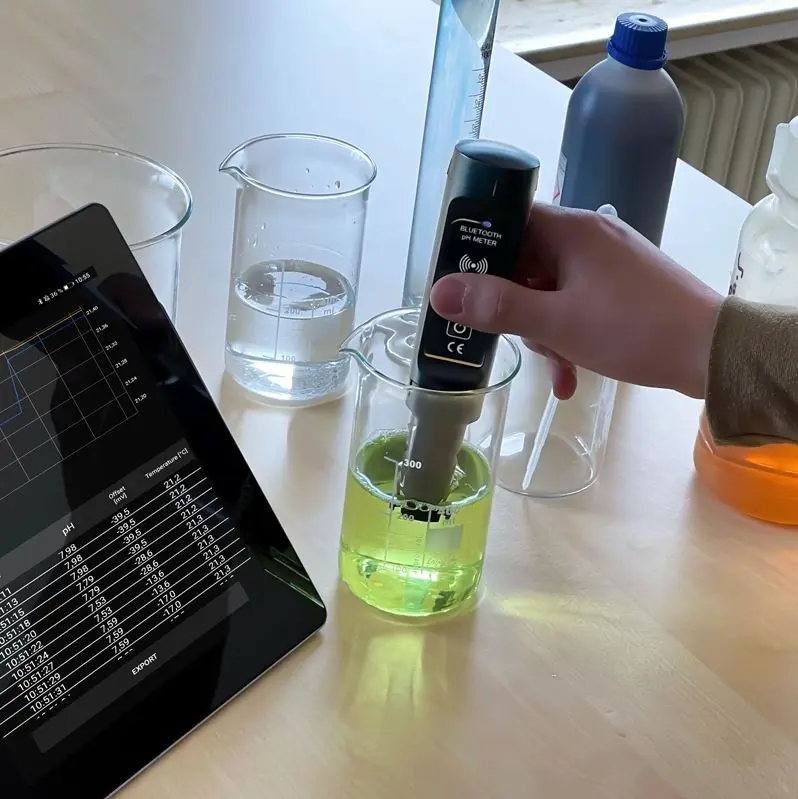

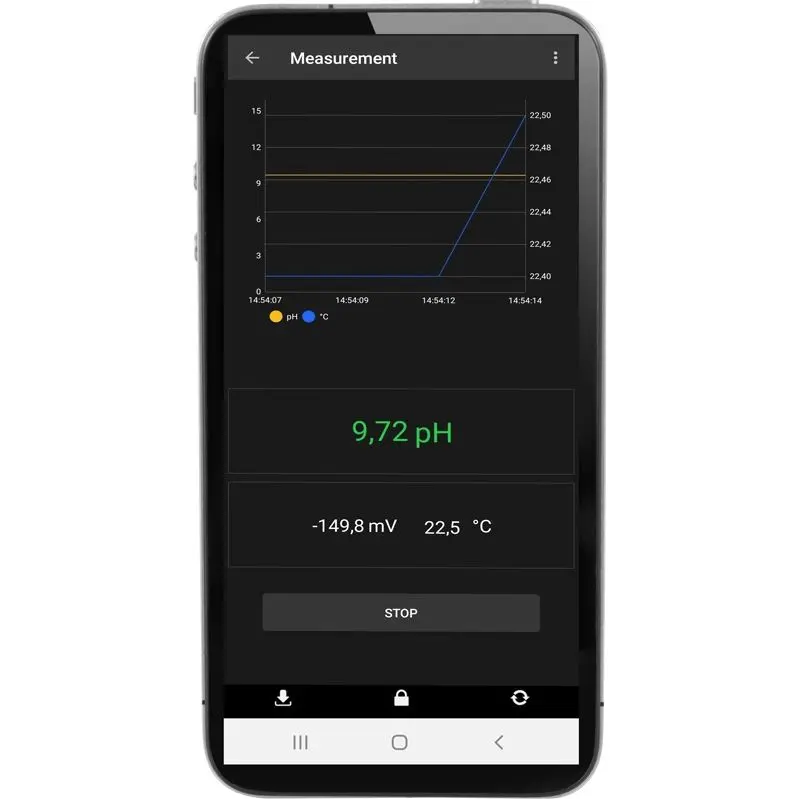

In order to operate the IoT sensor, it must be connected to an Android capable device. The corresponding app for the IoT sensor can be downloaded free of charge from the Play Store. The measured values ​​are displayed and saved with the app for the IoT sensor. After the measurement data have been saved, a PDF report can be generated via the app.

Highlights

- Bluetooth interface
- Measuring range -2.0 ... 20.0 pH
- High precision
- 3-point calibration
- Export and share the measurement data
- Calibration references already included in delivery

Specification

Measuring range pH -2.0 ... 20.0 pH
Resolution 0.01 pH
Accuracy ± 0.02 pH
Possible calibration points 1 ... 3
pH buffer solution pH 4.01, 7.00, 10.01
Calibration temperature coefficient         25°C (77°F)
Temperature compensation 0 ... 100°C (32 ... 212°F)

Measuring range mV ± 2000.0 mV
Resolution 0.1 mV
Accuracy ± 0.2 mV

Measuring range temperature 0 ... 100°C / 32 ... 212°F
Resolution 0.1°C / 0.18°F

Further specifications
Measurement mode Continually
Measurement interval One measured value every 2 ... 3 seconds
Protection class IP54
Compatible radio links Bluetooth 4.0 or better
Maximum radio range 10 m / 32.8 ft
Power supply 2 x 1.2V AA batteries
Operating conditions 0 ... 50°C / 32 ... 122°F, < 80% RH, non-condensing
Storage conditions -5 ... 60°C / 23 ... 140°F, < 80% RH, non-condensing
Dimensions 185 × Ø40 mm / 7.3 x Ø1.6 in
Weight 100 g / 3.5 oz

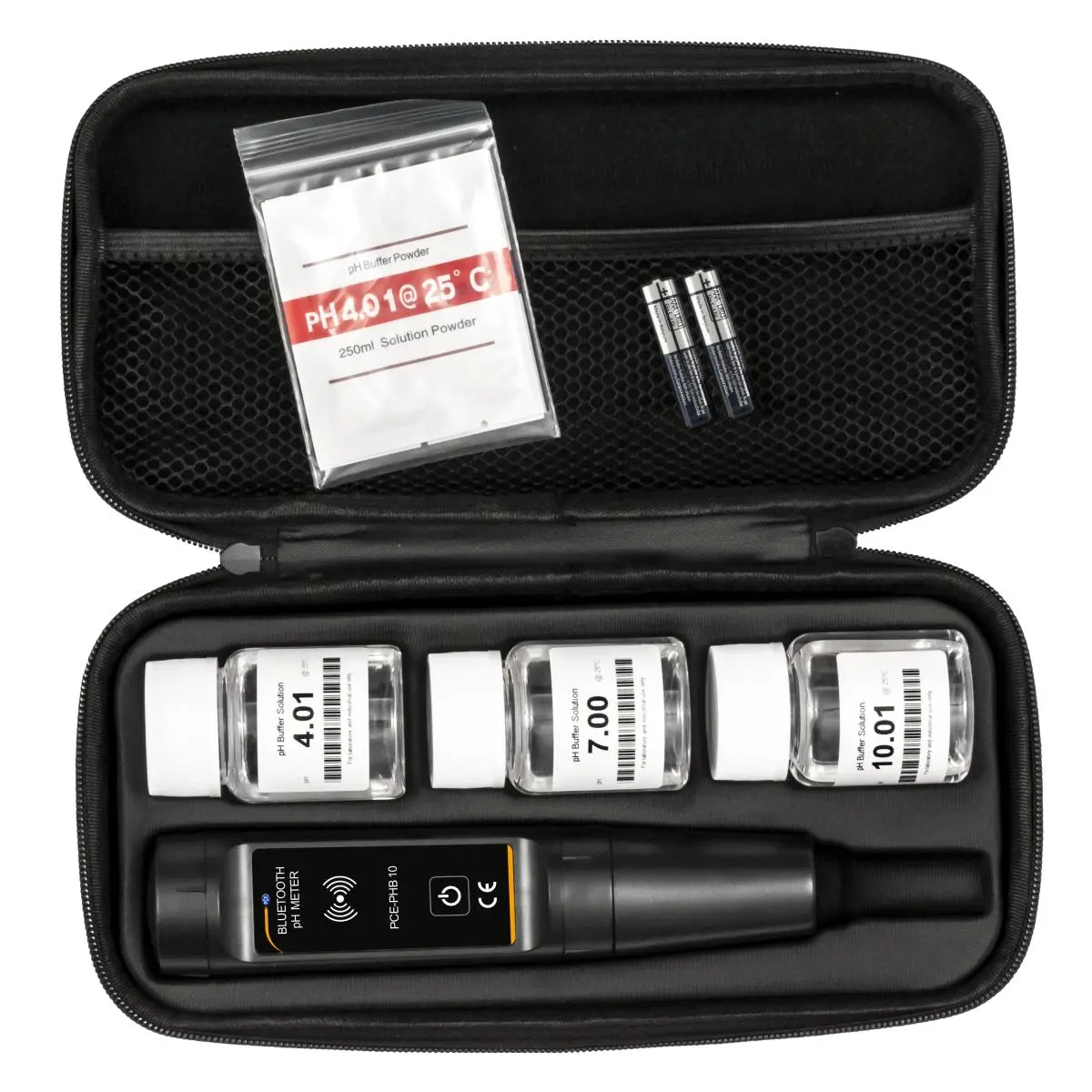

Delivery Scope

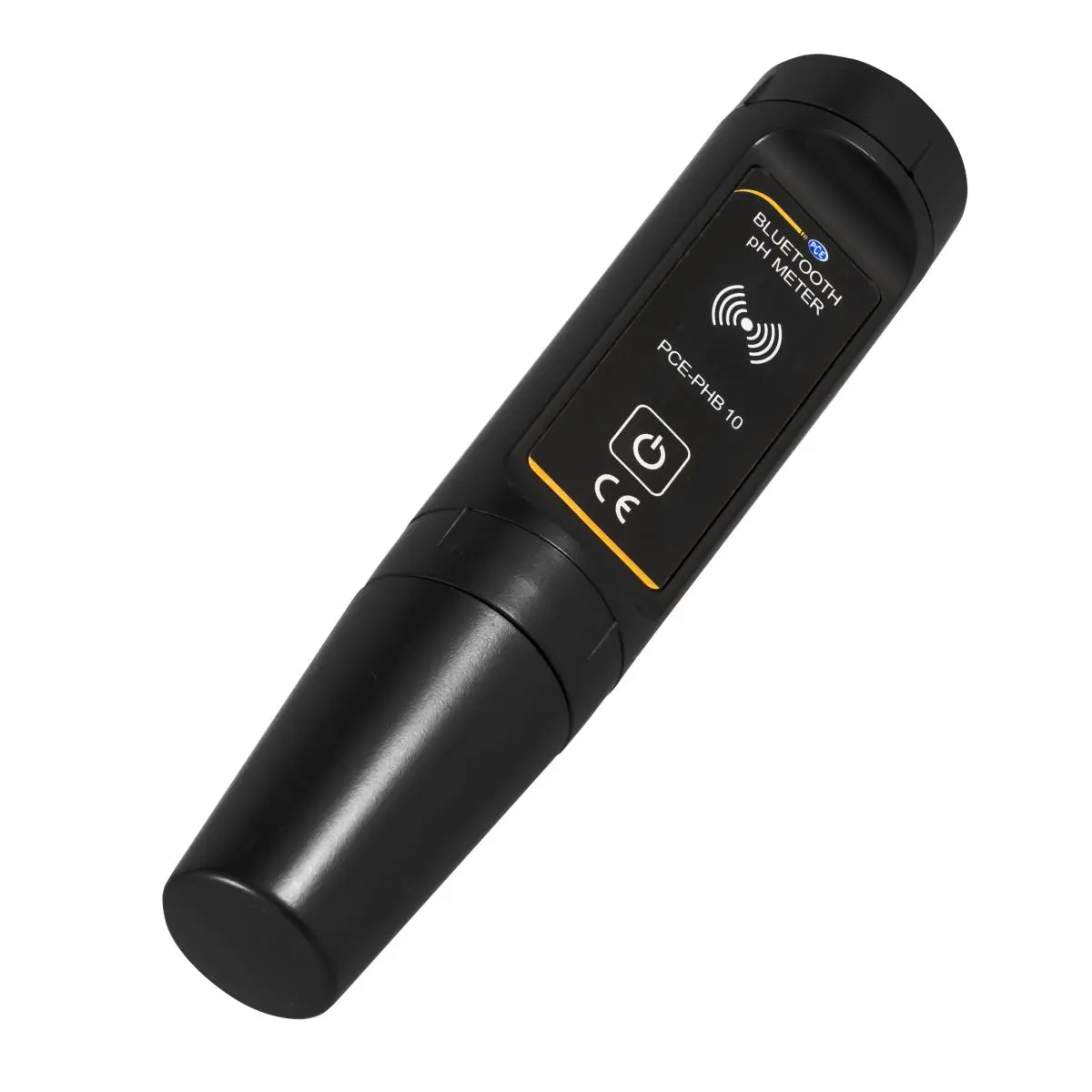

1 x IoT Sensor PCE-PHB 10

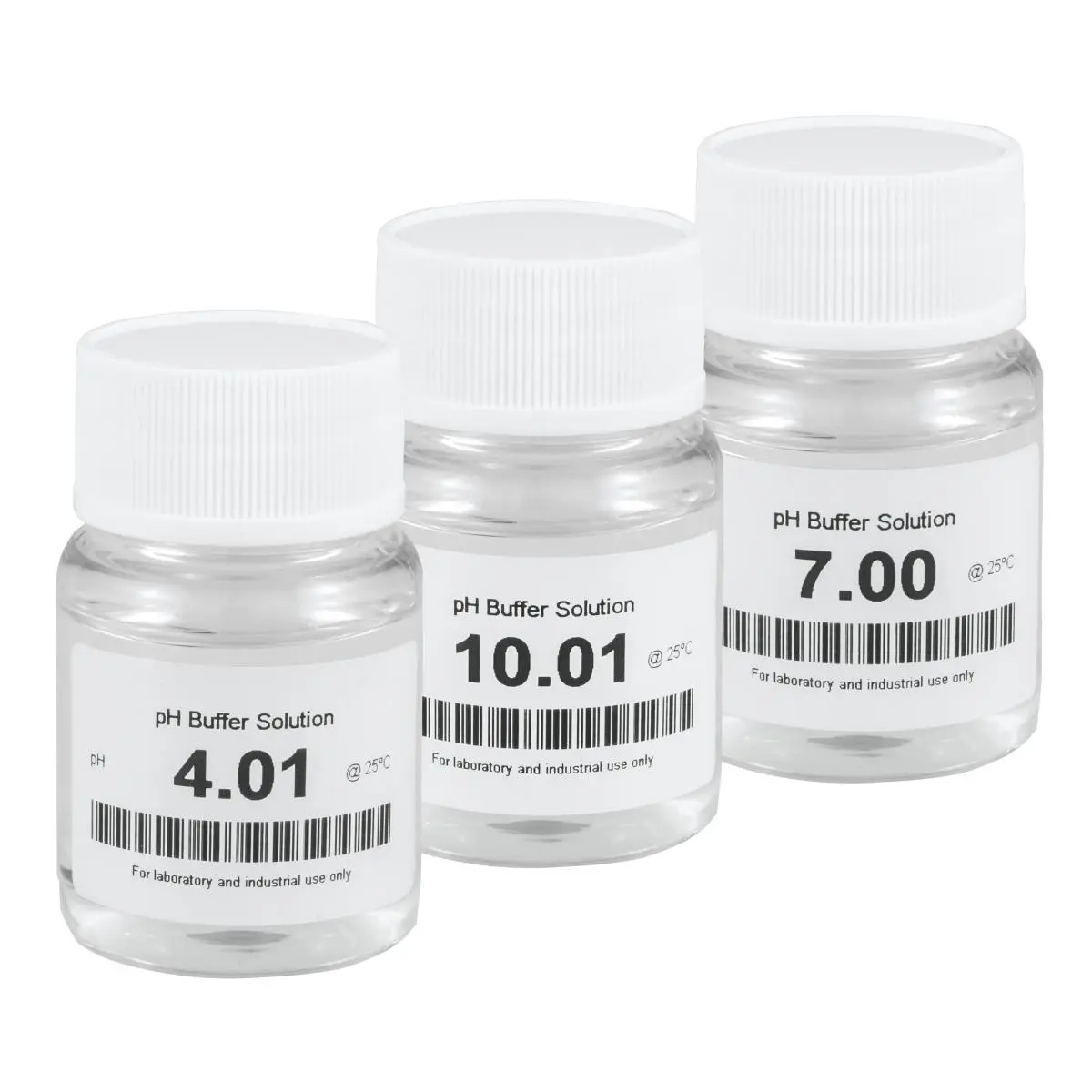

1 x Set of calibration solution consisting of PH 4.0, PH 7.00 and PH 10.01
1 x Set of calibration buffer powder consisting of PH 4.0, PH 7.00 and PH 10.01
1 x Transport bag
2 x 1.5V AAA batteries
1 x Instruction manual
