Lux Meter PCE-EM 883

Order no.: PCE-EM 883
GTIN (EAN): 4250348714152
£ 198.00
£ 237.60
price ex. (VAT / delivery)
:
4250348714152
PCE-EM 883
Delivery time: 1-2 working days

Description

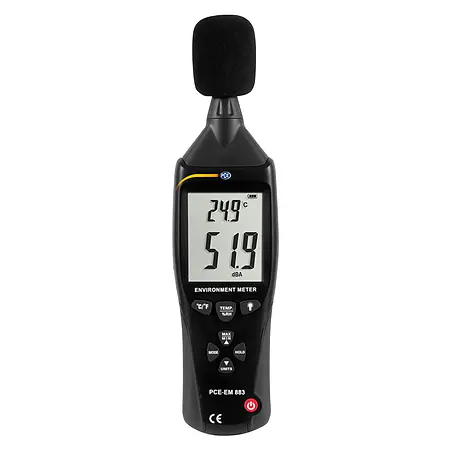

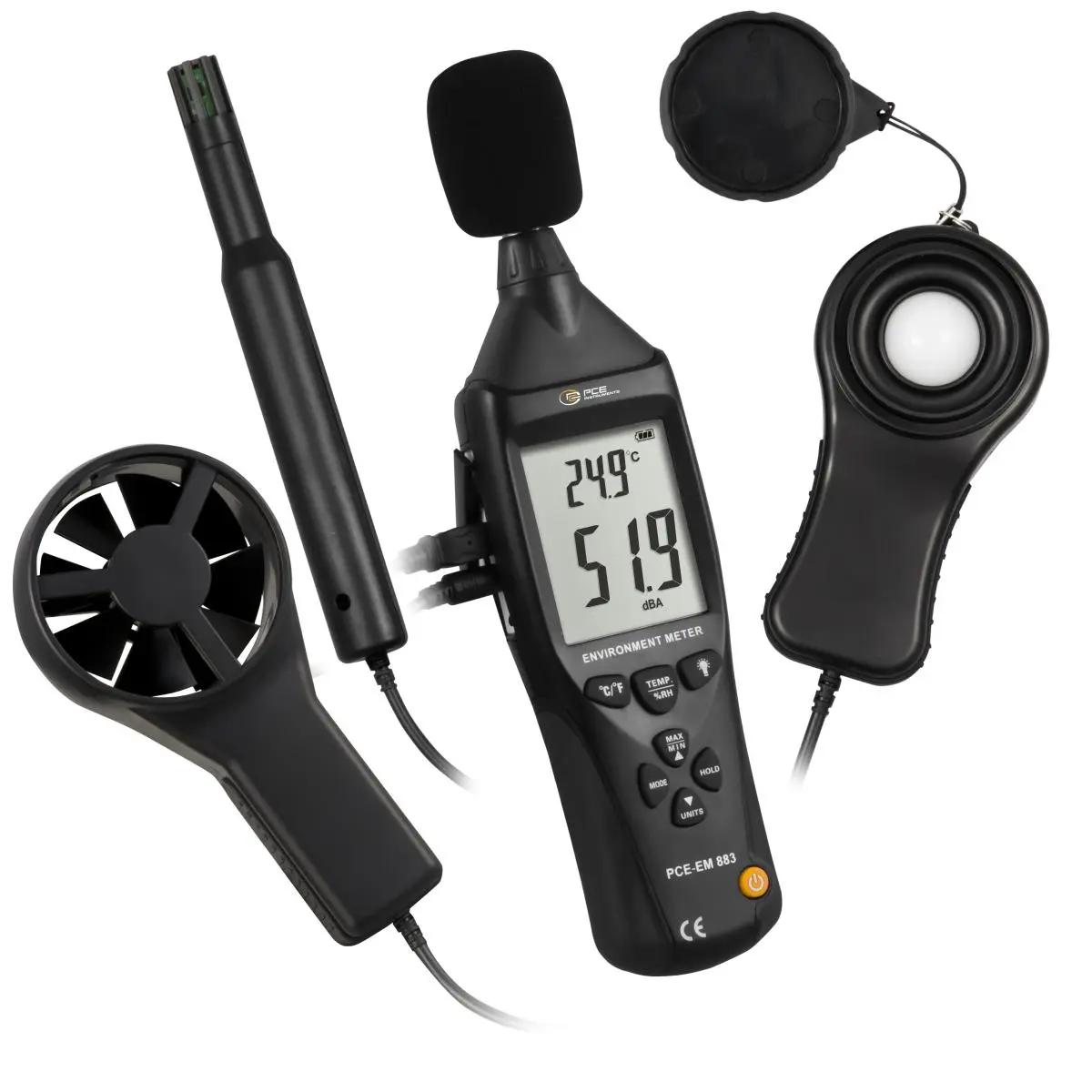

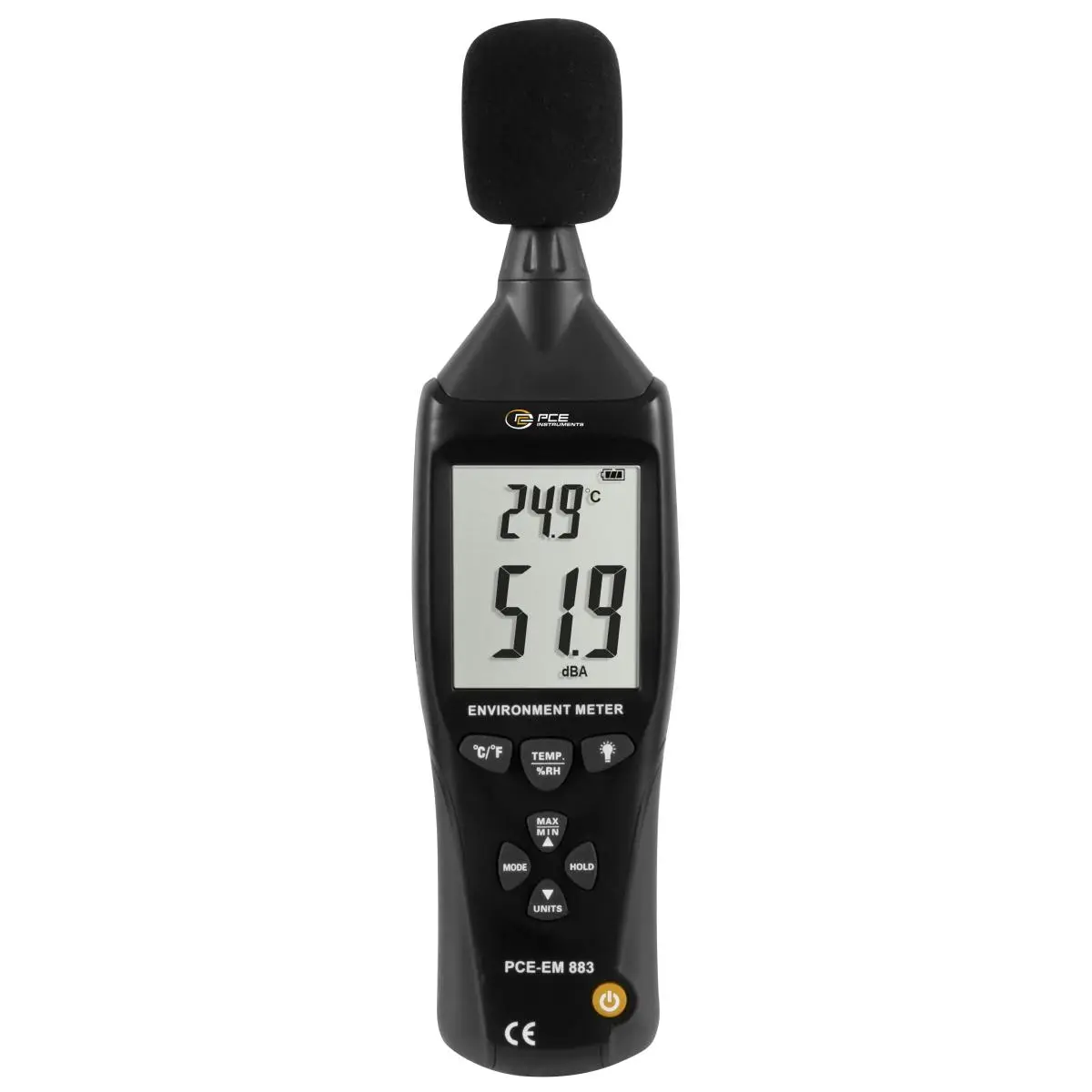

Lux meter PCE-EM 883
Multifunctional environmental measuring instrument with extensive accessories / Measurement of sound, light, wind speed, temperature and humidity / Data Hold, MIN and Max function / Backlight

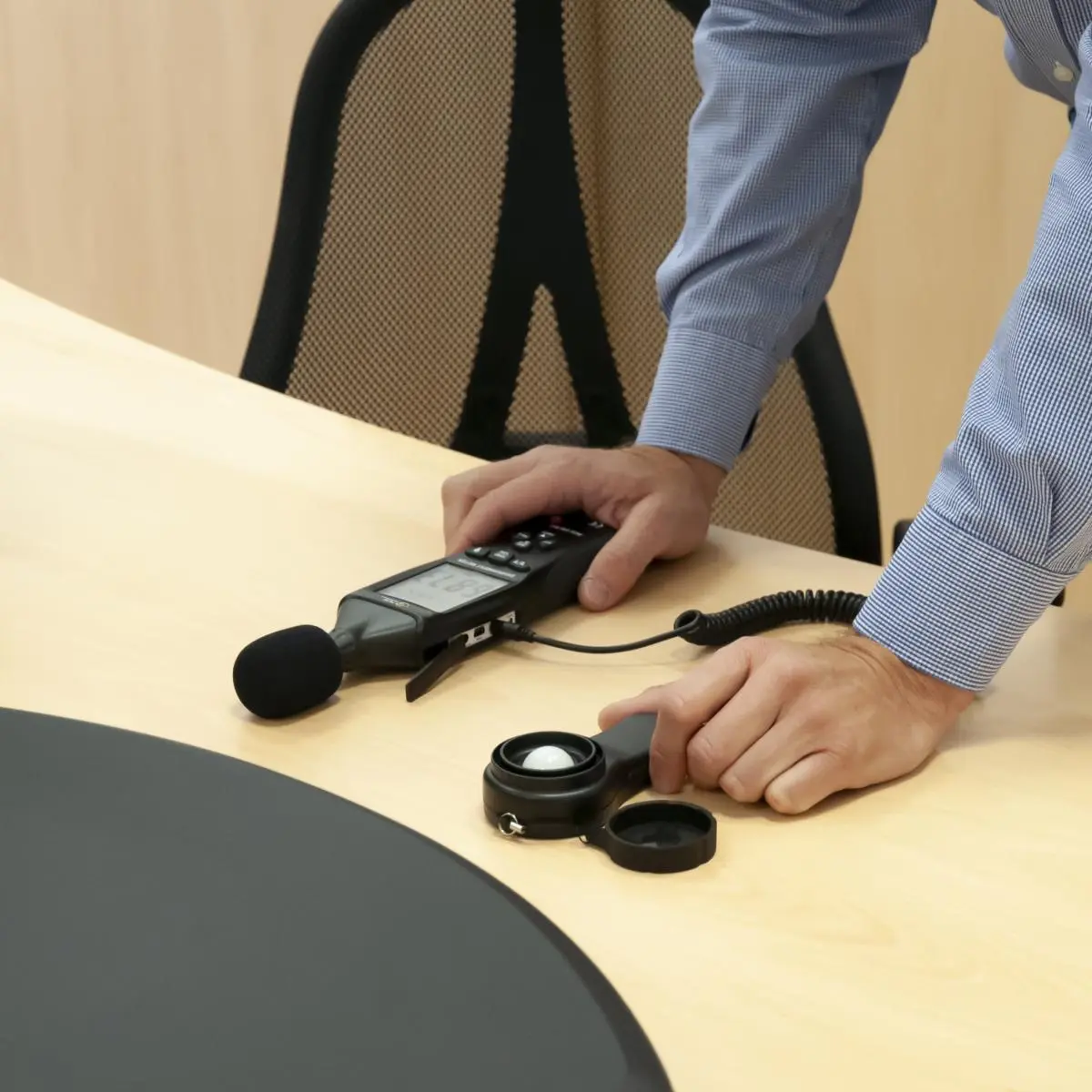

Our multifunctional lux meter PCE-EM 883 combines all important features for measuring the ambient conditions in one device. The lux meter is designed as fast as possible to determine as many parameters as possible. Due to the large number of external sensors that the lux meter brings with it, such fast and precise measurements are possible. Our multifunctional lux meter is able to detect not only the sound level but also the temperature, the light, the wind speed and the humidity of the environment.

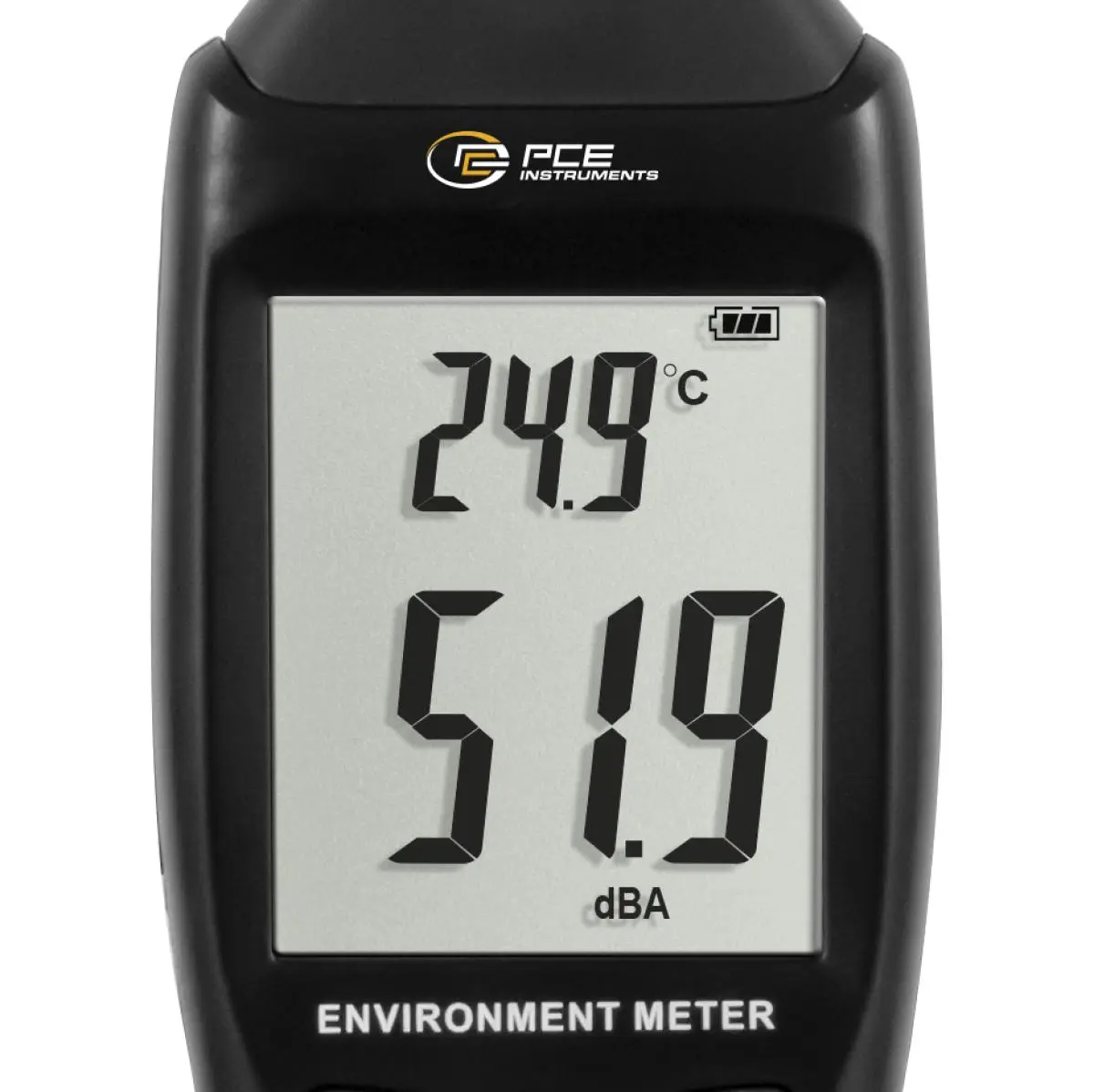

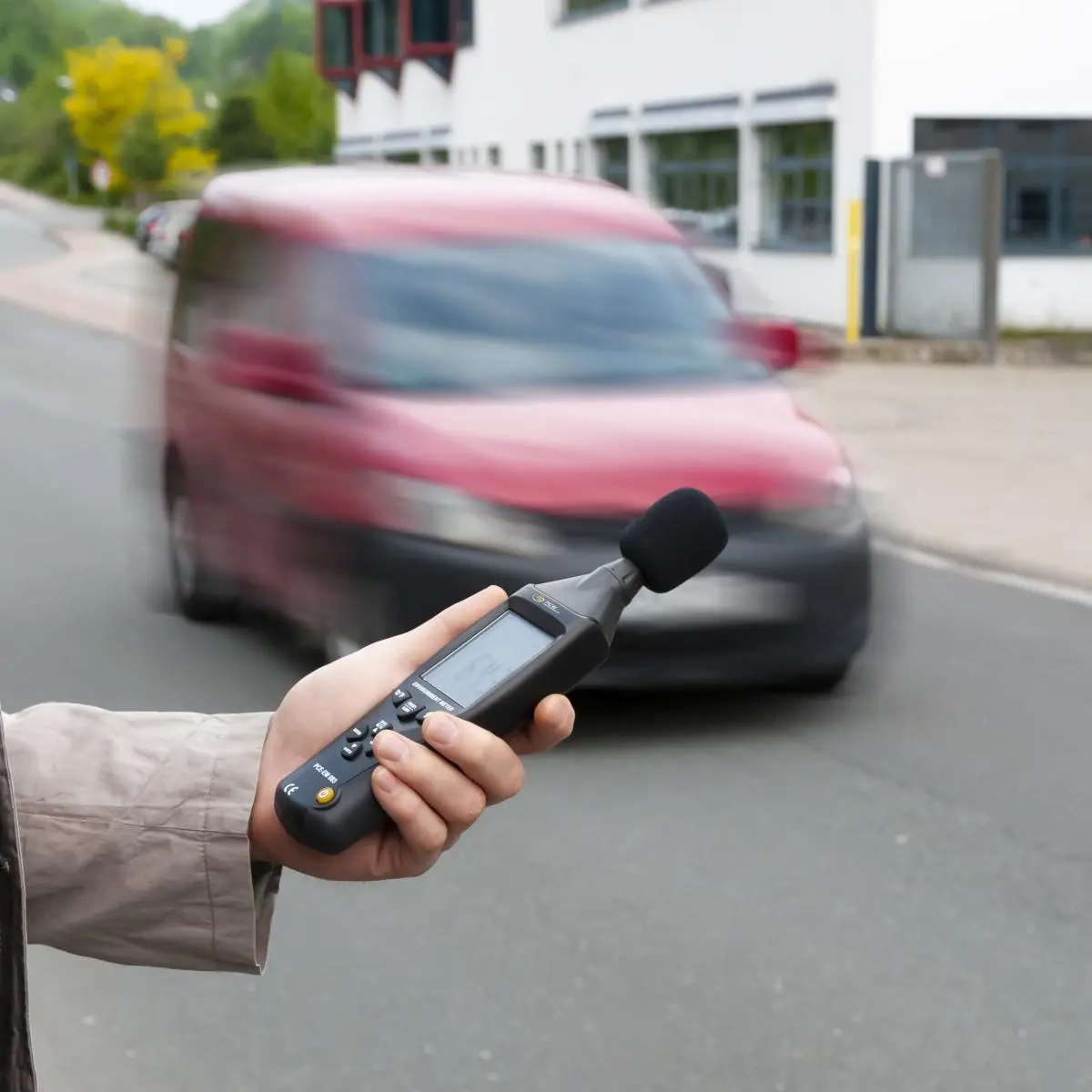

The compact meter allows one-handed operation as it has only eight buttons that are easily accessible. Because our lux meter is a non-stationary device, non-stationary measurements can be made at various locations. The backlight supports this field of application, as it is possible to use the device in dark places, without limitation of readability.

Highlights

- Measurement of all relevant environmental parameters
- High measurement accuracy
- One-hand operation
- Backlit
- MIN, MAX, HOLD function
- Automatic shutdown

Specification

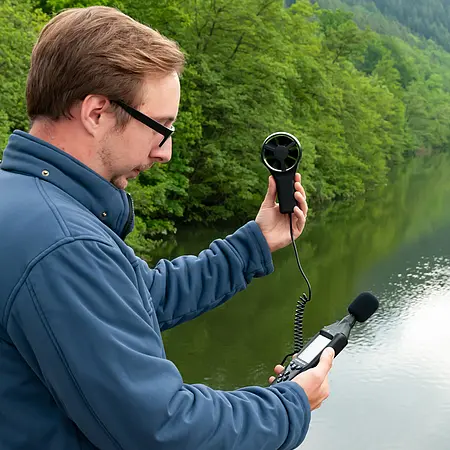

Wind speed
Measuring range 0.5 ... 30 m / s
Accuracy ± 10%
Unit of measurement m / s, km / h, ft / min, knots, mph

Temperature
Measuring range -40 ... 70°C / -40 ... 158°F
Accuracy ± 2°C / 3.6°F
Unit of measurement °C, °F
Resolution 0.1°C / 0.18°F

Humidity
Measuring range 10 ... 95% rh
Accuracy ± 5% rh
Resolution 0.1% RH

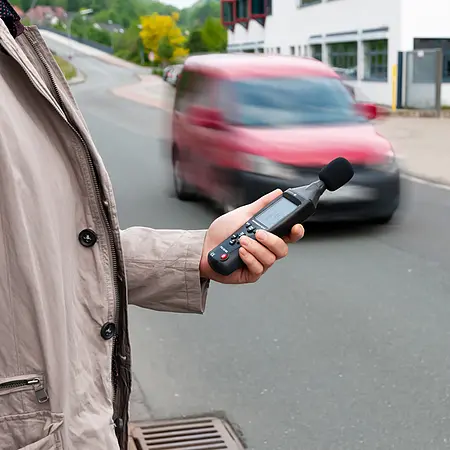

Sound
Measuring range 35 ... 130 dB
Accuracy ± 2 dB
Resolution 0.1 dB

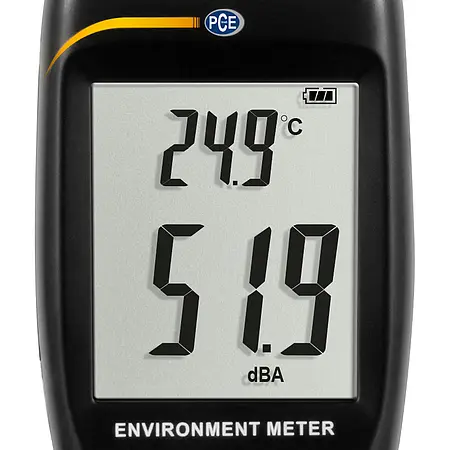

Display 4 digits
Frequency range 31.5 Hz ... 8 kHz
Frequency dBA
Microphone Electric condenser microphone
Applied standard IEC61672-1 CLASS2

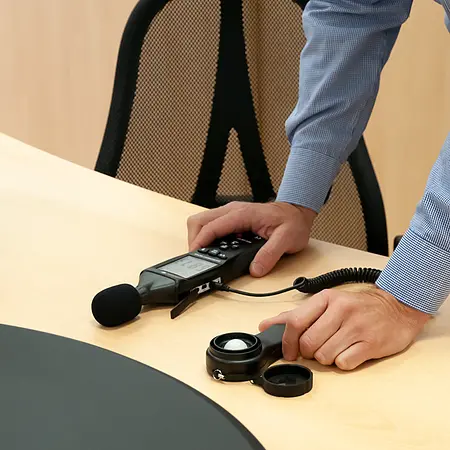

Light
Measuring range 0 ... 200000 lx; 0 ... 20000 Fc
Spectral CIE photo-optic (CIE sensitivity of a human eye)
Spectral accuracy CIE Vλ function f1 '≤6%
Cosine behavior f2 '≤ 2%
Accuracy ± 15%
Measuring sensor Silicon photodiode with filter

General specifications
Data update 1 x per second
Measurement functions Maximum value (MAX)
Minimum value (MIN)
Data Hold function (Hold)
Automatic shutdown After about 15 minutes of inactivity
Power supply 1 x 9V block battery
Environmental conditions         -20 ... 60°C / -4 ... 140°F, 10 ... 90% rh
Storage conditions -20 ... 60°C / -4 ... 140°F, 10 ... 90% rh
Dimensions 252 x 66 x 33 mm / 9.9 x 2.6 x 1.3 in
Weight 568 g / 1.3 lbs

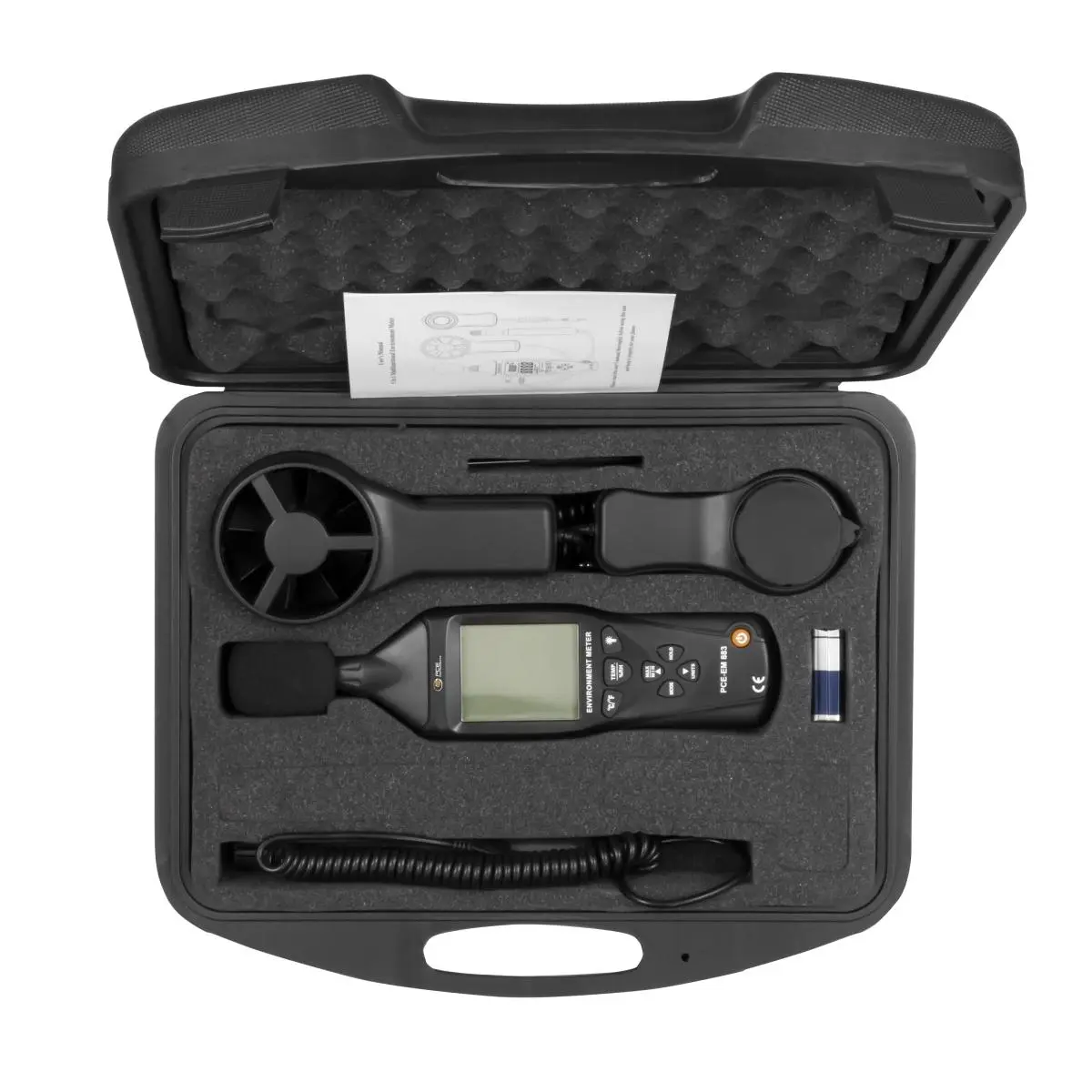

Delivery Scope

1 x Lux meter PCE-EM 883
1 x Sound sensor

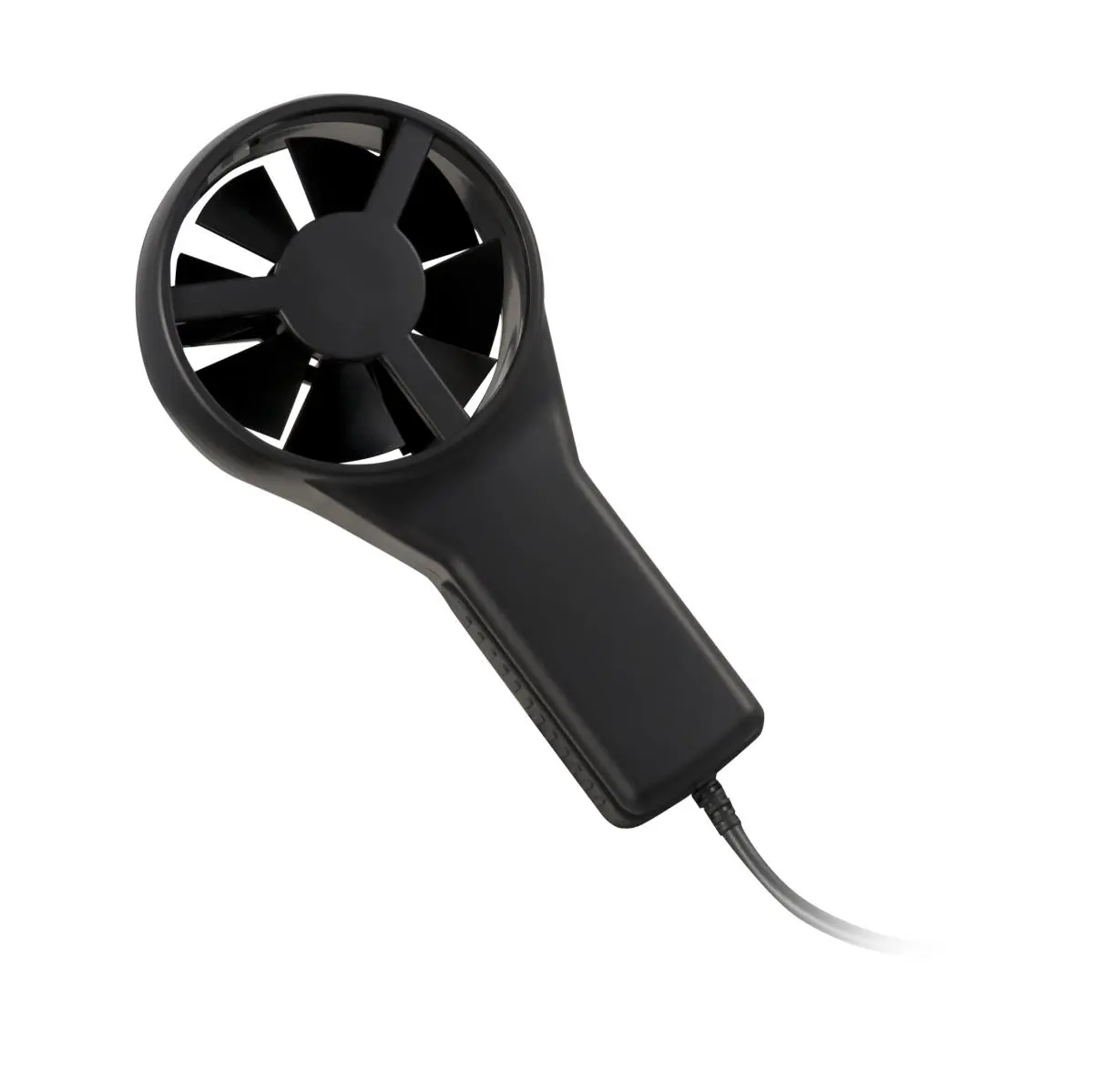

1 x Wind speed sensor

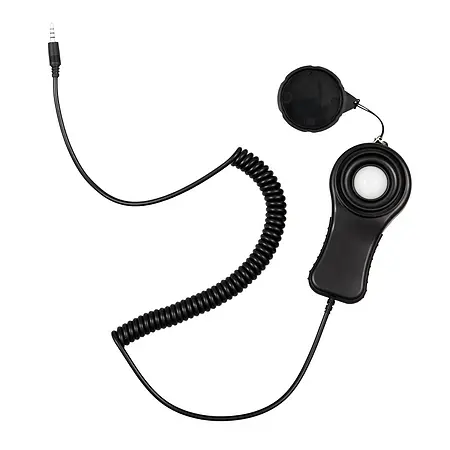

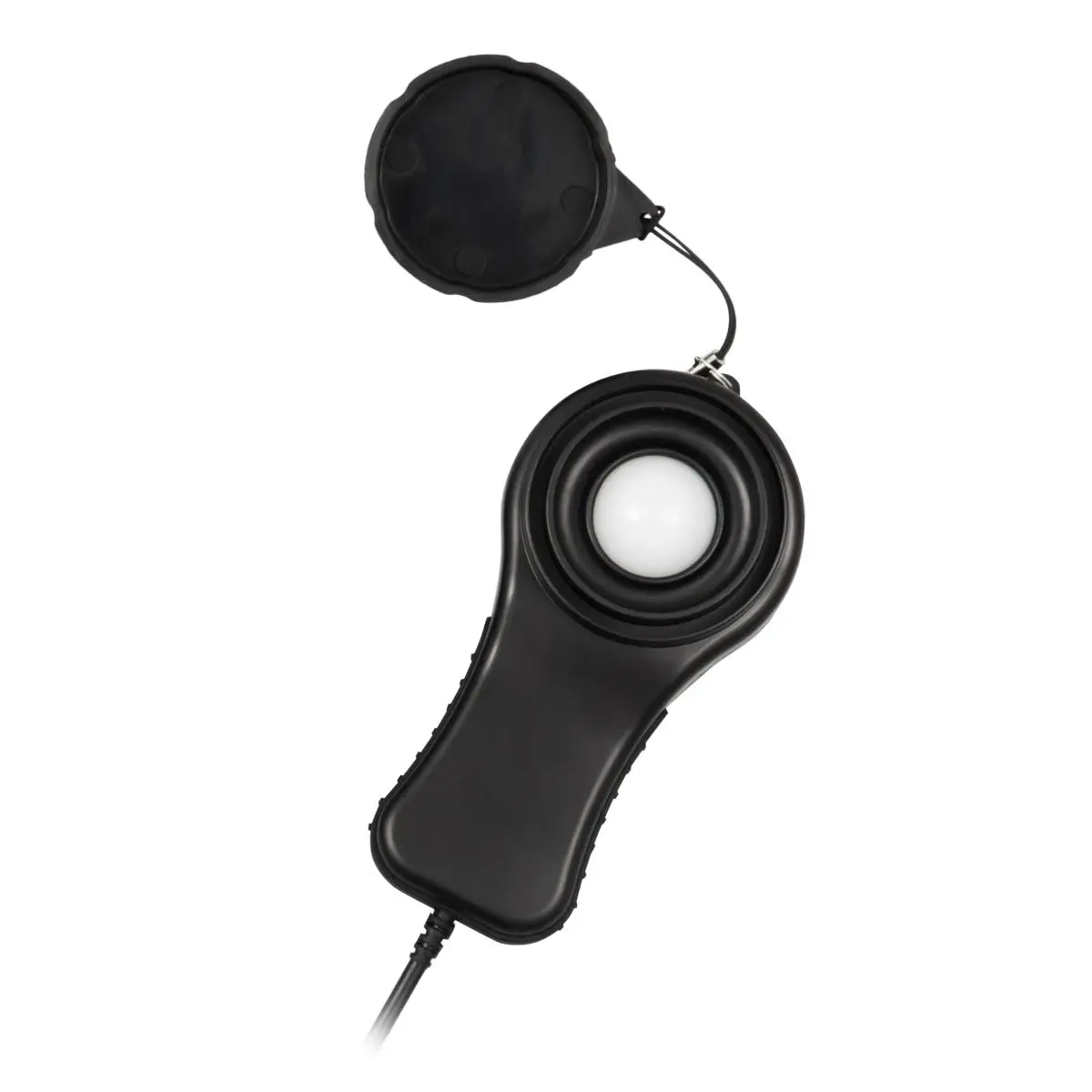

1 x Light sensor
1 x Temperature sensor

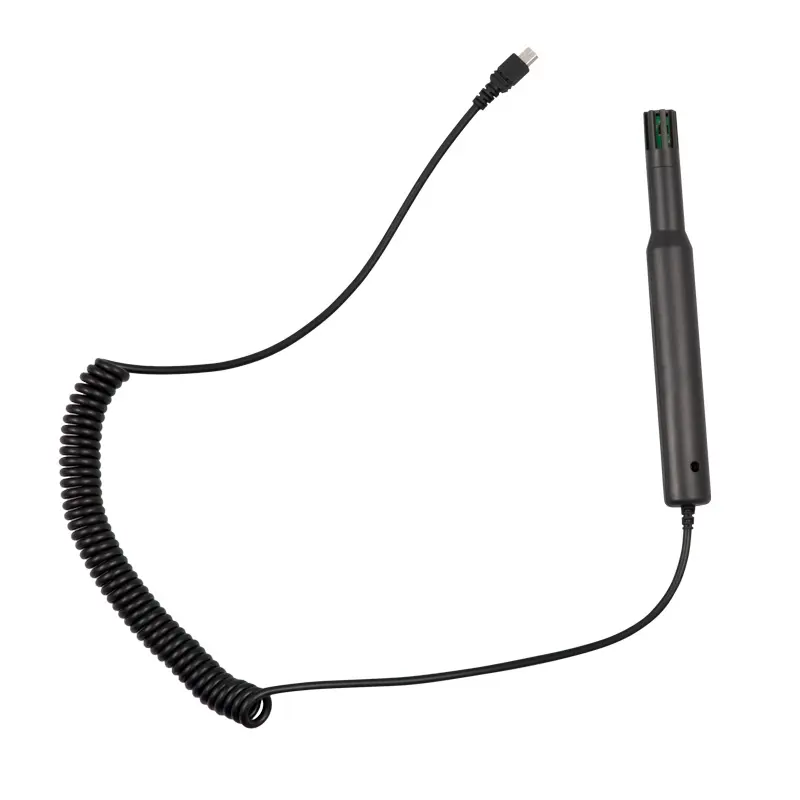

1 x Humidity sensor
1 x Wind noise suppressor
1 x 9V block battery
