Moisture Meter PCE-HT 112

Order no.: PCE-HT 112
GTIN (EAN): 4250348721372
£ 104.00
£ 124.80
price ex. (VAT / delivery)
:
4250348721372
PCE-HT 112
Delivery time: 1-2 working days

Accessory

External Temperature / Rel. Humidity Sensor PROBE-PCE-HT 11X
External Temperature / Rel. Humidity Sensor PROBE-PCE-HT 11X
£ 35.00
ISO Calibration Certificate for Temperature and Humidity
ISO Calibration Certificate for Temperature and Humidity
£ 142.00

Description

Moisture meter PCE-HT 112
For temperature and humidity / LCD / 25920 Data memory /
Fast reading via USB / Adjustable alarm limits

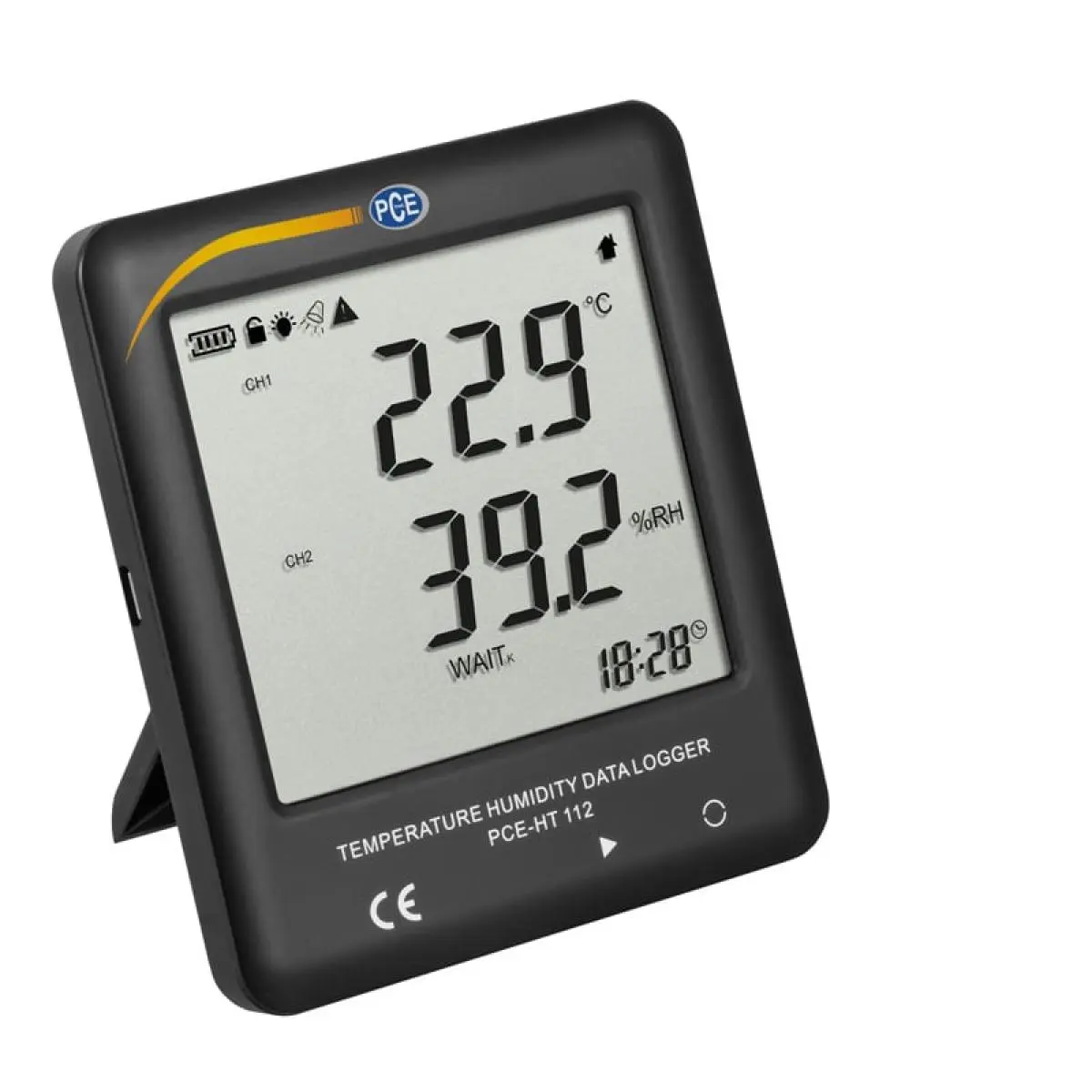

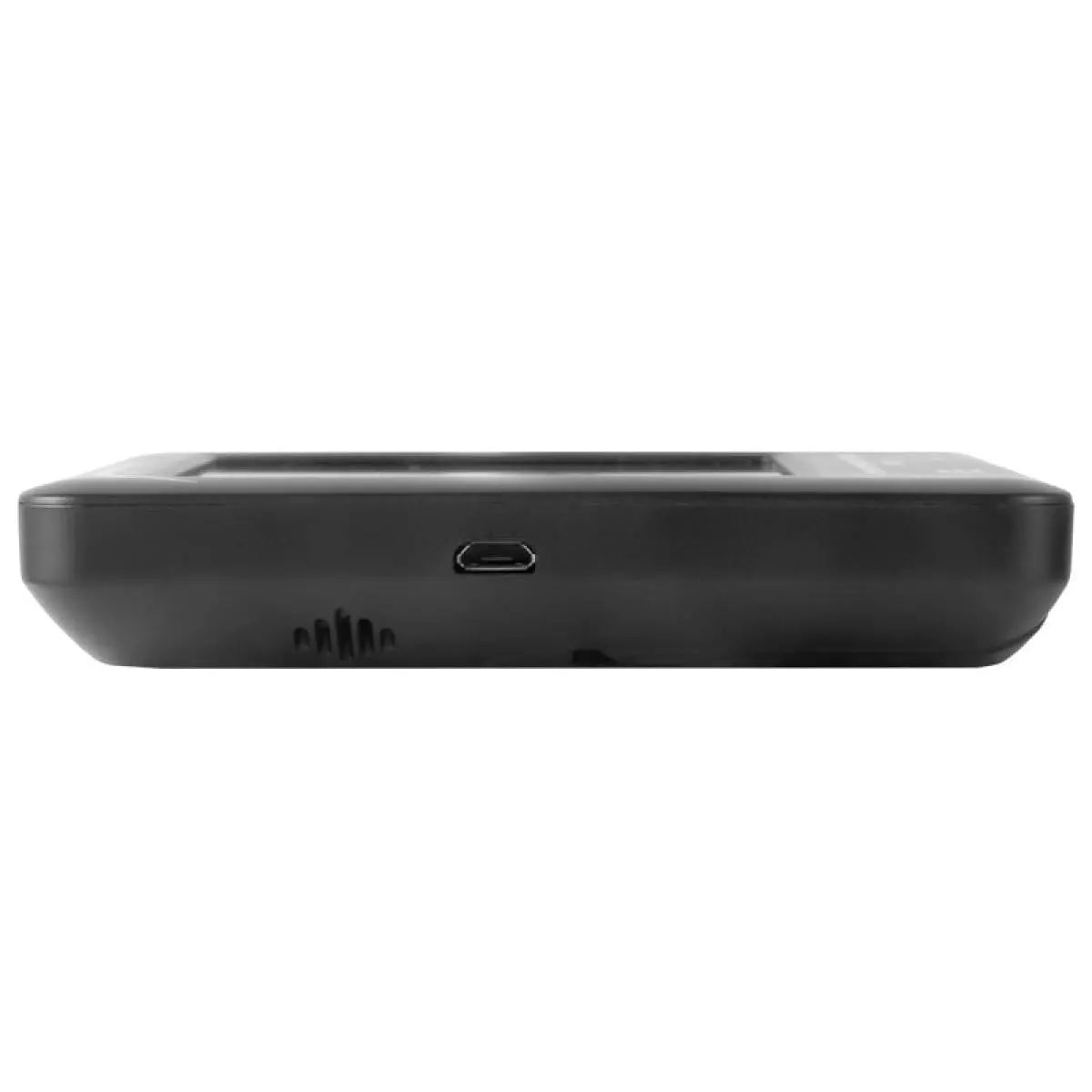

The moisture meter PCE-HT 112 is compact, very small and equipped with a display. The moisture meter PCE-HT 112 records the temperature and humidity inside with its integrated sensor and simultaneously displays it via the LCD display. The moisture meter PCE-HT 112 can store up to 25,920 measured values, which can be evaluated with the aid of the software. To establish a connection to a PC, the moisture meter has a USB interface. The software can also set alarms for high or low temperatures. It is also possible to switch over to the optionally available external sensor via the software.

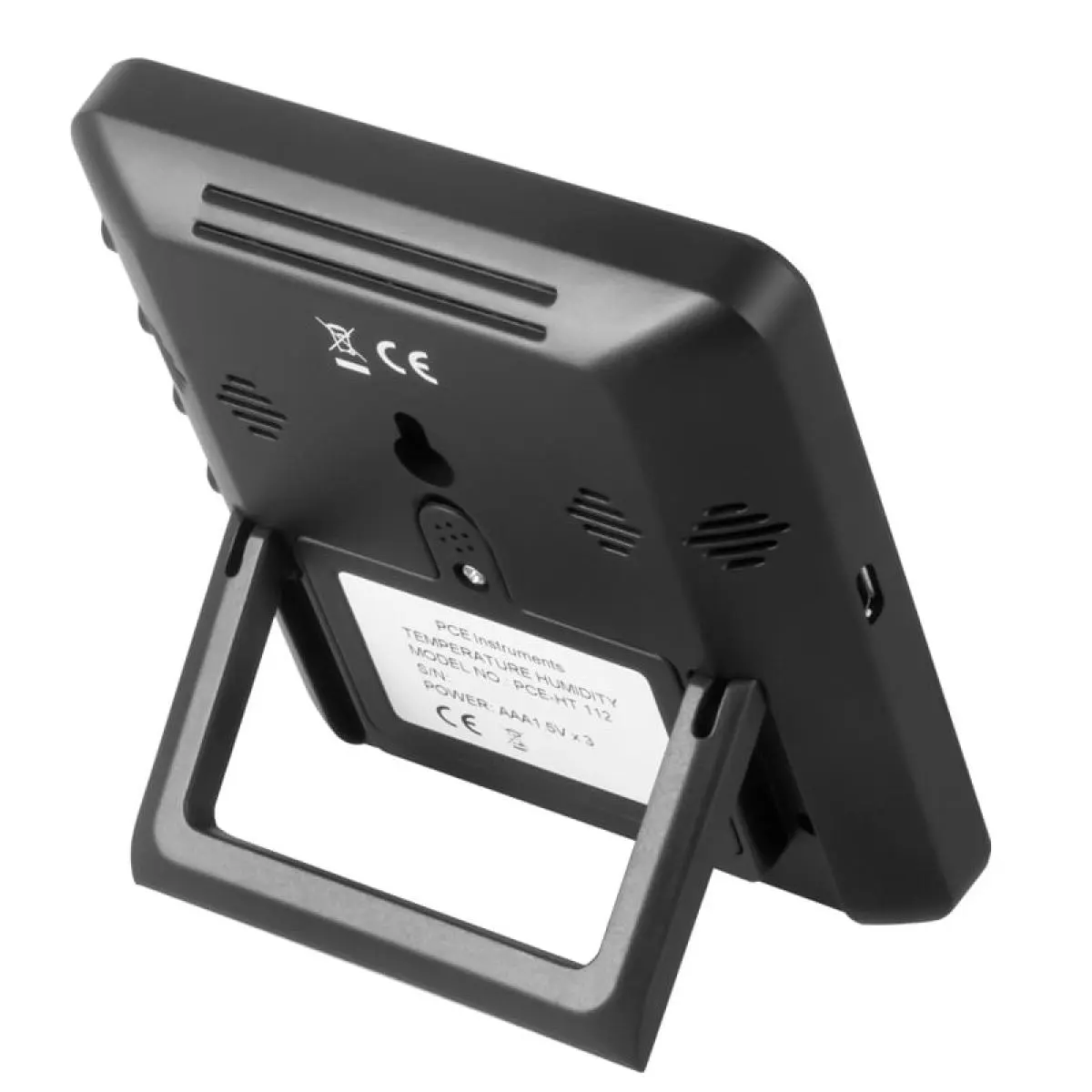

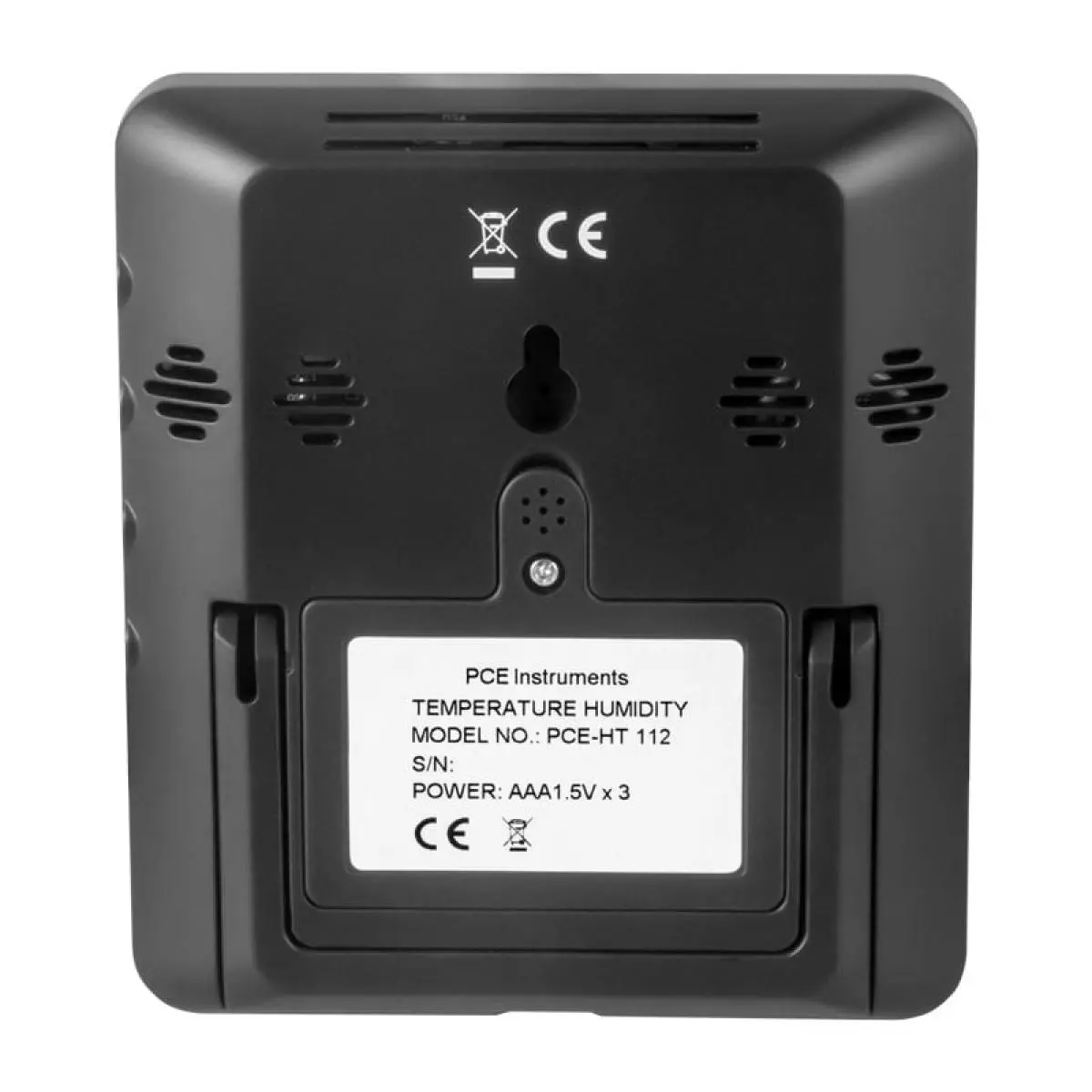

The moisture meter PCE-HT 112 stores the measured values ​​both in a format that is used by the software for analysis and as a PDF. In the PDF document that the moisture meter creates, a graph showing the course of the measurement is shown. Likewise, an overview of all measured values ​​is displayed directly in the measurement report. The moisture meter has a base and a mounting tab on the back. The display can be switched off for battery saver.

Highlights

- Temperature and humidity data logger
- LCD display
- Memory for 25,920 readings
- Fast reading via USB
- Adjustable alarm limits
- Internal and opt. external sensor

Specification

Measuring function Temperature
Measuring range       -30 ... 65°C
/ -22 ... 149°F
(internal)
-40 ... 125°C / -40 ... 257°F (external)
Resolution   0.1°C / 0.18°F
Accuracy ± 0.3°C / 0.54°F (-10 ... 65°C / 14 ... 149°F)
± 0.5°C / 0.9°F (remaining range)

Measuring function       Humidity
Measuring range        0 ... 100% RH (internal & external)
Resolution 0.1% RH
Accuracy < 3% (10% ... 90%)
  > 4% (remaining area)

Response time 15 min (internal)
5 min (external)
Storage 25920 readings
Storage rates 30s, 60s, 2 min, 5 min, 10 min, 15 min, 20 min, 25 min, 30 min, 1 h or individually adjustable
Measuring interval /
Refresh rate Display       		 5 s
Alarm Adjustable audible alarm
InferfaceUSB
Power supply         3 x 1.5V AAA batteries
5V USB
Battery life Approx. 1 year (without lighting / without alarm)
Operating                        conditions          -30 ... 65°C / -22 ... 149°F
Storage conditions        -30 ... 65°C / -22 ... 149°F (without battery)
Dimension 96 x 108 x 20 mm / 3.8 x 4.3 x 0.8 in
Weight 120 g / < 1 lb
Degree of protection         IP20

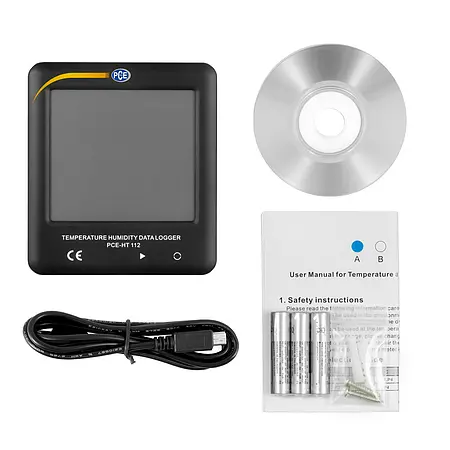

Delivery Scope

1 x Moisture meter PCE-HT 112
3 x 1.5V AAA battery
1 x Fastening set (dowel & screw)
1 x Micro USB cable
1 x Software on CD
1 x User manual
