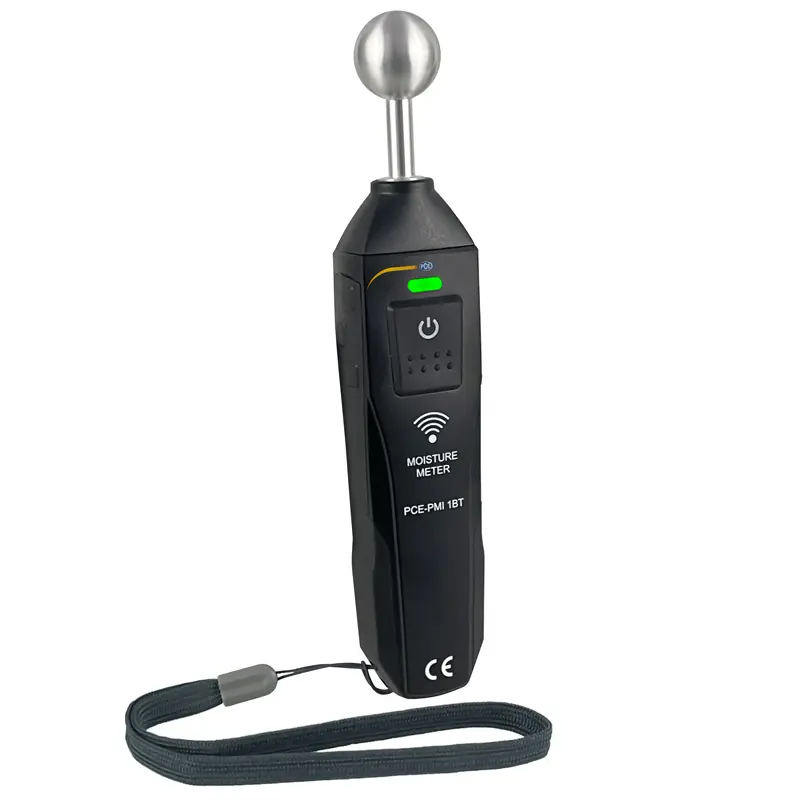

Moisture Meter PCE-PMI 1BT

Order no.: PCE-PMI 1BT
GTIN (EAN): 4250348723369
£ 104.00
£ 124.80
Wireless
price ex. (VAT / delivery)
:
4250348723369
PCE-PMI 1BT
Delivery time: 1-2 working days

Description

Moisture meter with Bluetooth interface / Measuring range 0.0 ... 100.0% /
Small and compact design / Data export in .csv, .pdf, .jpg / Battery operation /
For determining the moisture on various materials

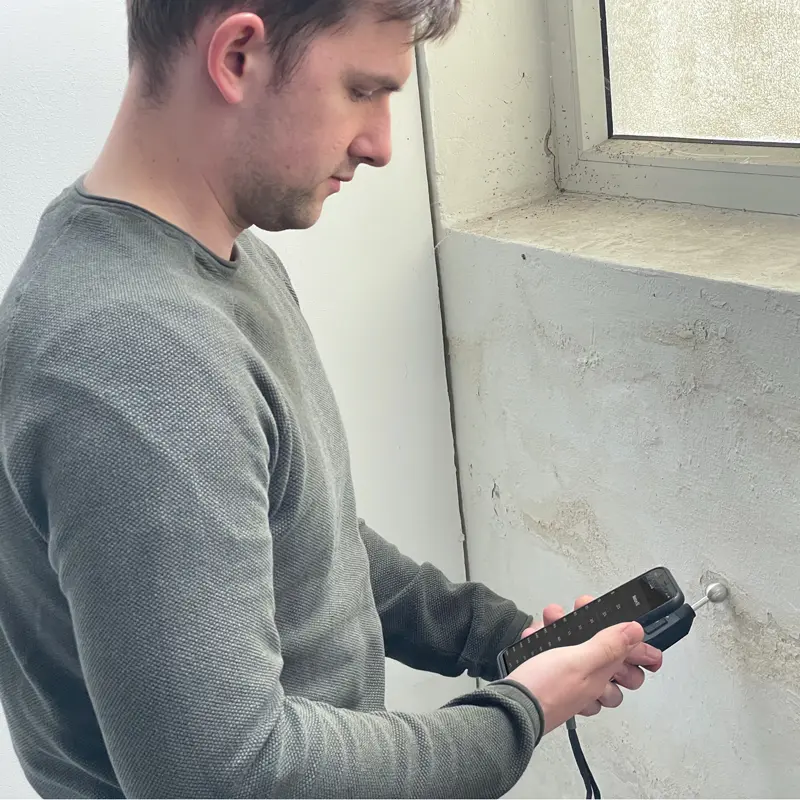

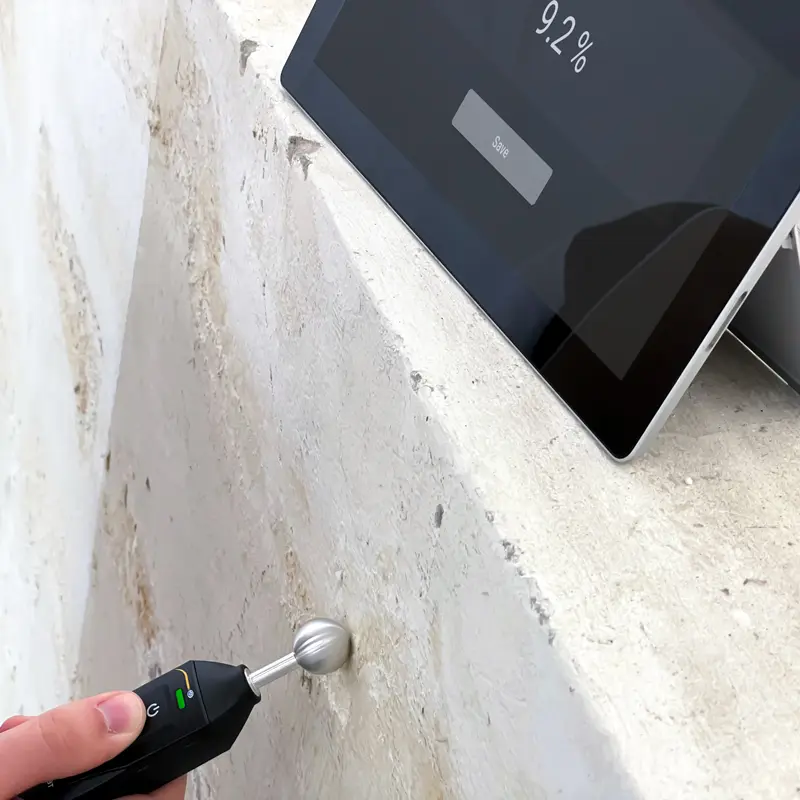

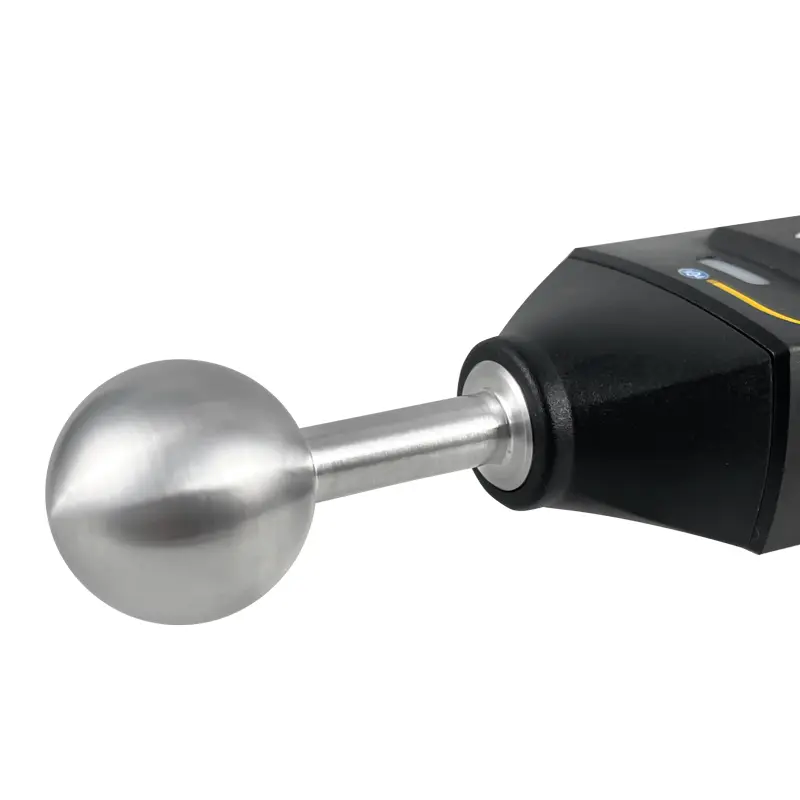

The moisture meter has a measuring range of 0.0…. 100.0%. For a measurement, the ball head is positioned on the test object by the moisture meter. This guarantees a non-destructive measurement with the moisture meter. The moisture meter is therefore used, for example, for on-site inspections of buildings, wood and other surfaces.

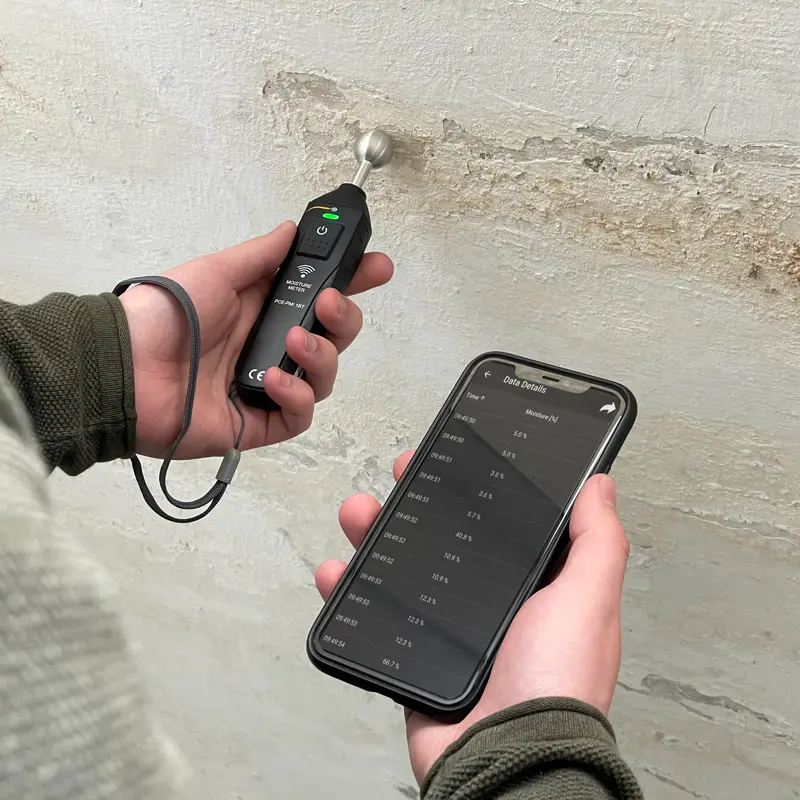

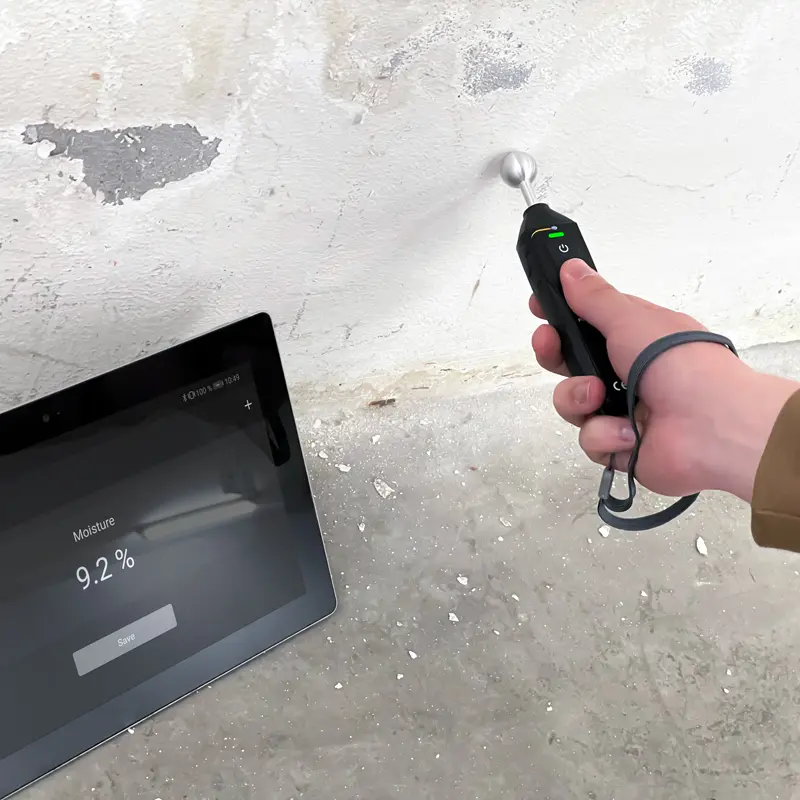

A connection can be established with the moisture meter via the free app. As soon as a connection has been established, the current measured value is displayed by the moisture meter. The recorded data can be exported as .csv and .pdf after a measurement. This means that the data measured by the moisture meter can be processed further.

Highlights

- For moisture determination
- Measuring range 0.0 ... 100.0%
- Free Android and iOS app
- Bluetooth interface
- Small and compact design
- Universally applicable

Specification

Measuring range 0.0 ... 100.0 %
Resolution 0.1 %
Measuring rate 2 Hz
Measuring depth 20 ... 40 mm / 0.78 ... 1.57"
Interface Bluetooth 4.0
Measuring principle capacitive (electrical resistance)
Sensor type metal spheroid
Power supply 2 x 1.5 V AAA batteries
Operating conditions   0 ... 50 °C / 32 ... 122 °F, <90% RH, non-condensing
Dimensions 160 x 33 x 20 mm / 6.3 x 1.3 x 0.7"
Weight 93 g / 3.2 oz

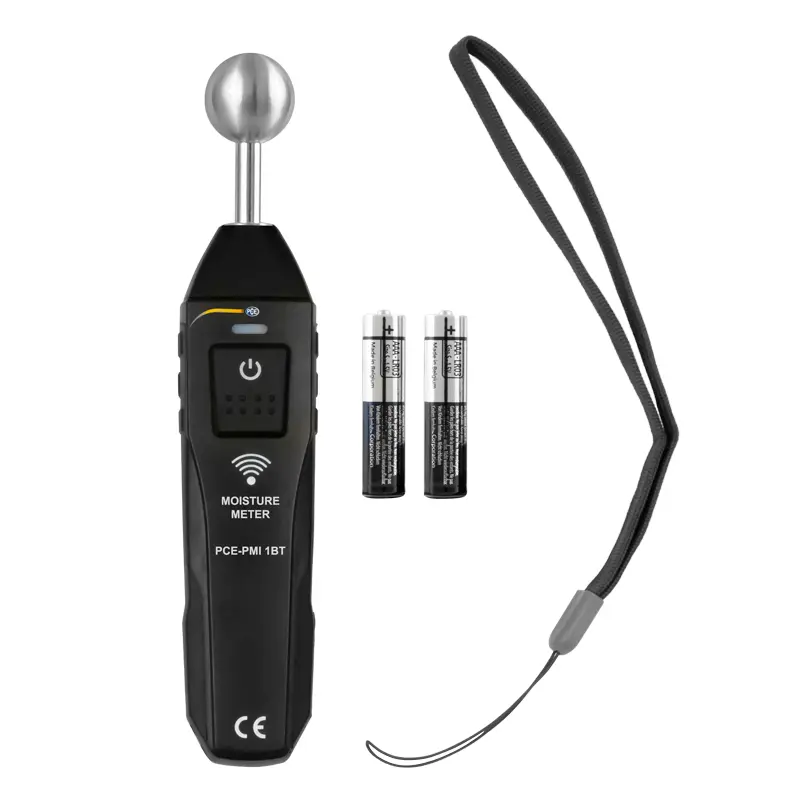

Delivery Scope

1 x Moisture Meter PCE-PMI 1BT
2 x 1.5 V AAA batteries
1 x Instruction manual
