The Moisture Tester for Wood provides accurate moisture analyses for ten different material types, including drywall, masonry, hardwood, softwood, anhydrite screed (wt%), anhydrite screed (CM%), cement screed (wt%), cement screed (CM%), concrete and gypsum screed. It uses a capacitive measuring method and the sensor works inductively.
The Moisture Tester for Wood has two limit value settings which are shown on a bar graph and are designed for the 10 material types that our Moisture Tester for Wood can analyse. The first alarm point activates a rapid beep and the yellow LED when the moisture is between 20% and 69%. The second alarm point, which responds at values between 70% and 100%, generates a continuous tone and lights up the red LED. These functions ensure reliable moisture monitoring and provide clear audible and visual warning signals.

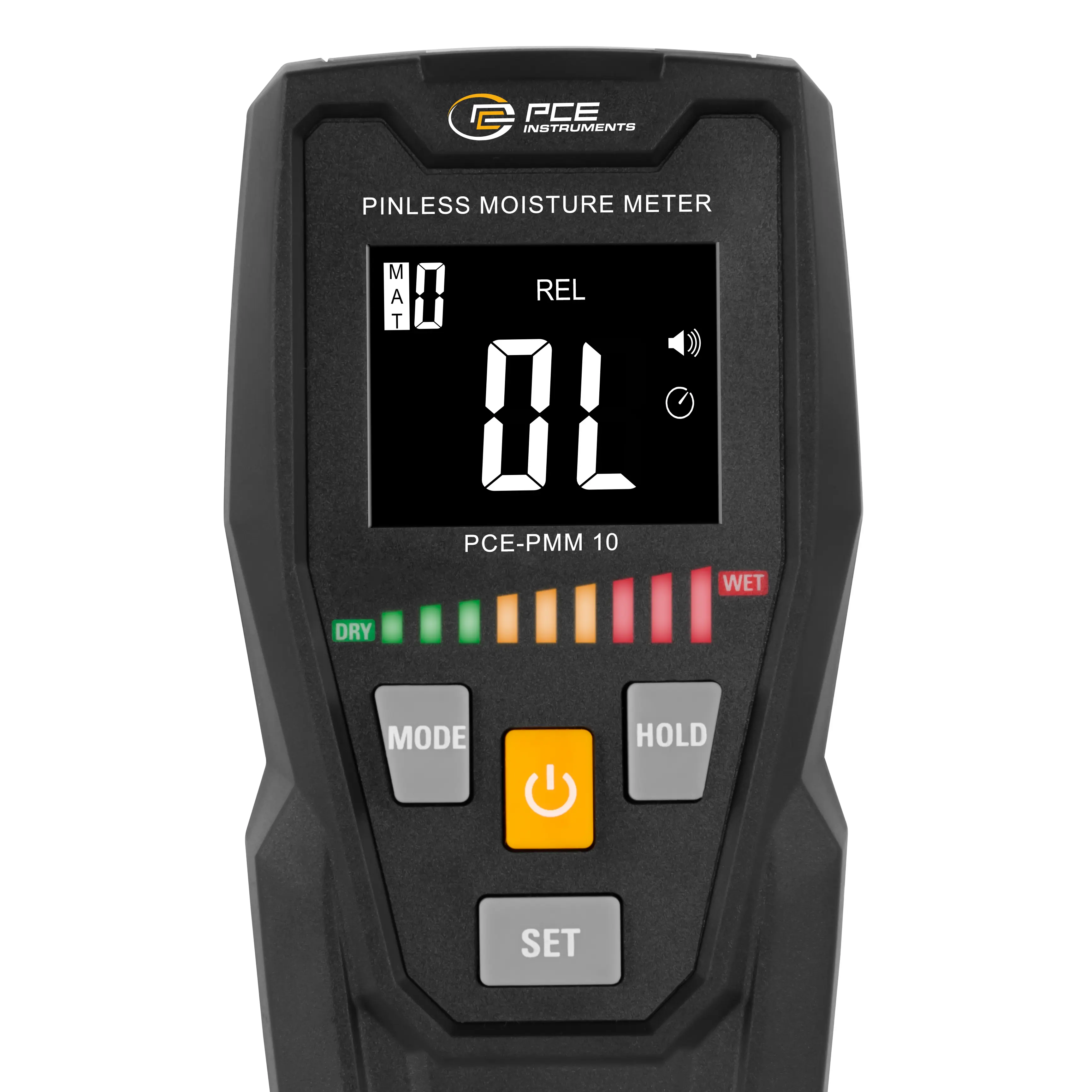

The Moisture Tester for Wood also has a hold function and an automatic power off function. The readings are shown on a 2-inch backlit LC display which also displays a battery warning.
The Moisture Tester for Wood is ideal for use in construction and renovation projects to check moisture levels in walls, floors and ceilings. It is often used by site managers, tradesmen and surveyors to ensure that materials are dry and ready for processing. It is also useful in woodworking, quality control of construction sites and in the refurbishment of damp rooms to prevent mould growth and other damage.
Humidity | |
Material | Dry construction |
Measurement range up to | 0 ... 100 % |
Resolution | 0,1 % |
Accuracy | ±4 % of Rd |
Humidity | |
Material | Masonry |
Measurement range up to | 0 ... 89,5 % |
Resolution | 0,1 % |
Accuracy | ±4 % of Rd |
Humidity | |
Material | Hardwood |
Measurement range up to | 0 ... 35 % |
Resolution | 0,1 % |
Accuracy | ±4 % of Rd |
Humidity | |
Material | Softwood |
Measurement range up to | 0 ... 55 % |
Resolution | 0,1 % |
Accuracy | ±4 % of Rd |
Humidity | |
Material | Anhydrite screed (% by weight) |
Measurement range up to | 0 ... 3,5 % |
Resolution | 0,1 % |
Accuracy | ±0.4 % of Rd |
Humidity | |
Material | Anhydrite screed (CM%) |
Measurement range up to | 0 ... 1,5 % |
Resolution | 0,1 % |
Accuracy | ±0.2 % of Rd |
Humidity | |
Material | Cement screed (% by weight) |
Measurement range up to | 0 ... 4,7 % |
Resolution | 0,1 % |
Accuracy | ±0.5% of Rd |
Humidity | |
Material | Cement screed (CM%) |
Measurement range up to | 0 ... 3 % |
Resolution | 0,1 % |
Accuracy | ±0.4 % of Rd |
Humidity | |
Material | Concrete |
Measurement range up to | 0 ... 6 % |
Resolution | 0,1 % |
Accuracy | ±0.7 % of Rd |
Humidity | |
Material | Gypsum screed |
Measurement range up to | 0 ... 10 % |
Resolution | 0,1 % |
Accuracy | ±1.1% f.s. |
General technical data | |
Measuring functions | HOLD, ALARM |
Display type | LCD with backlight |
Display size | 2 Inch |
Sensor | inductive |
Automatic power-off | 10 min |
Alarm | optical, Acoustic |
Alarm modes | lower limit, upper limit |
Measuring principle | Capacitive measuring method |
Alarm settings | 20 ... 100 % |
Menu language | English, English (GB) |
Protection class (device) | IP20 |

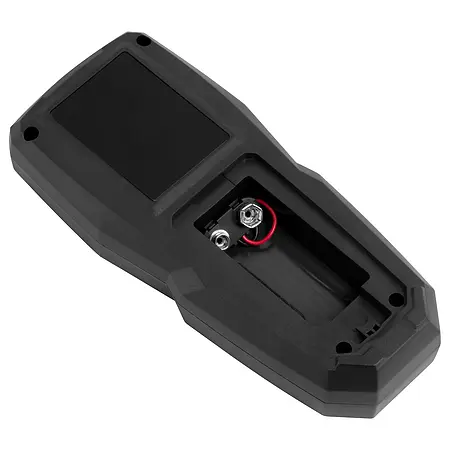

(Rechargeable) battery | 1 x 9 V 9V block , Zinc carbon |
Capacity | 550 mAh |
Operating conditions | 0 ... 40 °C , 0 ... 80 % RH |
Storage conditions | -10 ... 40 °C , 0 ... 70 % RH |
Dimensions ( L x W x H ) | 155 x 70 x 35 mm |
Weight | 144 g |
