NDT Test Instruments PCE-DD-A Shore A

Order no.: PCE-DD-A

GTIN (EAN): 4250348707949

Description

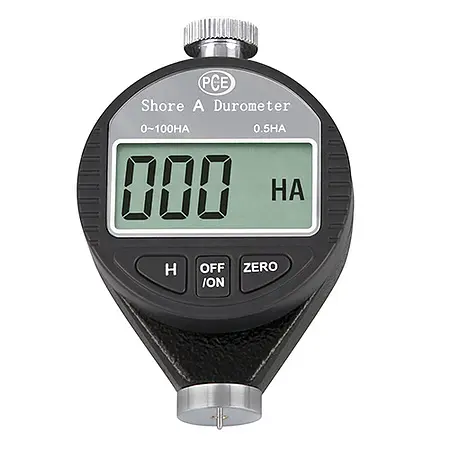

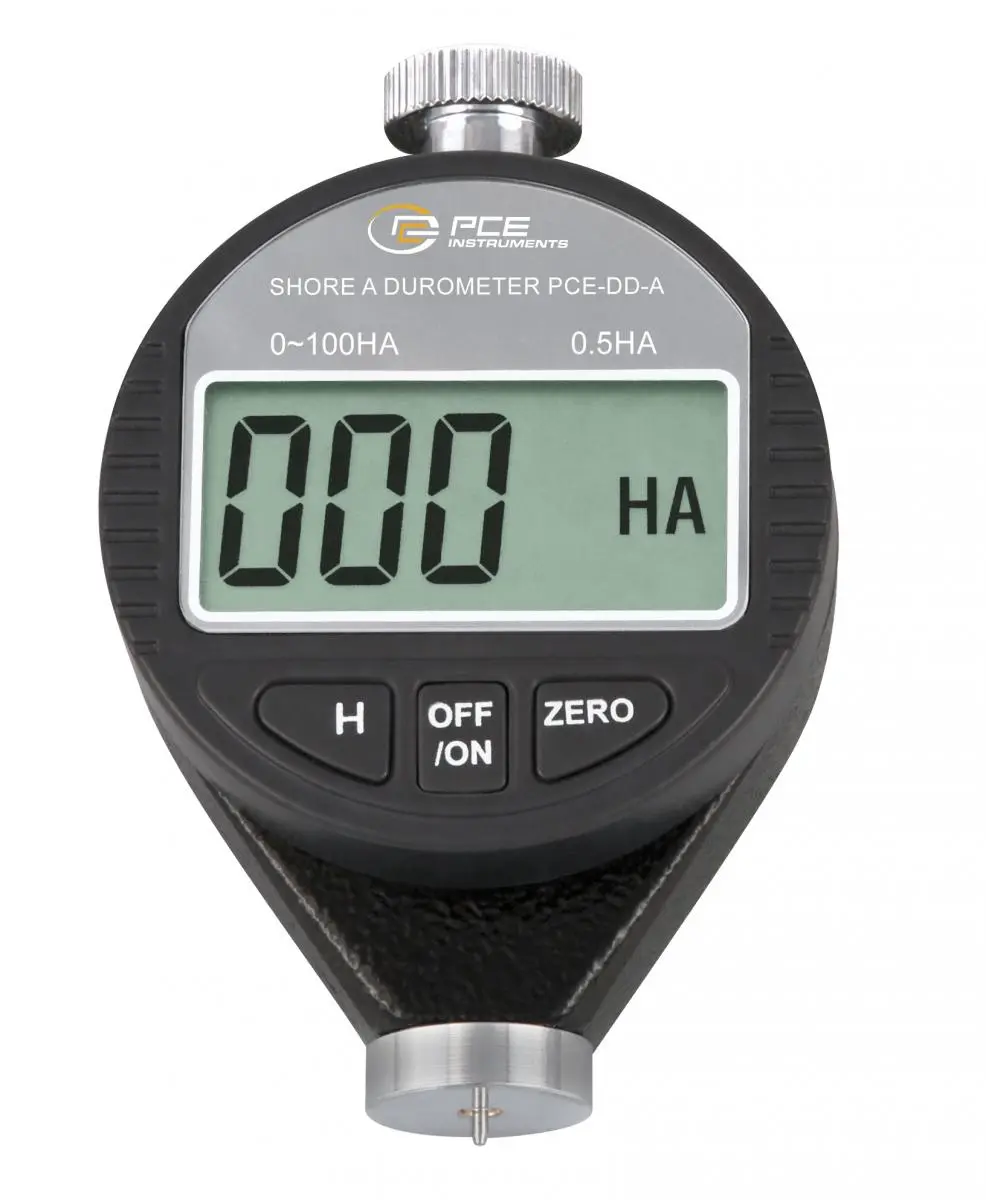

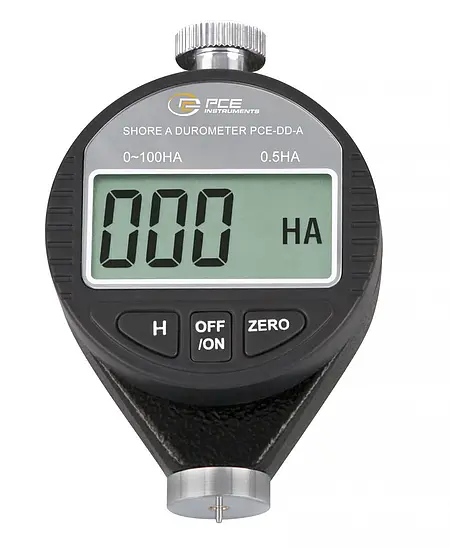

PCE-DD-A Durometer
To measure Shore A hardness in soft gums, rubber and elastomers / Easy-to-read digital display / Resolution of 0.5 degrees of hardness

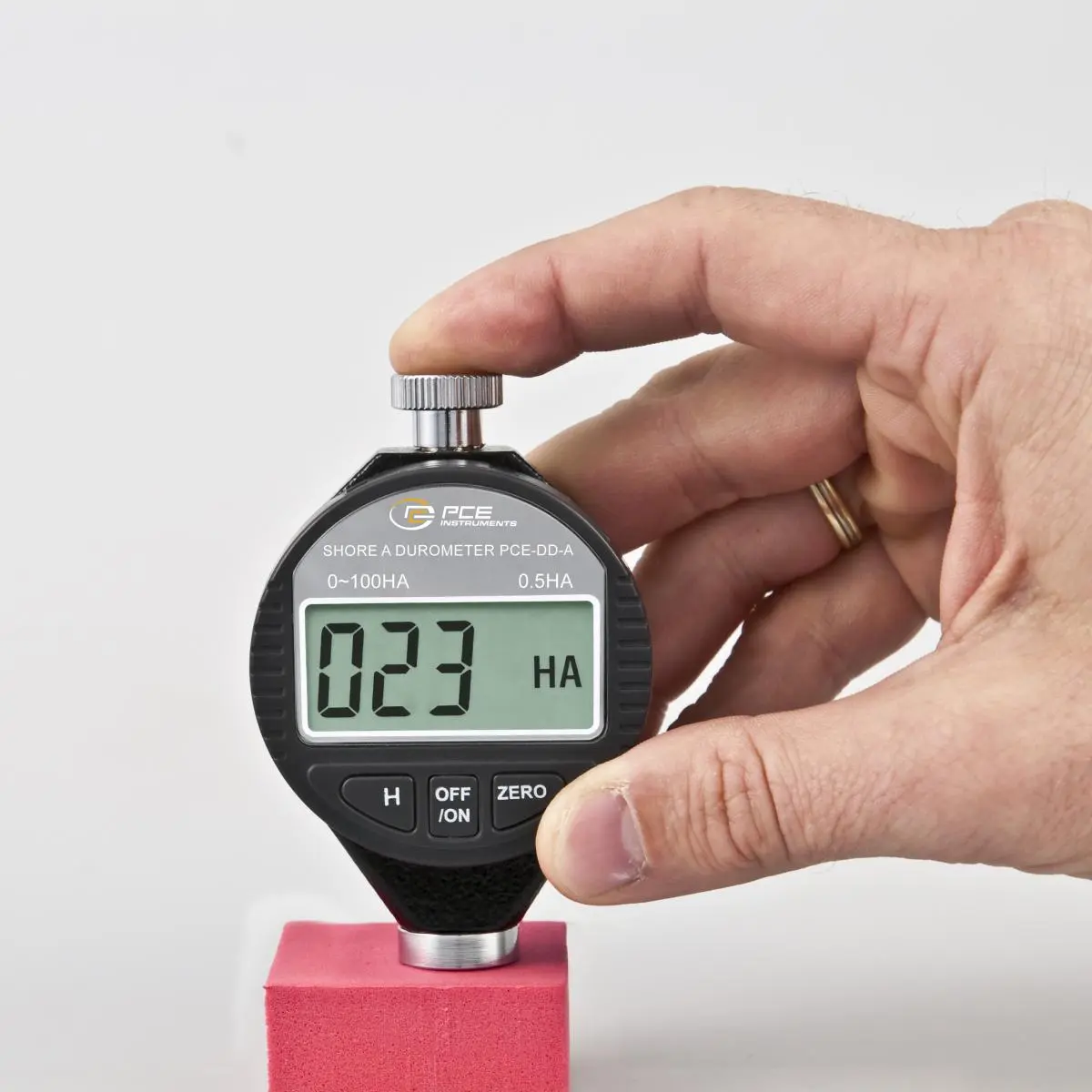

The PCE-DD-A Durometer is an ergonomic device that checks Shore hardness in gum, plastic and other non-metallic materials. The PCE-DD-A Durometer is used primarily for soft gums, elastomers, natural rubber, neoprenes, casting resin, white PVC, leather, etc. If the material thickness is not enough, it should be tightened on the back with the same material to increase its thickness. Calibration is not an option.

Highlights

- Handheld device
- Large digital display

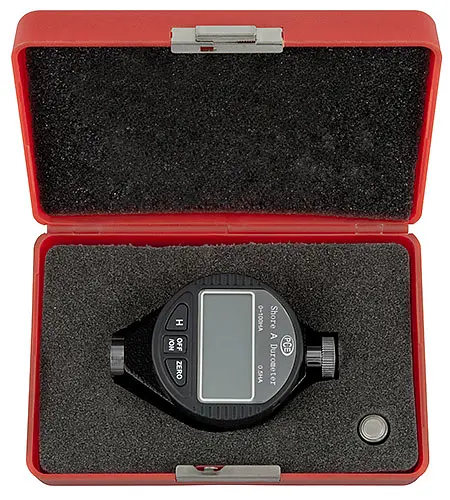

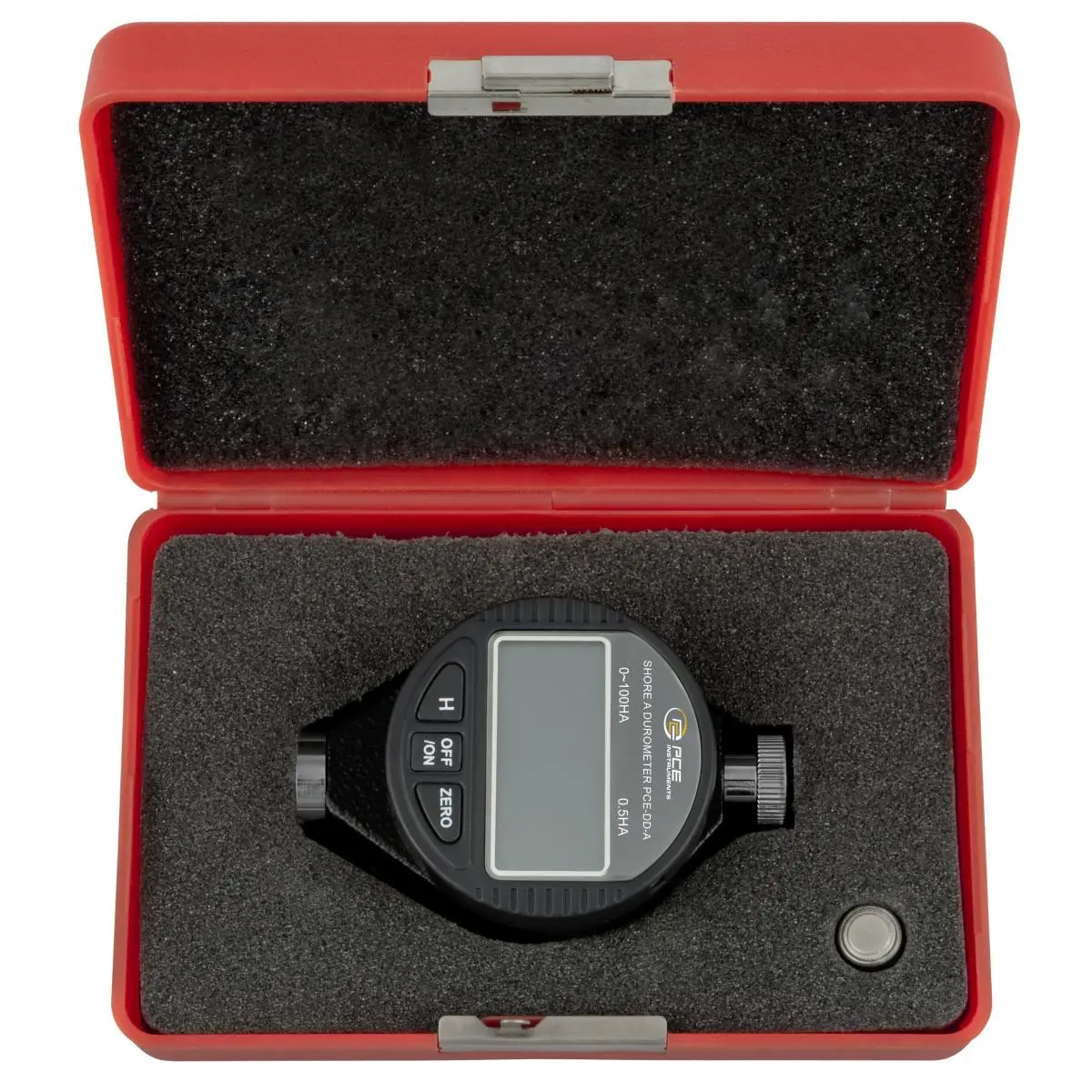

- Plastic case included
- For Shore A measurements
- Easy to use

Specification

Measurement area	0 ... 100 Shore A
Resolution	0.5
Accuracy	± 2
Depth of indentation	0 mm ... 2.5 mm / 0 in ... 0.01 in
Pressure force	1 kg / 2.2 lbs
Indenter	35°
Dimensions	80 mm x 60 mm x 25 mm / 3.14 in x 2.36 in x 0.4 in
Power supply	1 x 1.5V (SR44)
Weight	Approx. 300 g / < 1 lb
