Noise Dose Meter PCE-354-ICA incl. ISO-Calibration Certificate

Order no.: PCE-354-ICA
GTIN (EAN): 4250348733207
£ 224.00
£ 268.80
ISO Calibration
price ex. (VAT / delivery)
:
4250348733207
PCE-354-ICA
Delivery time: 10 - 14 days

Description

Noise Dose Meter with Leq value calculation / Peak measurement / Frequency weighting A and C / Measuring range 30 ... 130 dB / MAX-Hold function / memory for 99 measured values / display with background lighting

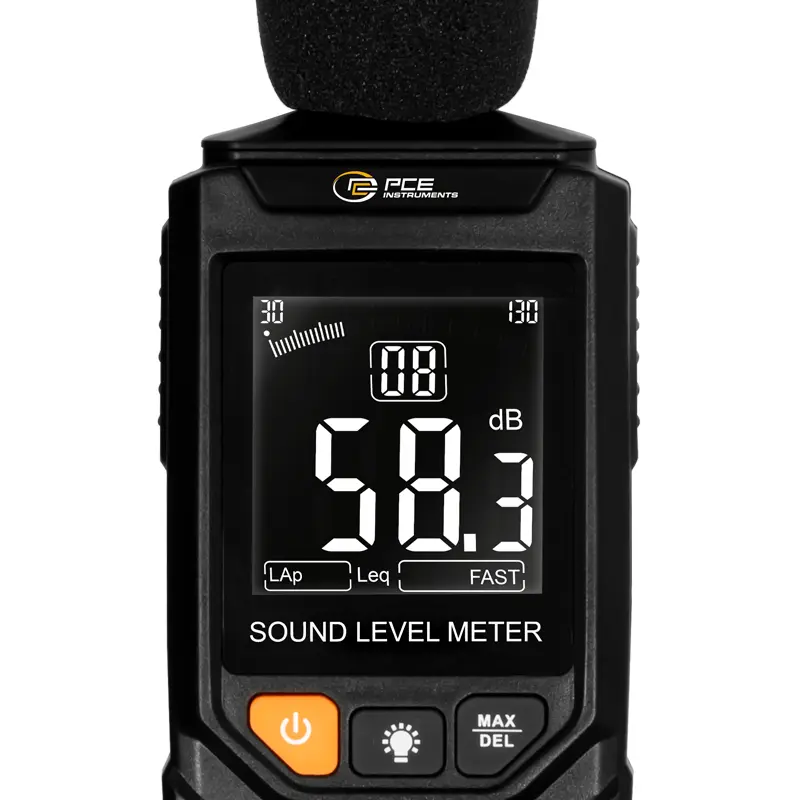

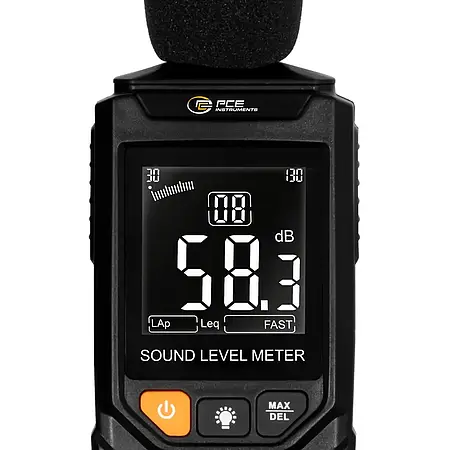

The noise dose meter is a small handheld device with many functions such as peak measurement, Leq value calculation and adjustable measuring ranges. In addition, the noise dose meter can freeze the largest measured value with the MAX function so that you can really judge whether a limit has been exceeded. The special feature of the noise dose meter is the Leq value which, after entering a time, displays the equivalent continuous sound level, i.e. the time average of all sound events within an observation period.

The memory function offers 99 locations which can only be called up via the noise dose meter. The backlight display makes reading easy, after 10 minutes without operation the sound level meter switches off automatically.

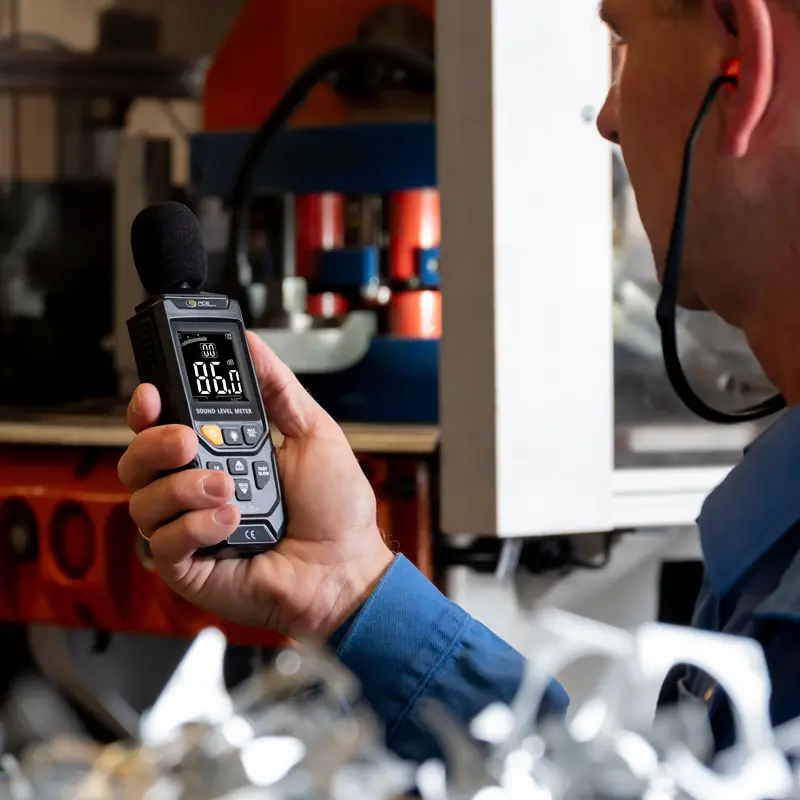

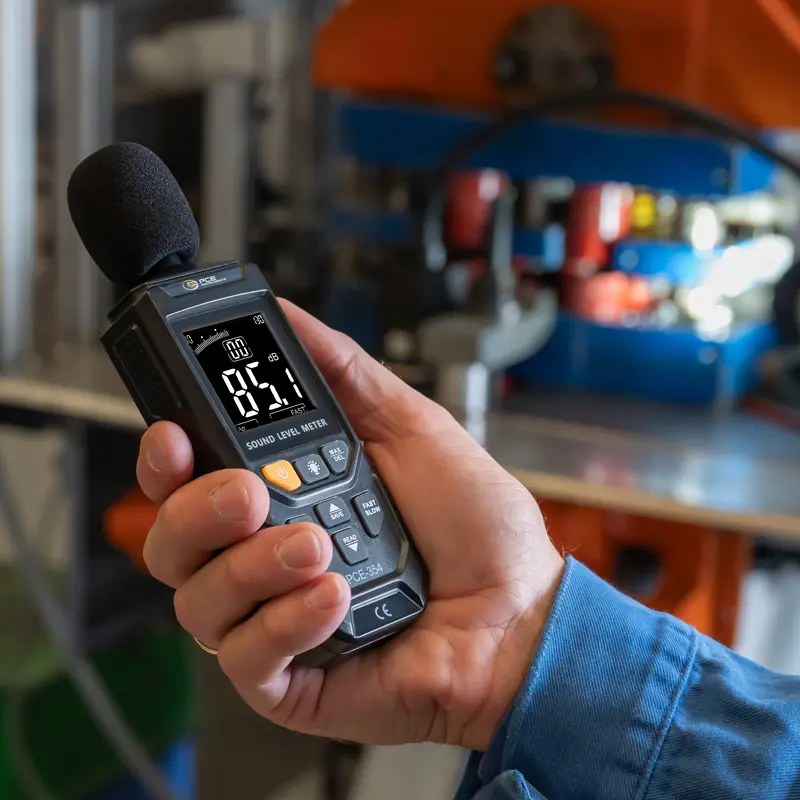

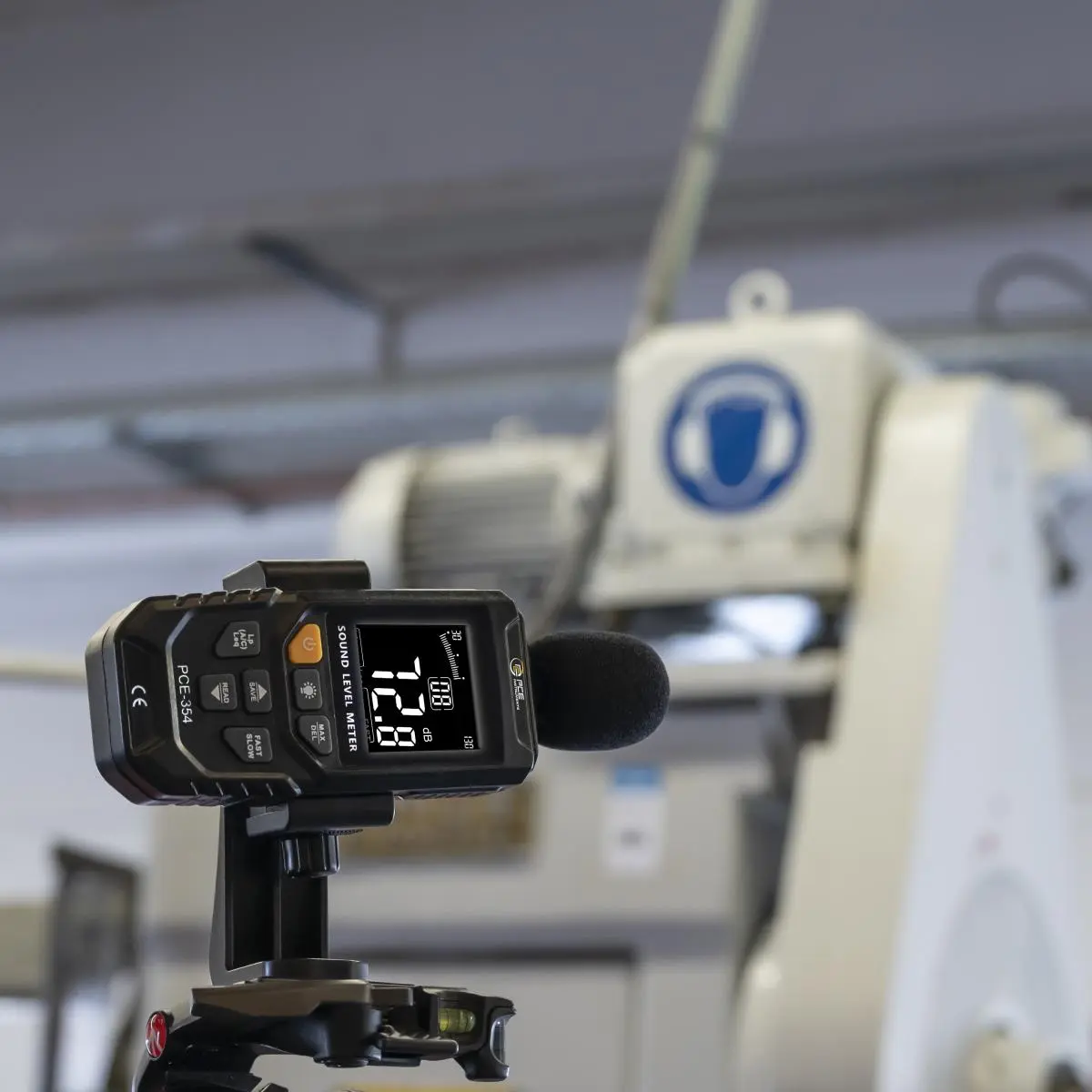

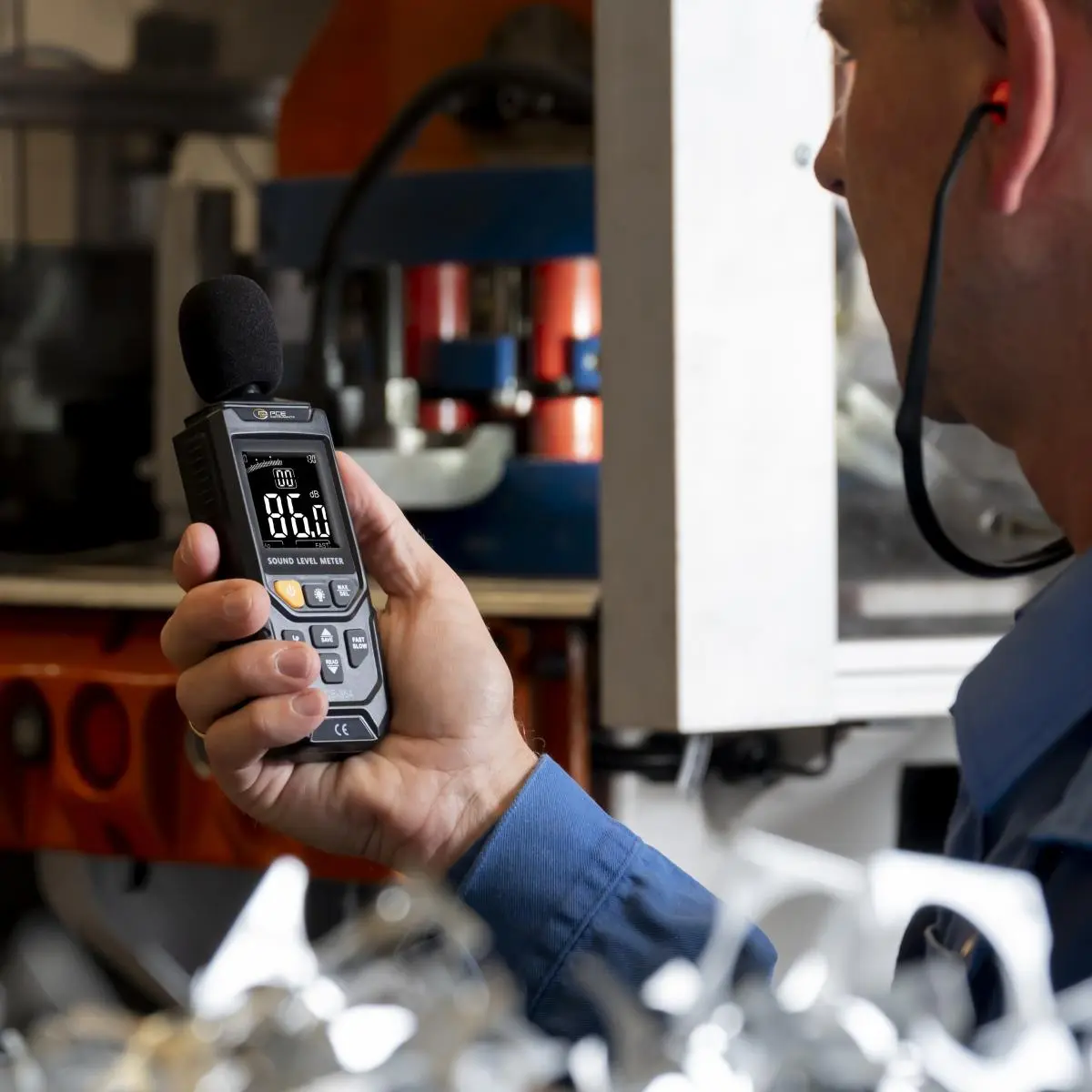

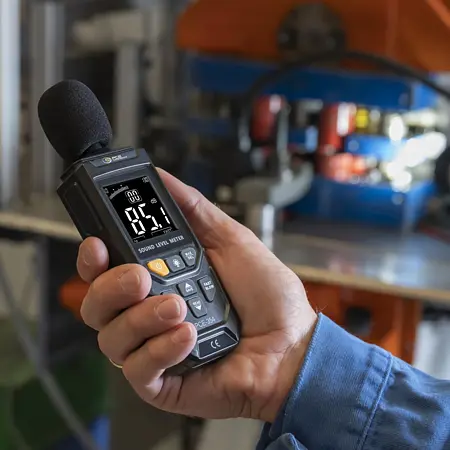

A battery symbol indicates when the three AAA batteries need to be changed. The class 2 noise dose meter is used in the workplace, e.g. for noise protection of employees or simply for quick measurement of ambient noise.

Highlights

- Measuring range 30 ... 130 dB
- Measuring function Leq, LAp and LCp
- Memory function 99 measured values
- Frequency range 20 ... 12500 Hz

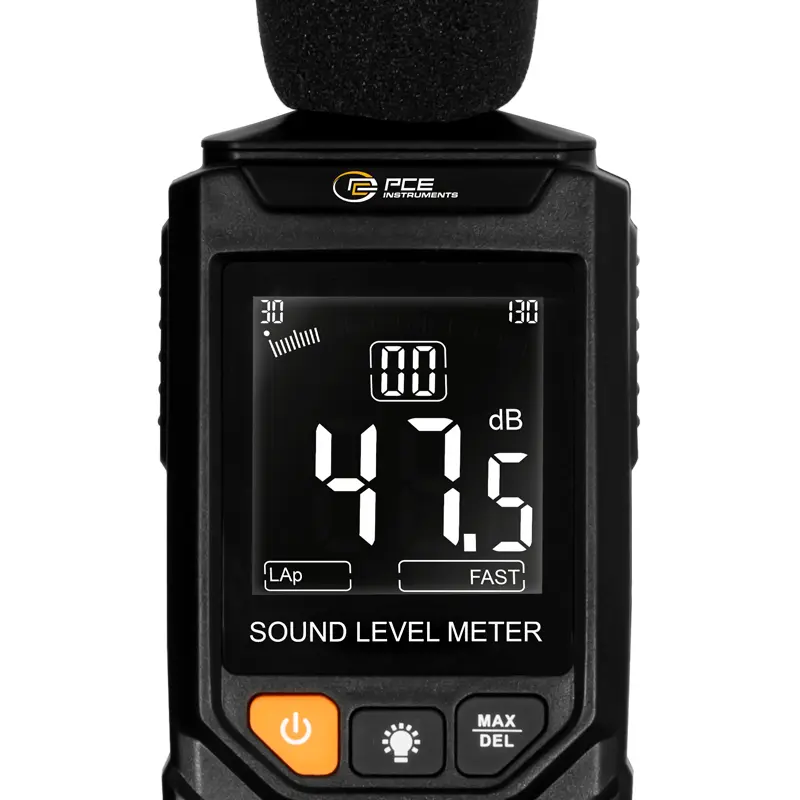

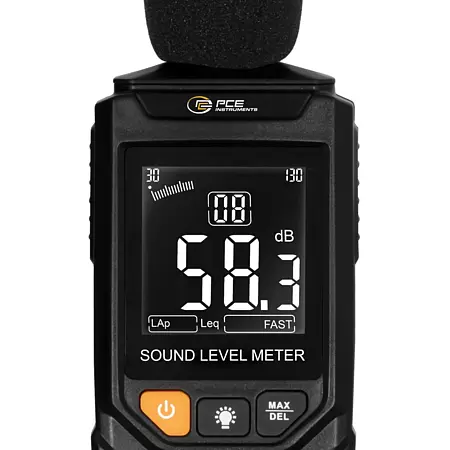

- Display with backlight

Specification

Sound level
Measuring range30 dB ... 130 dB
Resolution0.1 dB
Accuracy±1.5 dB v.Mw.

General technical data
Measurement functions           Lpeak, Leq
Time evaluationslow (1 sec.), fast (125 ms)
Frequency20 ... 12,500 Hz
Frequency weightingA, C
Display typeLCD
Display refresh rate3 x per second
Memory capacity99 values
 Storage at keystroke
Microphone typeElectric condenser
Automatic switch-off10 min.
Standard(s)Class 2
Power supplyBattery
Battery typeAAA battery (1.5V)
Menu languageEnglish
Protection classIP20
Operating conditions0 ... 50 °C,10 ... 95 % r.H.
Dimensions (L x W x H)177 x 60 x 35 mm
Weight110 g

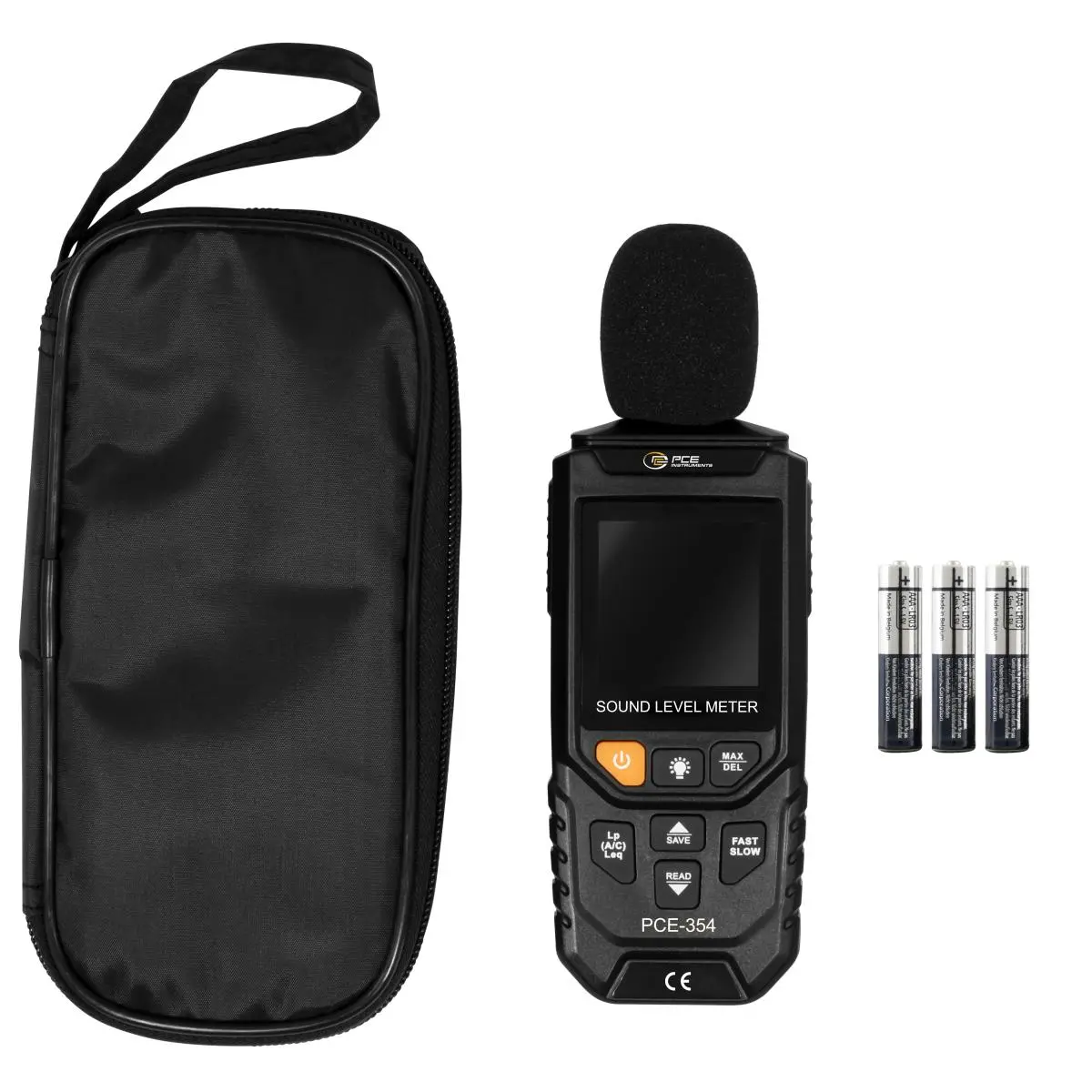

Delivery Scope

1 x Noise Dose Meter PCE-354-ICA
3 x AAA batteries
1 x instruction manual
1 x instrument bag

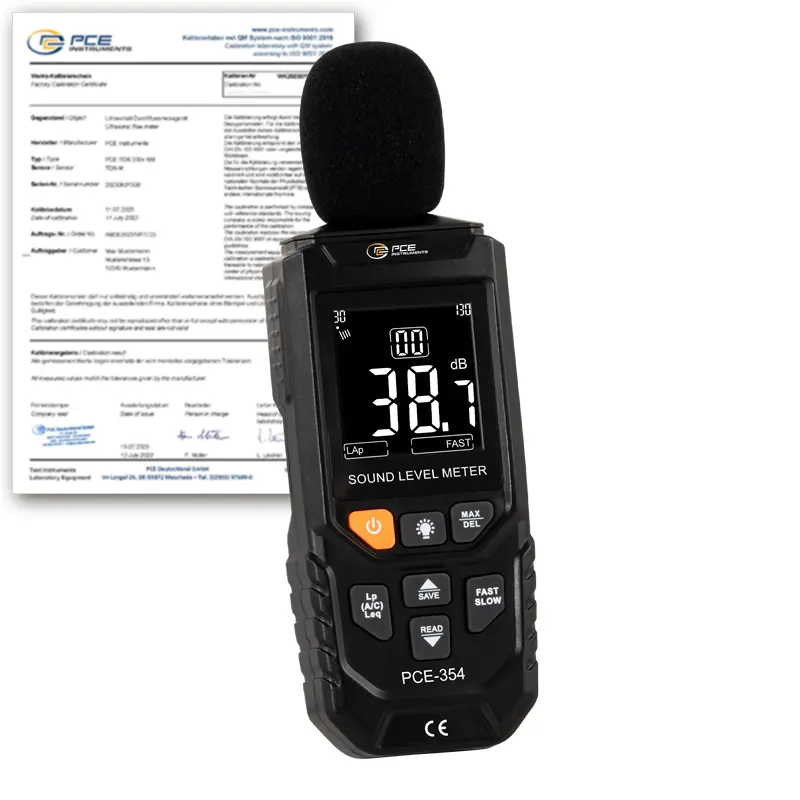

1 x ISO-Calibration Certificate
