Particle Counter PCE-AS1

Order no.: PCE-AS1
GTIN (EAN): 4250348713056
£ 3,248.00
£ 3,897.60
price ex. (VAT / delivery)
:
4250348713056
PCE-AS1
Delivery time: 1-2 working days

Description

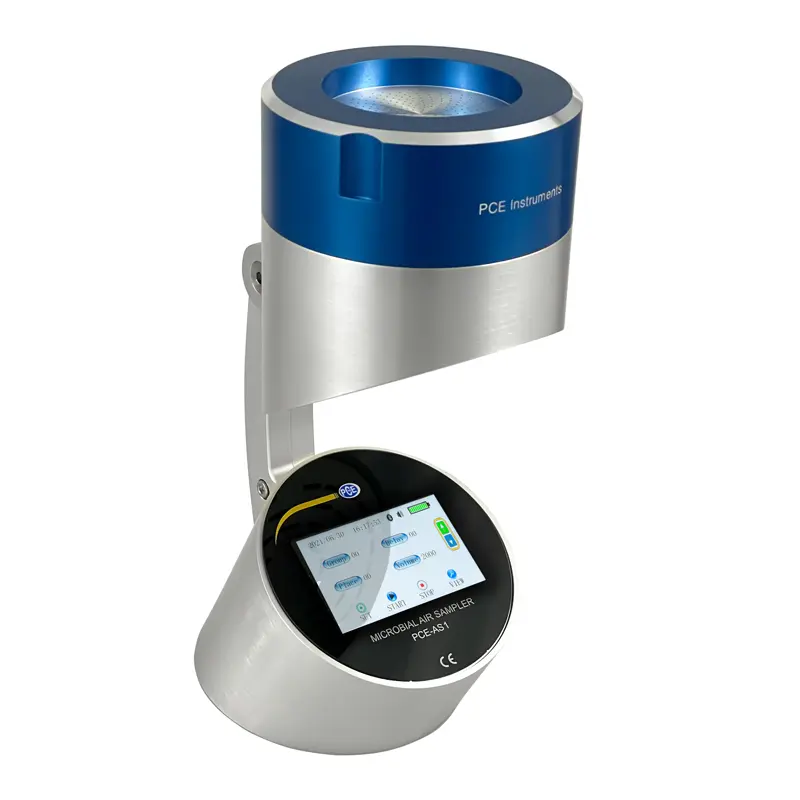

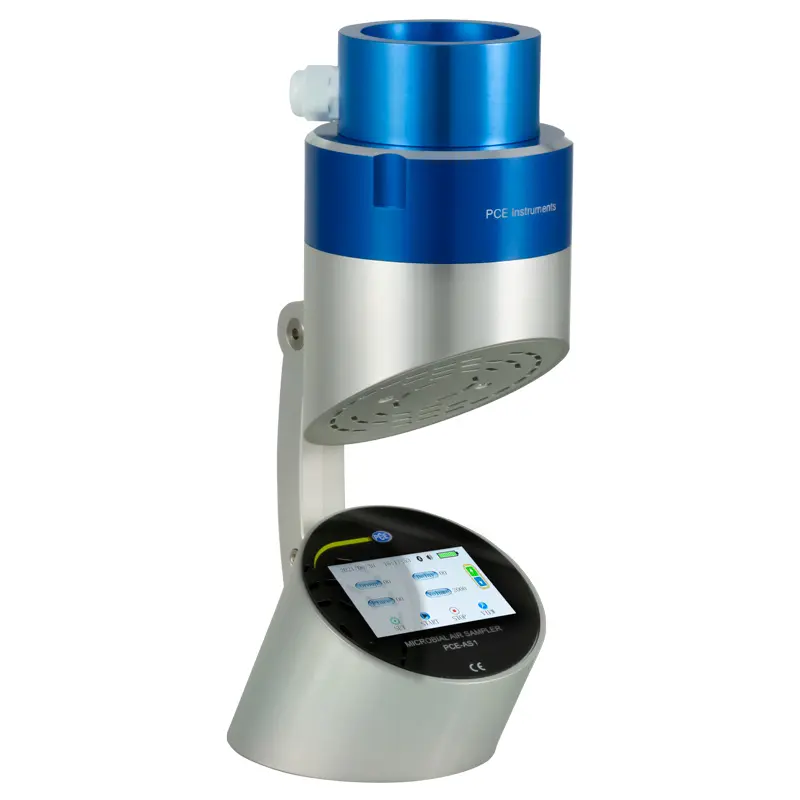

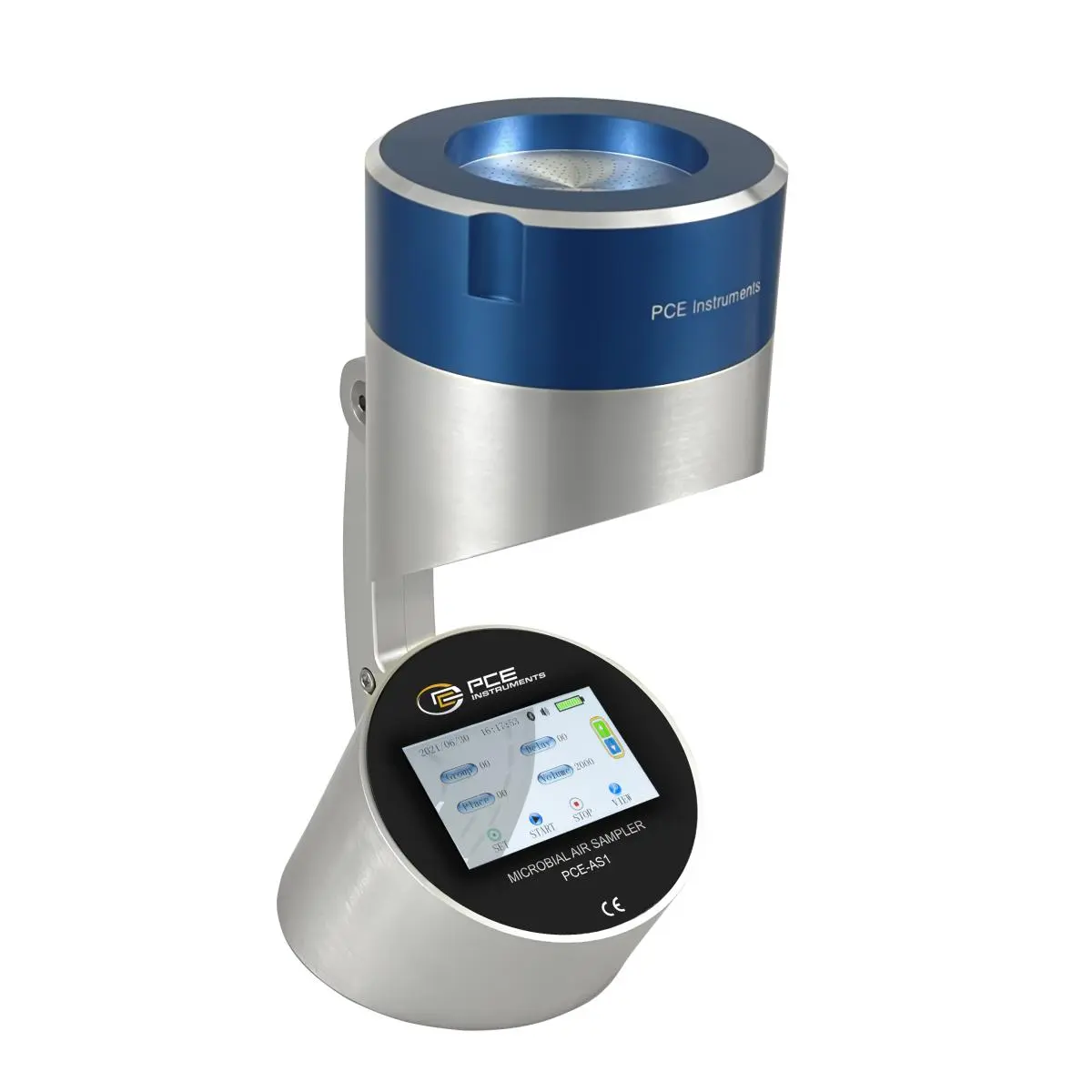

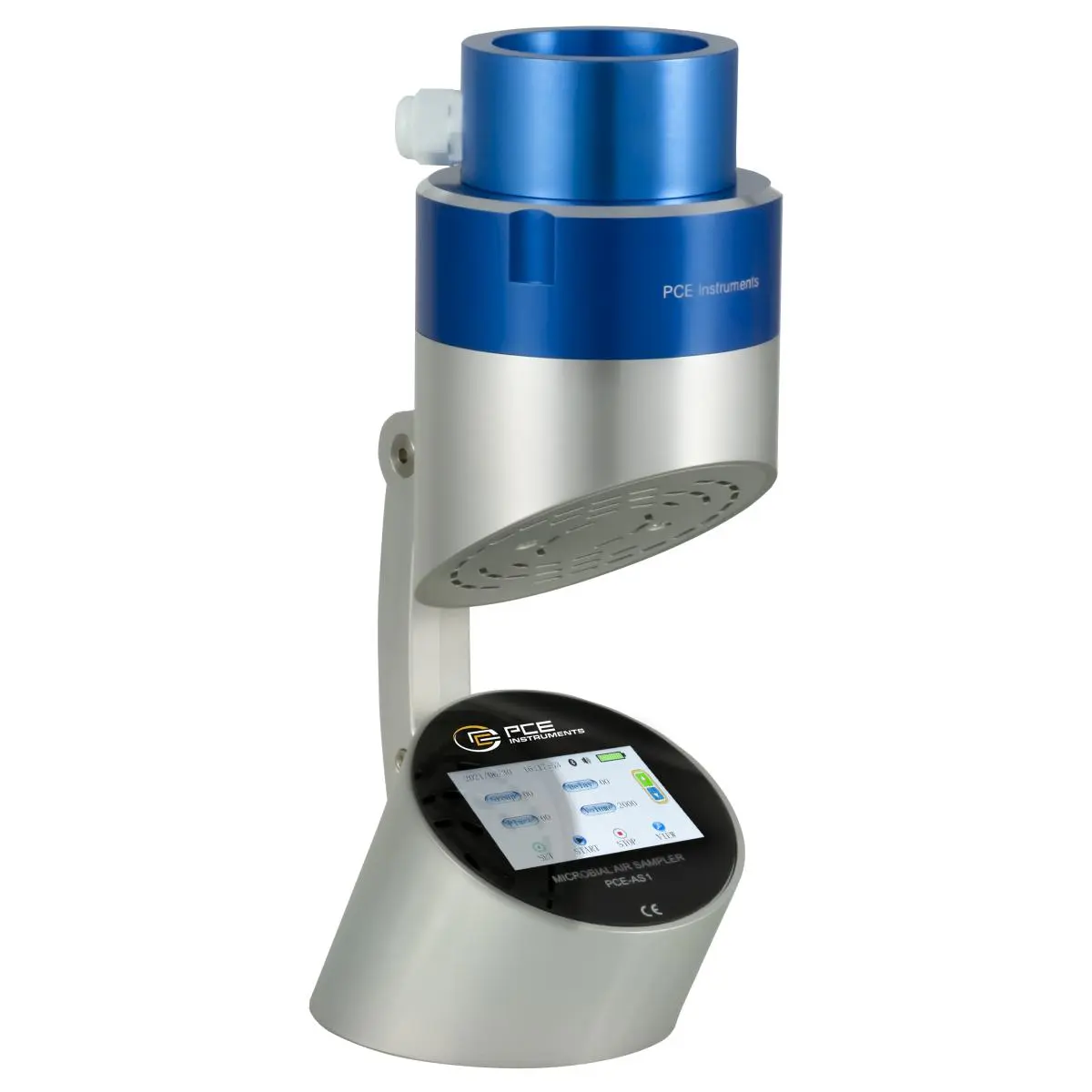

PCE-AS1 Particle Counter
Portable 100 lpm aerosol hygiene monitoring device for airborne microbial, microbiological, bacterial, mold, fungi and virus analysis

PCE-AS1 is an air sampling meter used to assess microbiological pollution and monitor hygiene. Designed for use in hospitals, clean rooms and food and beverage, cosmetics and pharmaceutical production facilities, the PCE-AS1 Particle Counter meets the latest requirements for devices used for airborne microbial analysis. Optional ISO calibration lab certificate as an accessory.

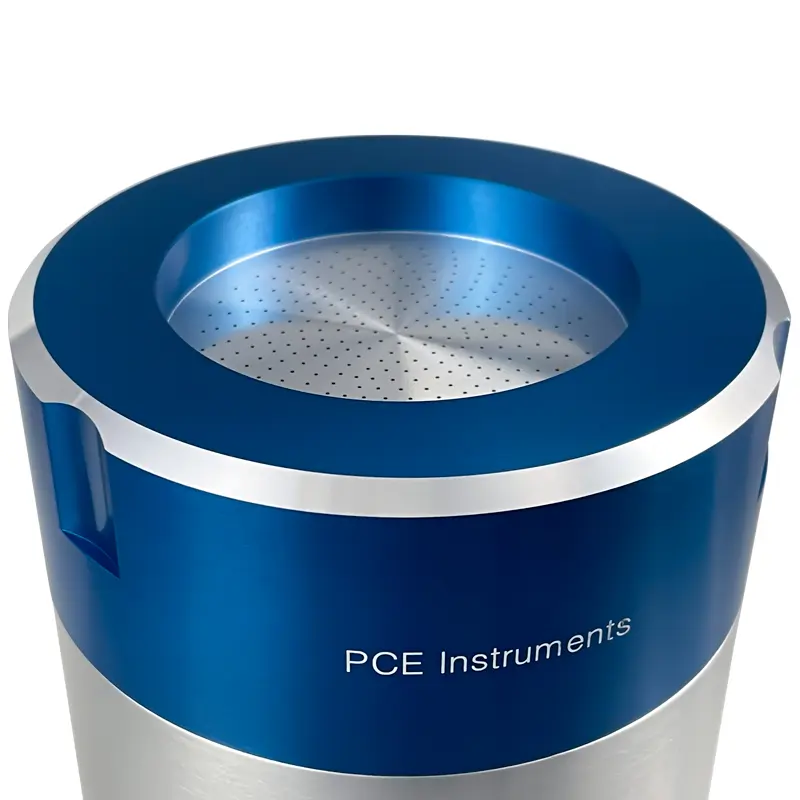

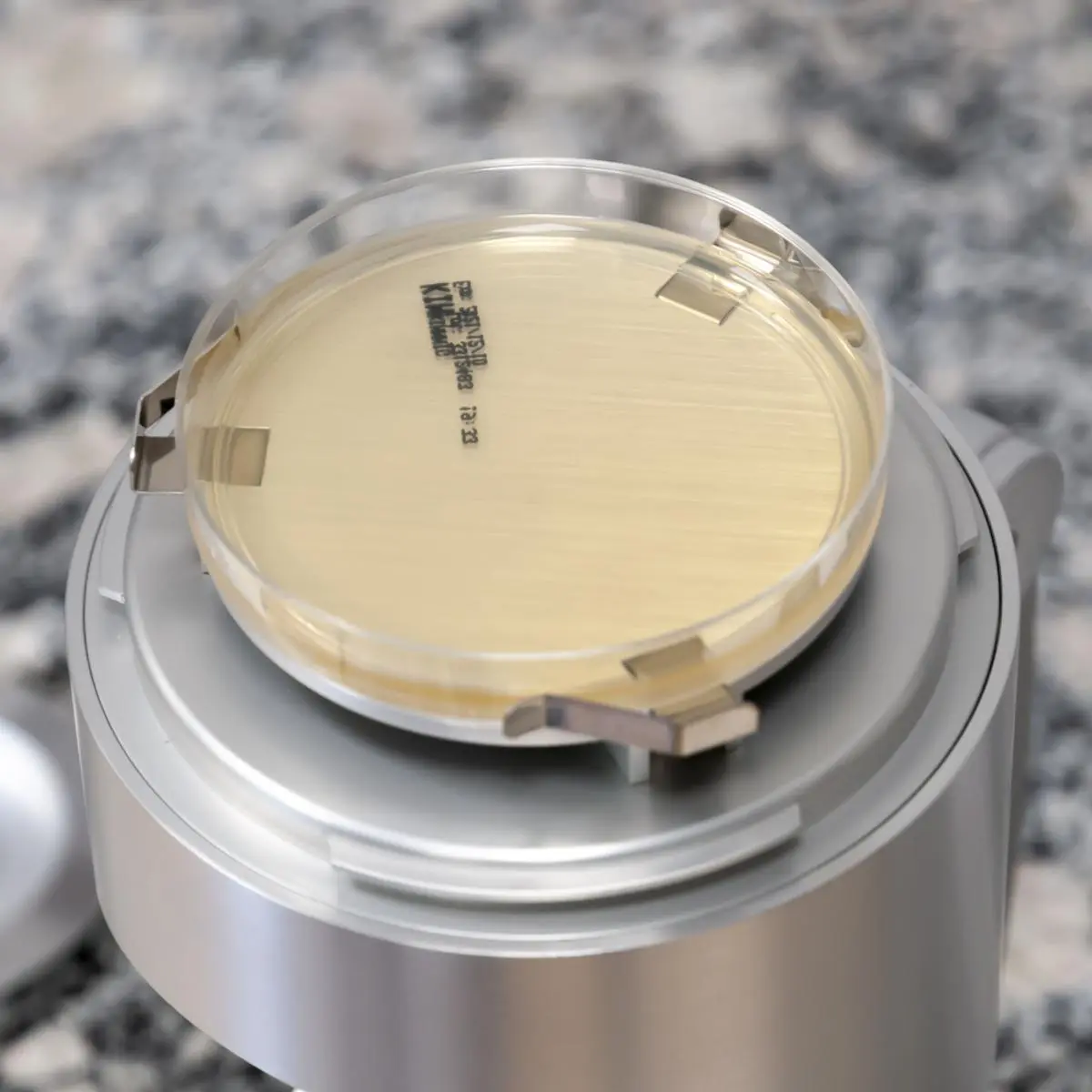

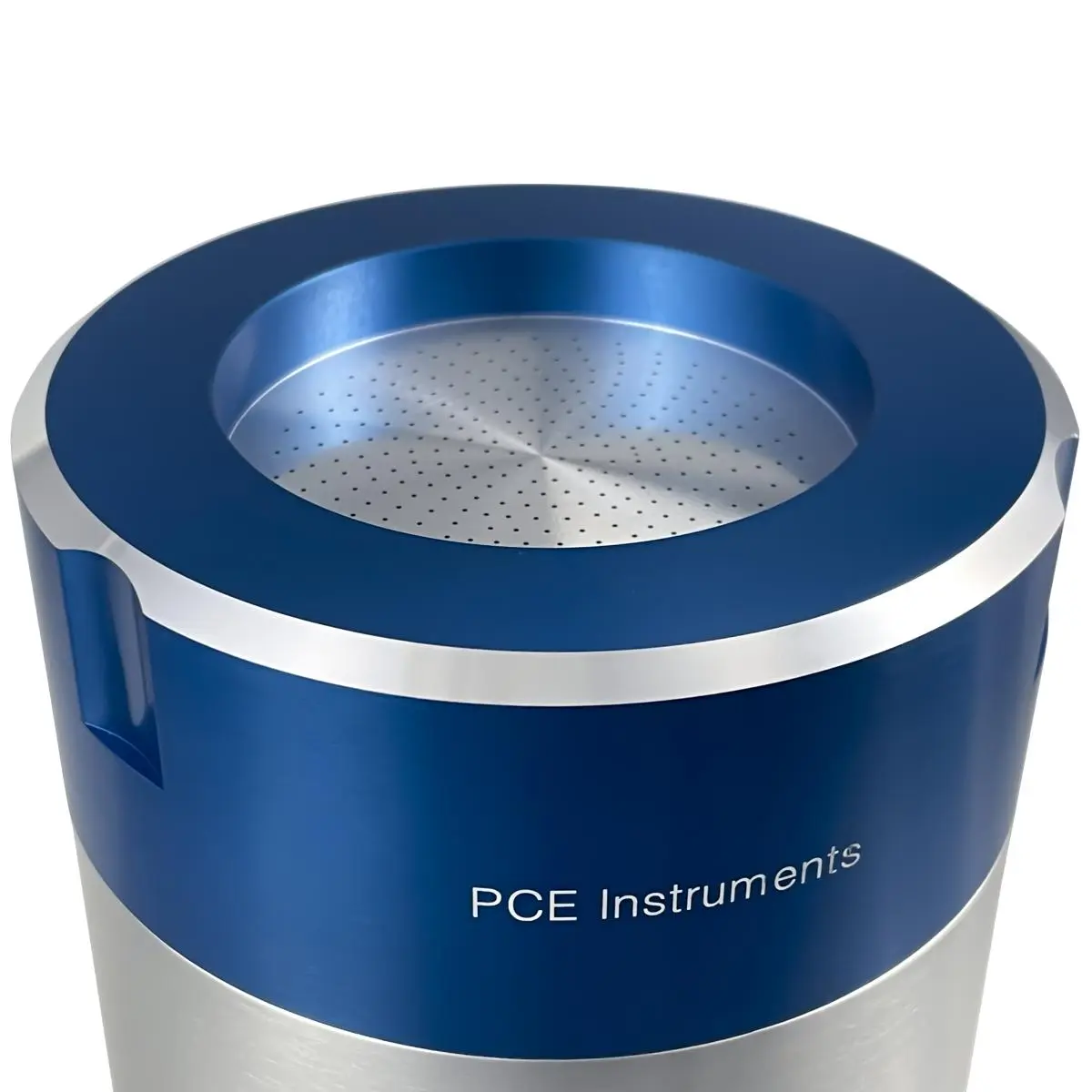

The PCE-AS1 Particle Counter uses the aerosol impaction principle or Andersen collision principle to assess air quality.  The air taken in at the top of the instrument is pulled through 300 micropores and the resulting laminar air flow is directed onto the surface of an agar petri dish.  When the sampling cycle is complete, the petri dish is removed and incubated.  The bacterial and fungal counts can then be assessed in accordance with USP 797 and CAG-009 guidance.

The collecting head should be sterilized in an autoclave at 121° C for 30 minutes (sterilization with a cloth with 75% alcohol is also possible.)  The petri dish should also be sterilized with 75% alcohol.


Highlights

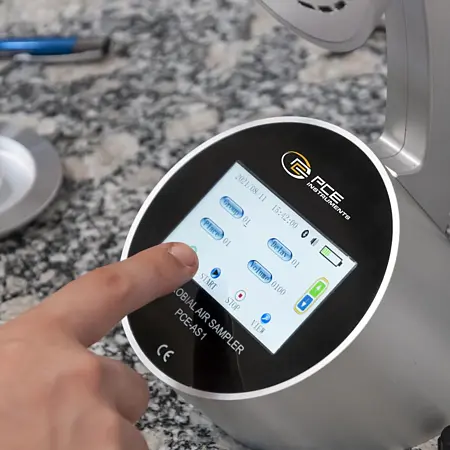

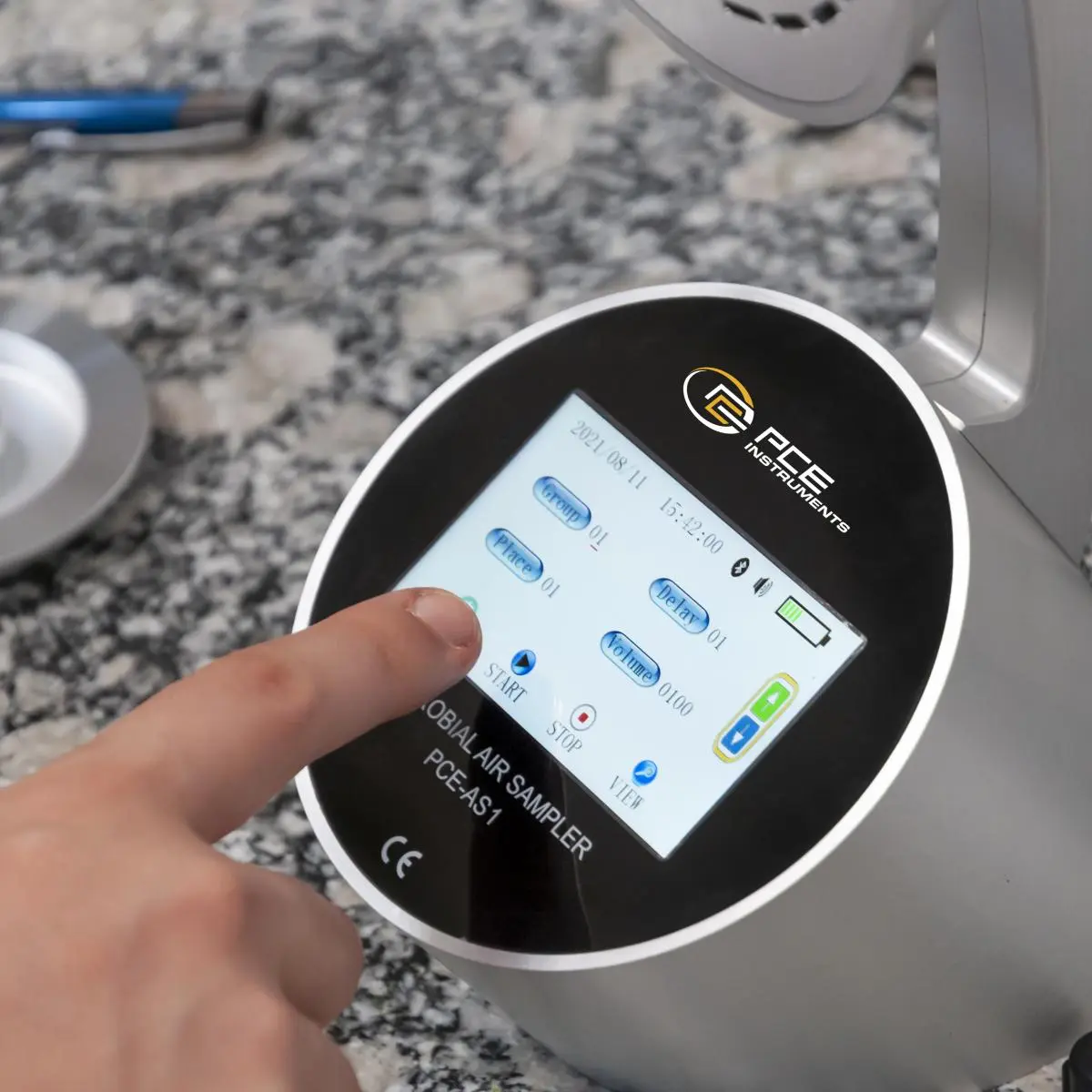

- Backlit LCD
- Memory for up to 99 parameters
- Sterilizable collecting head
- Adjustable volumes of up to 6000 l
- Powerful battery

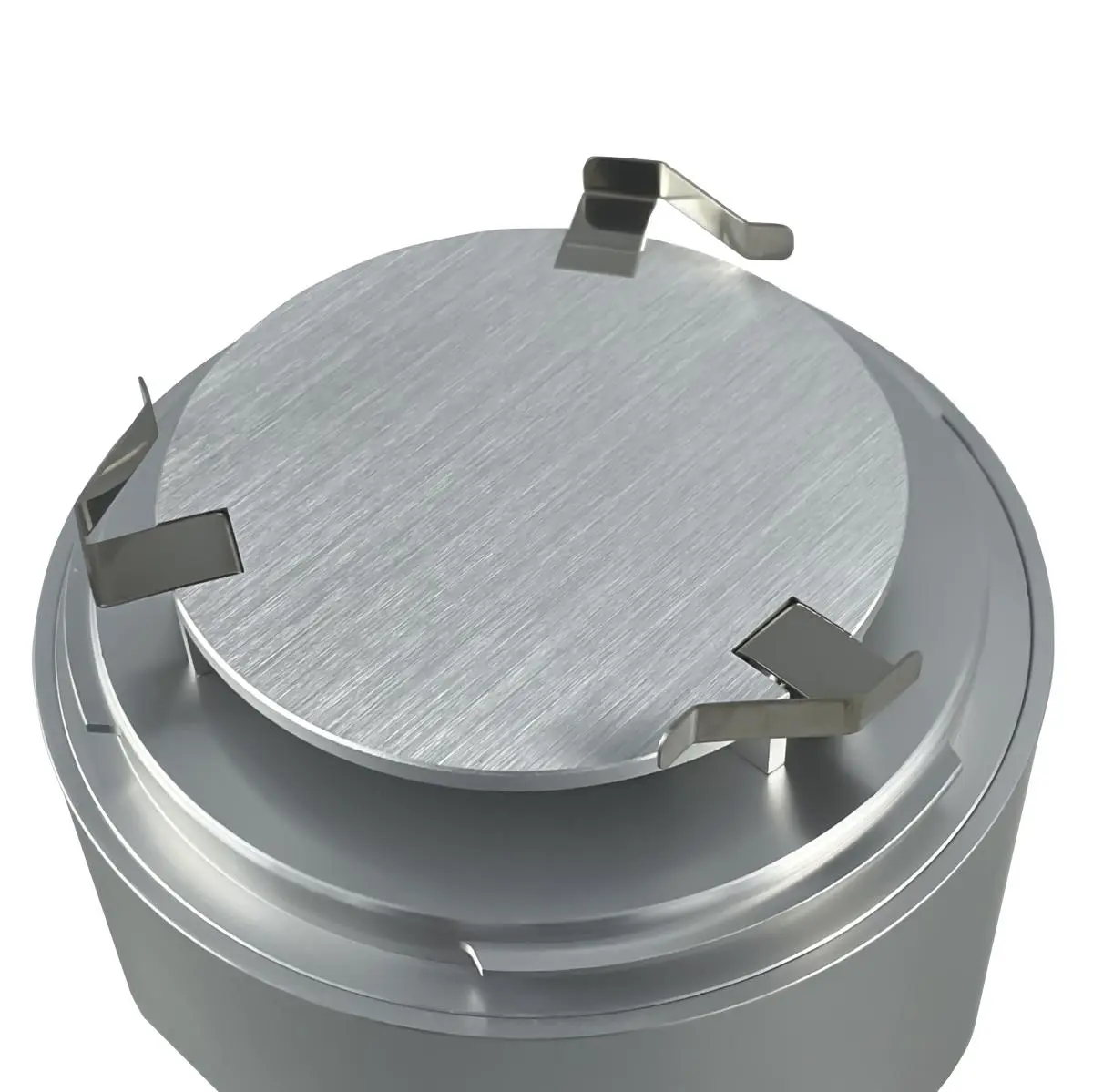

- Use of standard petri dishes

Specification

Number of micropores in the collecting head   589
Hole diameter of the micropores
0.8 mm / 0.03"
Battery6400 mA
Sample throughput
100 liters per minute (l/min) or 3.53 cubic feet per minute
Flow rate at
measuring head
0.38 l/min
Automatic control of the measuring volume10 ... 6000 liters
Dimension of plateø 70 ... 90 x 15 mm / ø 2.76 x 3.54 x 0.59 inches
Data storagemax. 99 parameters and 2000 measurement values
Dimensionsø 120 x 300 mm / ø 4.72 x 11.81 inches
StandardsISO 14698-1
Weight2.6 kg / 5.73 lb

See user manual for complete technical specifications.

Delivery Scope

1 x Particle Counter PCE-AS1

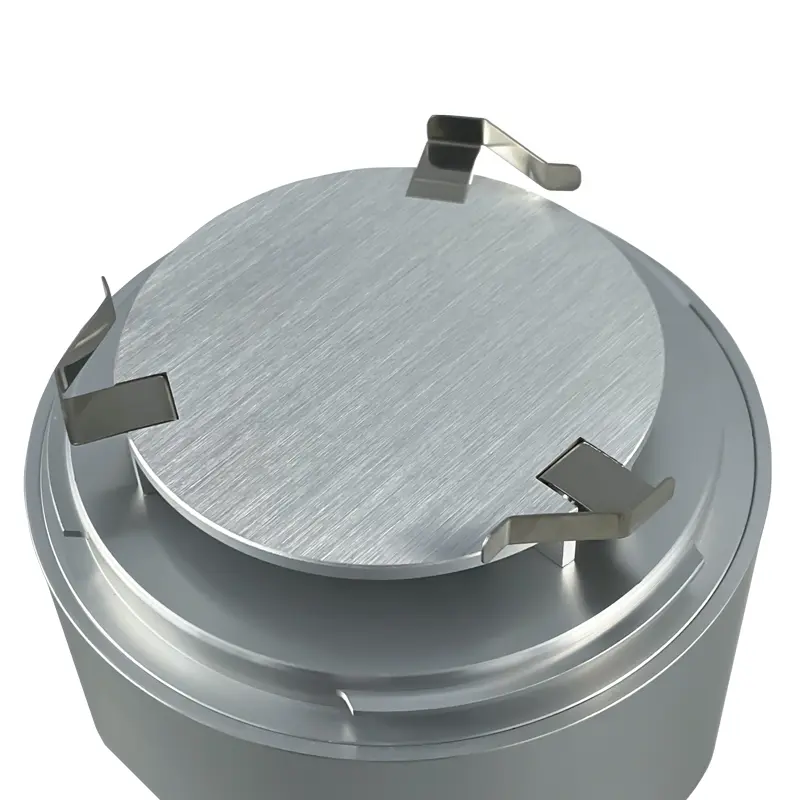

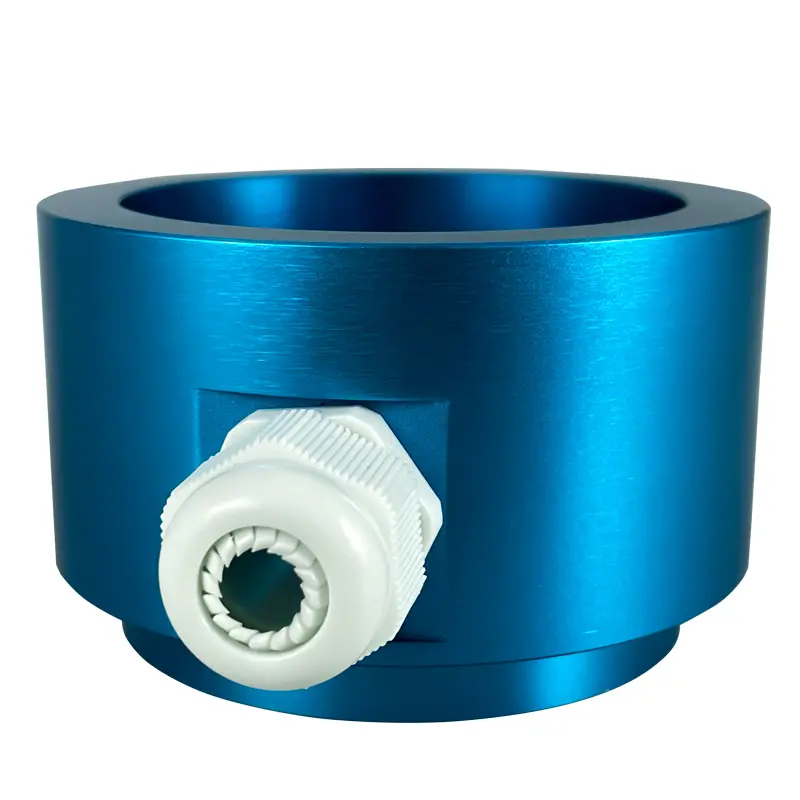

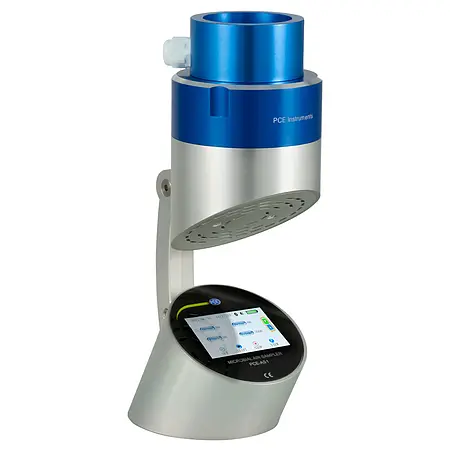

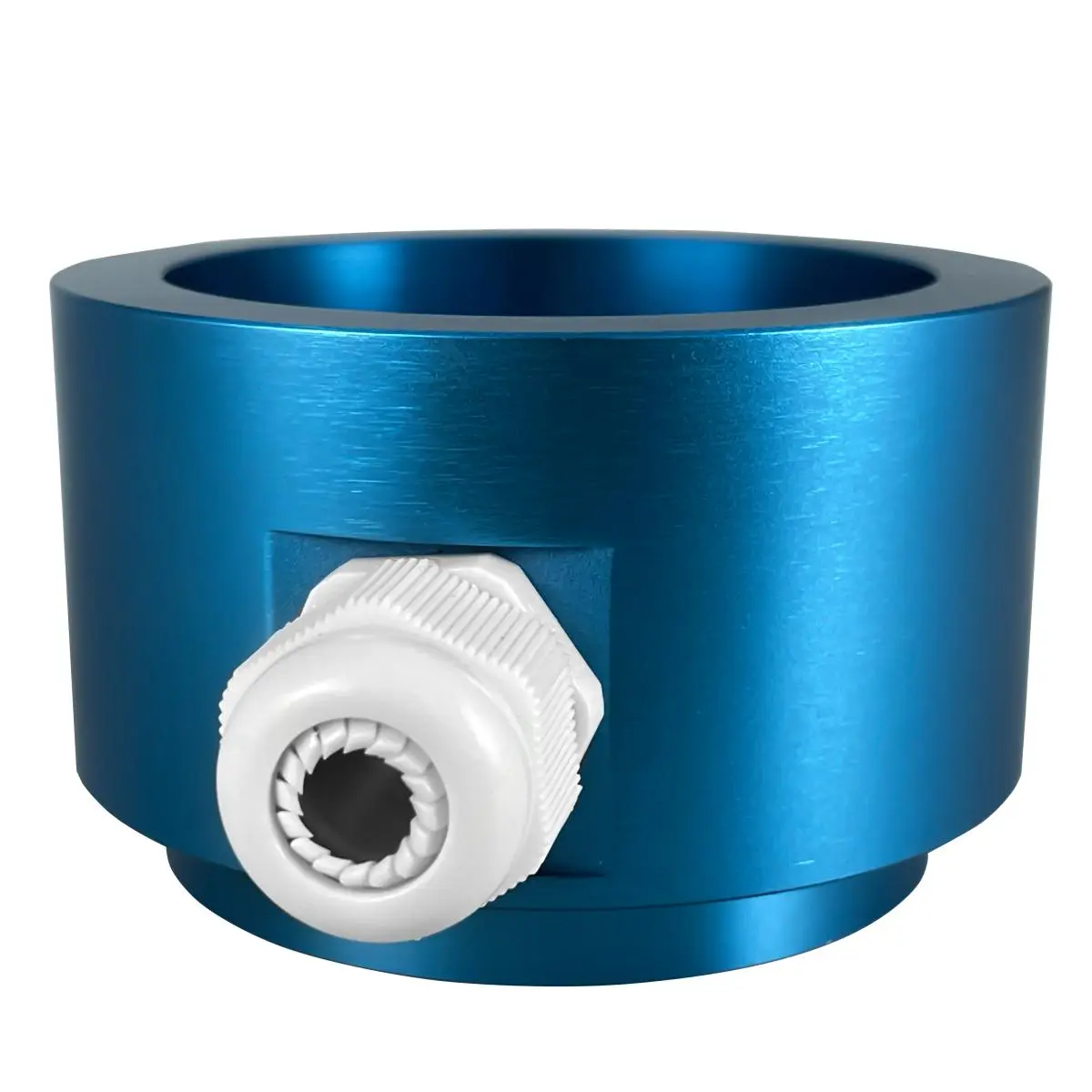

1 x Adapter for glass petri dishes with calibration attachment
1 x Mains power adapter

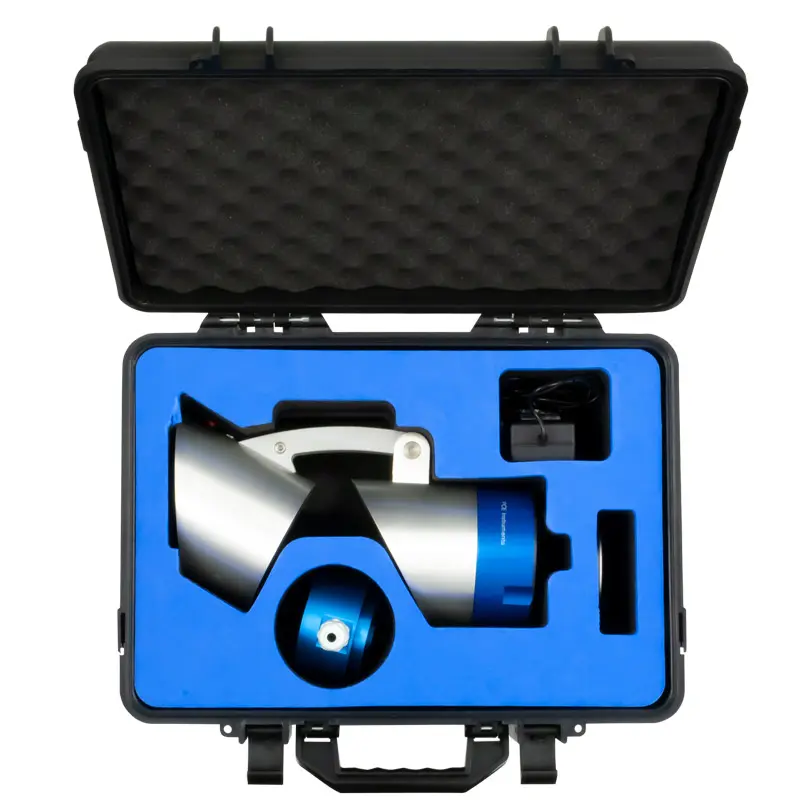

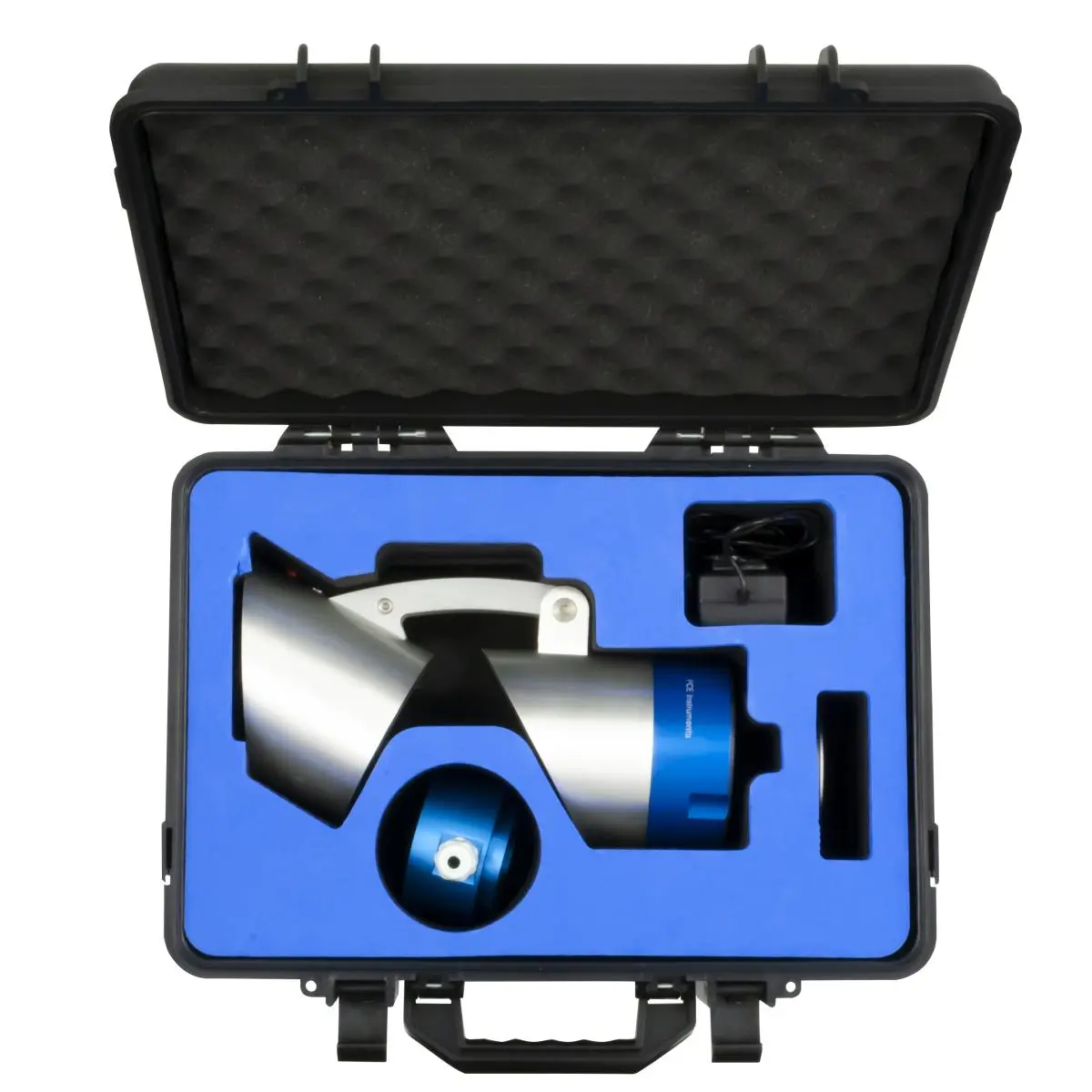

1 x Carrying case
1 x Instruction manual

Software free as QR image for IOS / Android
