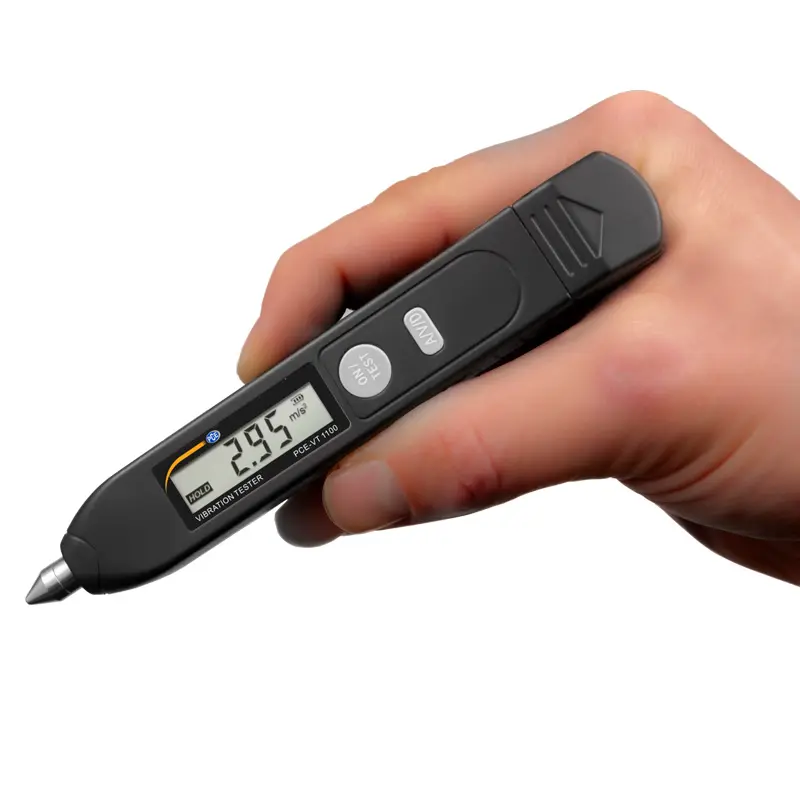

Vibration Test Instrument PCE-VT 1100

Order no.: PCE-VT 1100
GTIN (EAN): 4250348714091
£ 260.00
£ 312.00
price ex. (VAT / delivery)
:
4250348714091
PCE-VT 1100
Delivery time: 1-2 working days
Machine vibration

Accessory

Vibration Sensor PCE-VT-NF-45
Vibration Sensor PCE-VT-NF-45
£ 35.00
ISO Calibration Certificate CAL-V-I for Vibration Meter
ISO Calibration Certificate CAL-V-I for Vibration Meter
£ 192.00

Description

Vibration test instrument PCE-VT 1100
Vibration meter for vibration measurement / Measurement memory for previous measurement / Measurement of acceleration, vibration velocity and displacement in metric only / Large frequency range / Battery-operated hand-held measuring device / Automatic shutdown



The vibration test instrument is used as a hand-held measuring device for the individual assessment of vibrations on machines and systems. With the help of this vibration test instrument, the actual state can easily be determined on site. Thus, corresponding changes can be made directly on site after the measurement. Thereafter, the new condition can be assessed. Thus, the vibration test instrument serves as a measuring device for a relative measurement on different machines.

The vibration test instrument serves essentially as precautionary or preventive maintenance of production machines. Very often, the vibration test instrument is used to assess the state of smaller electric motors.


Highlights

- Measures speed, distance, acceleration
- Keeps the value after every measurement
- Easy to handle, powered by batteries
- Wide frequency range
- Automatic shut-down after 20 seconds of inactivity to protect battery life
- Low battery indicator

Specification

Parameter Measuring Range Frequency Range
Acceleration 0.01 ... 199.9 m/s² peak 10 Hz ... 1 kHz
Vibration speed 0.01 ... 199.9 mm/s rms 10 Hz ... 1 kHz
Displacement 0.001 ... 1.999 mm p-p 10 ... 500 Hz
Measurement accuracy Acceleration: ≤ 3 %
Vibration speed: ±5 %, ±2 Digits
Displacement: +10/-20 % (10...20 Hz); ±5 % (20...1000 HZ)
General specifications
Display LCD, Response time approx. 1 second
Power supply 2 x 6V CR2032 button cell
Battery life About 5 hours (in continuous operation)
Environmental conditions       0 ... 40°C / 32 ... 104°F, 0 ... 84% r.H.
Dimensions 155 x 24 x 18.7 mm / 6.1 x 0.9 x 0.7 in
Weight ca. 40 g / 1.4 oz (incl. batteries)

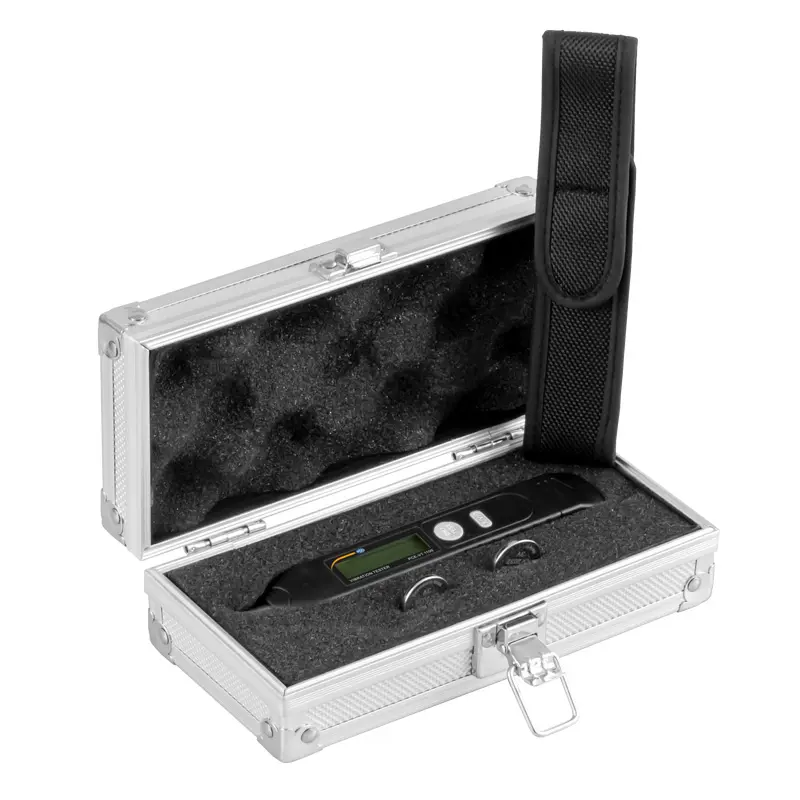

Delivery Scope

1 x Vibration test instrument PCE-VT 1100
1 x PCE-VT-NF-10 standard probe (length 10 mm)
2 x Batteries
1 x Carrying case
1 x Storage box
1 x User manual
