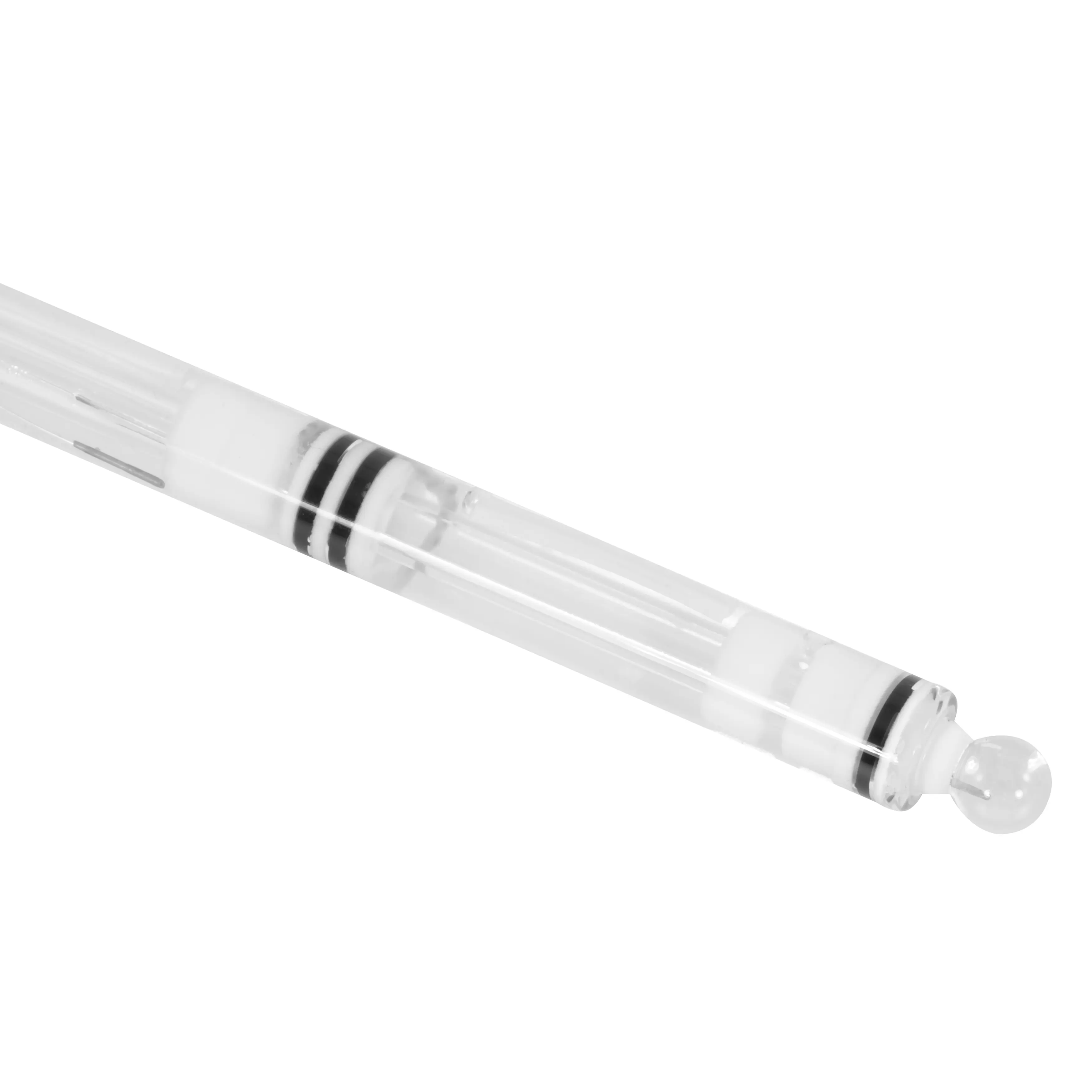

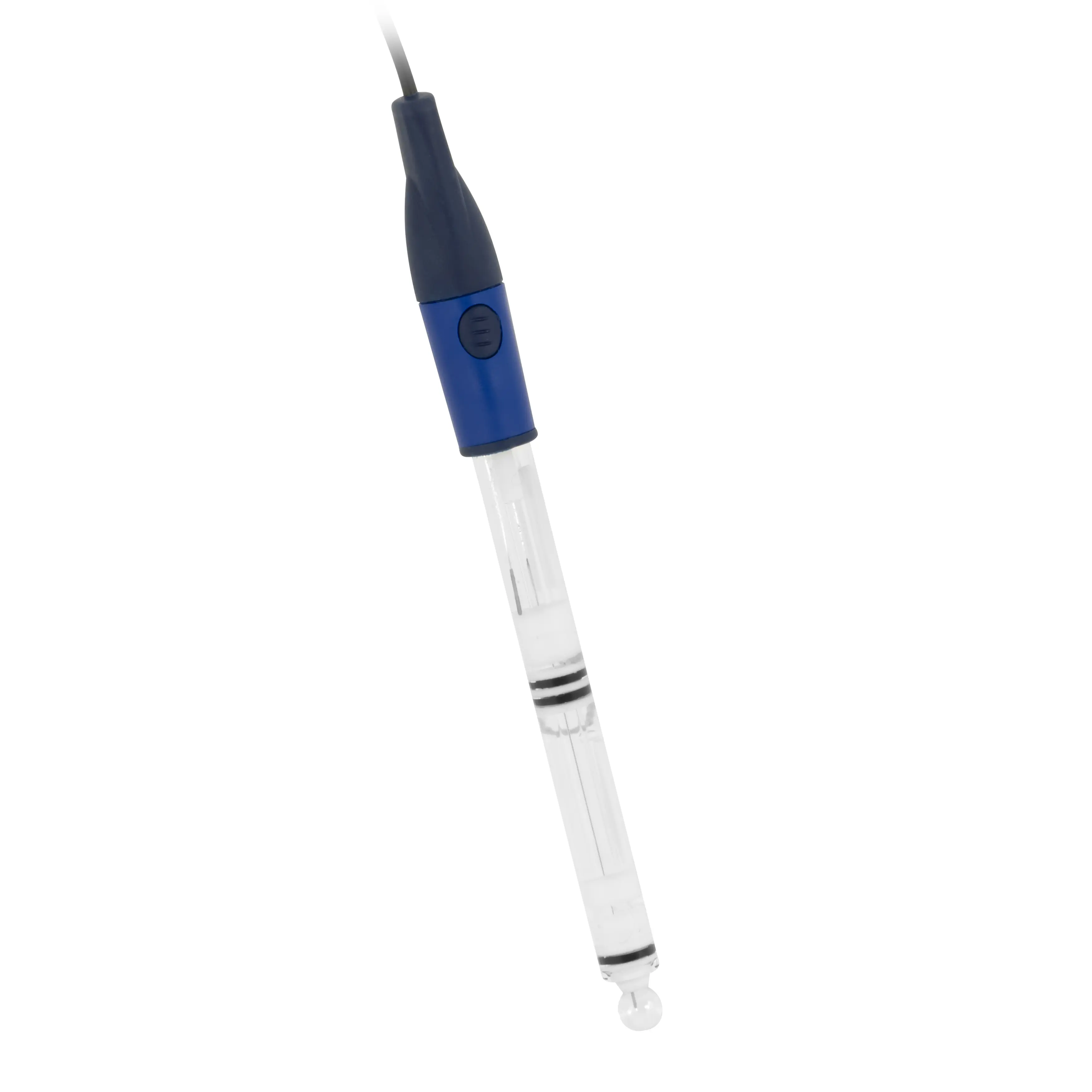

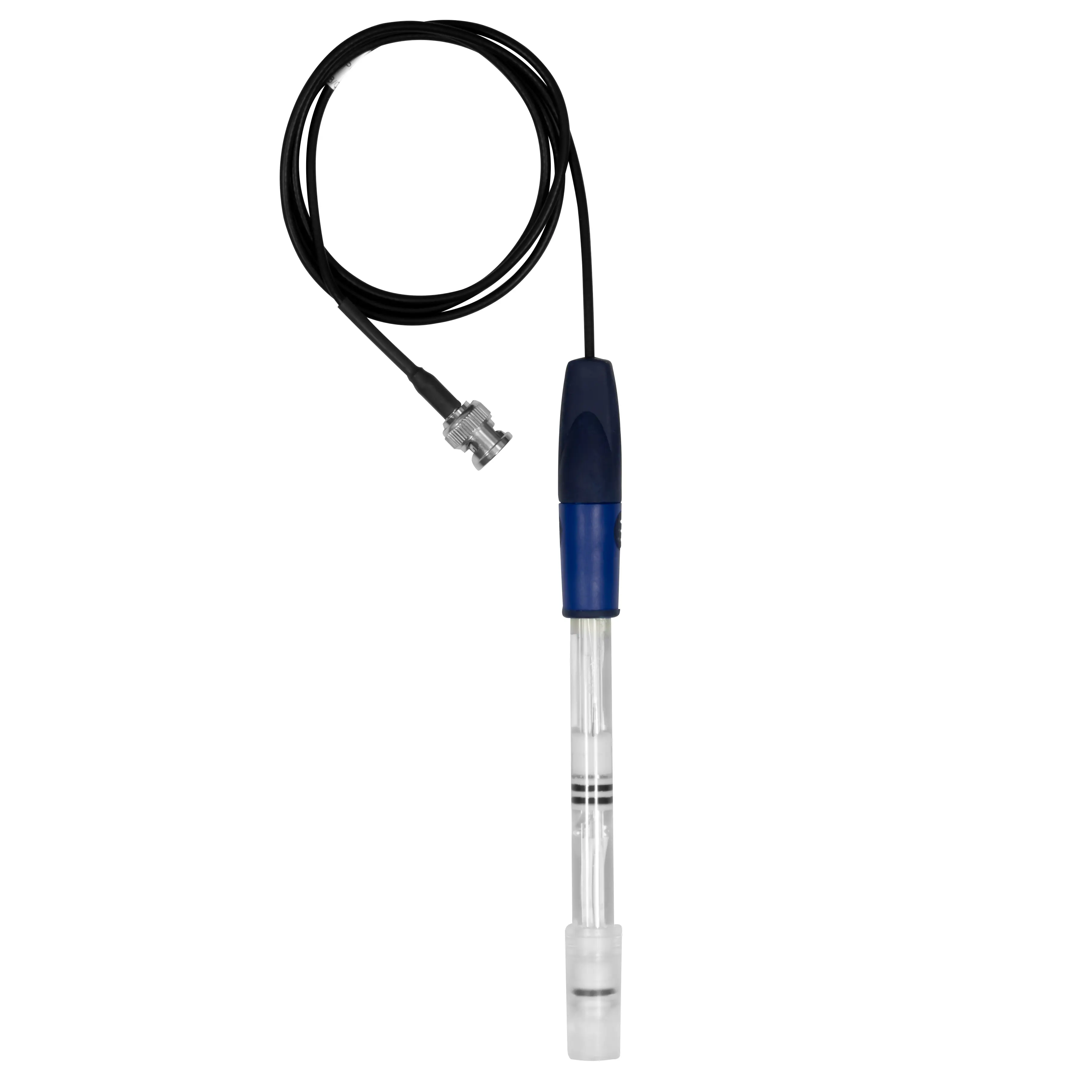

High-temperature pH electrode PCE-PH-LAB-HTE for waste water, sludge

Order no.: PCE-PH-LAB-HTE
GTIN (EAN):
£ 242.00
£ 290.40
price ex. (VAT / delivery)
PCE-PH-LAB-HTE
Delivery time: 5-7 working days

Description

The laboratory pH electrode offers precise and reliable measurements in a wide range of applications. With its robust design and high-quality workmanship, it is ideal for laboratory environments. The electrode impresses with an exact pH measurement in the range of 0 ...14 and can withstand temperatures of up to 130 °C (at the tip).

The porous Teflon connection ensures stability and a long service life, even in demanding samples. Thanks to the glass housing, the electrode is easy to clean and resistant to chemical influences. Applications for this electrode include biotechnology, water and wastewater treatment and general laboratory applications that require precise and reproducible results.

Highlights


  • pH range:
    Precise measurements from 0 ...14 pH
  • Temperature resistance:
    Works reliably at temperatures of up to 130 °C (tip only)
  • Diaphragm:
    Porous Teflon for increased stability and longevity
  • Housing material:
    Robust and easy-to-clean glass
  • Possible applications:
    Versatile use in laboratories, biotechnology and water treatment
  • Design:
    Compact design for precise and easy handling

Specification


pH electrode
Measuring range 0 … 14 pH
Temperature range 0 ... 130 °C
Application Agriculture, waste water, sludge
Reference Ag/AgCl
Electrolyte Gel filled, double junction
Diaphragm Teflon
Tip shape Ball
Media Agressive liquids
Shaft / sensor material Glass
Shaft / sensor lengthTop: 108 mm, Bottom: 12 mm
Shaft / sensor diameter  Top: 12 mm, Bottom: 9 mm
Cable length1 m
Connection BNC
Operating pressure0 ... 10 bar
Overall dimensions190 x 15 x 15 mm
Weight70 g


Delivery Scope

1 x High-temperature pH electrode PCE-PH-LAB-HTE
