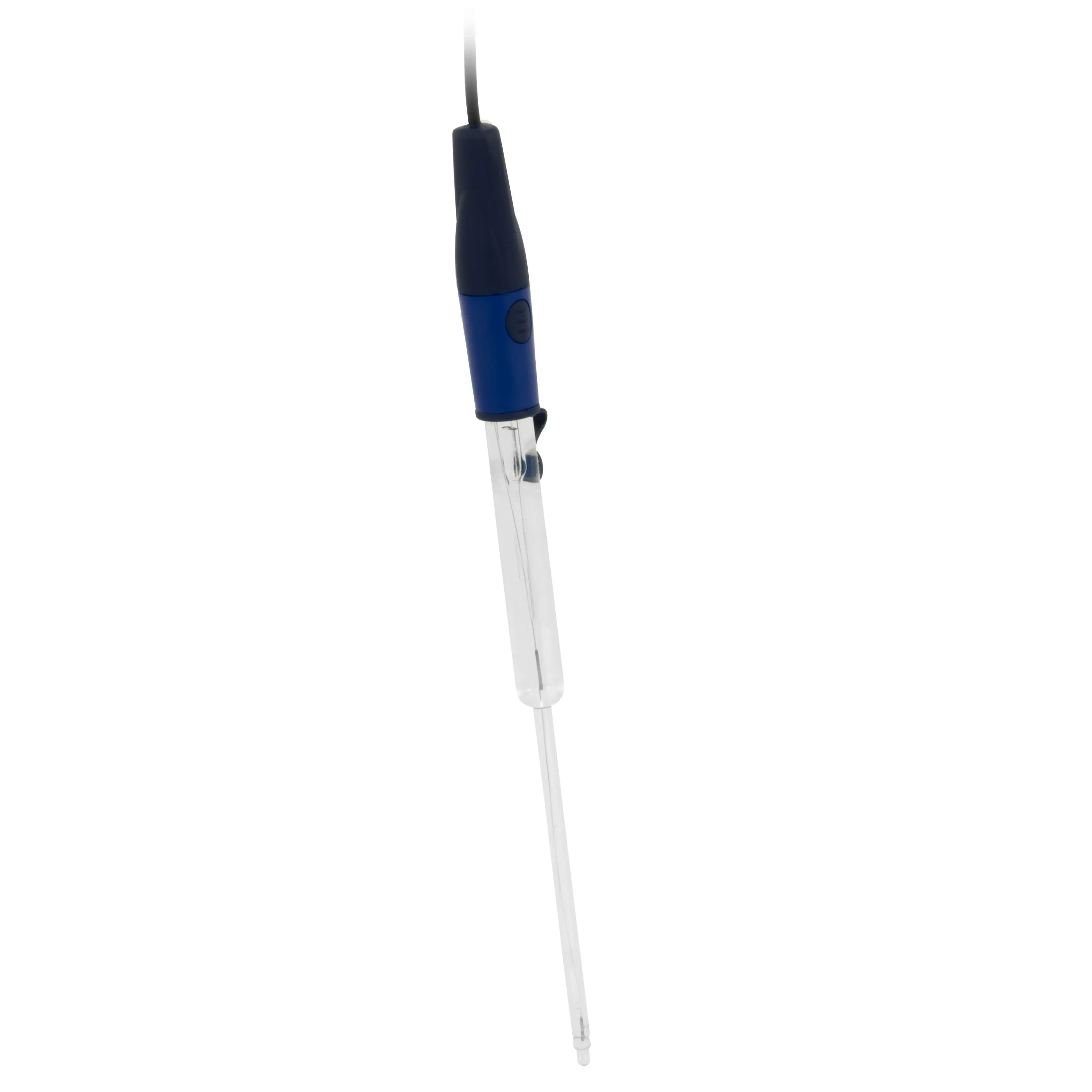

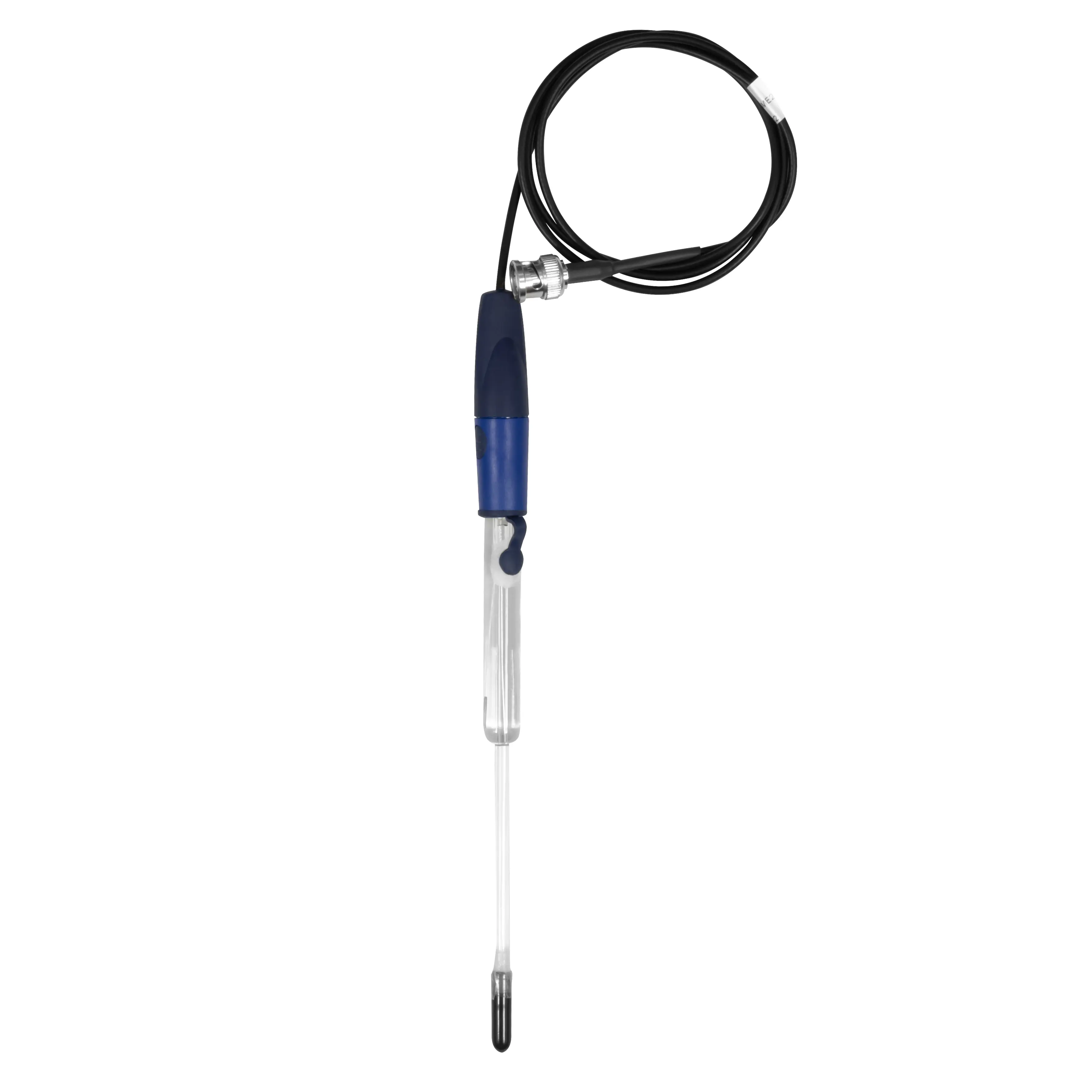

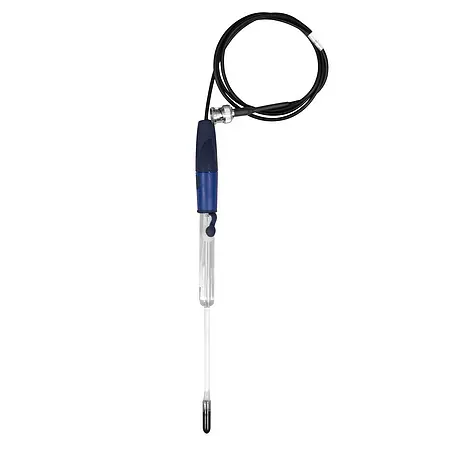

Laboratory pH electrode PCE-PH-LAB-ME3 Biotechnology

Order no.: PCE-PH-LAB-ME3

GTIN (EAN):

Description

The laboratory pH electrode is a high-precision solution for the analysis of semi-microscopic and small-volume samples. With its slim design and deep-fried ceramic connection, it ensures reliable measurement with minimal sample loss. This electrode is versatile, durable and compatible with almost any pH meter, making it the ideal choice for laboratories, biotechnology applications and the food and beverage industry.

Highlights

Deep-fried ceramic connection:
Lower leak rate and lower flow for precise measurements
Slim design:
Ideal for analyzing small and semi-microscopic samples
Refillable probe:
Allows different solutions for different applications, extending the service life
BNC connector:
Compatible with most standard pH meters
Optional extension:
Extra-long shaft (180 mm) for hard-to-reach places
Wide range of applications:
Suitable for biotechnology, blood products, food and beverage analysis and laboratory applications.

Specification


pH electrode
Measuring range	0 … 14 pH
Temperature range	0 ... 100 °C
Application	Biotechnology, beverage analysis, food
Reference	Ag/AgCl
Electrolyte	Gel filled, double junction
Diaphragm	Ceramic

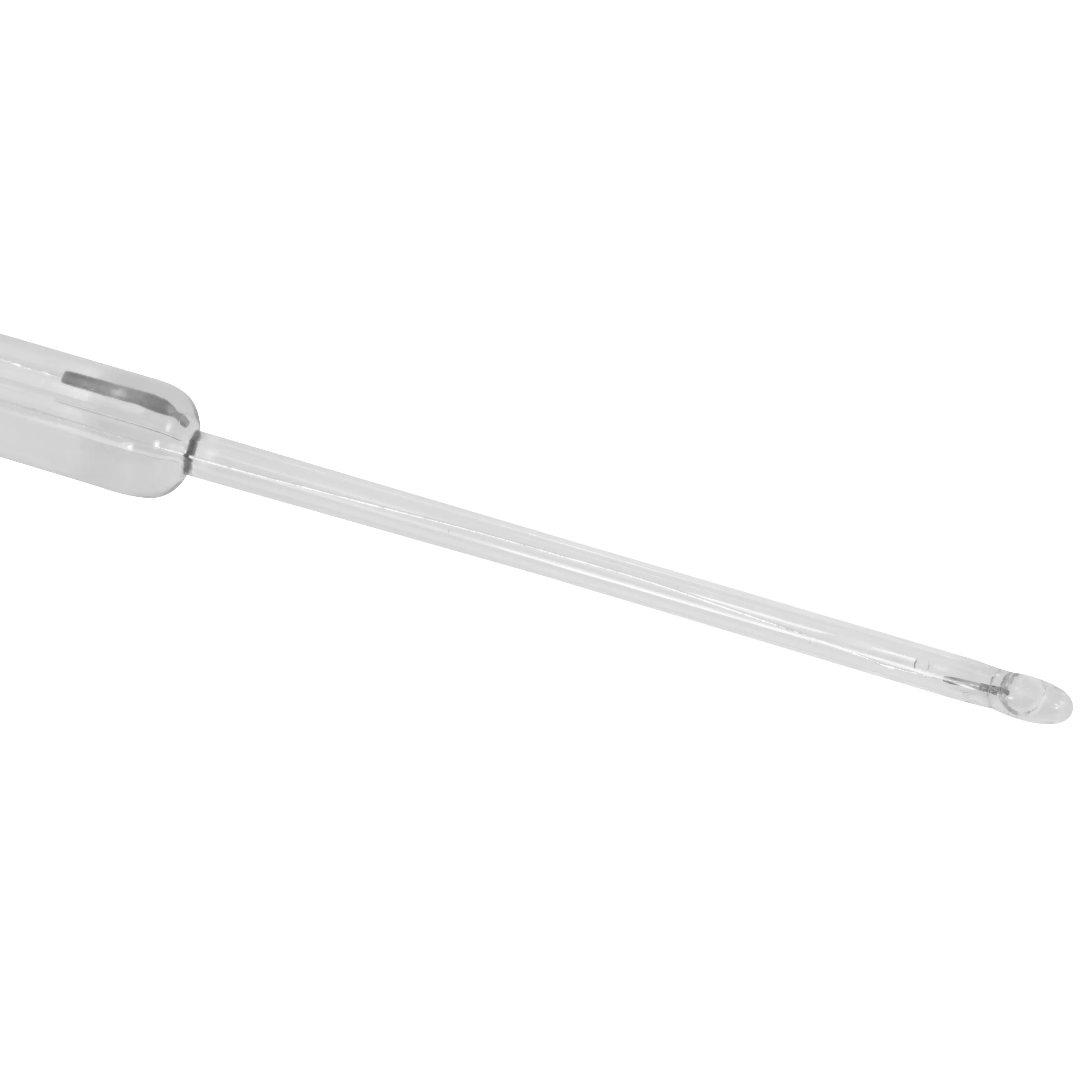

Tip shape	Ball
Media	Beer, blood, dairy products
Shaft / sensor material	Glass
Shaft / sensor length	Top: 75 mm, Bottom: 90 mm
Shaft / sensor diameter	Top: 12 mm, Bottom: 3 mm
Cable length	1 m
Connection	BNC
Operating pressure	atmospheric
Weight	70 g

Delivery Scope

1 x Laboratory pH electrode PCE-PH-LAB-ME3
