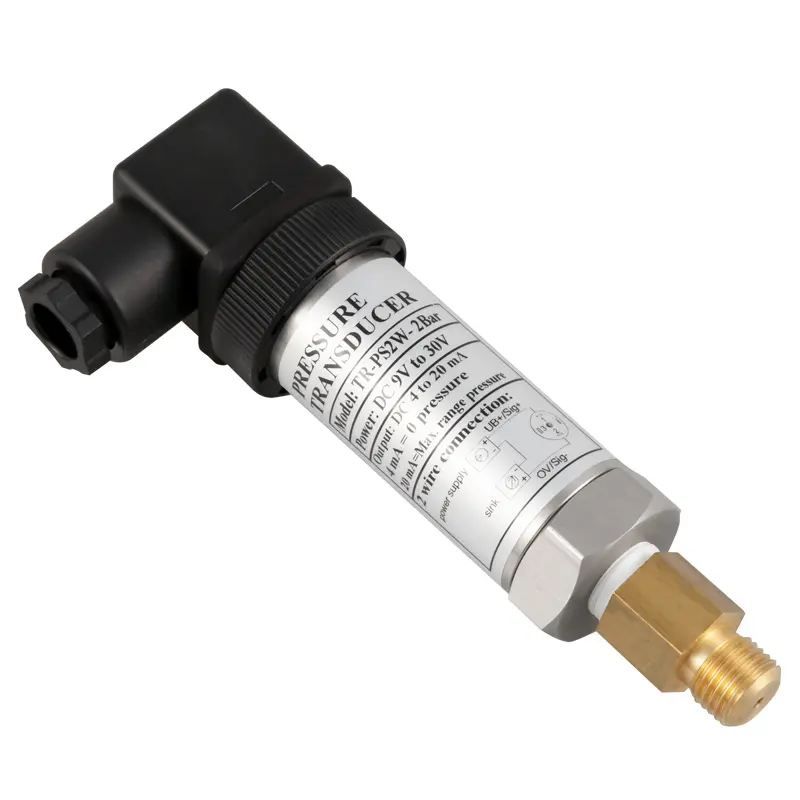

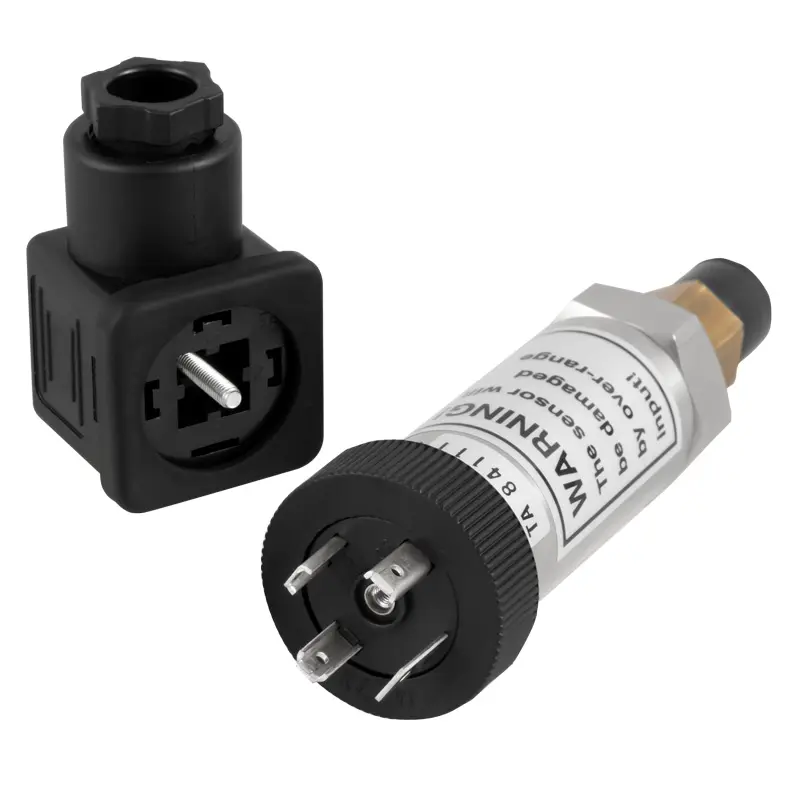

| TR-PS2W-2BAR | |
| Measuring range | Resolution |
| 0 ... 2 bar | 0.002 bar |
| 0 ... 29 PSI | 0.02 PSI |
| 0 ... 2.040 kg / cm² | 0.002 kg / cm² |
| 0 ... 1500 mm Hg | 2 mm Hg |
| 0 ... 59.05 inch Hg | 0.05 inch Hg |
| 0 ... 20.40 meters H20 | 0.02 meter H20 |
| 0 ... 802 inch H20 | 1 inch H20 |
| 0 ... 1.974 ATP | 0.002 ATP |
| 0 ... 200 kPa | 0.2 kPa |
| Exit | 4 to 20-mA DC |
| 4-mA | = normal pressure |
| 20-mA | = maximum pressure |
| Precision pressure sensor made of ceramic | |
| Linearity output signal | ± 1% FS |
| Zero Offset | ± 2% FS |
| Operating temperature | -20 ... 80°C / -4 ... 176°F |
| Ambient humidity | 80% RH |
| Size | Ø 30 mm x 85 mm |
| Weight | 160 g / < 1 lb |
